Air Conditioning System

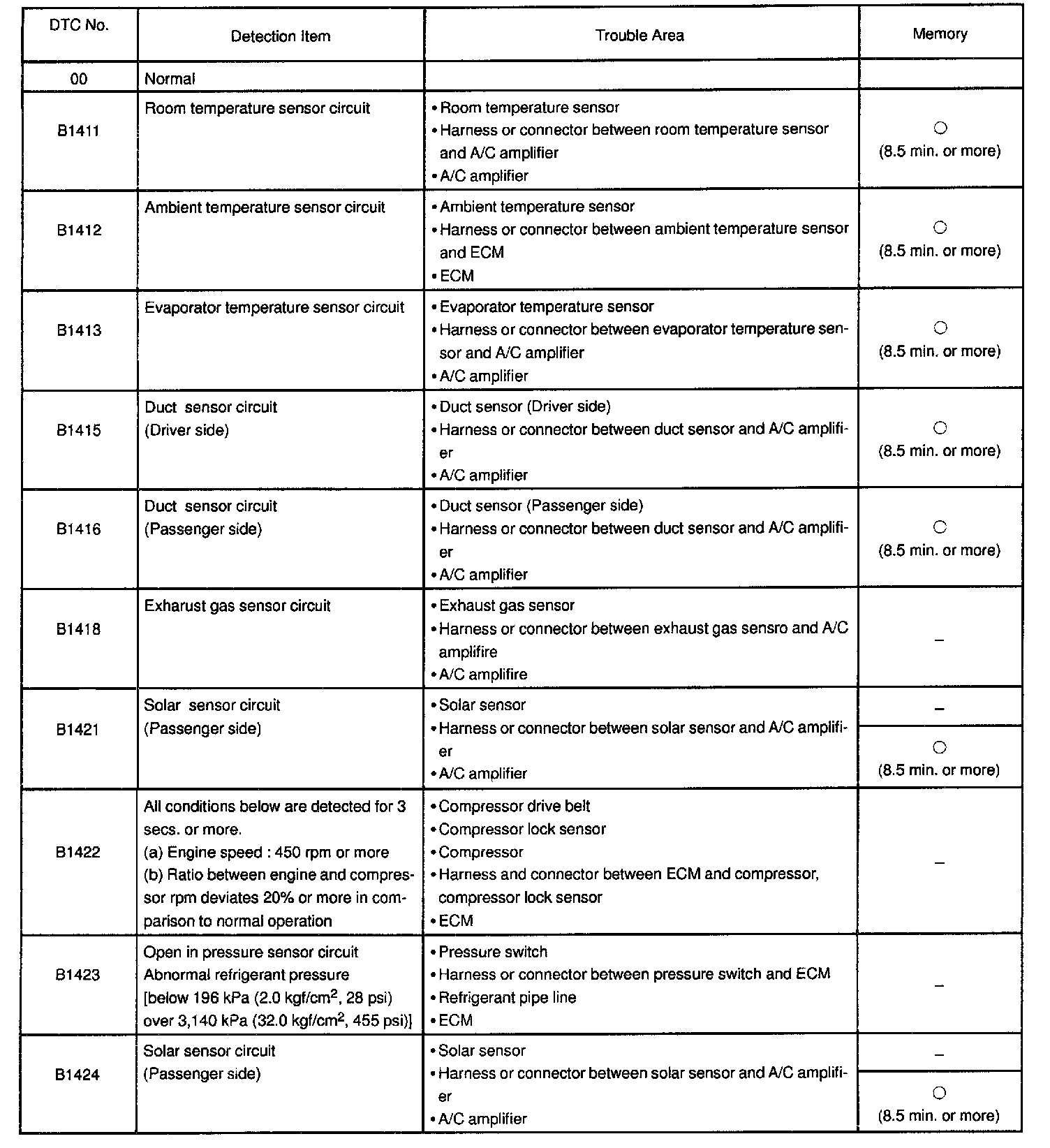

Detection Item (Part 1 Of 2):

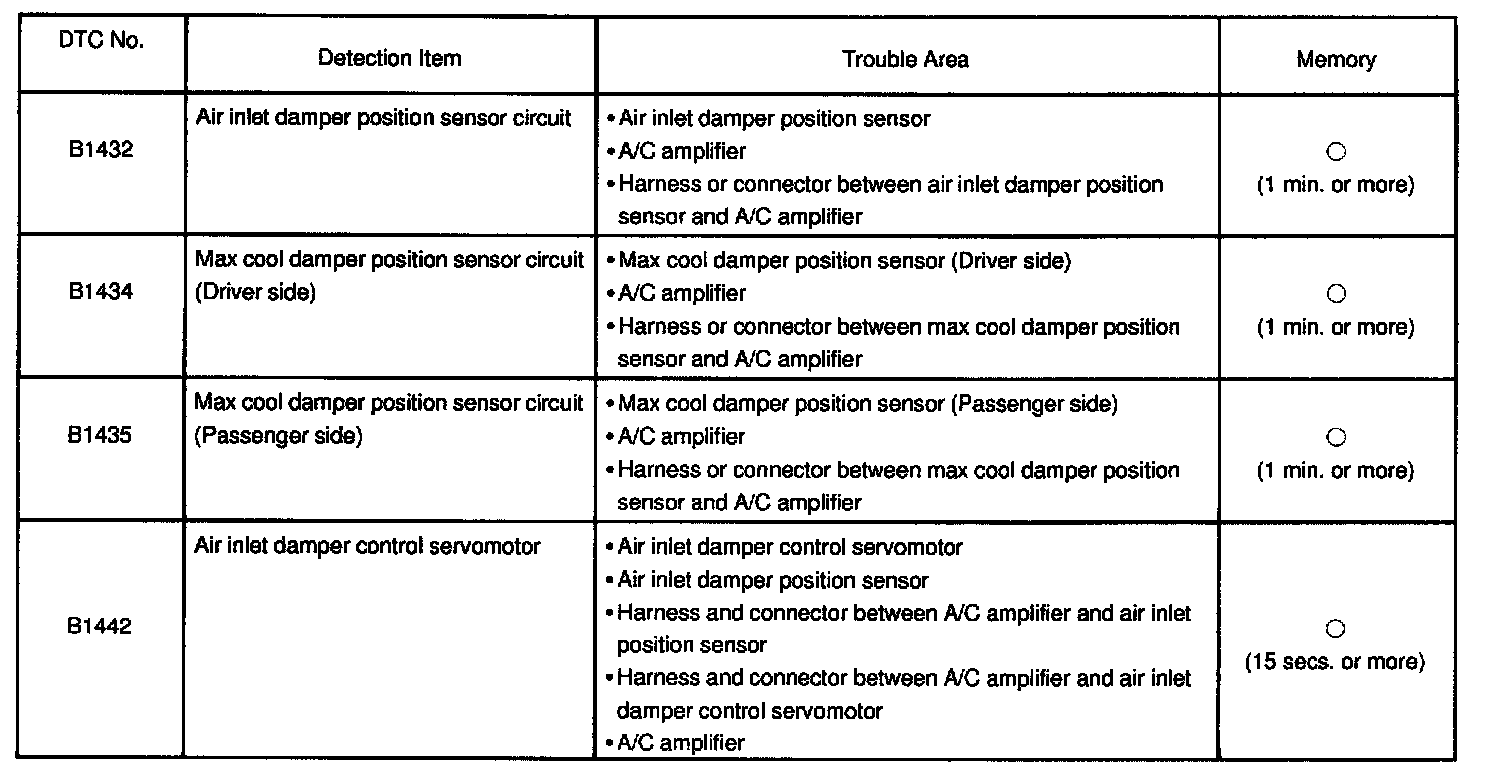

Detection Item (Part 2 Of 2):

If malfunction code is displayed during the diagnostic trouble code check (sensor check), check the circuit listed for that code in the table (Proceed to the appropriate DTC given for that circuit).
