C1202

CIRCUIT DESCRIPTION
The brake fluid level warning switch sends the appropriate signal to the ECU when the brake fluid level drops.

HINT: Depress the parking brake pedal also turns on the brake warning light but does not diagnose DTC No. C1202/52.

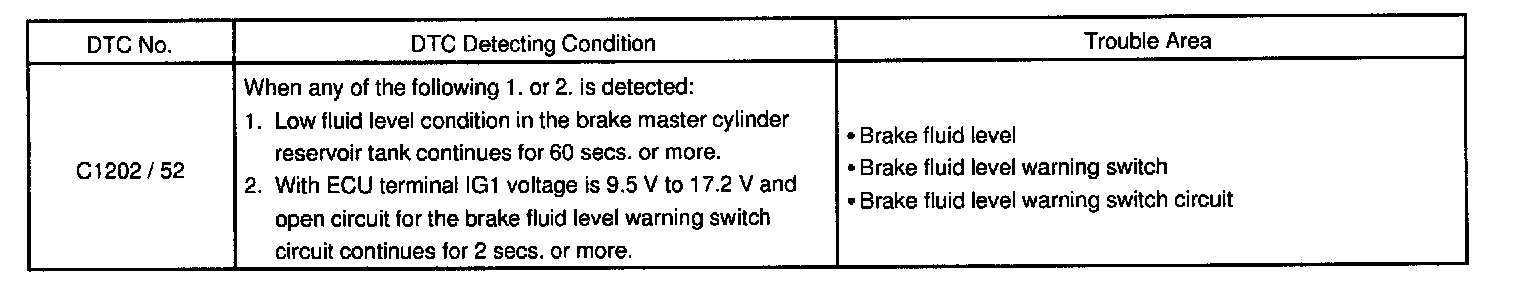

DETECTING CONDITIONS




WIRING DIAGRAM

Step 1:

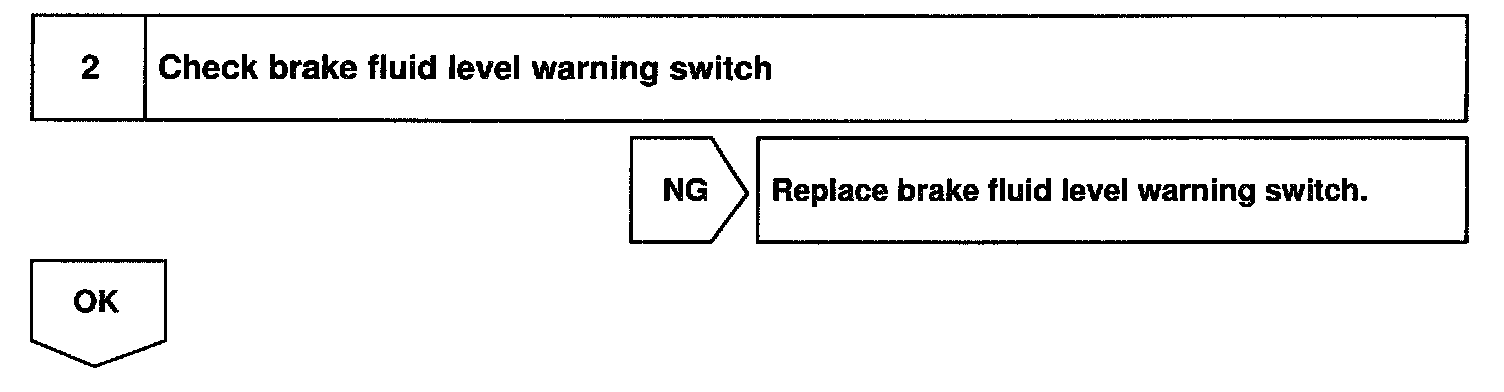

Step 2:

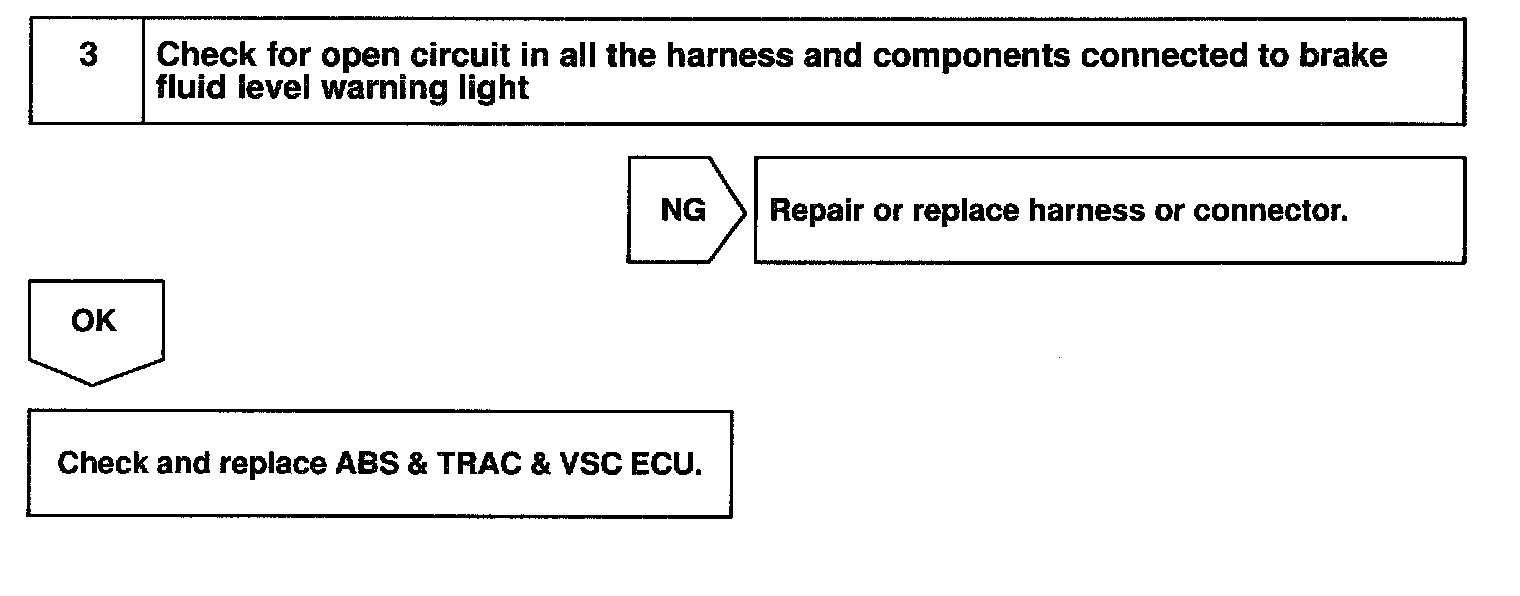

Step 3:

INSPECTION PROCEDURE
