B2604

CIRCUIT DESCRIPTION
The different voltage value is input to tilt and telescopic ECU by operating the manual switch. Then tilt and telescopic ECU judges which direction the mirror should be moved based on the voltage value.

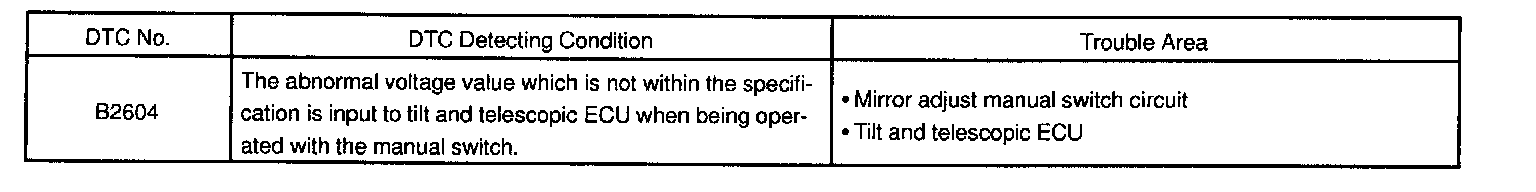

DETECTING CONDITIONS

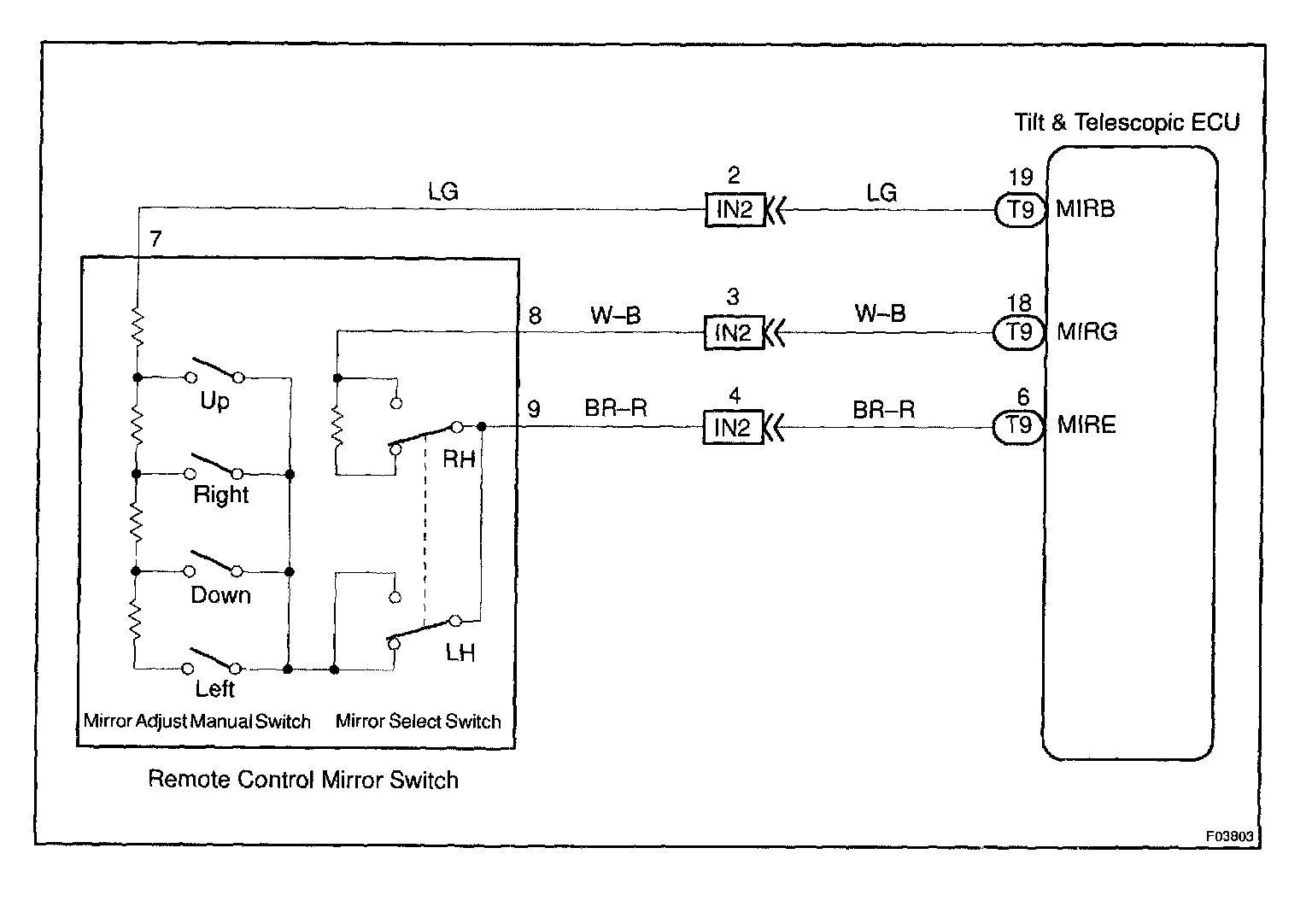

WIRING DIAGRAM

Step 1:

INSPECTION PROCEDURE
