B1434 - Max. Cool Damper Position Sensor Circuit (Driver Side)

CIRCUIT DESCRIPTION




This sensor detects the position of the max. cool damper and sends the appropriate signals to the A/C control assembly. The position sensor is built into the max. cool damper control servomotor assembly.

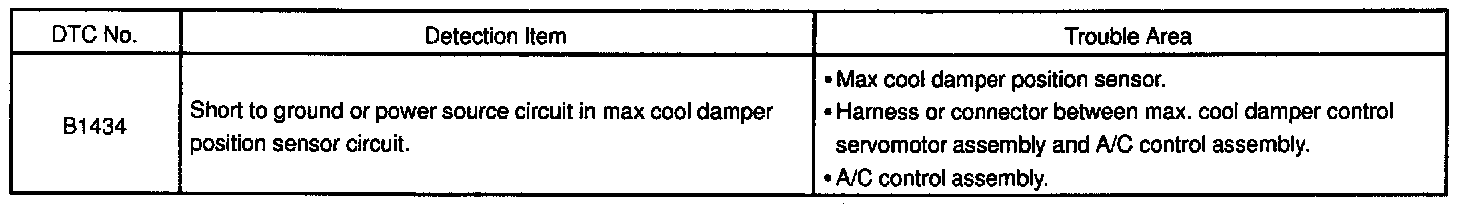

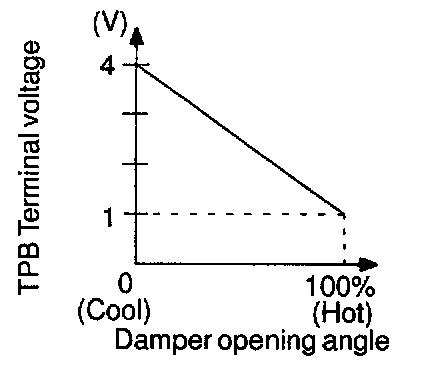

Detection Item:

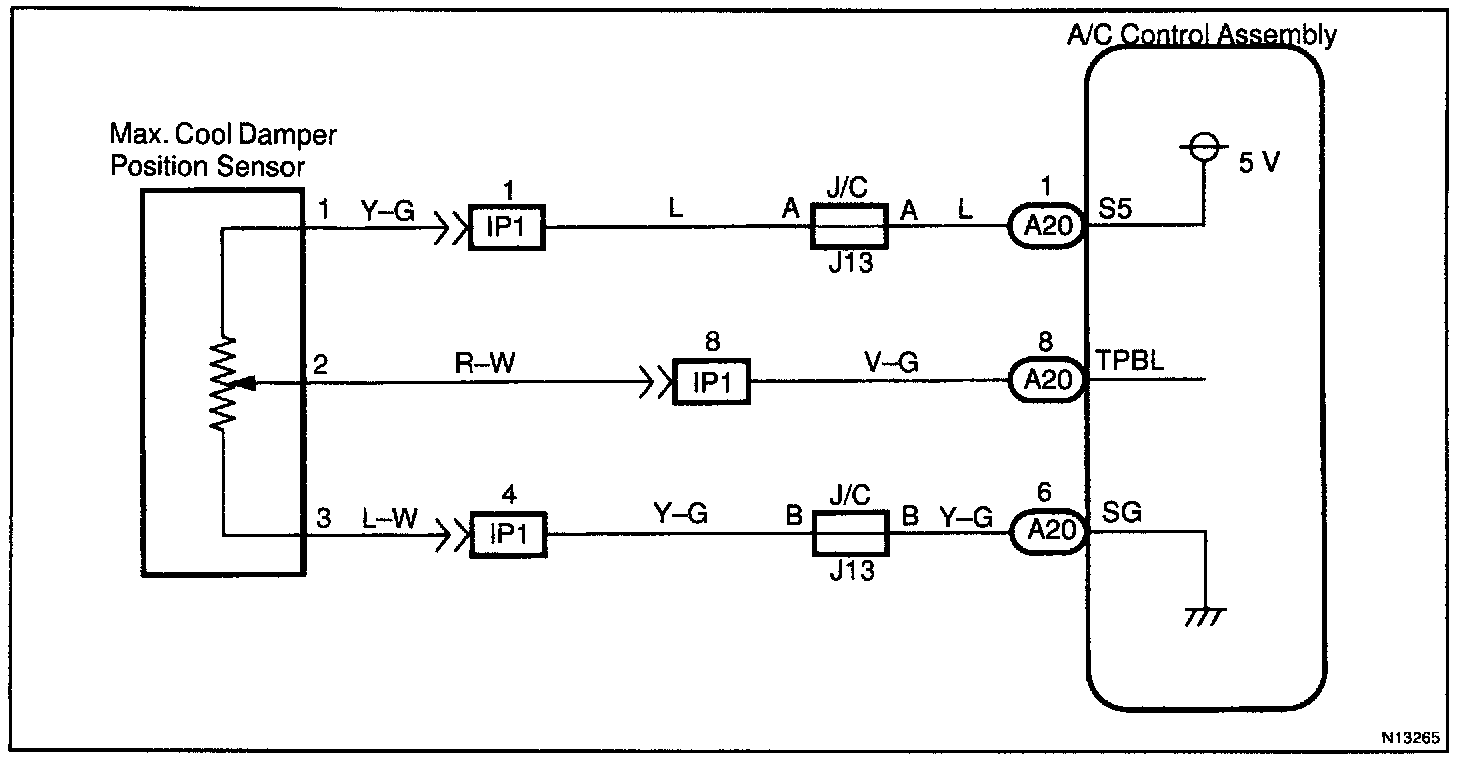

Wiring Diagram:

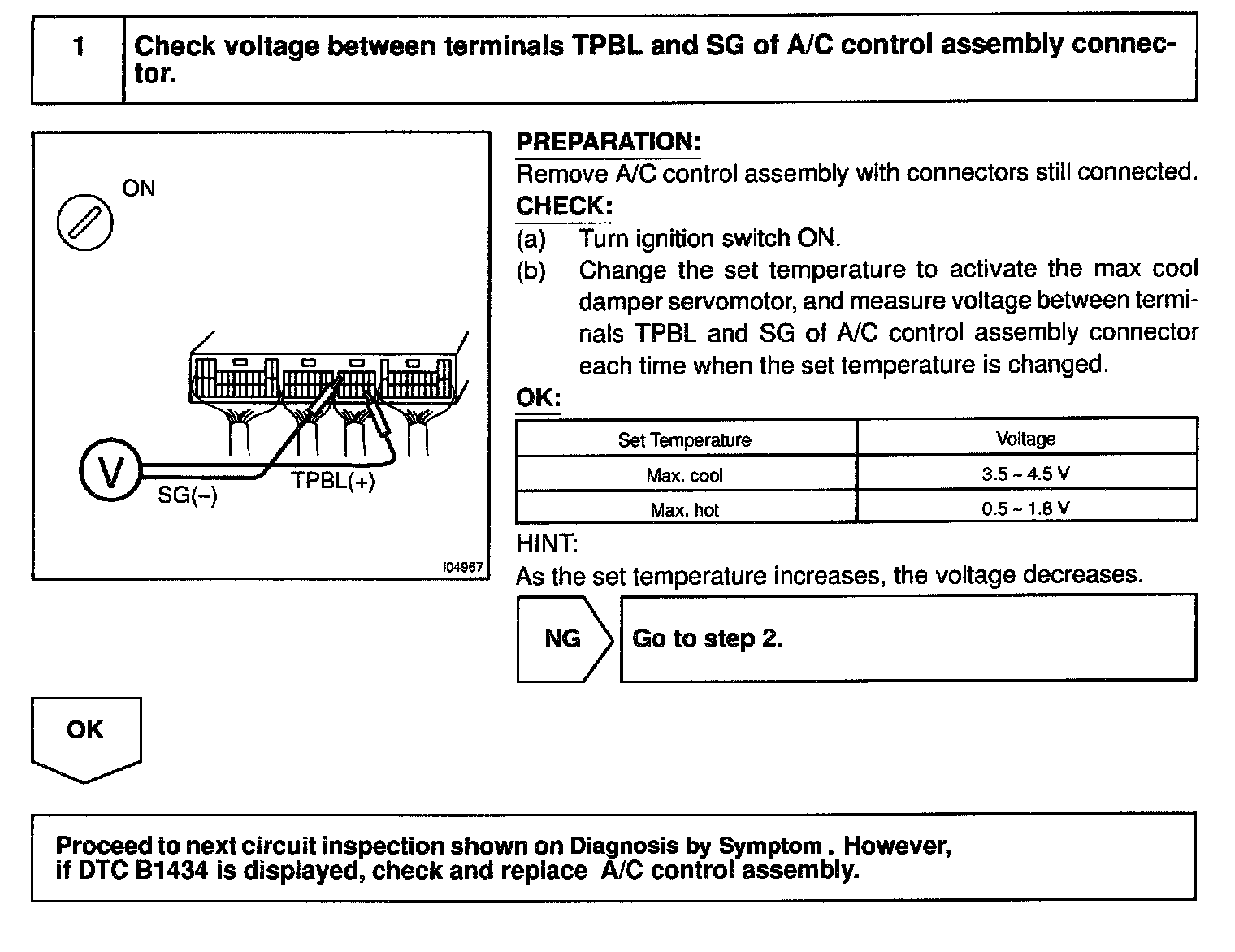

Step 1:

Steps 2 - 3:

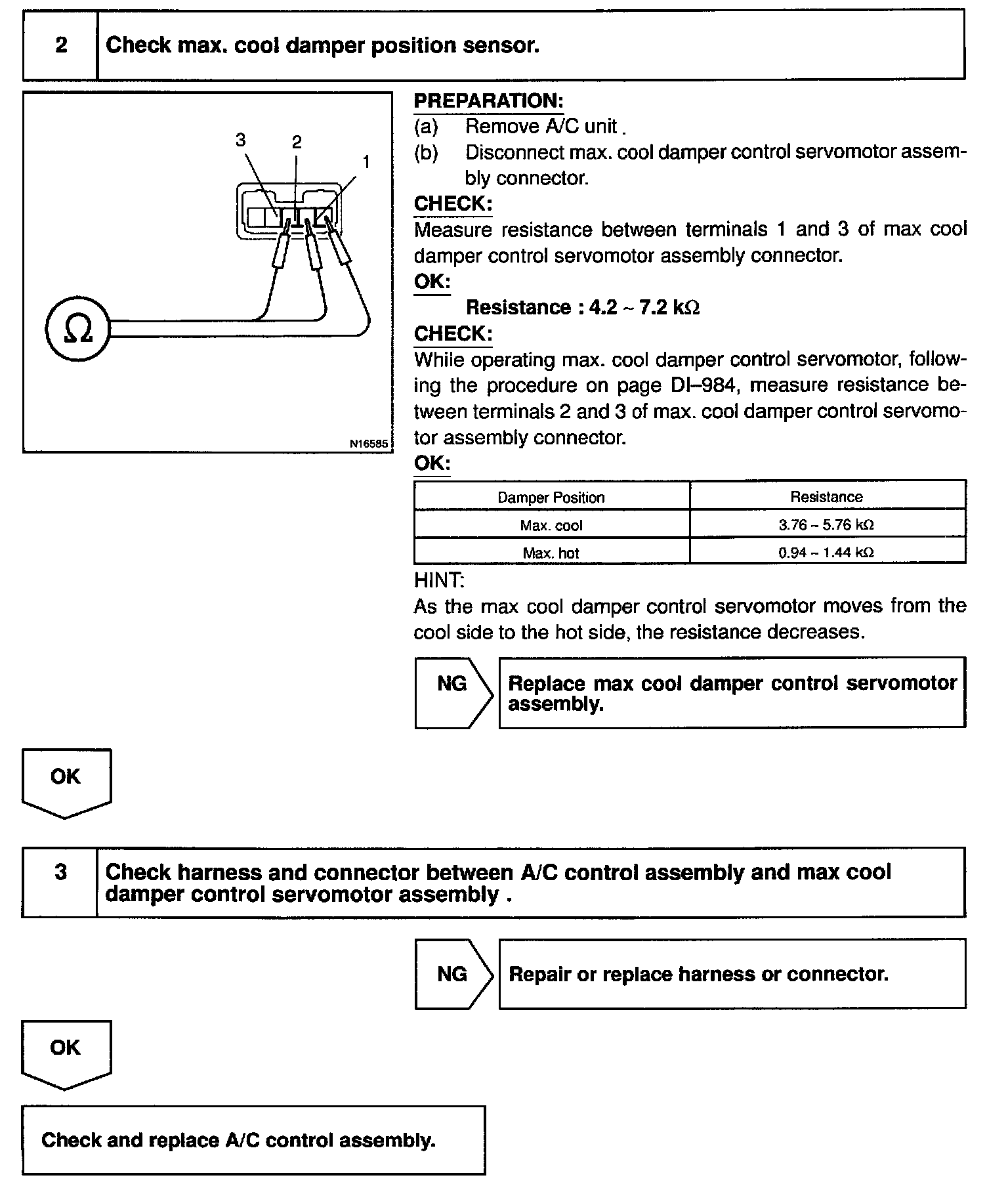

INSPECTION PROCEDURE
