B1424

B1424 - 24 Solar Sensor Circuit (Driver Side)

CIRCUIT DESCRIPTION




A photo diode in the solar sensor detects solar radiation and sends signals to the A/C control assembly.

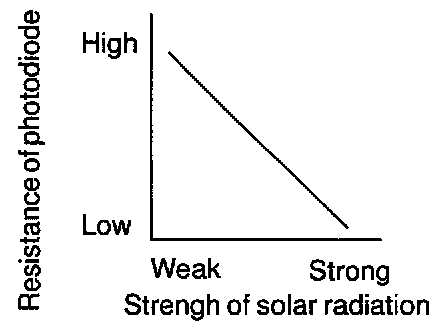

Detection Item:

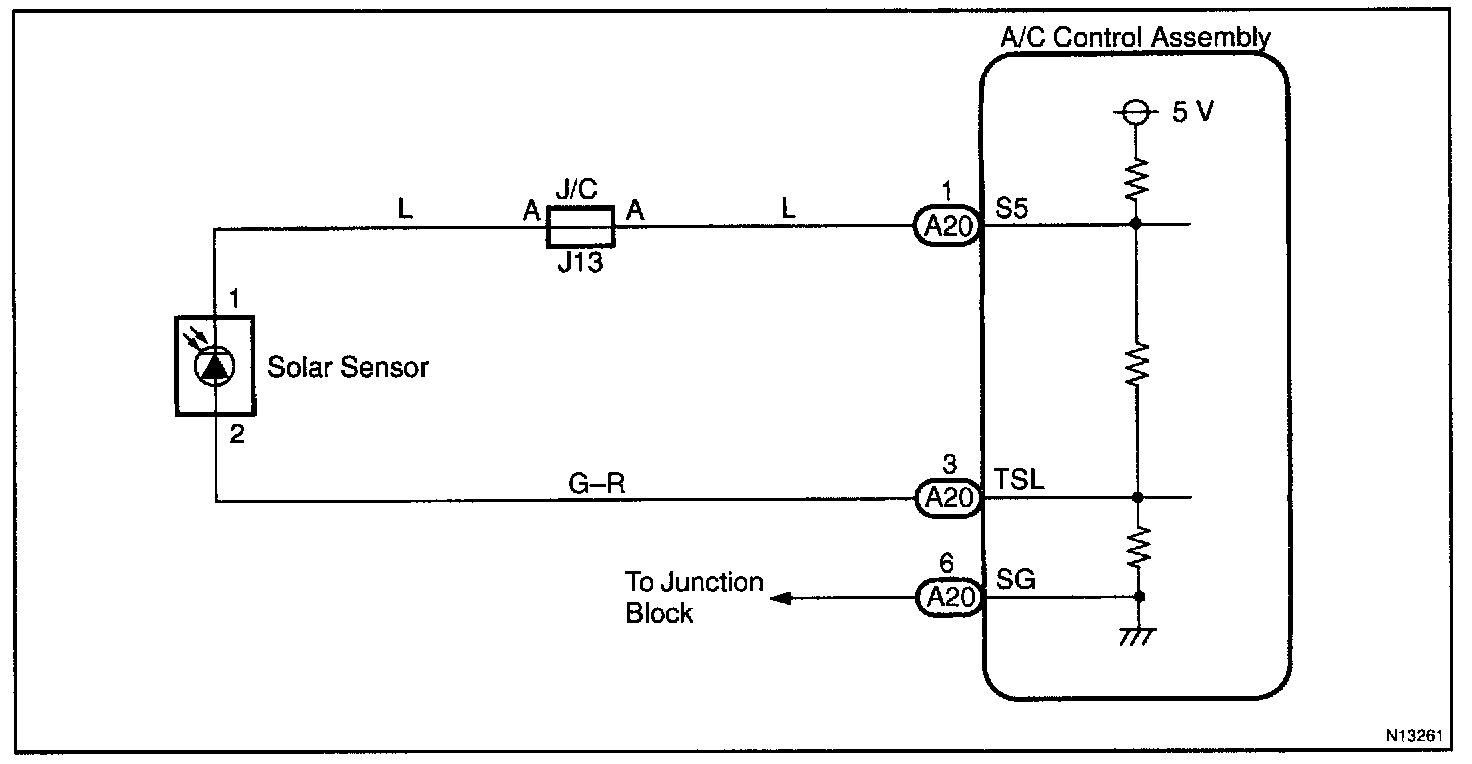

Wiring Diagram:

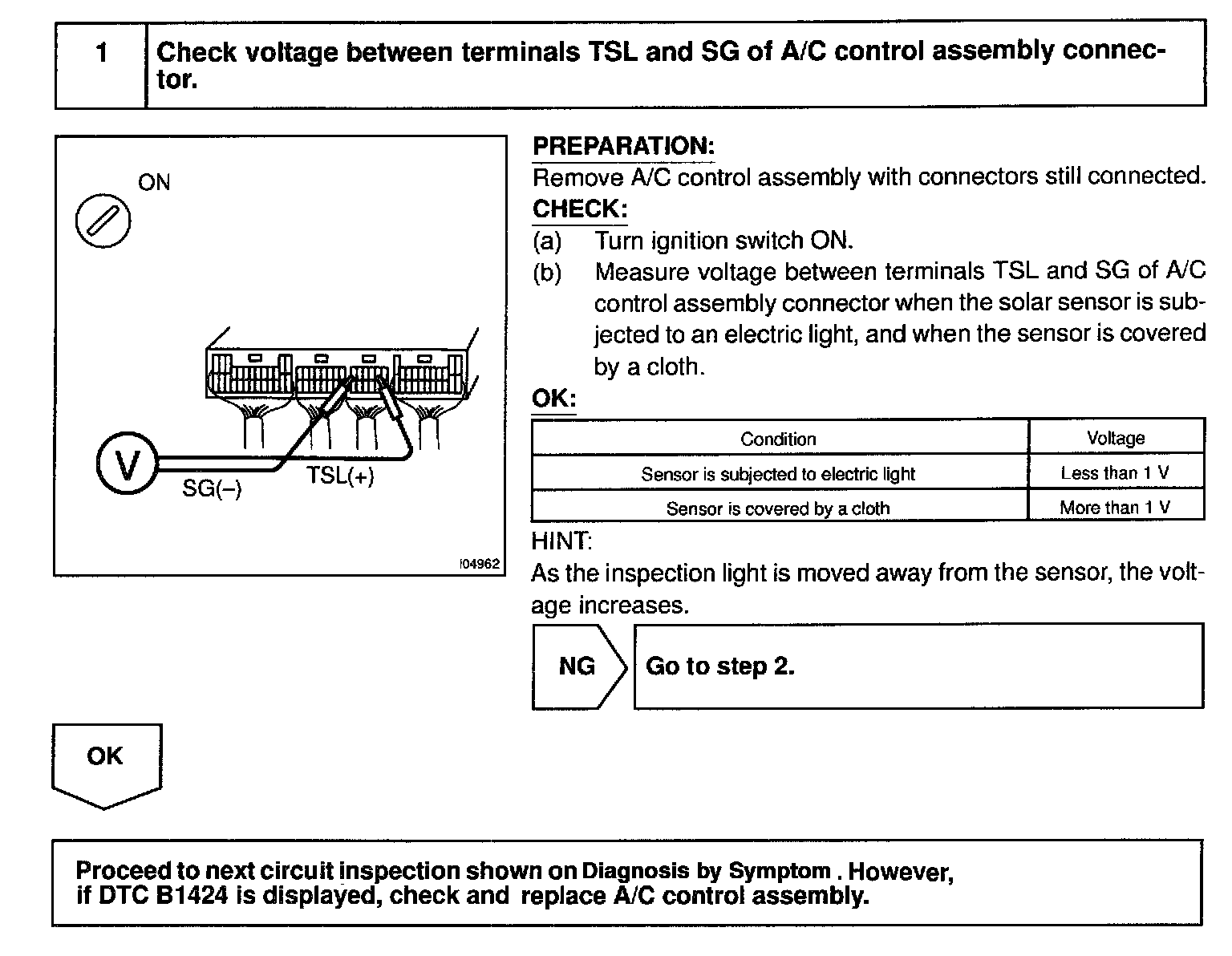

Step 1:

Steps 2 - 3:

INSPECTION PROCEDURE
