B1416

B1416 - Air Duct Sensor Circuit (Passenger Side)

CIRCUIT DESCRIPTION
This sensor detects the temperature inside and sends the appropriate signals to the A/C control assembly.

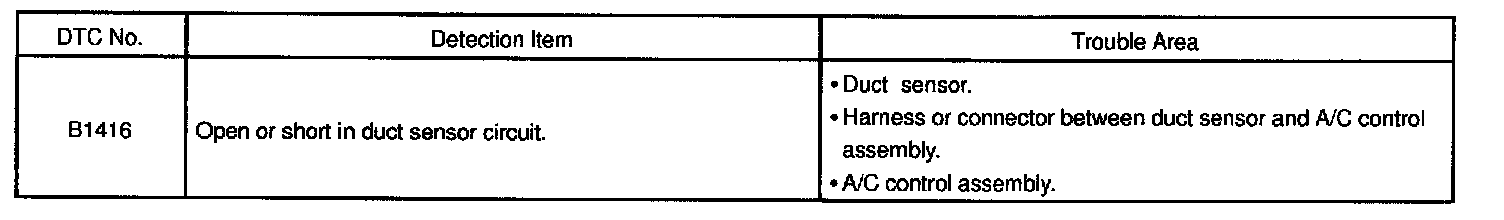

Detection Item:

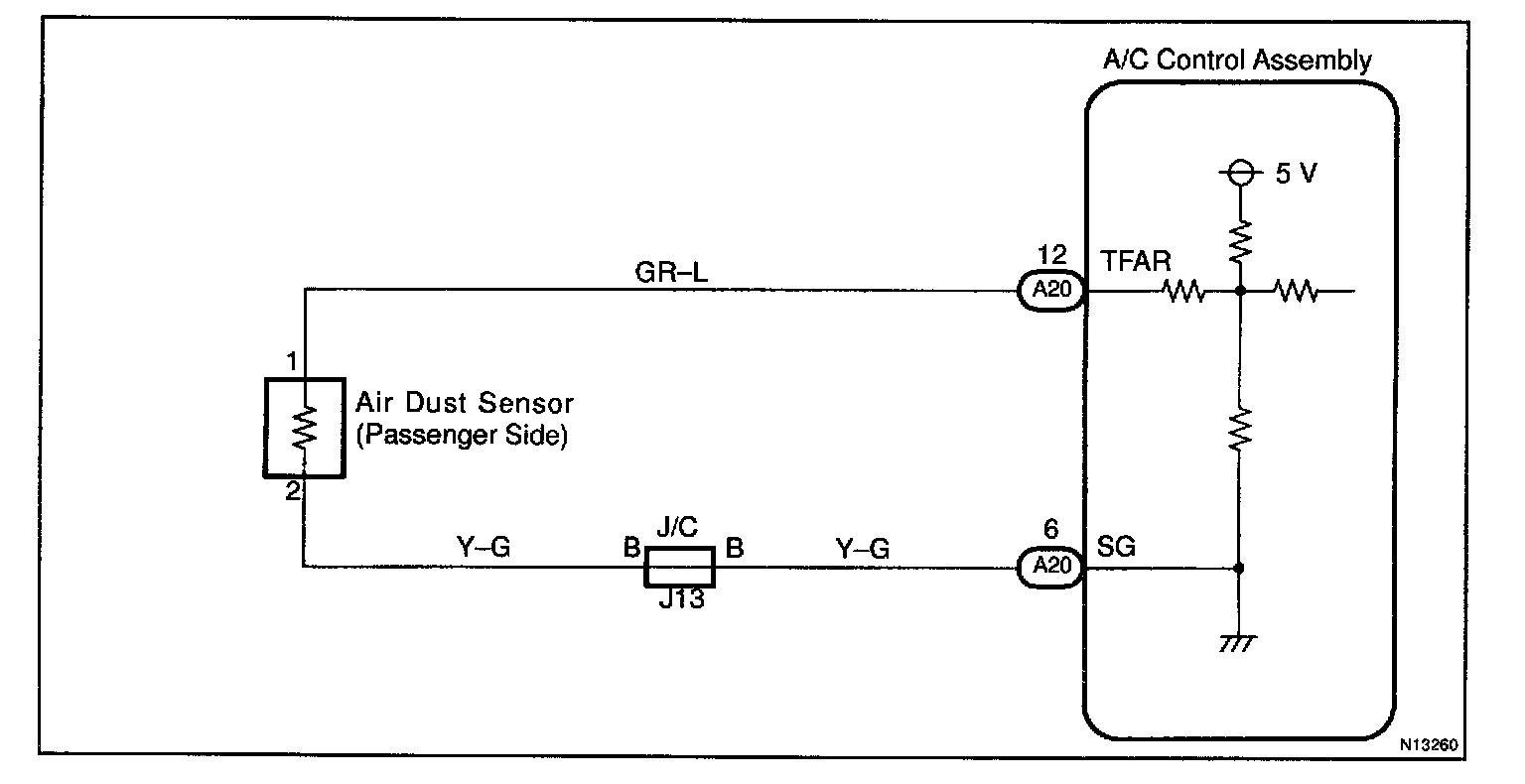

Wiring Diagram:

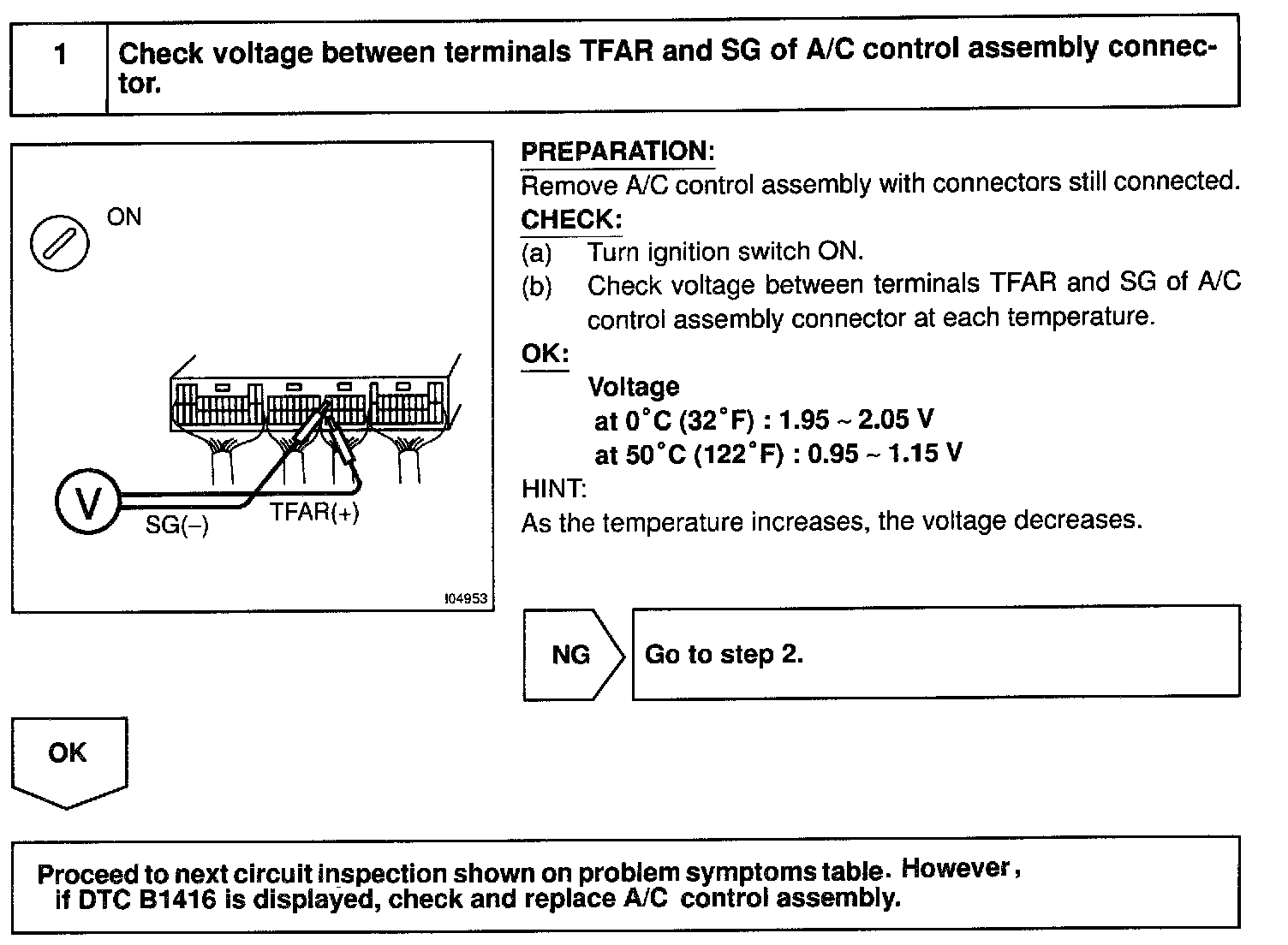

Step 1:

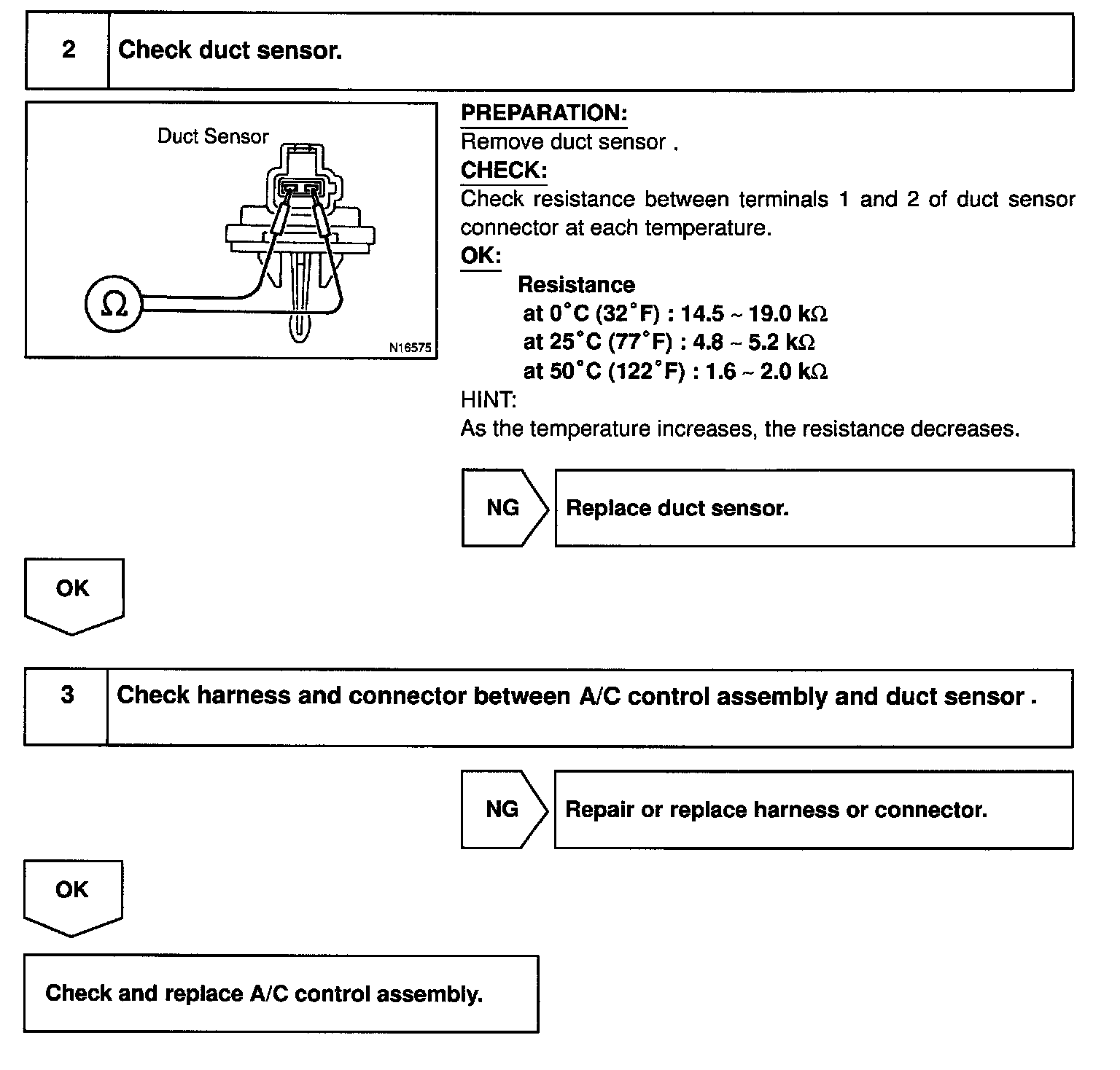

Steps 2 - 3:

INSPECTION PROCEDURE
