B1415

B1415 - Air Duct Sensor Circuit (Driver Side)

CIRCUIT DESCRIPTION
This sensor detects the temperature inside the cabin and sends the appropriate signals to the A/C control assembly.

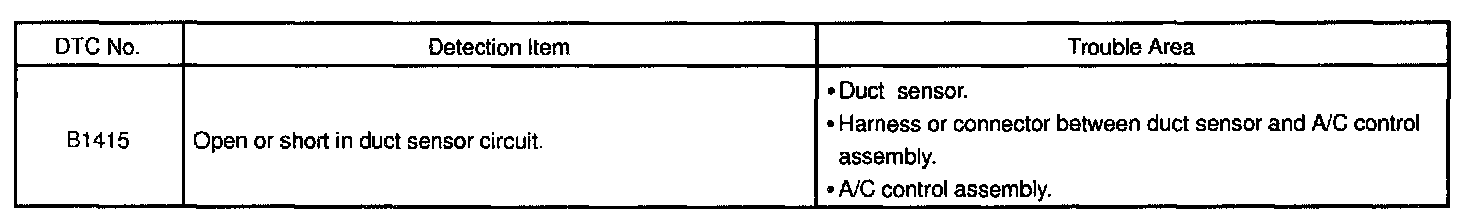

Detection Item:

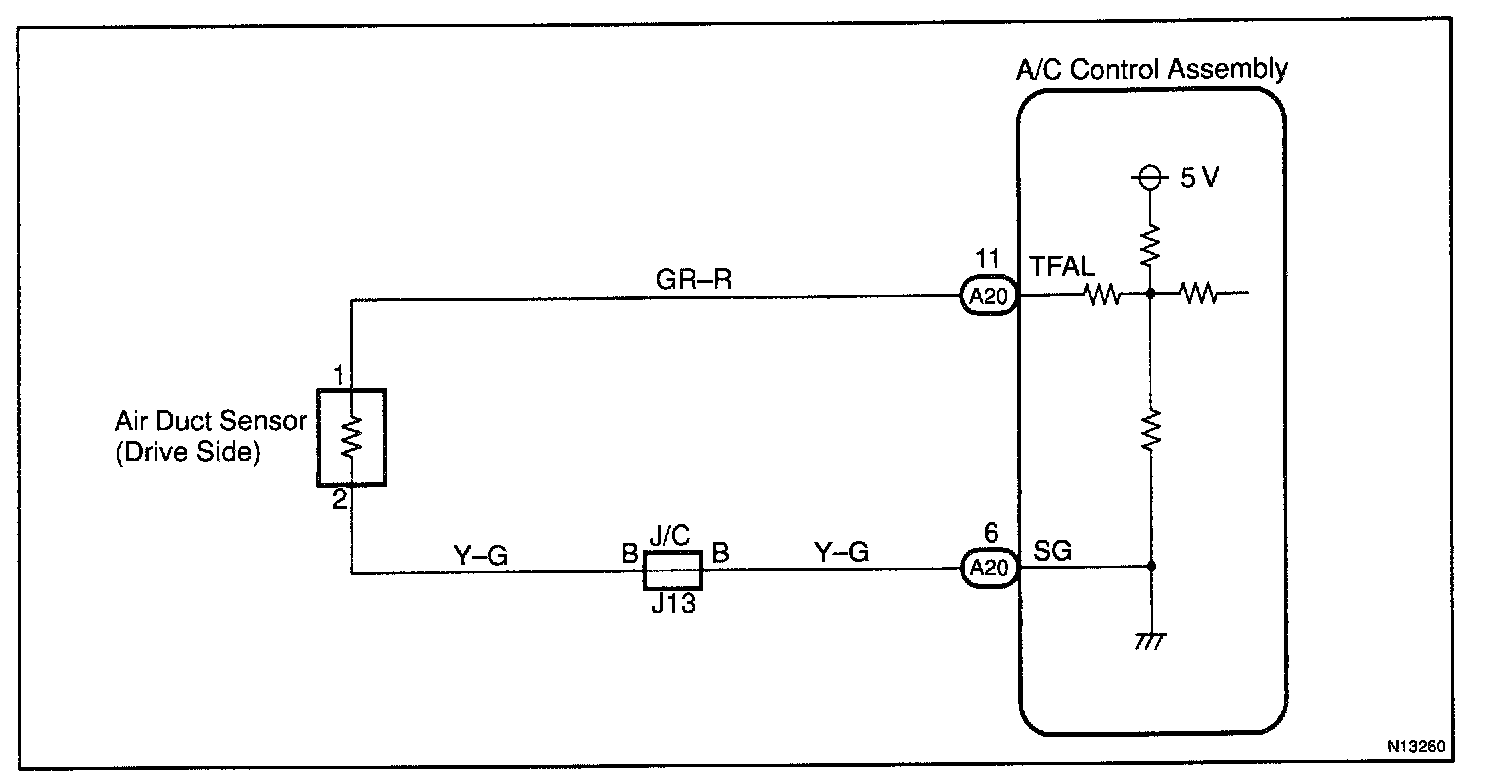

Wiring Diagram:

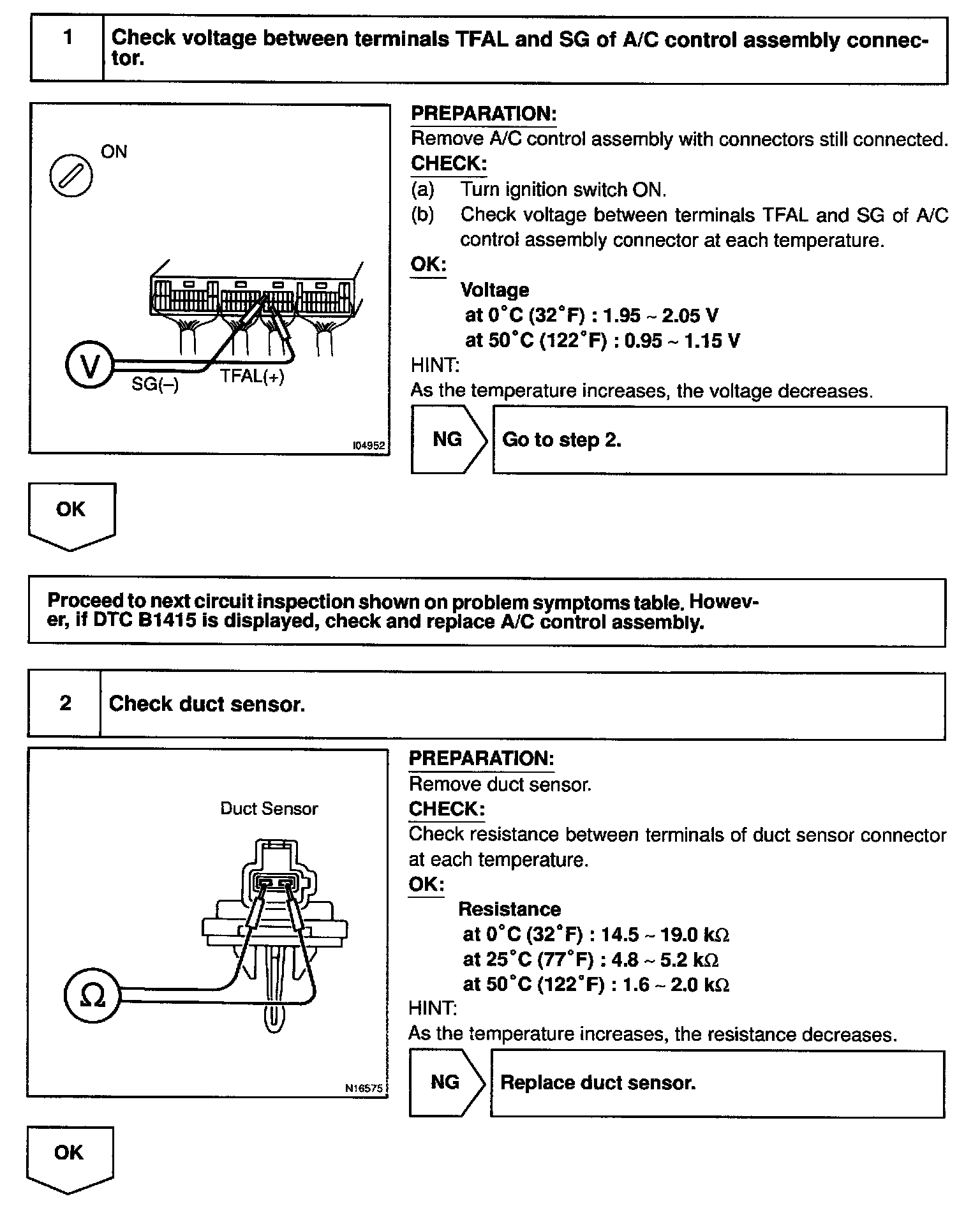

Steps 1 - 2:

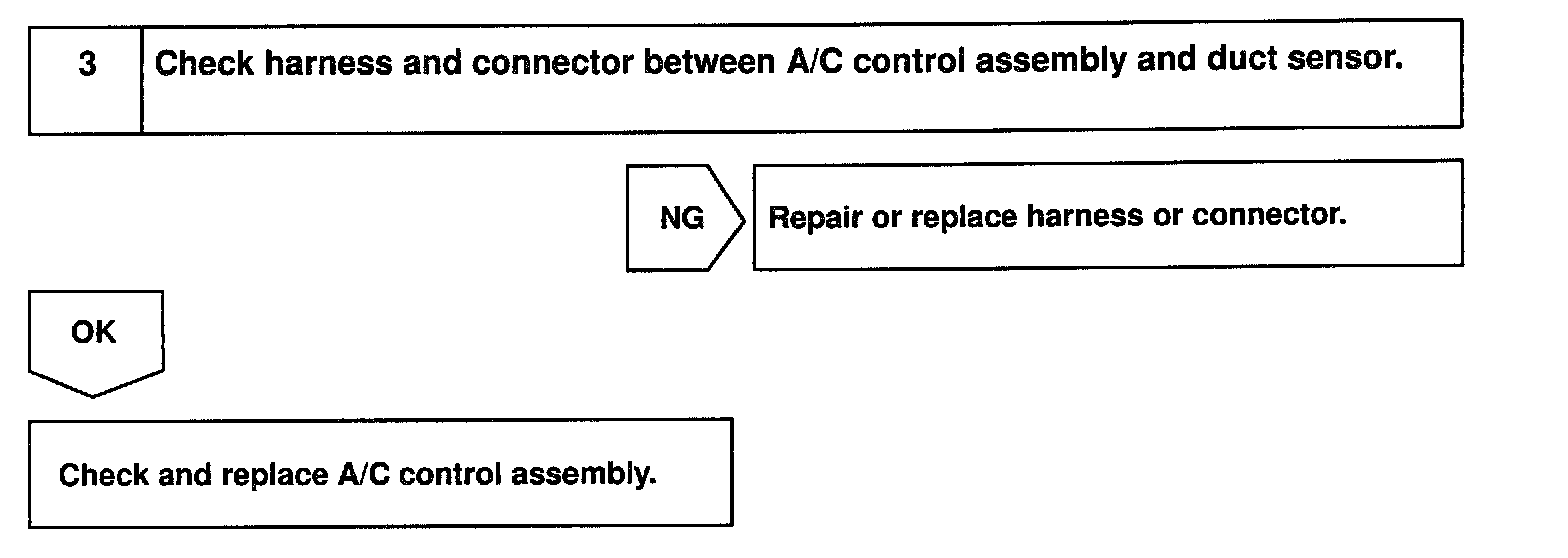

Step 3:

INSPECTION PROCEDURE
