B1216

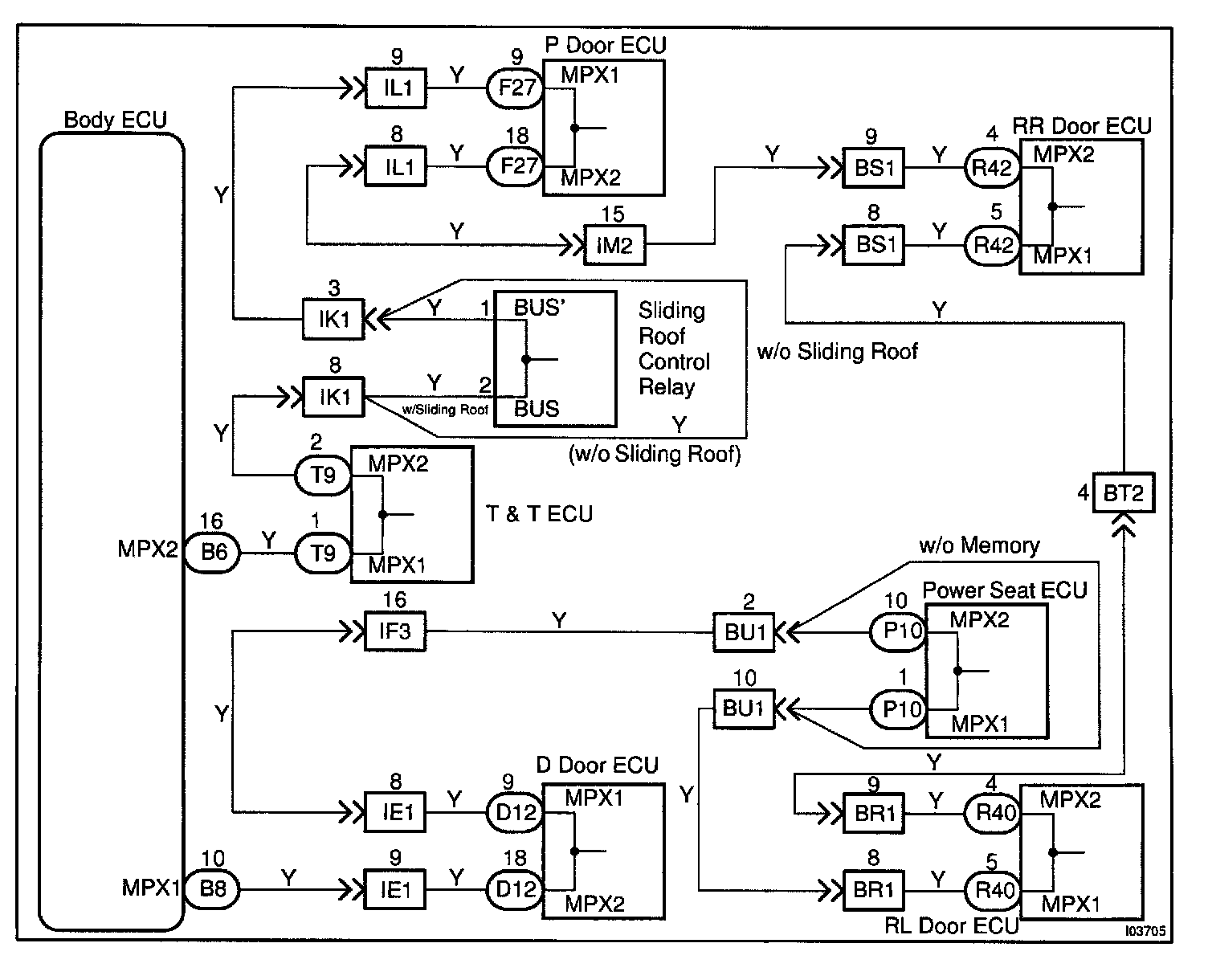

+CIRCUIT DESCRIPTION
This DTC is output when communication stops between rear right door ECU and body ECU.

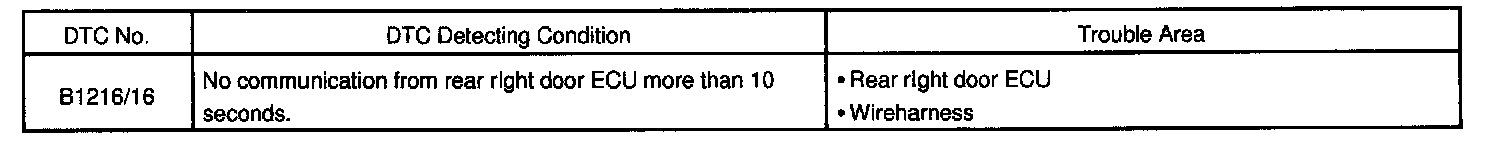

DTC Detecting Condition:











Step 1:




Step 2:

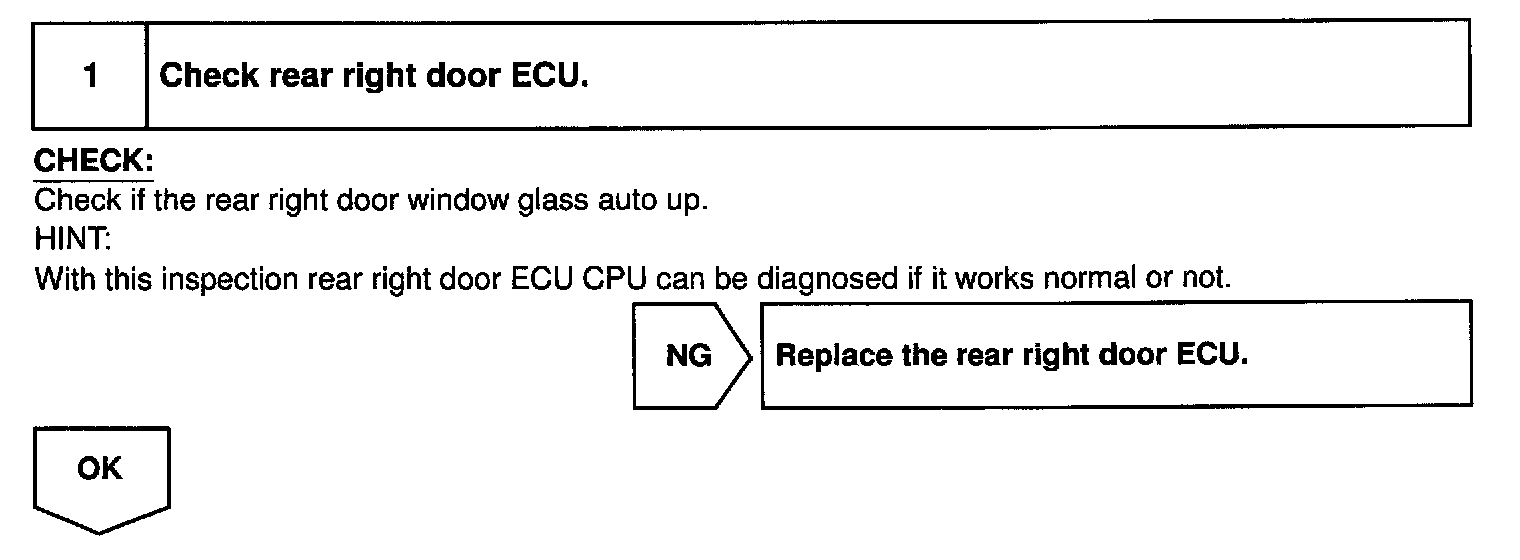

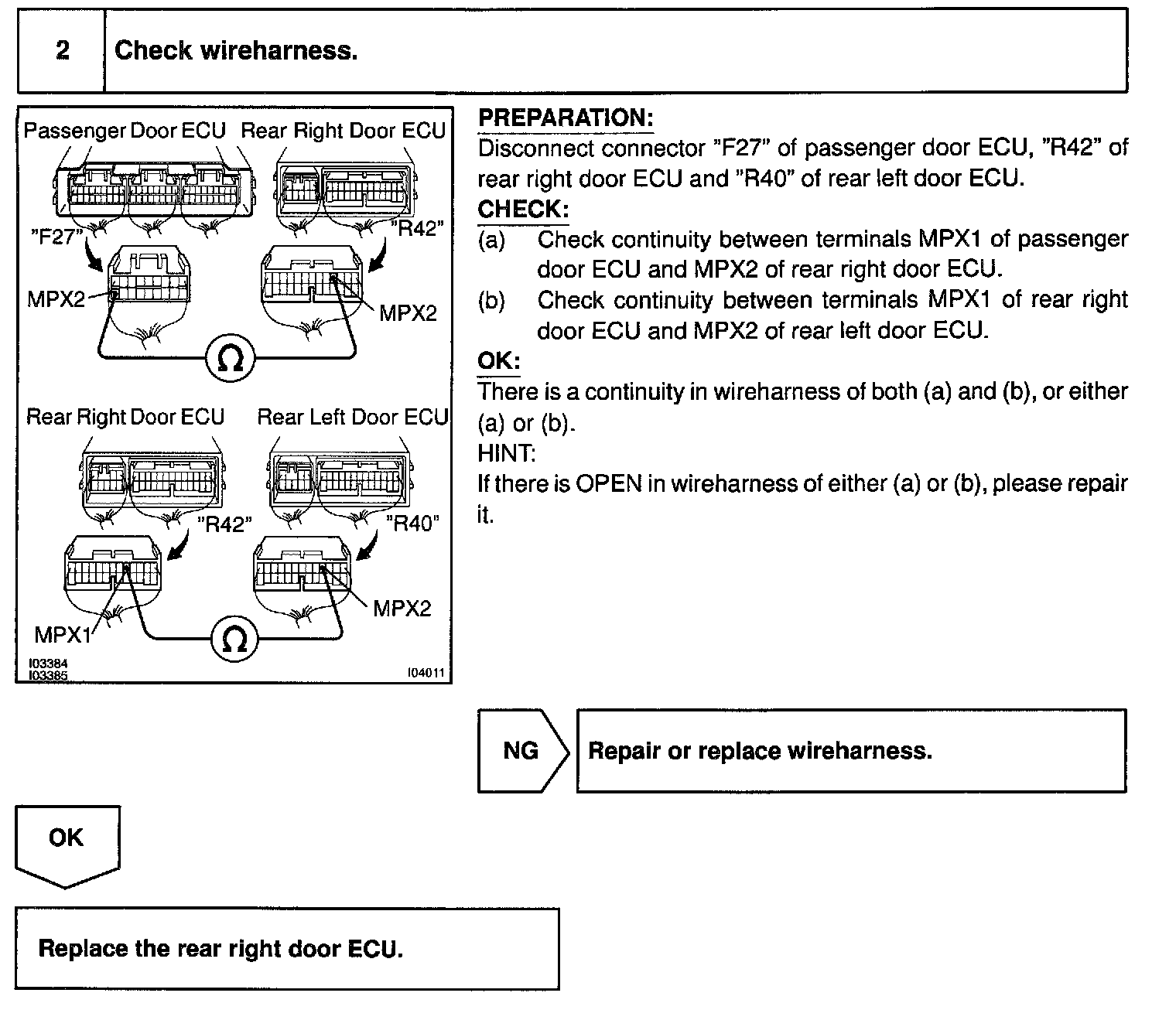

INSPECTION PROCEDURE
