B1213
B1213
CIRCUIT DESCRIPTION
This DTC is output when communication stops between tilt and telescopic ECU and body ECU.

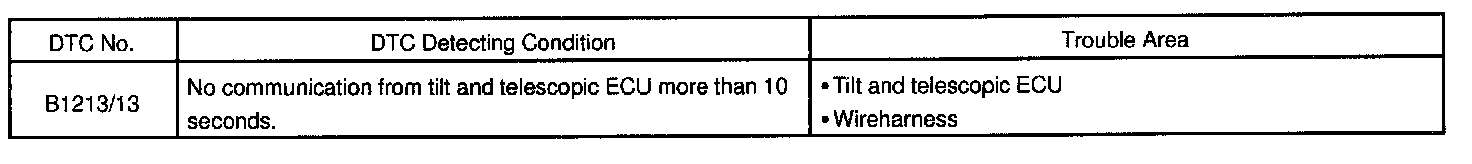

DTC Detecting Condition:
Step 1:
Step 2:

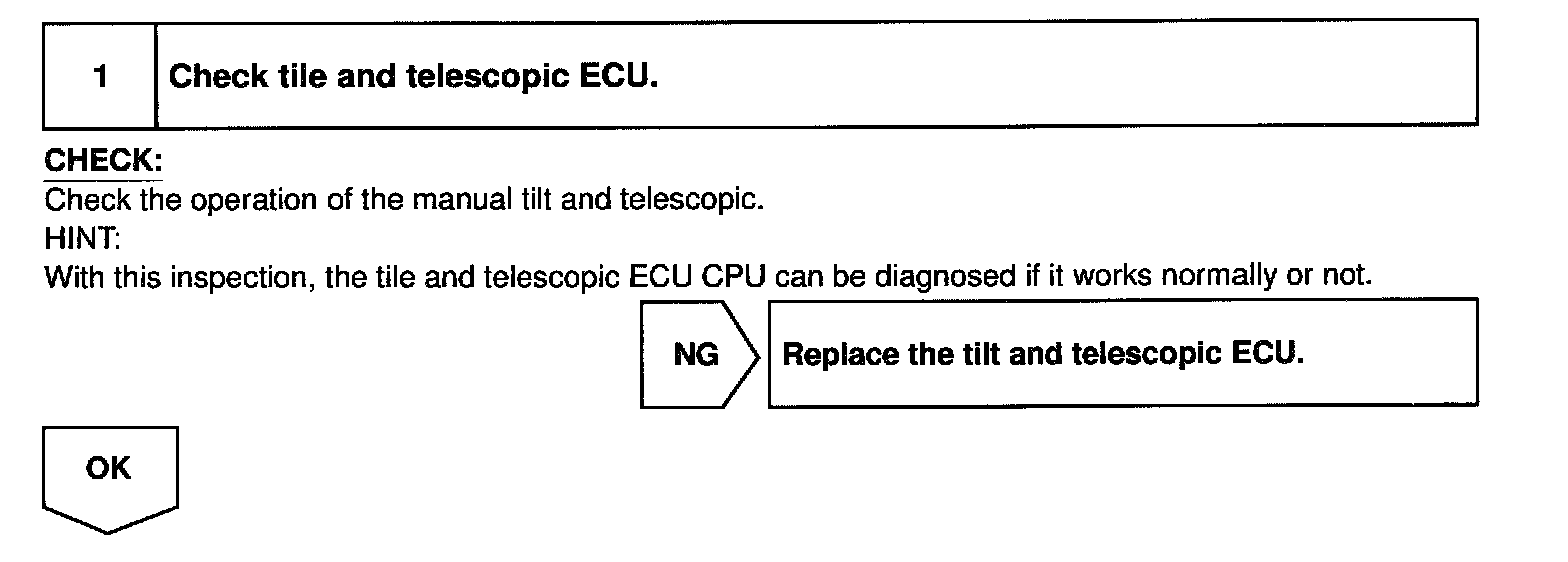

INSPECTION PROCEDURE
