B0138

DTC B0138 Short in P/T Squib (LH) Circuit (to B+)




CIRCUIT DESCRIPTION

The P/T squib (LH) circuit consists of the airbag sensor assembly and seat belt pretensioner (LH).
It causes the SRS to deploy when the SRS deployment conditions are satisfied.
For details of the function of each component, Description and Operation

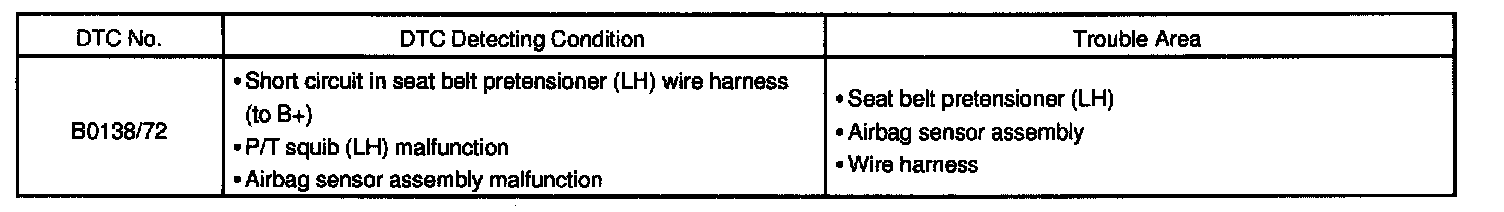

DTC B0138/72 is recorded when the B+ short is detected in the P/T squib (LH) circuit.

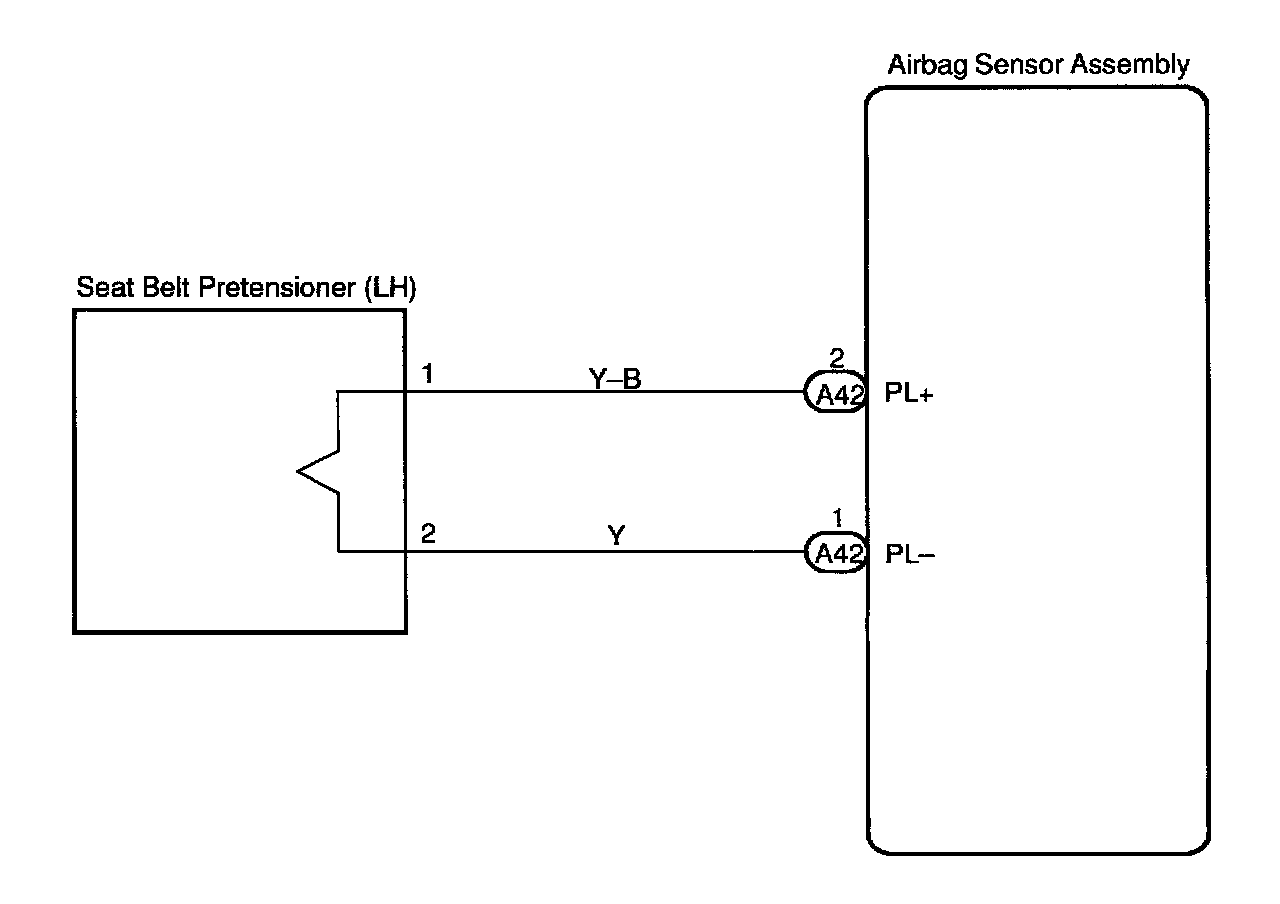

WIRING DIAGRAM

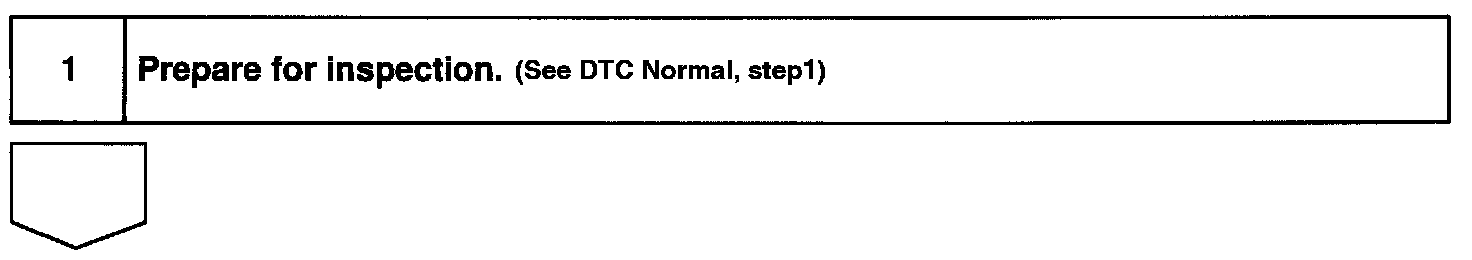

Step 1:

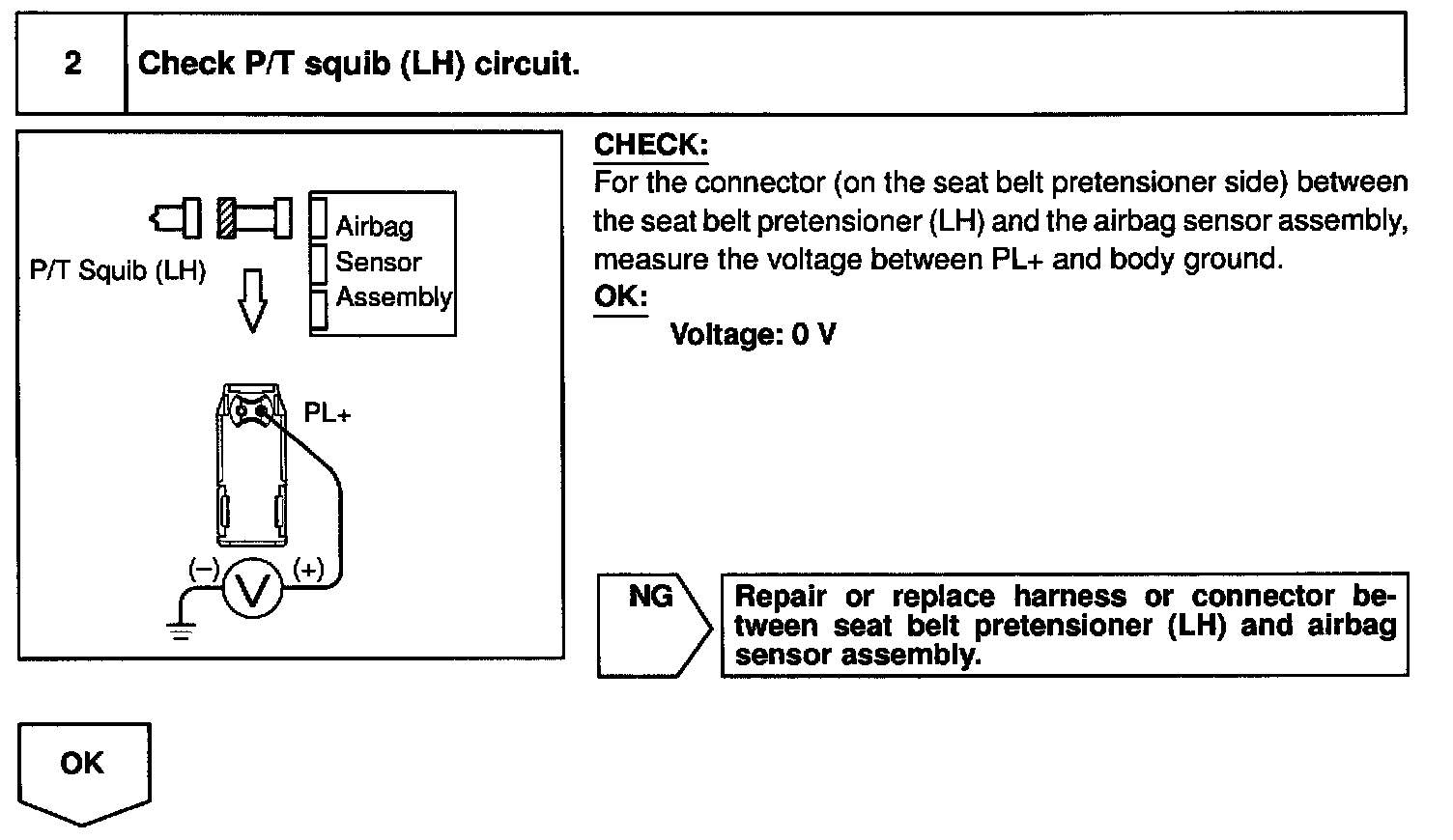

Step 2:

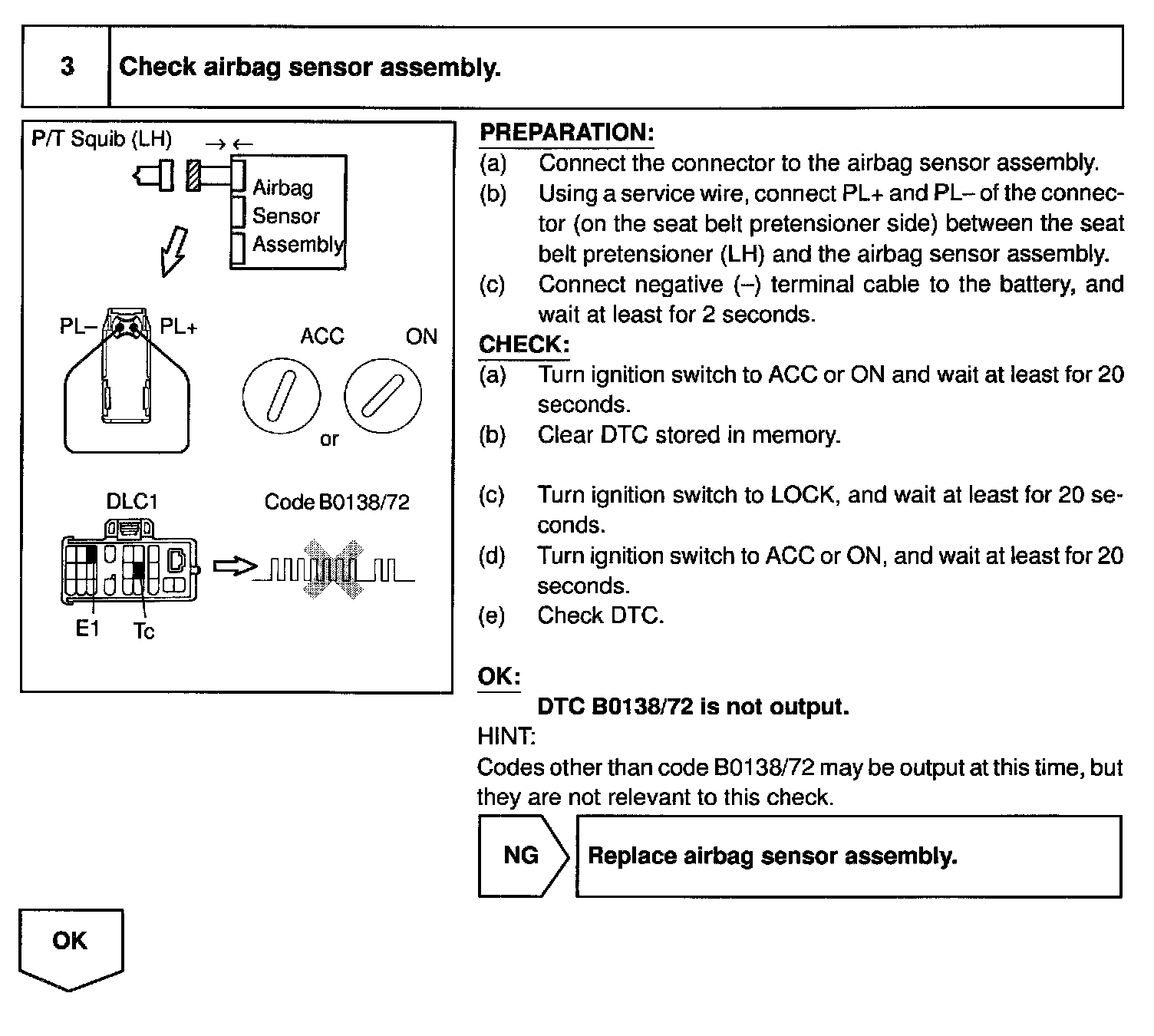

Step 3:

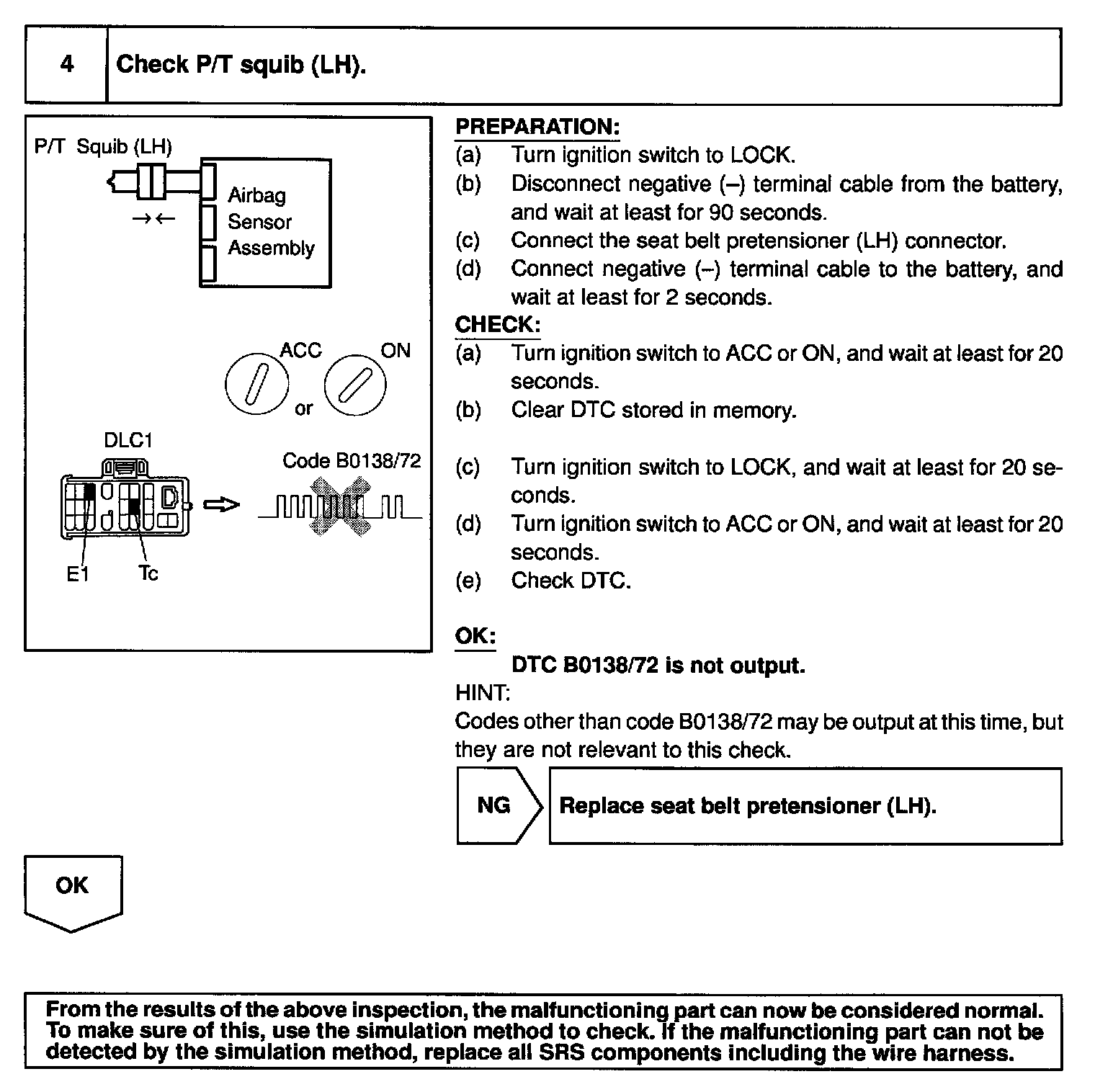

Step 4:

INSPECTION PROCEDURE
