Disassembly and Reassembly

DISASSEMBLY




1. REMOVE DUST PROTECTOR
2. REMOVE FIELD FRAME AND ARMATURE
a. Remove the nut, and disconnect the lead wire from the magnetic switch terminal.
Torque: 5.9 Nm (60 kg.cm, 52 in.lb)

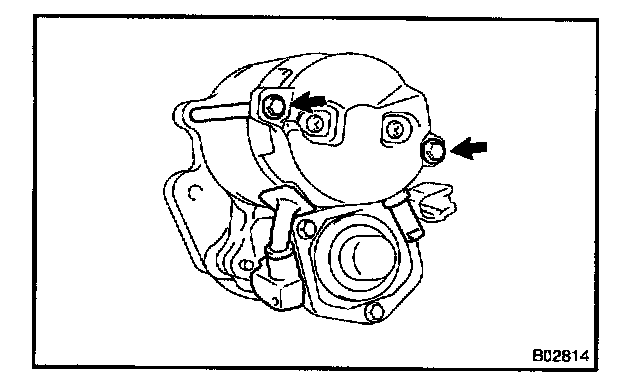

b. Remove the 2 through bolts.
Torque: 5.9 Nm (60 kg.cm, 52 in.lb)




c. Pull out the field frame together with the armature.

HINT: Align the protrusion of the field frame with the groove of the magnetic switch.

d. Remove the O-ring from the field frame.

HINT: At the time of installation, please refer to the following items.
Use a new O-ring.

3. REMOVE STARTER HOUSING, CLUTCH ASSEMBLY AND GEAR

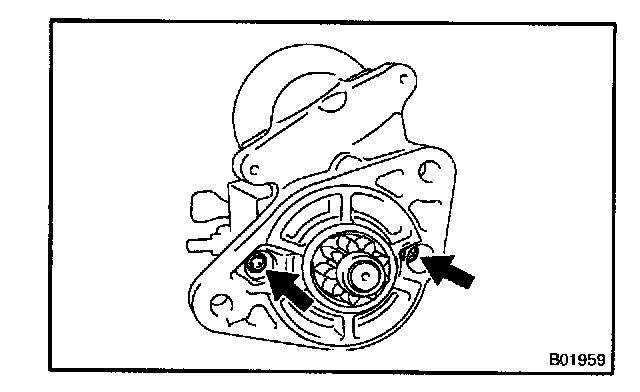

a. Remove the 2 bolts.
Torque: 5.9 Nm (60 kg.cm, 52 in.lb)

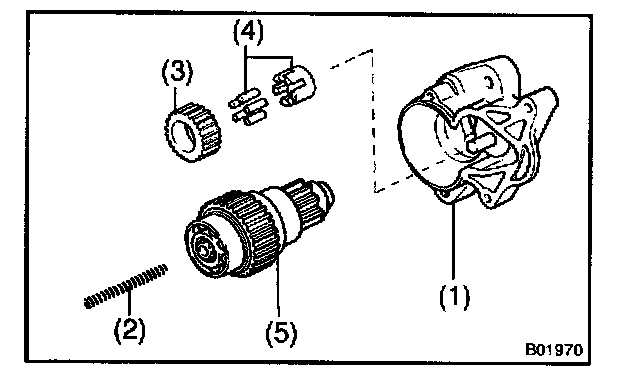

b. Remove these parts from the magnetic switch:
1. Starter housing
2. Return spring
3. Idler gear
4. Bearing
5. Clutch assembly

4. REMOVE STEEL BALL

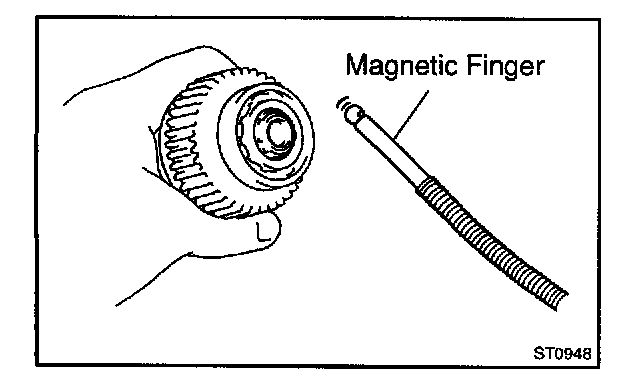

Using a magnetic finger, remove the steel ball from the clutch shaft hole.




5. REMOVE BRUSH HOLDER

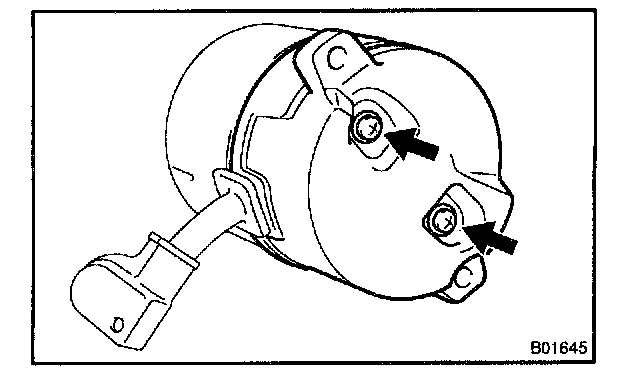

a. Remove the 2 screws and end cover from the field frame.
Torque: 1.5 Nm (15 kg.cm, 13 in.lb)

b. Remove the 0-ring from the field frame.

HINT: At the time of installation, please refer to the following items.
Use a new O-ring.

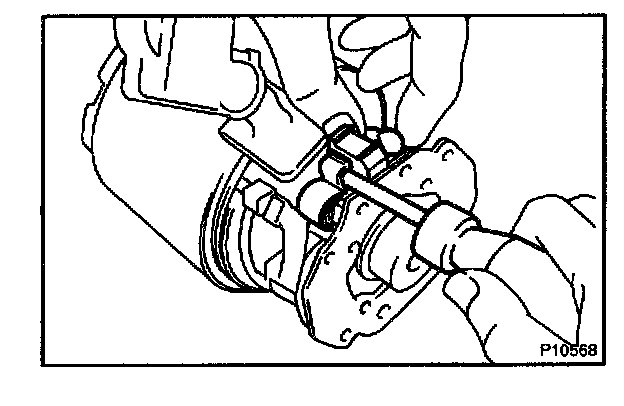

c. Using a screwdriver, hold the spring back and disconnect the brush from the brush holder. Disconnect the 4 brushes, and remove the brush holder.

NOTE: Check that the positive (+) lead wires are not grounded.

6. REMOVE ARMATURE FROM FIELD FRAME

REASSEMBLY
Reassembly is in the reverse order of disassembly.

HINT: Use high-temperature grease to lubricate the bearings and gears when assembling the starter.
