Body No.1 ECU

CIRCUIT DESCRIPTION
This circuit provides power to operate the body No.1 ECU.

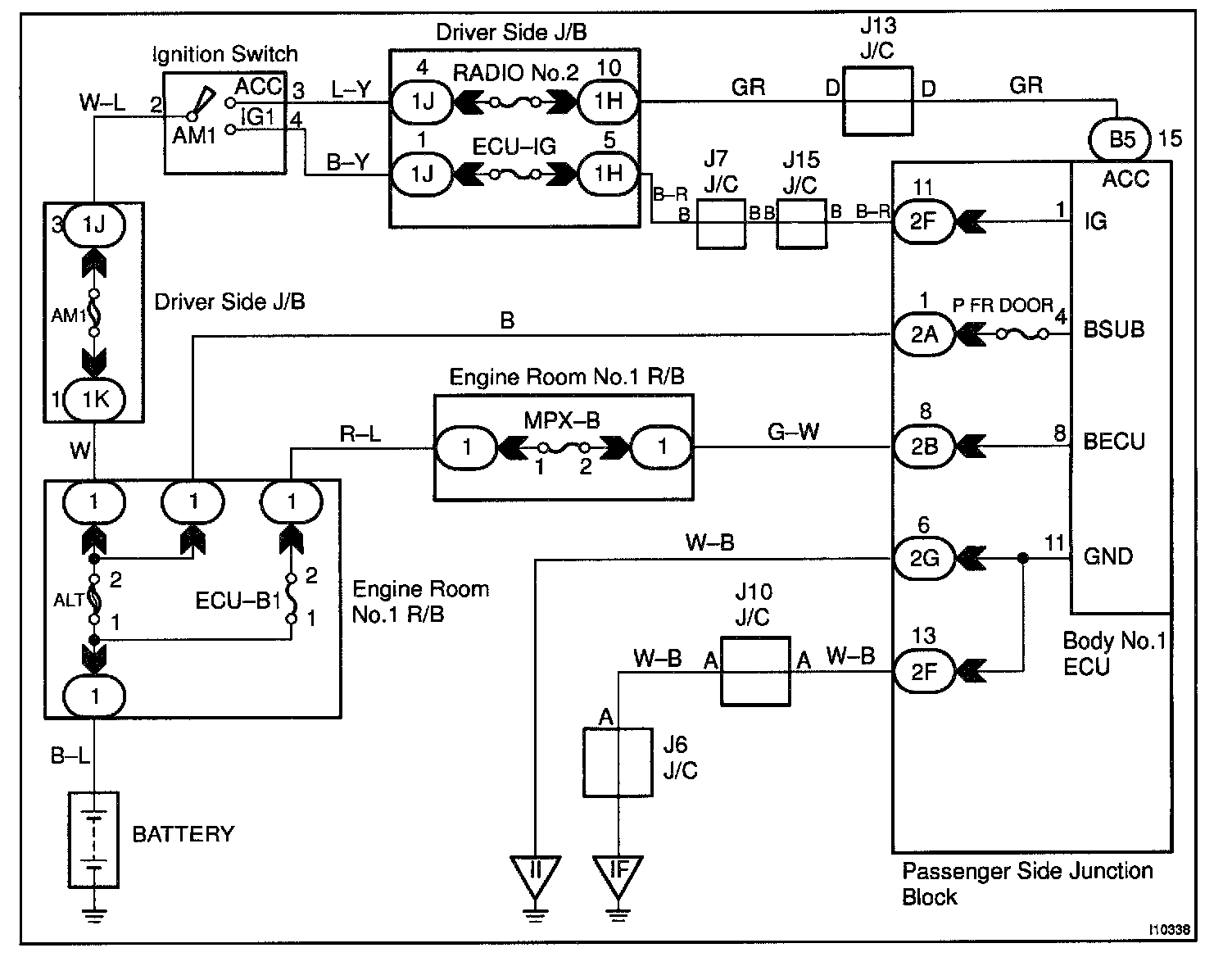

Wiring Diagram:






Steps 1 - 3:

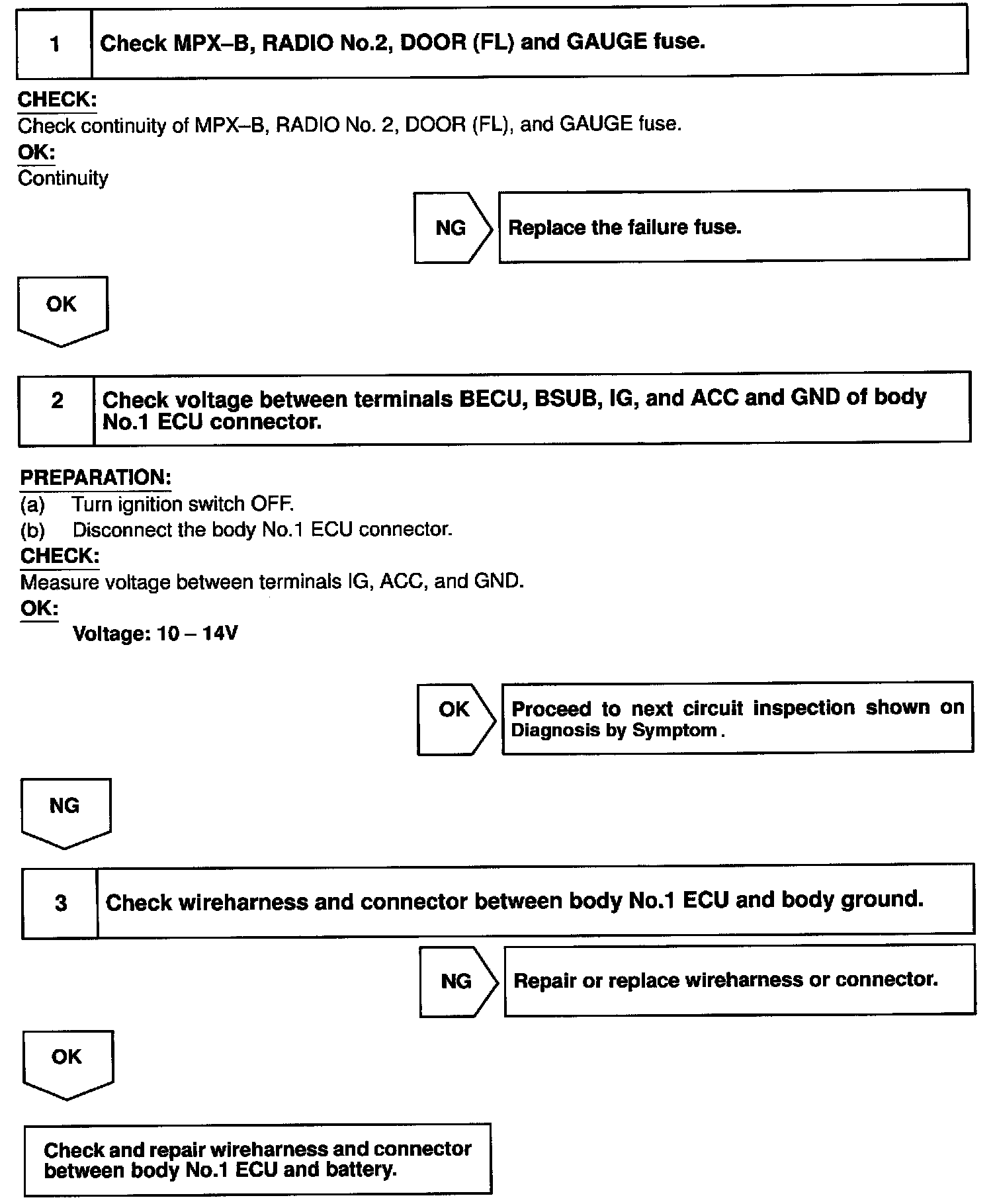

INSPECTION PROCEDURE
