Passenger Buckle SW/Belt Warning Occupant Detection Sensor CKT

Passenger Buckle SW/Belt Warning Occupant Detection Sensor CKT / Body No.1 ECU

CIRCUIT DESCRIPTION
This circuit detects the conditions of the passenger buckle switch and the seat belt warning occupant detection sensor, and makes the passenger seat belt warning flash.

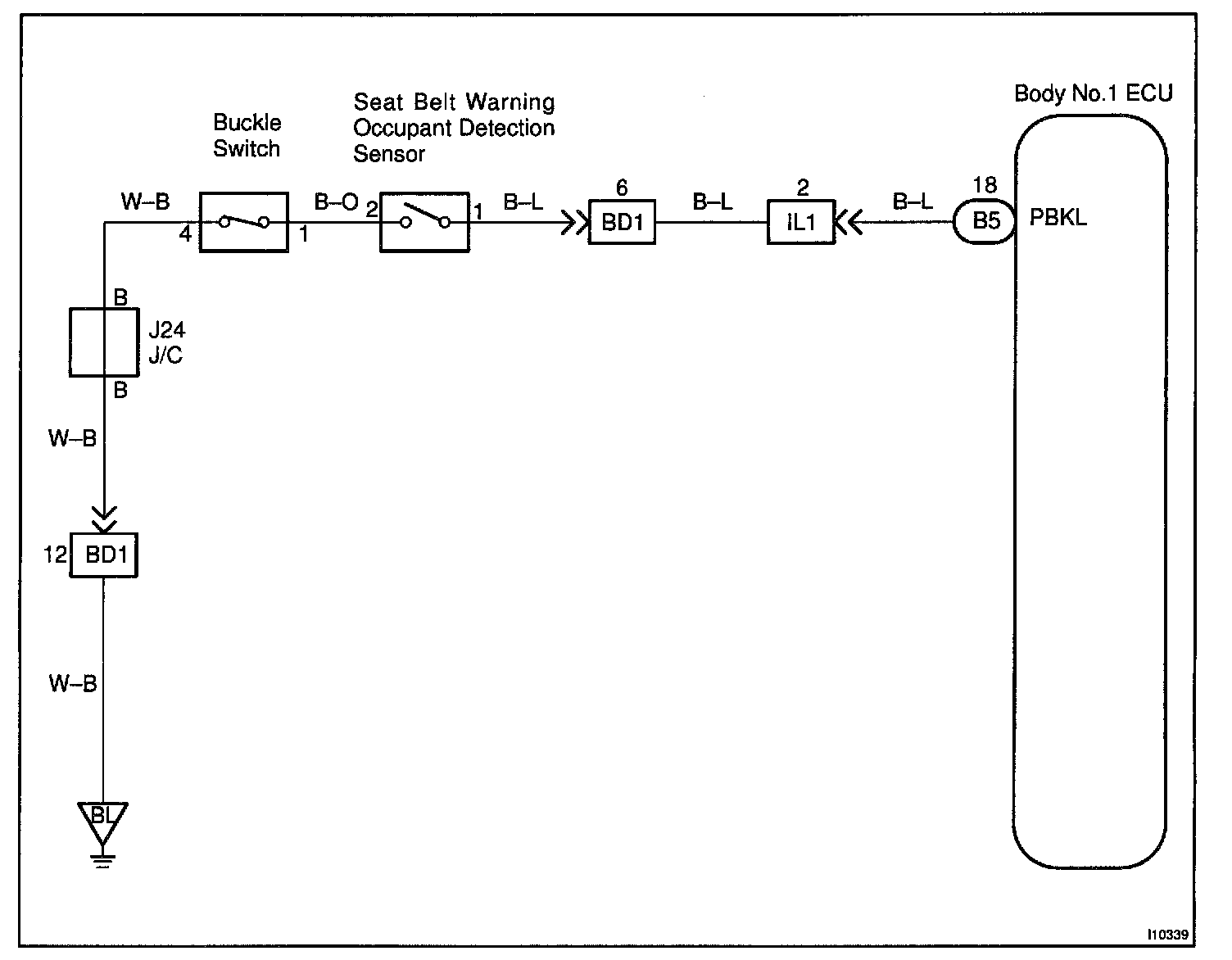

Wiring Diagram:






Steps 1 - 2:

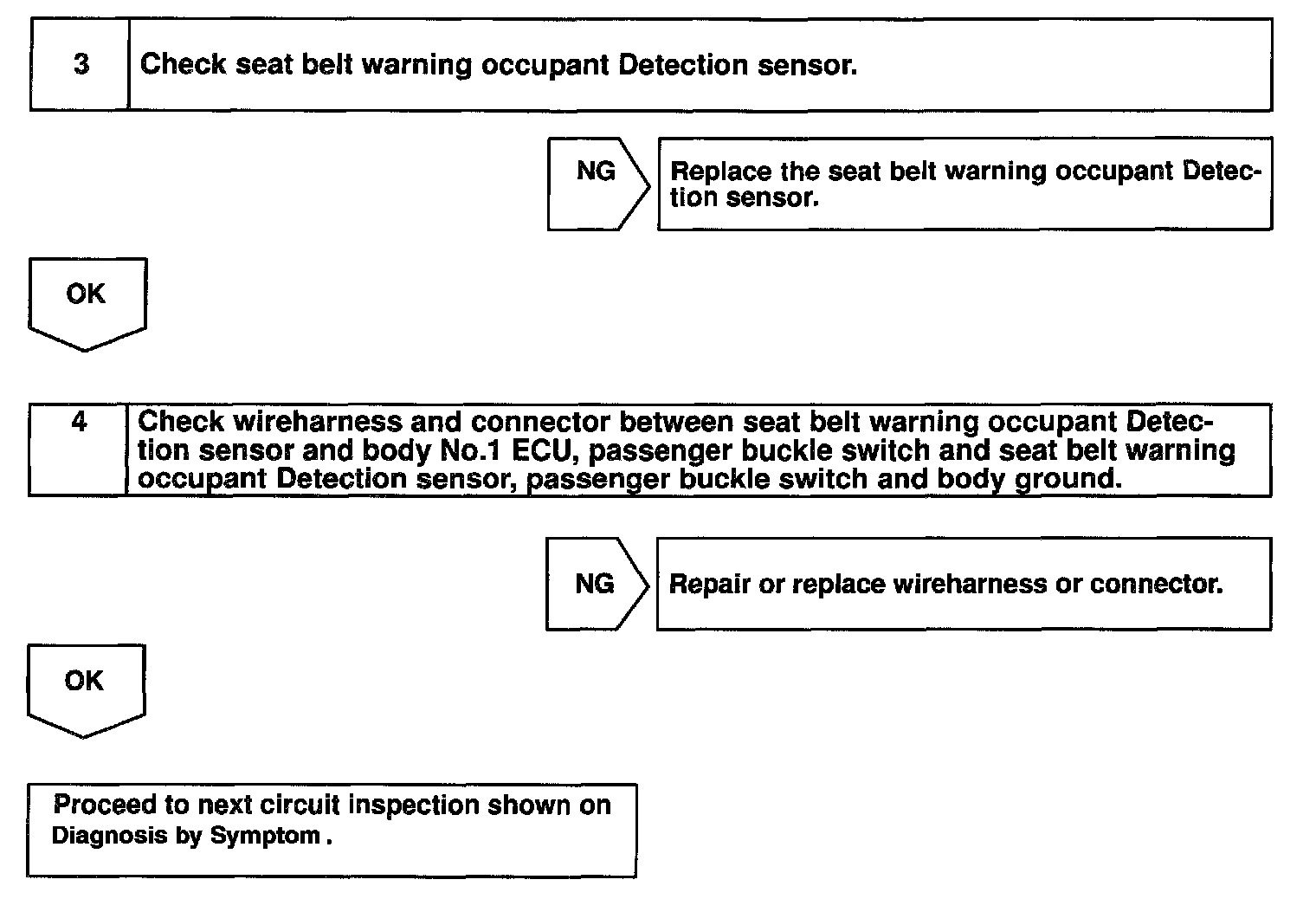

Steps 3 - 4:




INSPECTION PROCEDURE
