Luggage Opener Switch Circuit
Luggage Opener Switch Circuit
Luggage Opener Switch Circuit / Body No.1 ECU

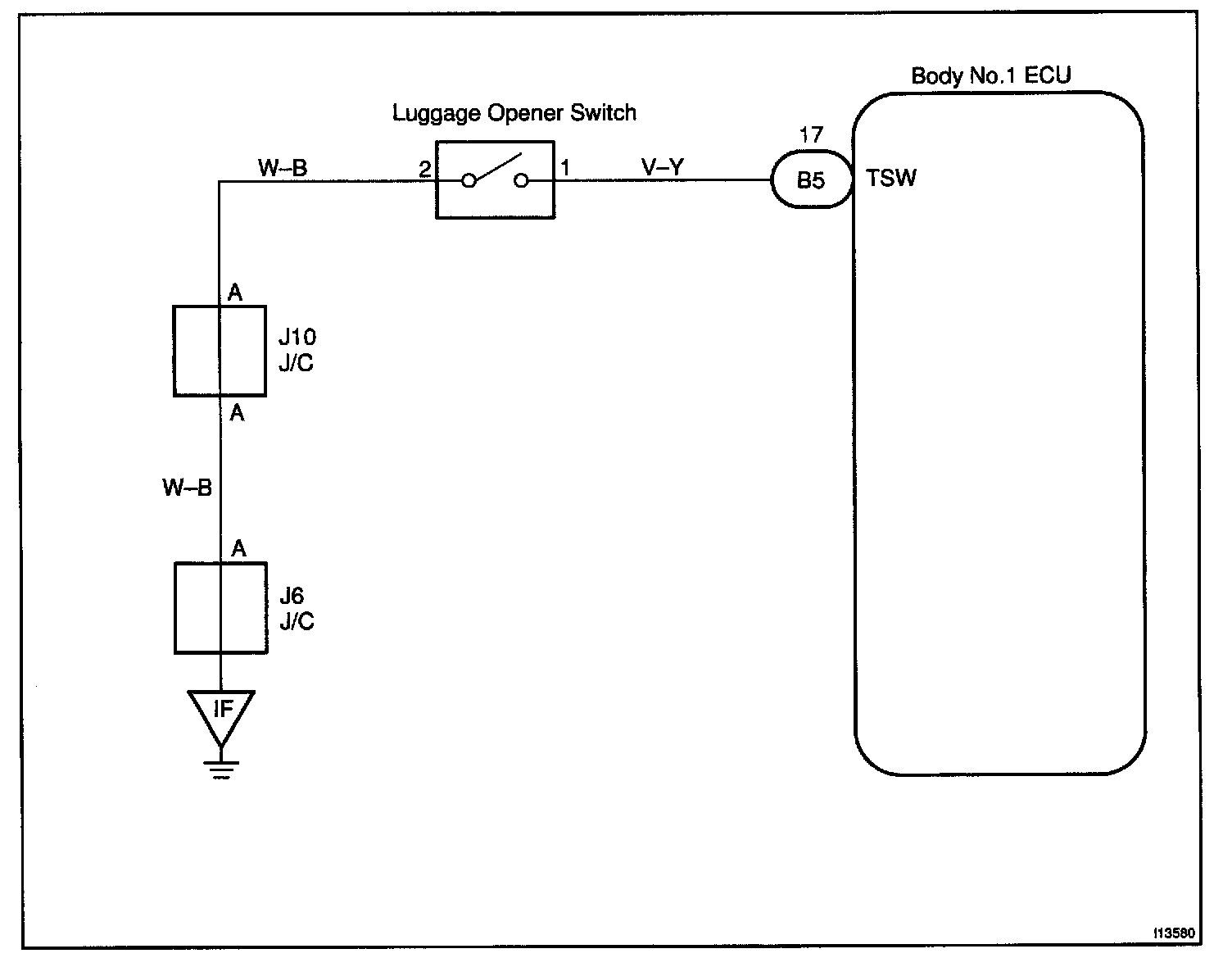

Wiring Diagram:

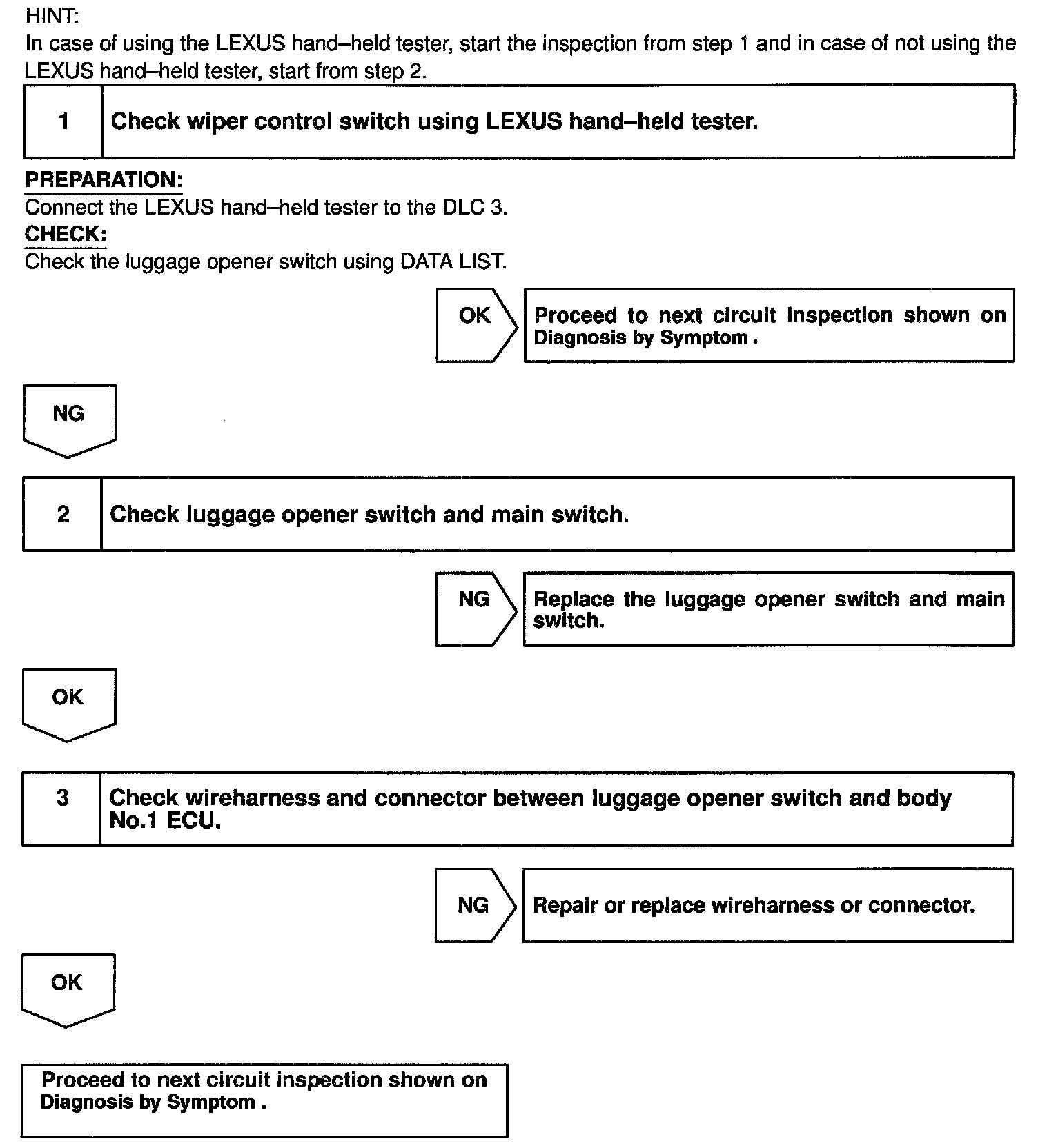

Steps 1 - 3:
INSPECTION PROCEDURE
