Control Module HVAC: Service and Repair

REMOVAL / A/C Amplifier (Electrical Multi Vision)
1. REMOVE A/C CONTROL ASSEMBLY

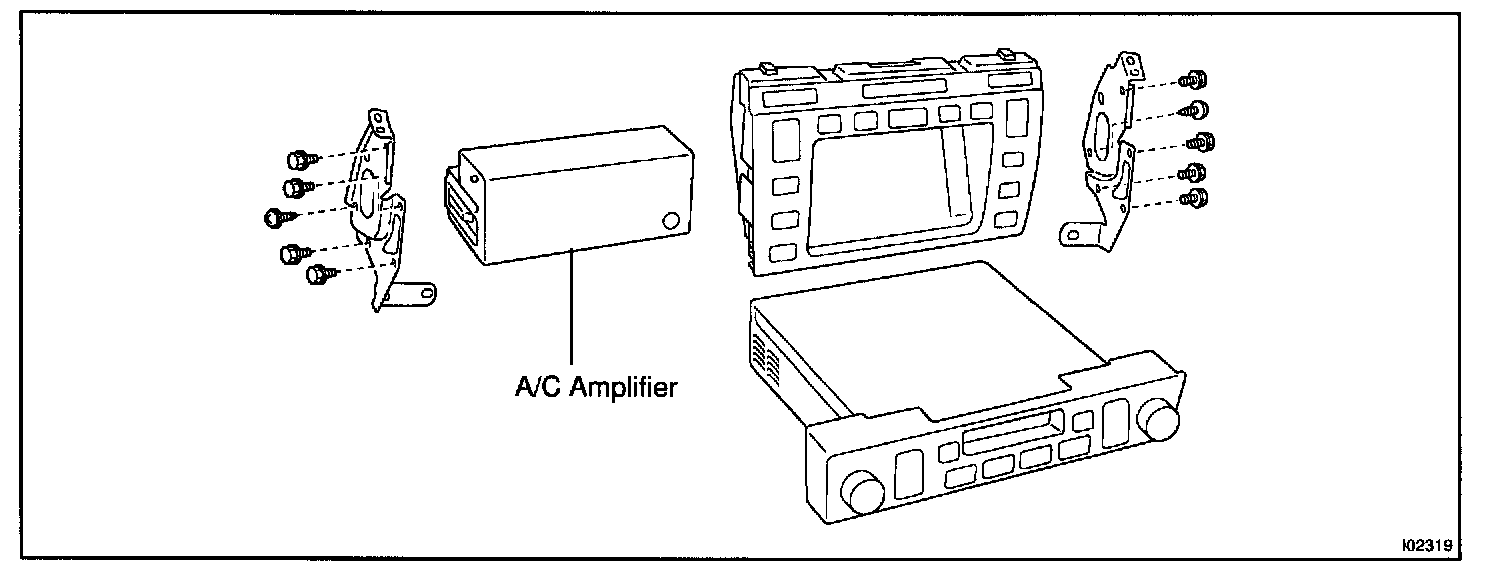

2. REMOVE A/C AMPLIFIER
Remove the 8 bolts, 2 screws and 2 bracket, then remove the amplifier.

INSTALLATION
Installation is in the reverse order of removal.
