Stop Light Switch Circuit

Stop Light Switch Circuit / Body No.2 ECU

CIRCUIT DESCRIPTION
The body No.2 ECU is detecting the condition of the stop light switch.

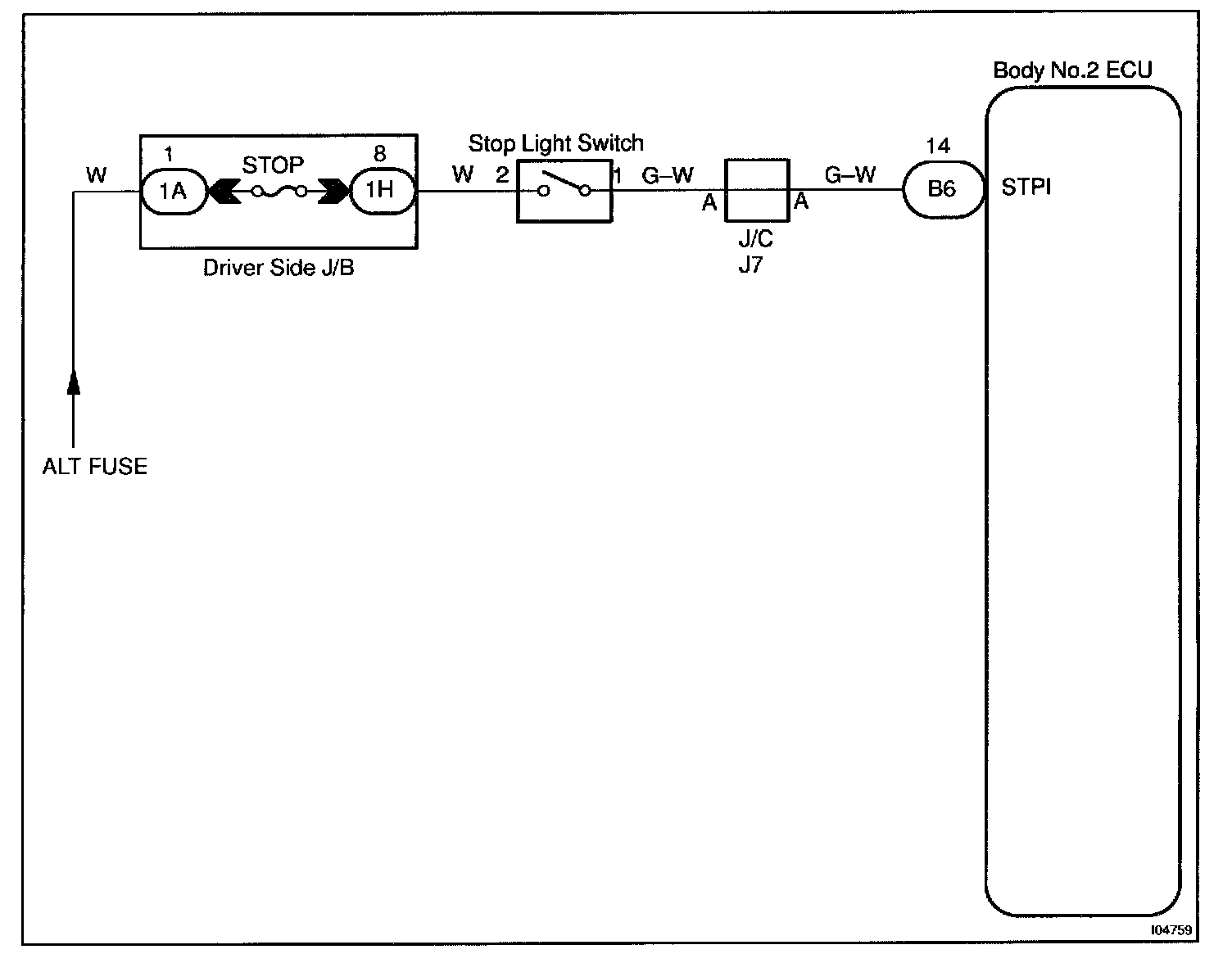

Wiring Diagram:

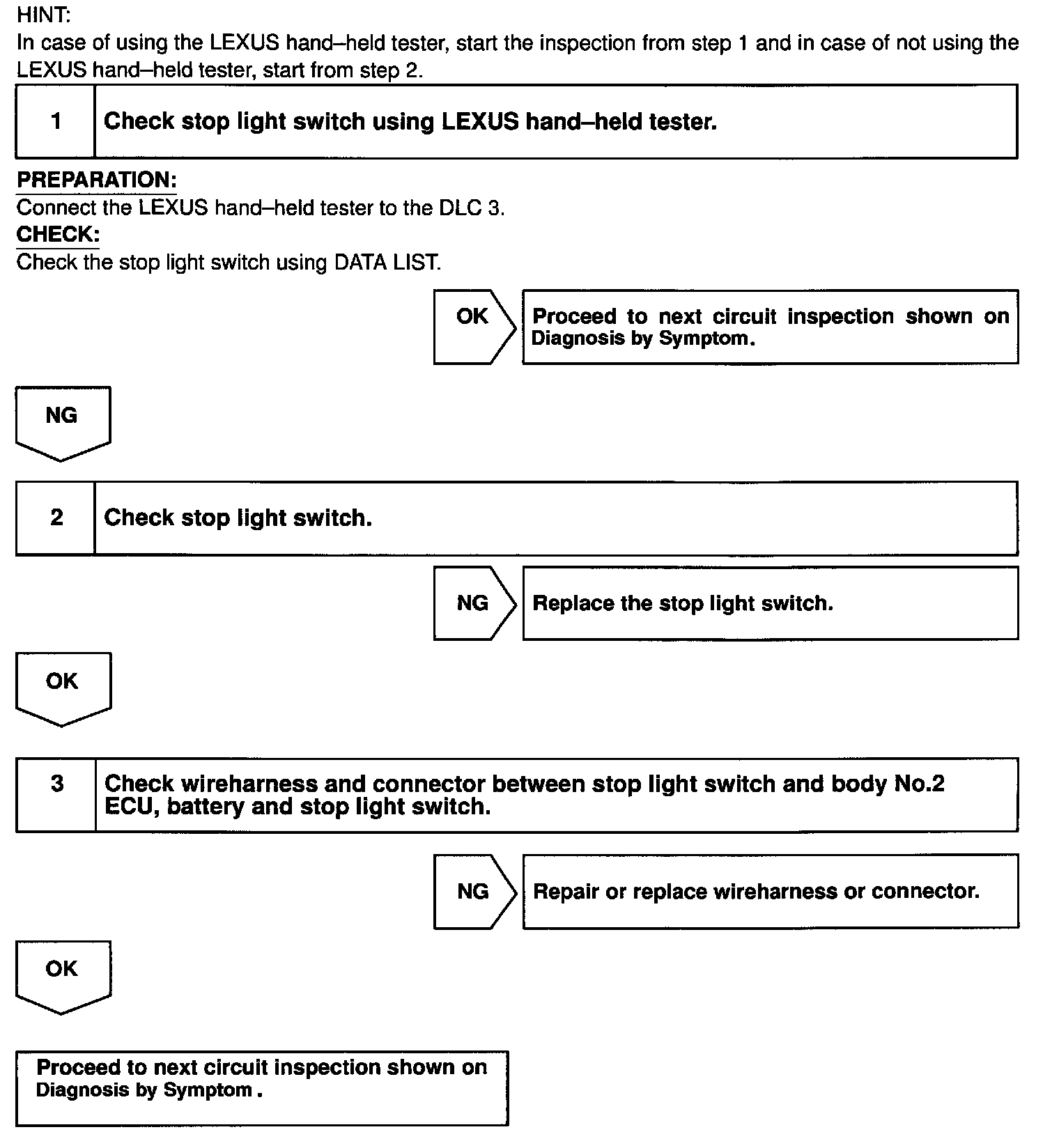

Steps 1 - 3:

INSPECTION PROCEDURE
