Home >> Lexus >> 2000 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Body Control Module >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Body No.1 ECU

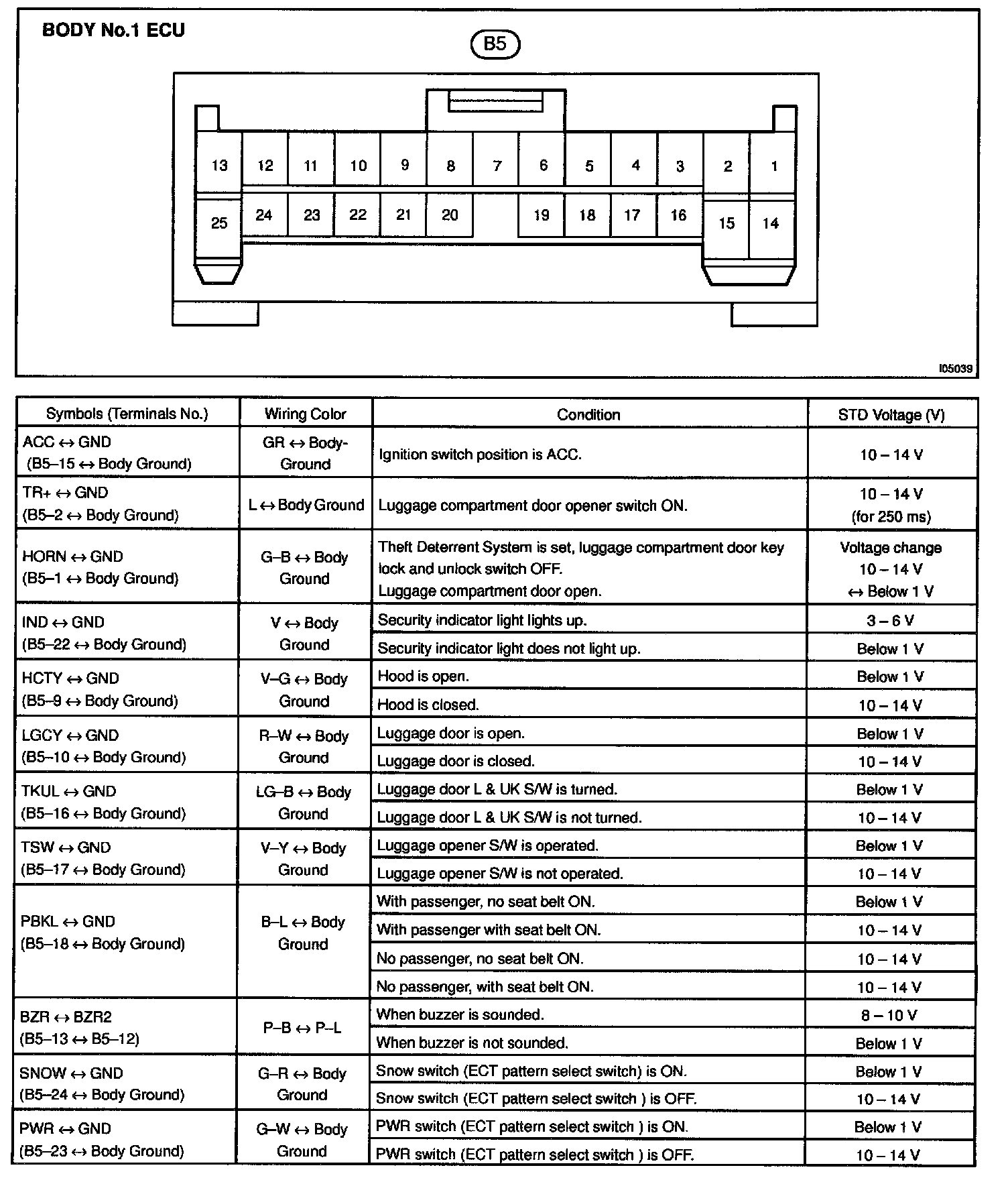

Body No.1 ECU

Body No. 1 ECU:
