Home >> Lexus >> 2000 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Component Tests and General Diagnostics

Component Tests and General Diagnostics

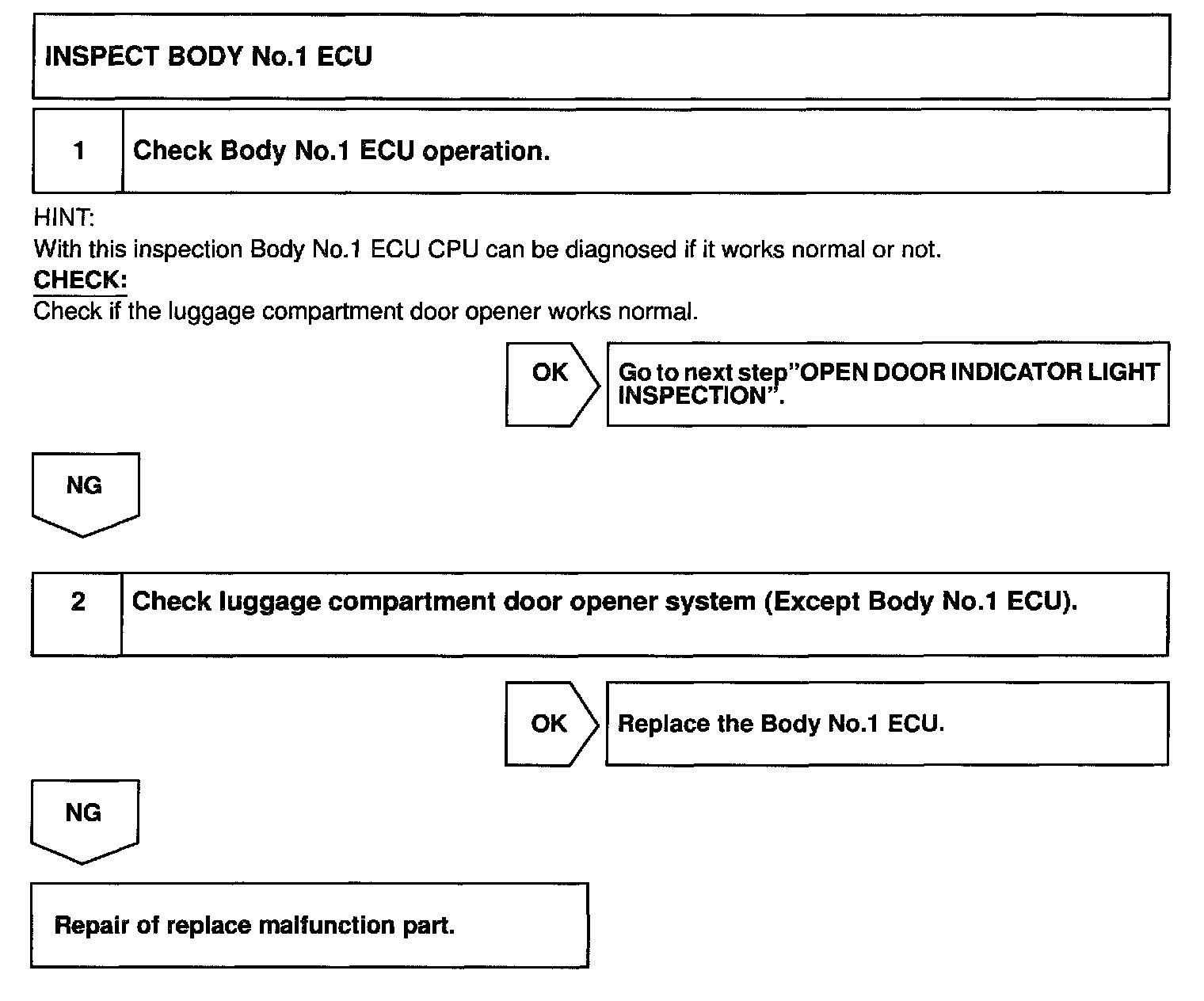

Inspect Body ECU / Steps 1 - 2:

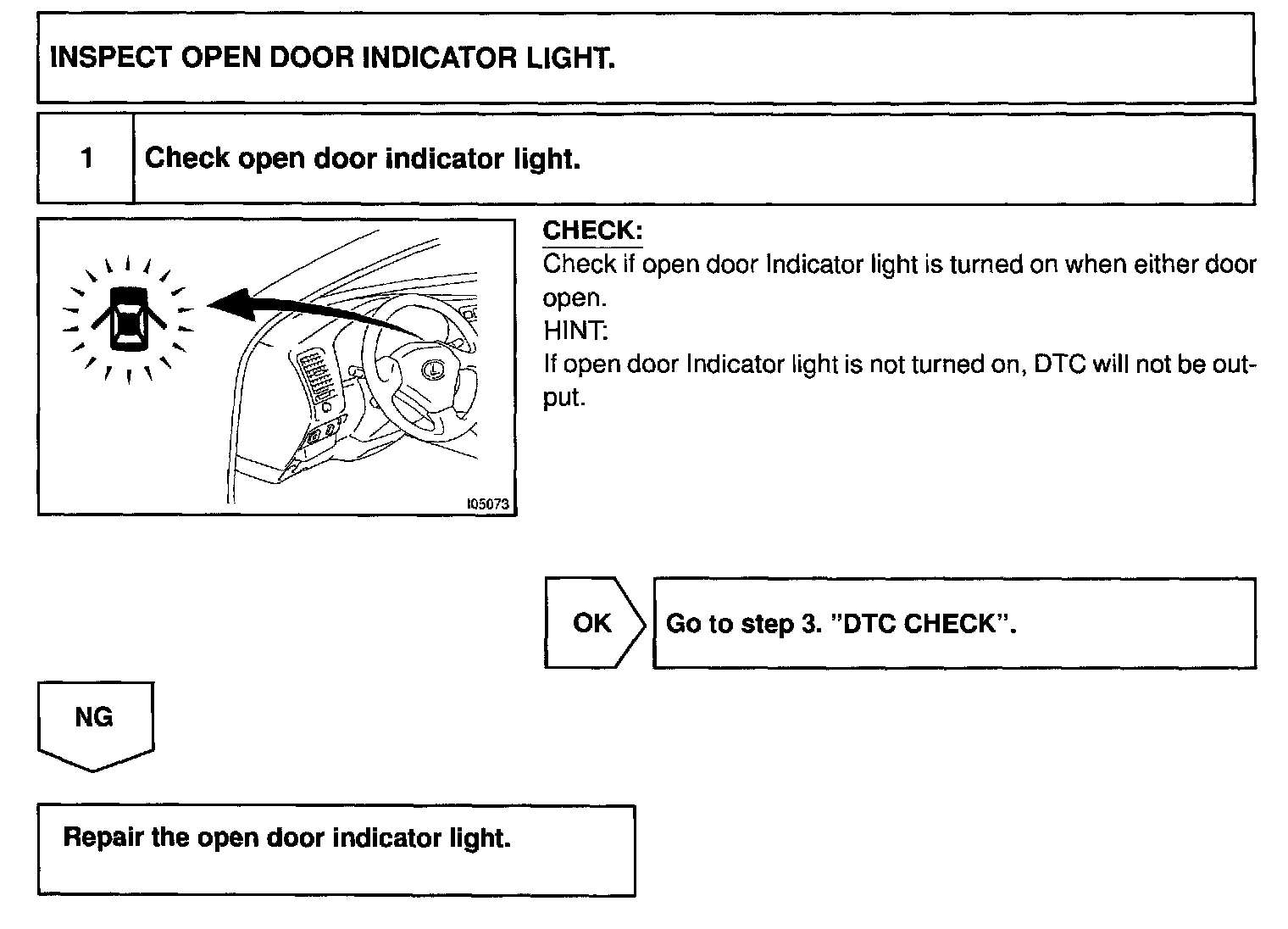

Inspect Open Door Indicator Light / Step 1:
