Front
REPLACEMENT1. REMOVE FRONT WHEEL
2. REMOVE BRAKE CALIPER AND DISC
a. Remove the 2 bolts and remove the brake caliper from the steering knuckle.
b. Support the brake caliper securely.
c. Remove the disc.
3. REMOVE HUB BOLT
Using SST, remove the hub bolt.
SST 09628-10011
4. INSTALL HUB BOLT

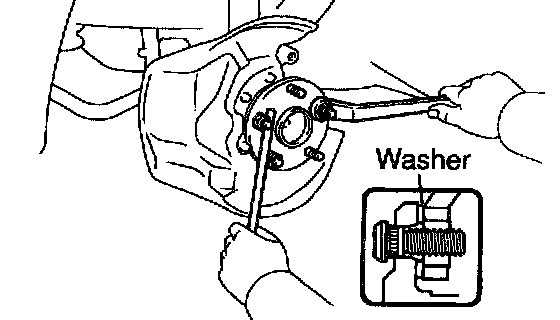

a. Install a washer and nut to the bolt, as shown in the illustration.
b. Turn the wheel nut to pull the hub bolt until the underside of the hub bolt head touches the axle hub.
5. INSTALL DISC AND BRAKE CALIPER
a. Install the disc.
b. Install the brake caliper and 2 bolts to the steering knuckle.
Torque: 118 Nm (1,200 kgf-cm, 87 ft. lbs.)
6. INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
