Actuator Check

Indicator Check

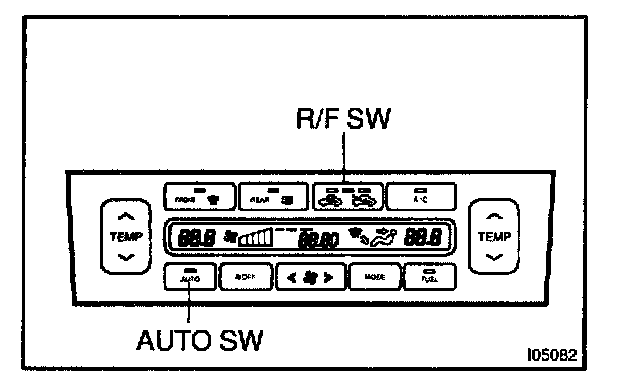

a. Turn the ignition switch on while pressing the A/C control AUTO switch and R/F SW simultaneously.

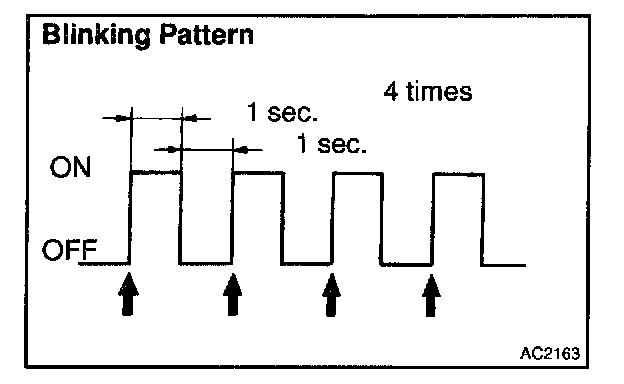

b. Check that all the indicators light up and go off at 1 second intervals 4 times in succession.

HINT:
- After the indicator check is ended, the diagnostic trouble code check begins automatically.
- Press the OFF switch when desiring to cancel the check mode.

DTC CHECK (SENSOR CHECK)




a. Perform an indicator check. After the indicator check is completed, the system enters the DTC check mode automatically.
b. Read the DTC displayed on the panel. Diagnostic Trouble Code Descriptions

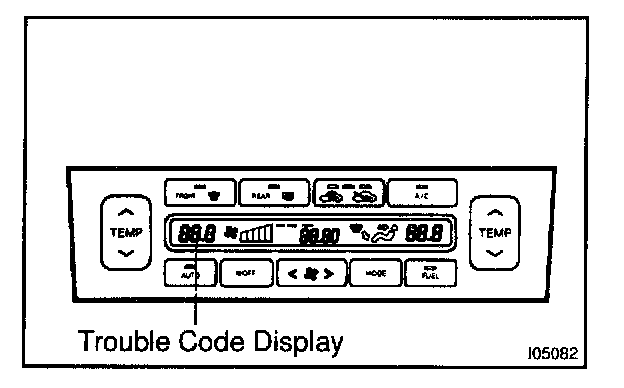

(DTCs are out put at the temperature display.)

If the slower display is desired, press the Driver Side Temp. Control Switch and change it to step operation. Each time the Driver Side Temp. Control switch is pressed, the display changes by 1 step.






HINT:
W/ EMV only
- If the buzzer sounds when a DTC is being read, it means the trouble indicated by that DTC continues to occur.
- If the buzzer does not sound when a DTC is being read, it means the trouble indicated by that DTC occurred earlier (such as poor connector contacts, etc.)




Actuator Check

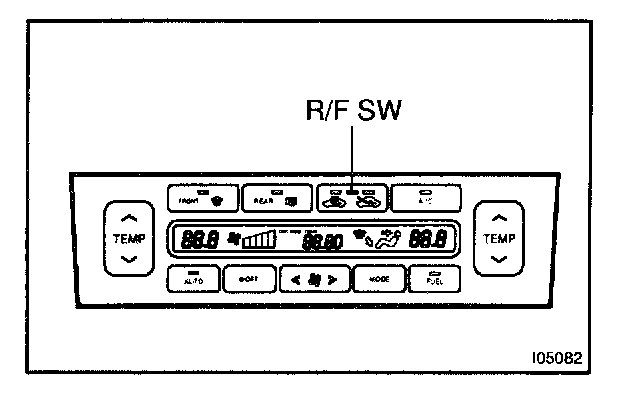

a. After entering the sensor check mode, press the R/F switch.

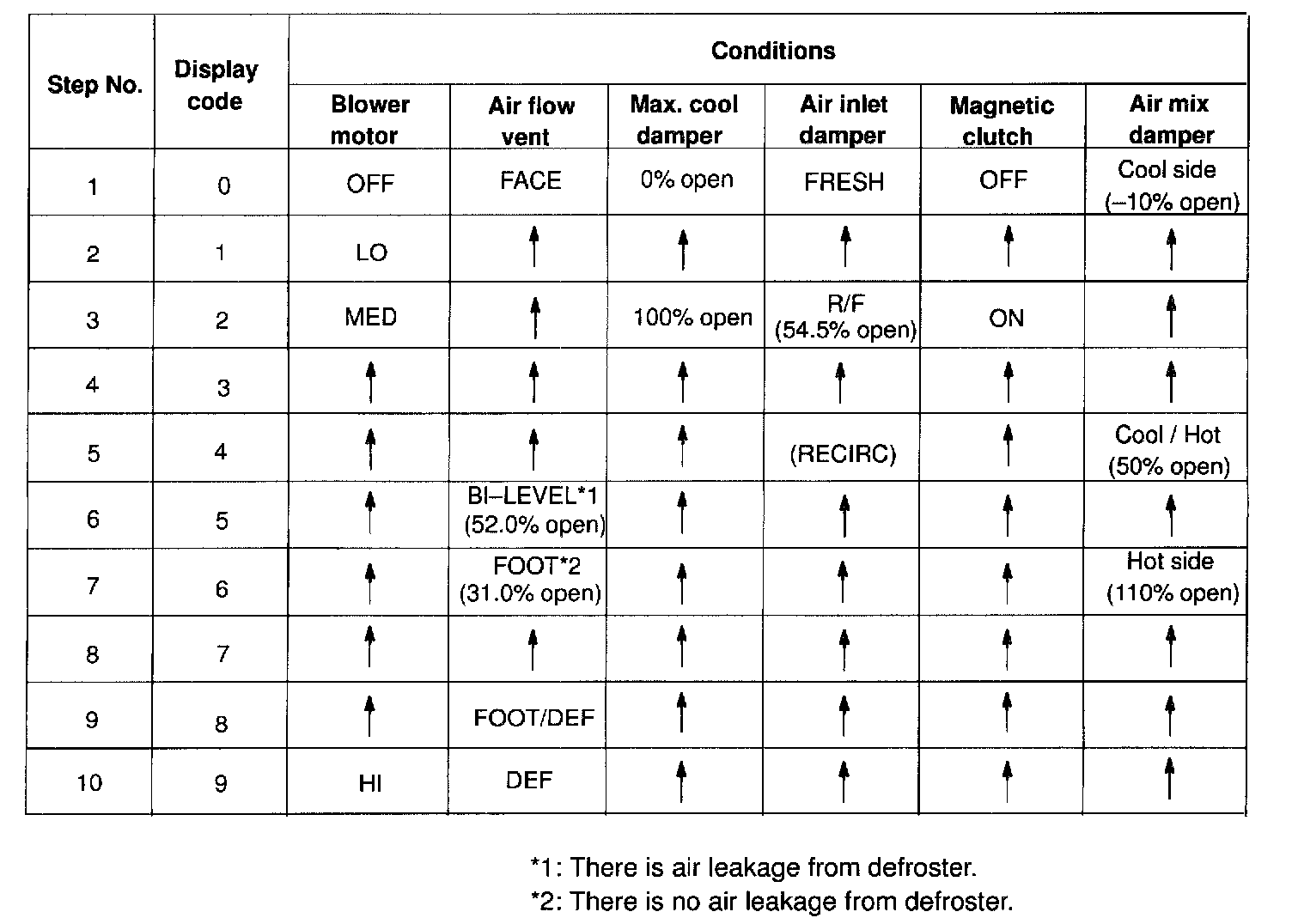

b. Since each damper, motor and relay automatically operates at 1 second intervals beginning in order from 20 in the temperature display, check the temperature and air flow visually and by hand.

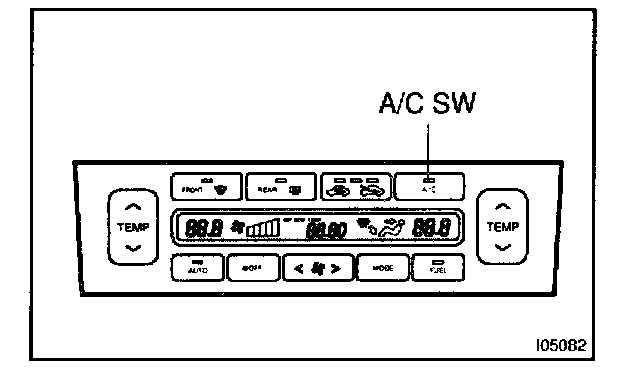

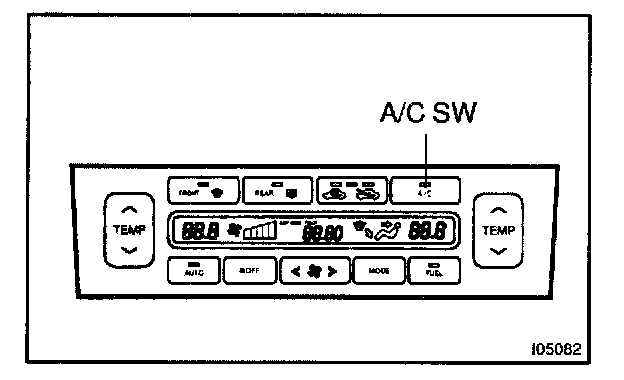

If a slower display is desired, press the A/C switch and change it to step operation. Each time the A/C switch is pressed, the display changes by 1 step.




HINT:
- The buzzer sounds when the display trouble code changes.
- Code are displayed in order from the smaller to the larger numbers.
- To cancel the check mode, press the off switch.
