Condenser HVAC: Service and Repair
REMOVAL1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM
HINT: At the time of installation, please refer to the following item.
Evacuate air from refrigeration system.
Charge system with refrigerant and inspect for leakage of refrigerant.
Specified amount : 600 ± 50 g (21.16 ± 1.76 oz.)

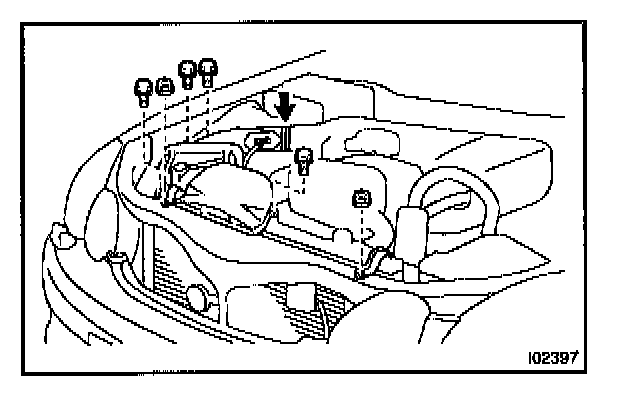

2. REMOVE THESE PARTS:
a. Air cleaner duct
b. Air cleaner assembly
c. 2 radiator upper supports

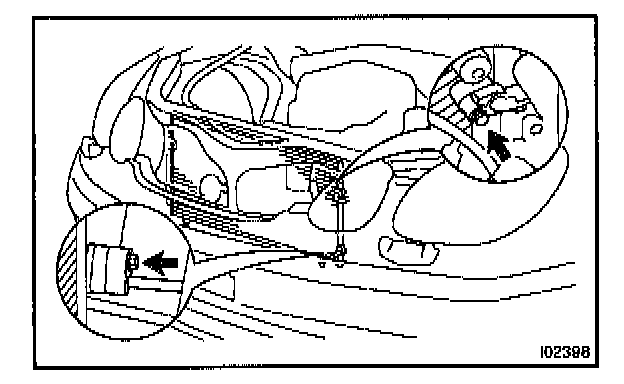

3. DISCONNECT DISCHARGE HOSE AND LIQUID TUBE
Remove the 2 bolts and disconnect the hose and tube.
Torque: 10 Nm (100 kg.cm, 7 ft.lb)
NOTE: Cap the open fittings immediately to keep moisture or dirt out of the system.
HINT: At the time of installation, please refer to the following item.
Lubricate 2 new O-rings with compressor oil and install them to the hose and tube.

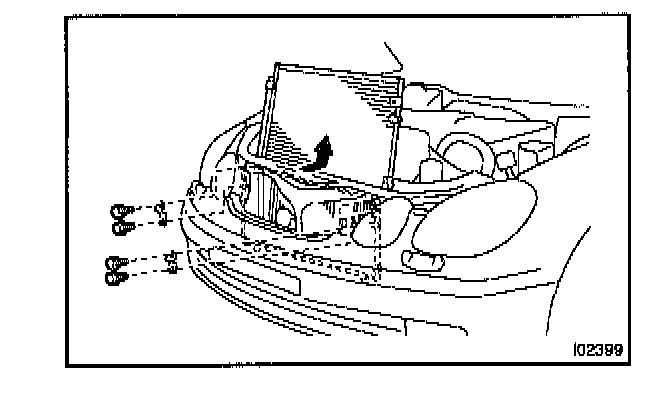

4. REMOVE CONDENSER
a. Remove the 4 bolts and 2 brackets.
b. Push the radiator toward engine.
c. Push the condenser toward radiator and pull it upward.
HINT: At the time of installation, please refer to the following item.
If condenser is replaced, add compressor oil to the condenser.
Add 40 cc (1.4 fl. oz)
Compressor oil: ND-OIL 8 or equivalent
REPLACEMENT
REPLACE DRYER FROM MODULATOR

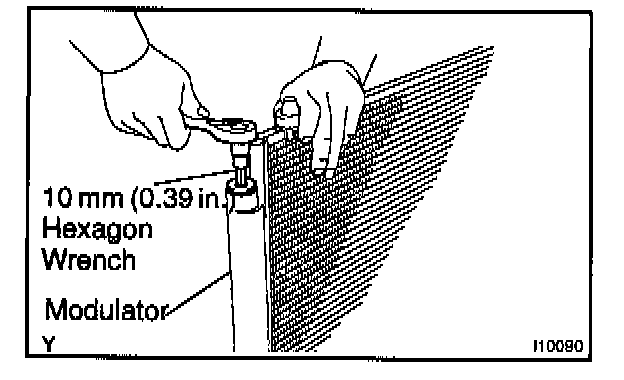

a. Using a hexagon wrench (10 mm 0.39 in.), remove the cap from the modulator.
b. Remove the filter from the modulator.

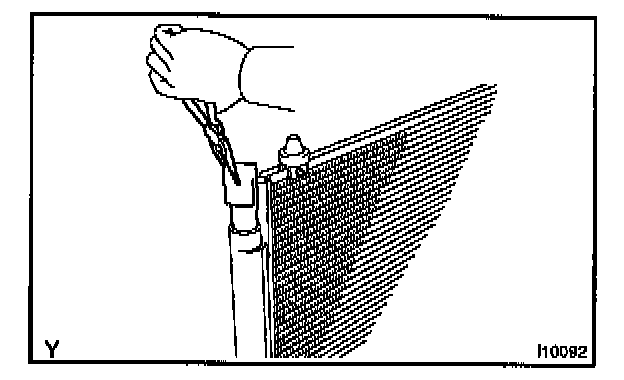

c. Using pliers, remove the dryer.

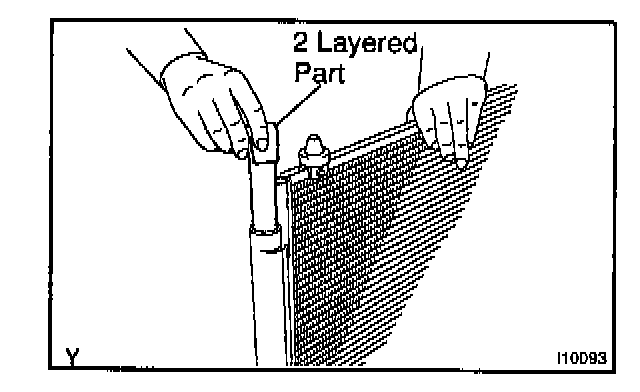

d. Insert a new dryer into the modulator.
NOTE:
- Do not remove the dryer from a vinyl bag until inserting it into the modulator.
- Install the dryer with its 2 layered part faced upward to the modulator.

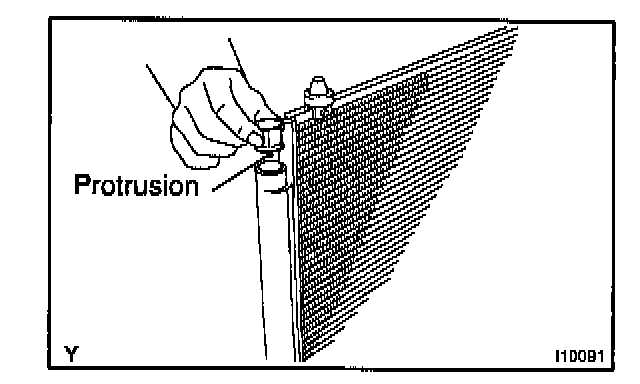

e. Insert the filter into the modulator.
NOTE: Install the filter with its protrusion faced downward to the modulator.
f. Install the cap to the modulator.

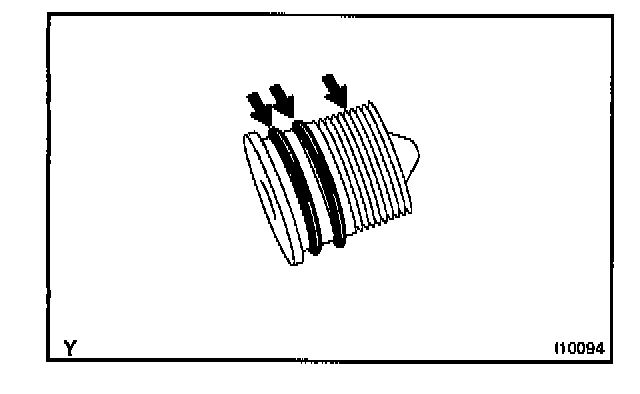

1. Apply compressor oil to the O-rings and screw part of the cap.
Compressor oil: ND-OIL 8 or equivalent
2. Using a hexagon wrench (10 mm, 0.39 in.), install the caps.
Torque: 12.3 Nm (125 kg.cm, 9 ft.lb)
INSTALLATION
Installation is in the reverse order of removal
