Removal and Installation

REMOVAL
1. REMOVE INSTRUMENT PANEL AND REINFORCEMENT

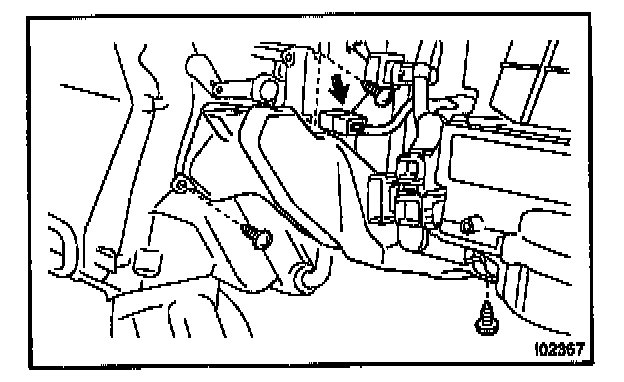

2. REMOVE AIR DUCT
a. Disconnect the connector clamp.
b. Remove the 3 screws and air duct.




3. DISCONNECT WIRE HARNESS
a. Release the claw of the connector bracket and disconnect the connector bracket.
b. Disconnect the wire harness set clamps.
c. Disconnect the wire harness.

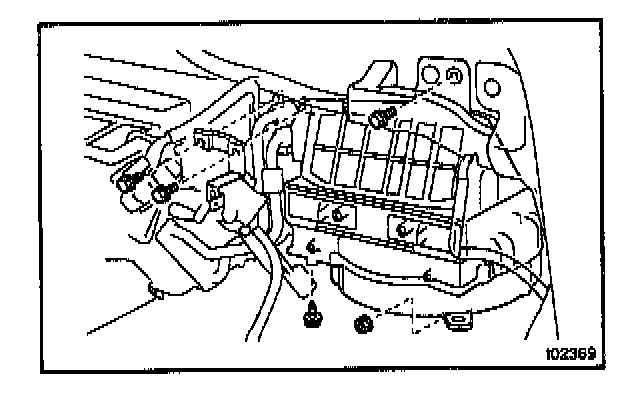

4. REMOVE BLOWER UNIT
a. Disconnect the connectors.
b. Remove the 2 bolts and bracket.
c. Remove the bolt, screw and nut.
d. Remove the blower unit.

INSTALLATION
Installation is in the reverse order of removal.
