ABS W/Hydraulic Brake Booster Power Supply System

CIRCUIT DESCRIPTION

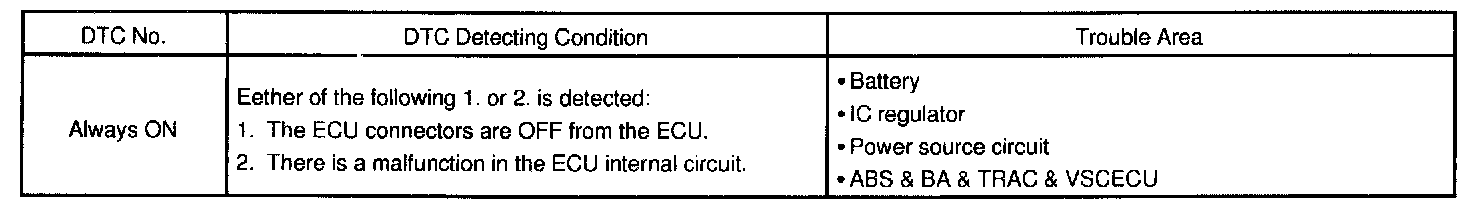

DETECTING CONDITIONS

HINT: There is a case that LEXUS hand-held tester cannot be used when ECU is abnormal.

Fail Safe Function:
If trouble occurs in the ECU, the ECU cuts off current to the ABS solenoid relay and prohibits ABS & TRAC & VSC controls. When fail safe function in ABS system is activated "VSC" warning light and "VSC OFF" indicator light tight up.




WIRING DIAGRAM

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

Step 6:

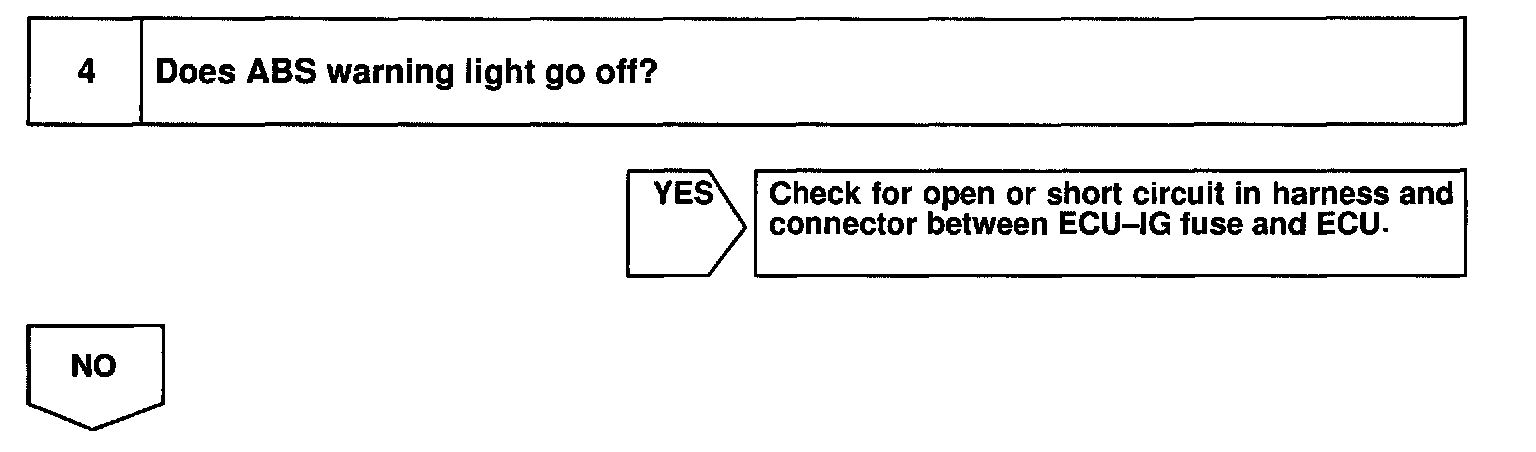

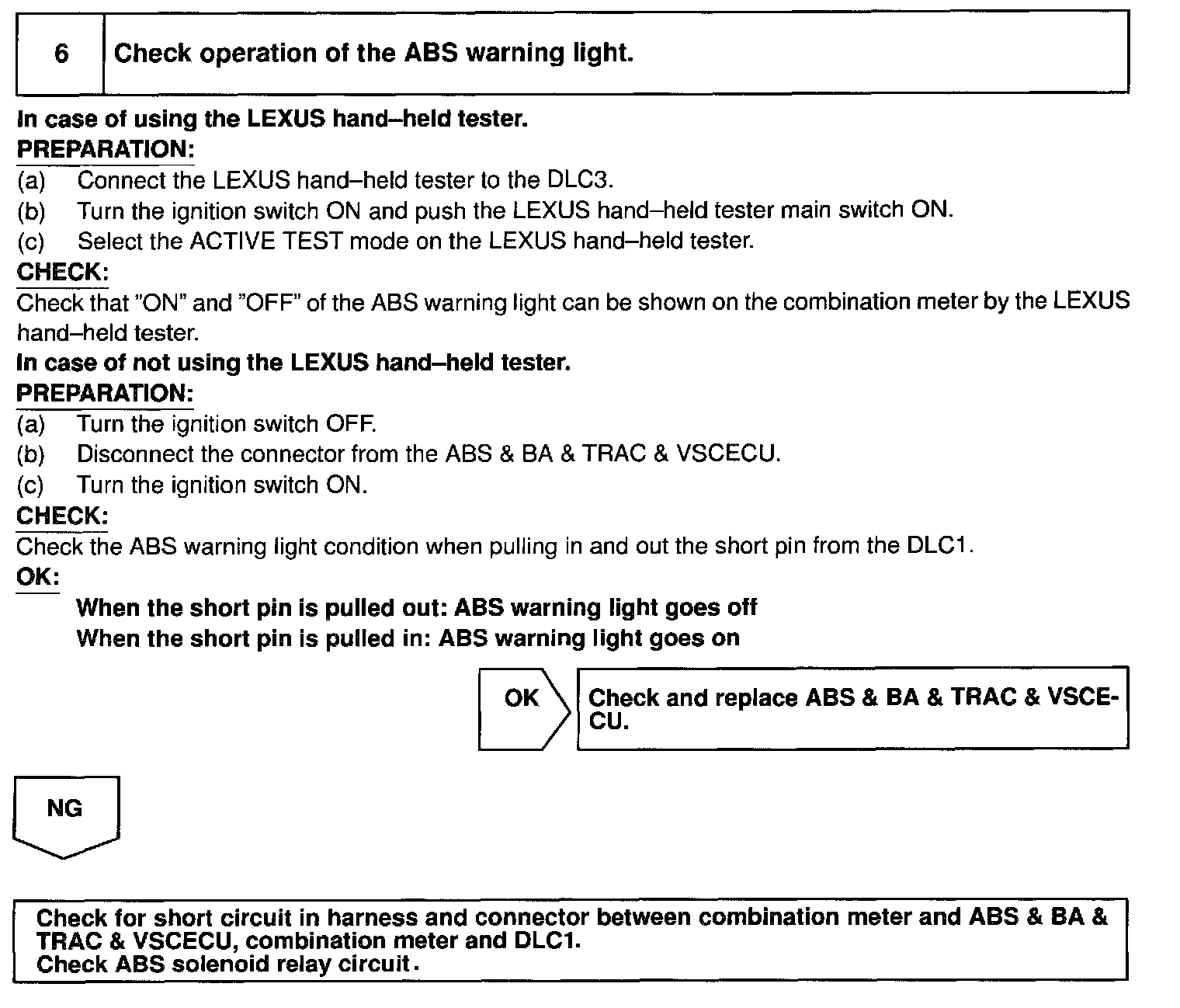

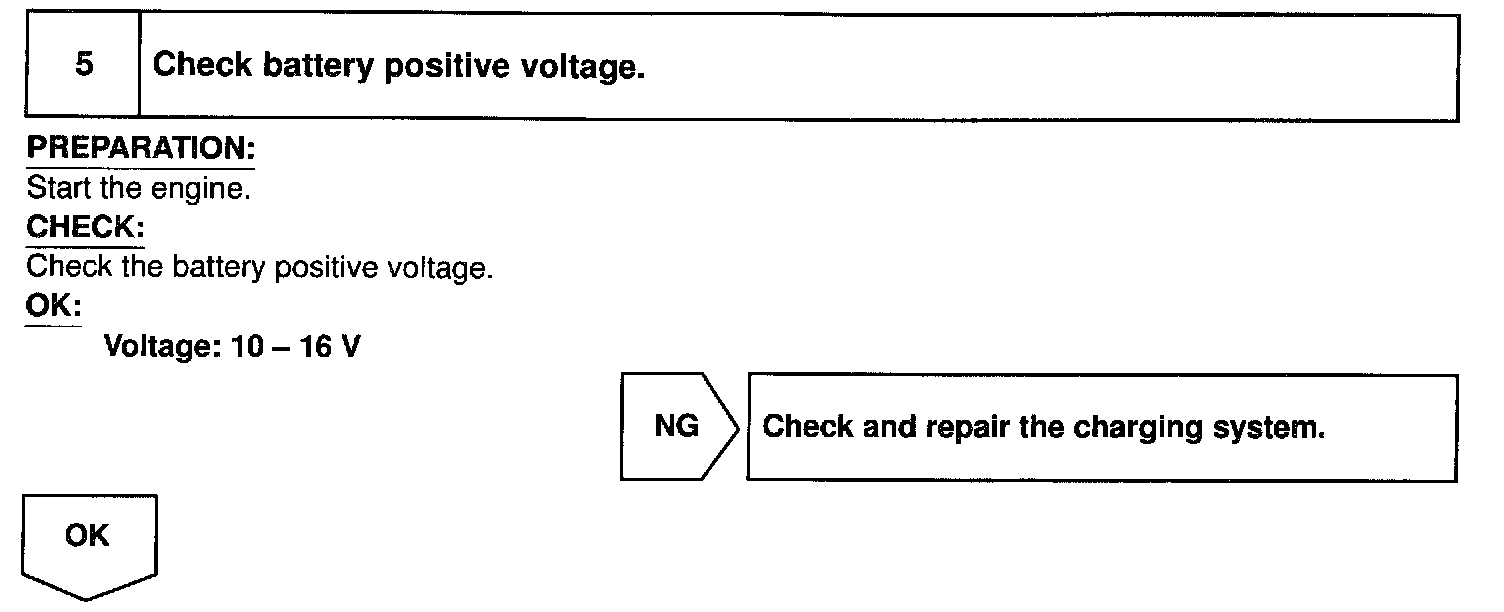

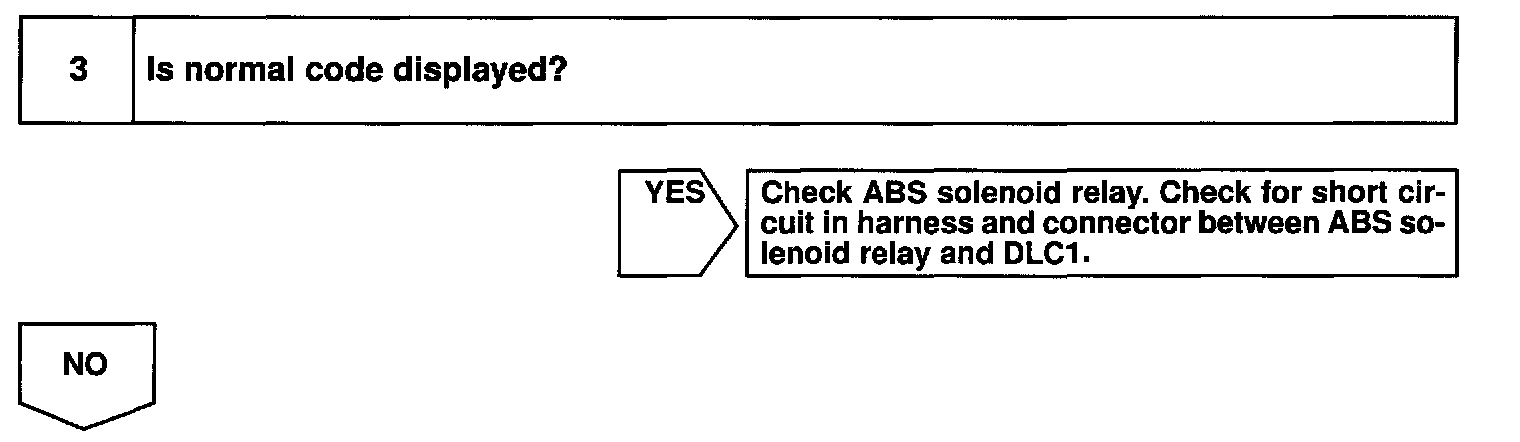

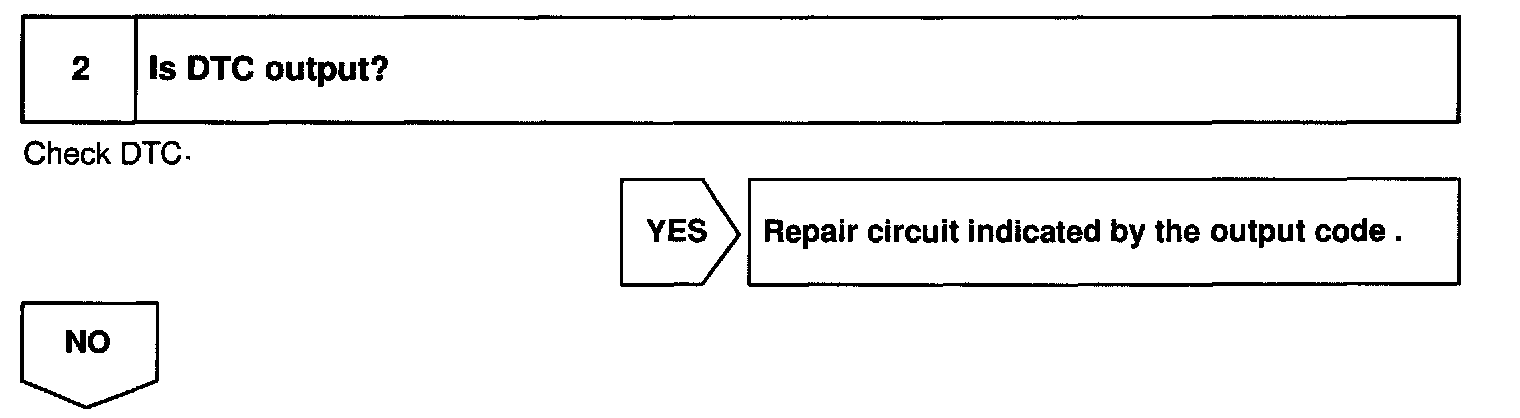

INSPECTION PROCEDURE
