ABS W/BA & VSC System

CIRCUIT DESCRIPTION

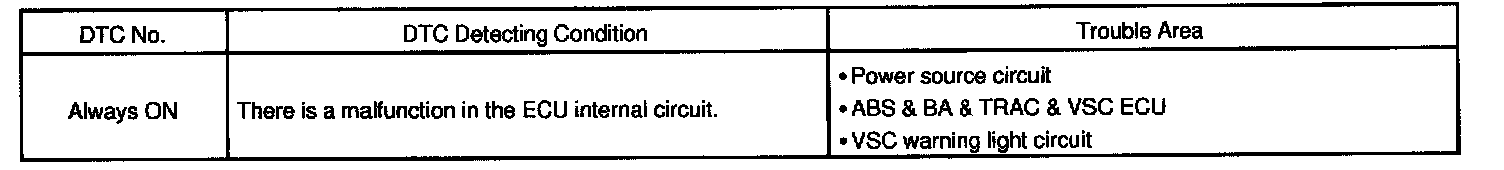

DETECTING CONDITIONS

Fail Safe Function:
If trouble occurs in the ECU, the ECU prohibits ABS & BA & TRAC & VSC controls and the brake system becomes normal.

HINT: If fail safe function is activated in VSC system, "VSC OFF" indicator light lights up.

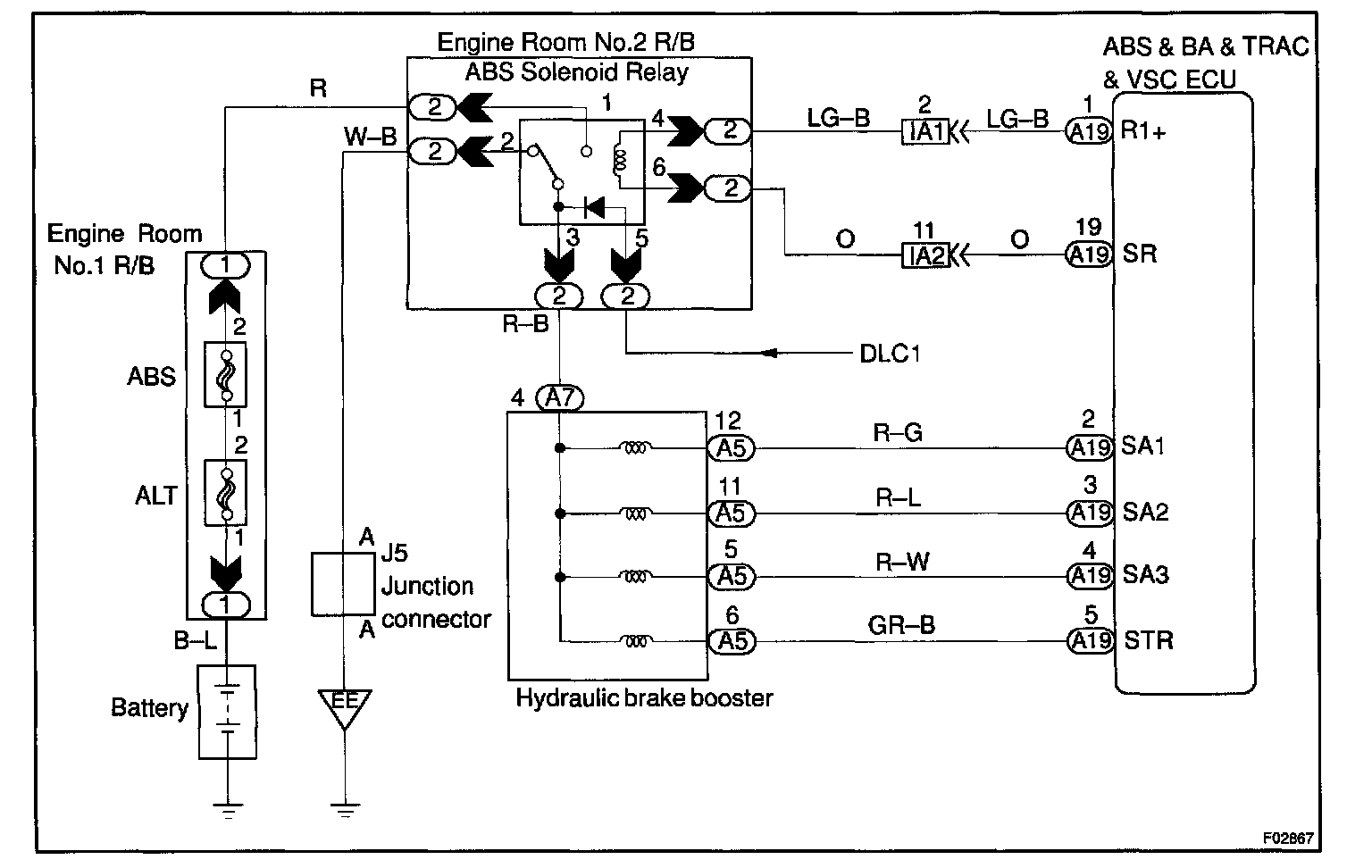

WIRING DIAGRAM

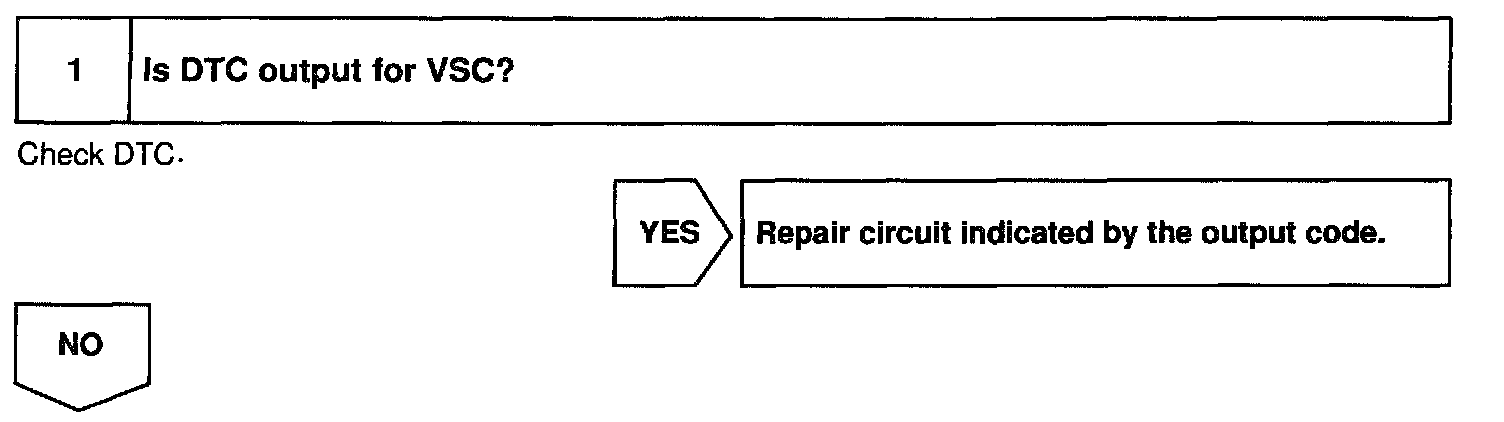

Step 1:

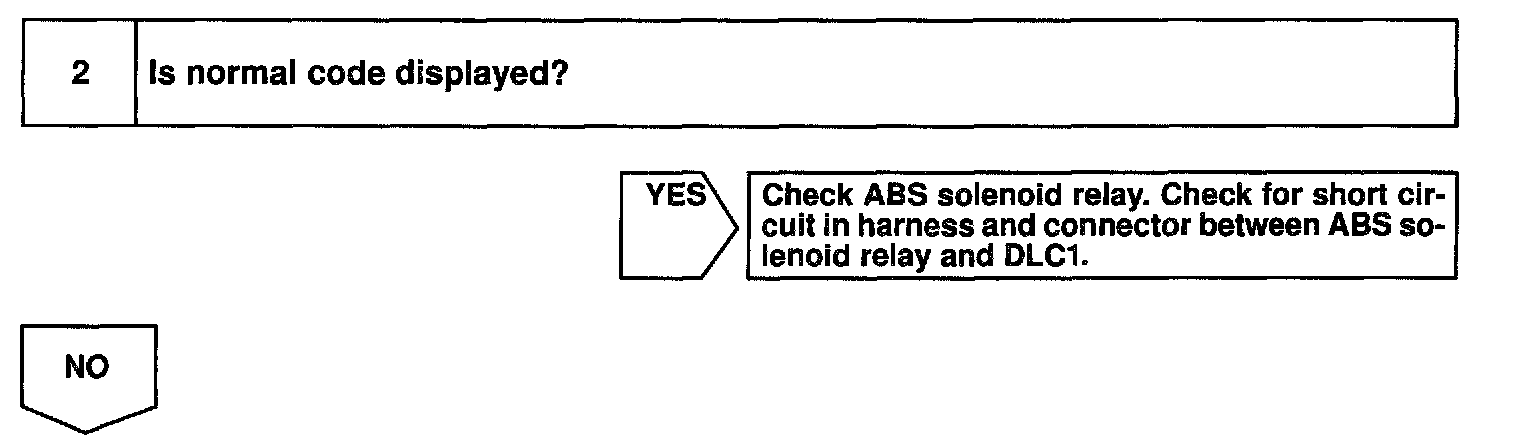

Step 2:

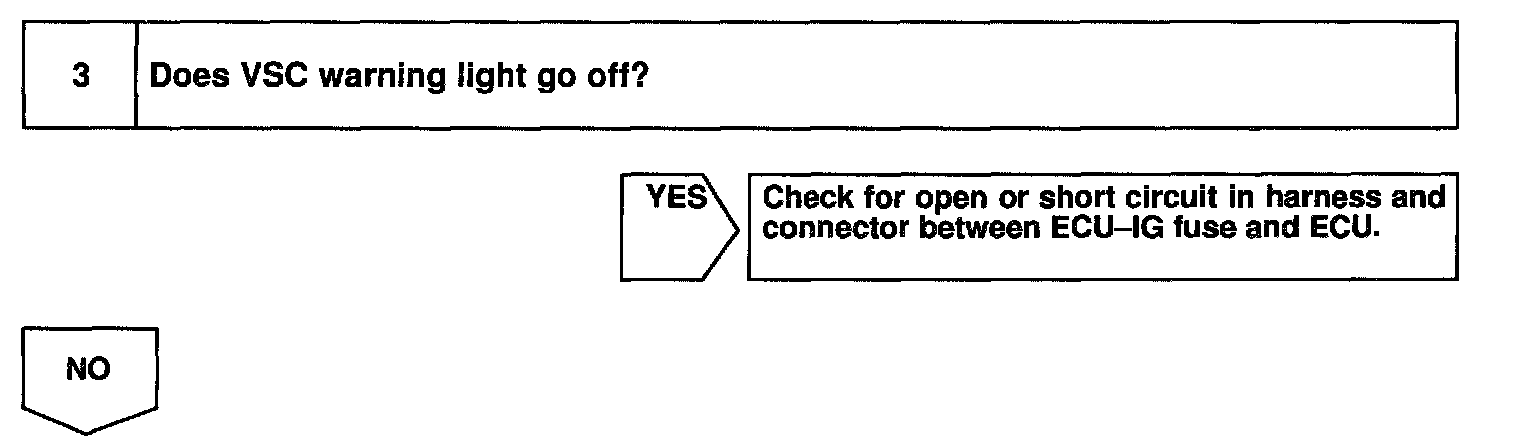

Step 3:

Step 4:

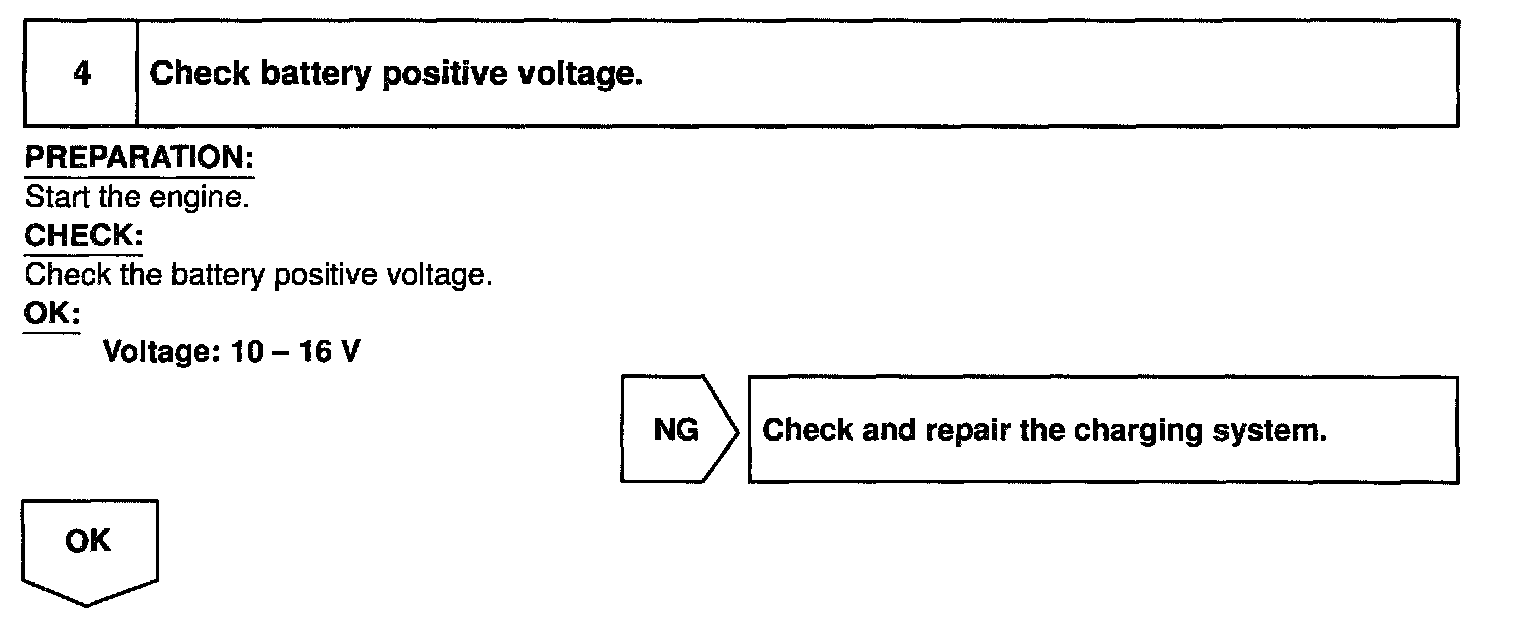

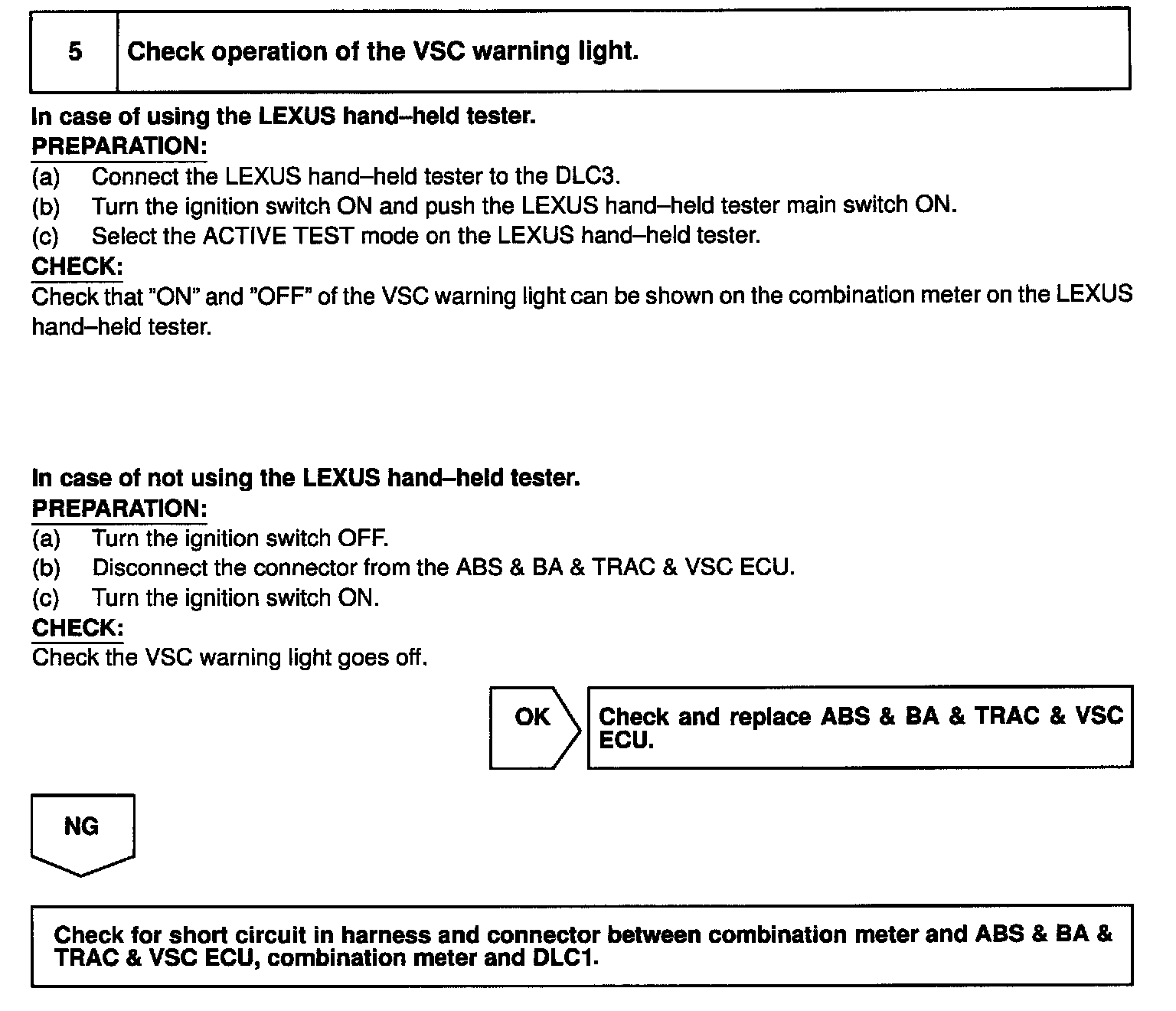

Step 5:

INSPECTION PROCEDURE
