SLIDING ROOF

ON-VEHICLE INSPECTION

INSPECT SLIDING ROOF GLASS ALIGNMENT




a. Start the engine and check the operation time of the sliding roof.

Operation time: Approx. 6 secs.

b. Check for abnormal noise or binding during operation.
c. With the sliding roof fully closed, check for water leakage.
d. Check for a difference in level between the sliding roof weatherstrip and roof panel.

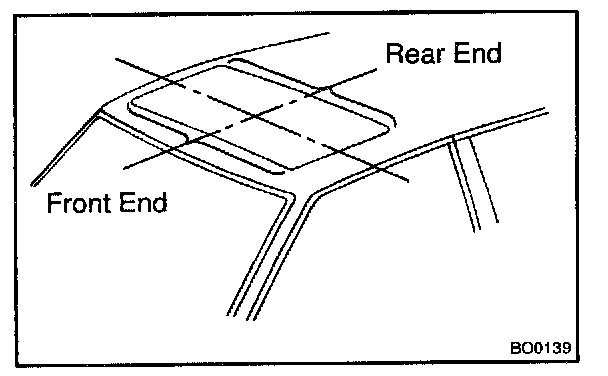

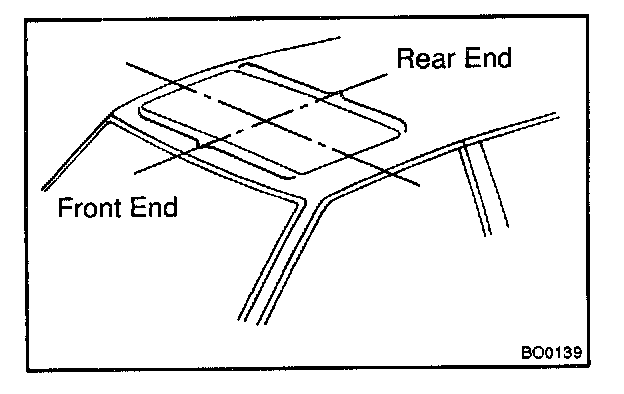

Front End:
-0.5 ± 1.5 mm (-0.020 ± 0.059 in.)

Center Line:
0 ± 1.5 mm (0 ± 0.059 in.)

Rear End:
0.5 ± 1.5 mm (0.020 ± 0.059 in.)
