Gear Assembly With ECU Circuit

Sliding Roof Gear Assembly With ECU Circuit

Wiring Diagram:

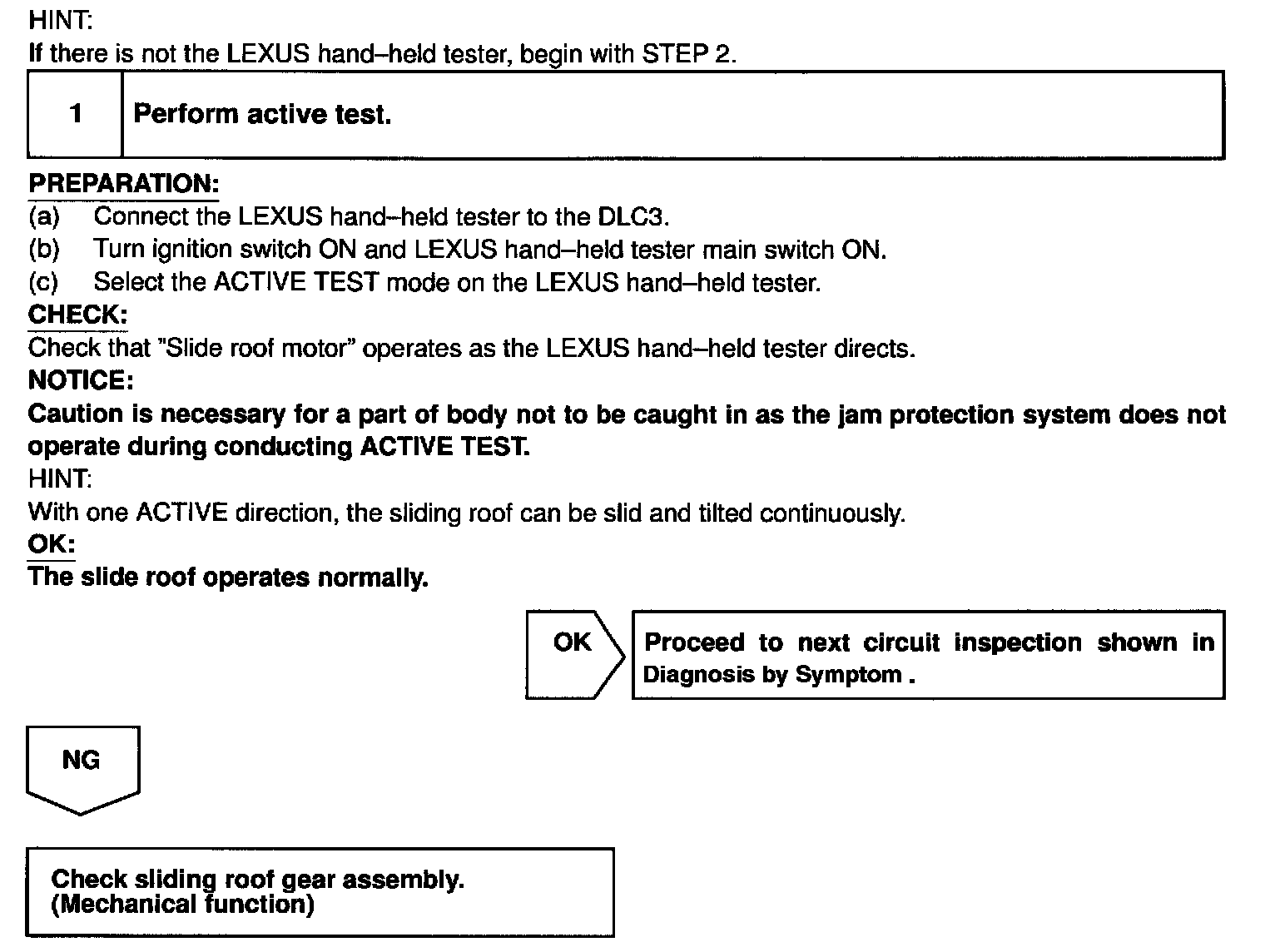

Step 1:




INSPECTION PROCEDURE
