Power Mirror Control System














1. TAIWAN model: INSPECT MIRROR SWITCH CONTINUITY
Measure resistance between terminals 7 and 9.
If continuity is not as specified, replace the switch.

4. TAIWAN model: INSPECT RETRACT SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

5. TAIWAN model:
INSPECT MIRROR SWITCH CIRCUIT





6. W/O Driving position memory: INSPECT MIRROR MOTOR OPERATION
a. Connect the positive (+) lead from the battery to terminal 4 and the negative (-) lead to terminal 5, and check that the mirror turns to the left side.

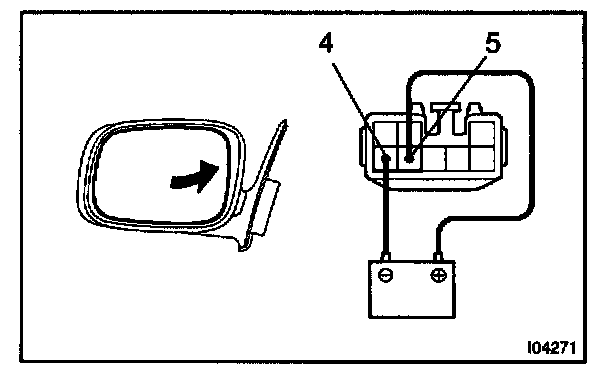

b. Reverse the polarity, and check that the mirror turns to the right side.

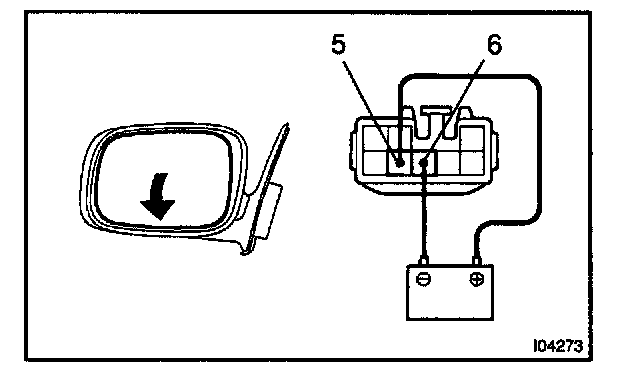

c. Connect the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 5, and check that the mirror turns upward.





d. Reverse the polarity, and check that the mirror turns downward.

If operation is not as specified, replace the mirror assembly.

7. W/O Driving position memory: INSPECT MIRROR MOTOR CIRCUIT
