Hood Latch Release Cable: Service and Repair
REMOVAL1. REMOVE THESE PARTS:
a. LH fender liner
b. Hood release lever
c. Radiator support upper seal
d. Hood lock
2. REMOVE HOOD LOCK CONTROL CABLE

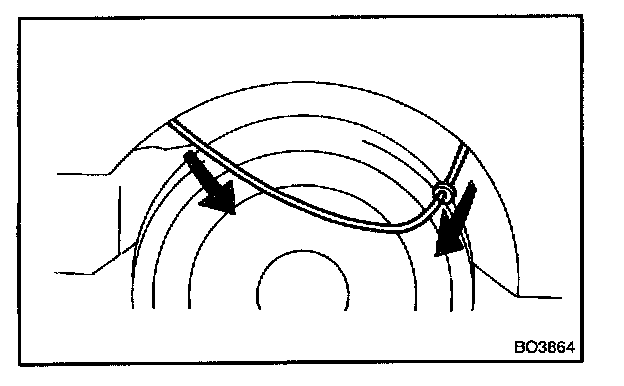

a. Using a screwdriver, disconnect the cable from the clamps.
HINT: Tape the screwdriver tip before use.

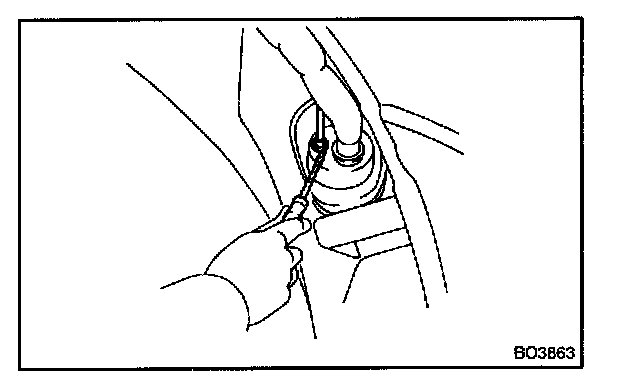

b. Using a screwdriver, pry out the cable stopper from the grommet.
HINT:
- Tape the screwdriver tip before use.
- Do not damage the grommet with the screwdriver.
c. Pull the cable from the front wheel housing to remove it.
INSTALLATION

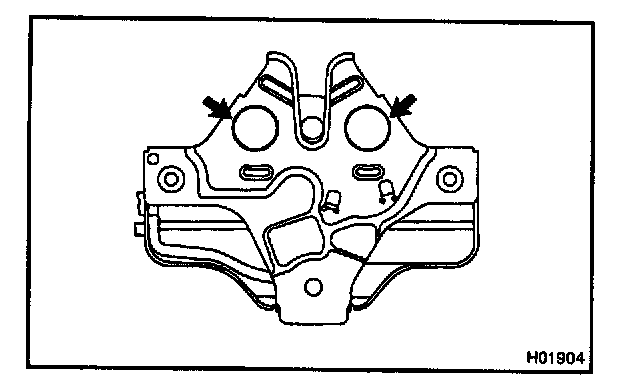

1. BEFORE INSTALLING PARTS, COAT LOCK WITH MP GREASE
Apply MP grease to the sliding surface of the lock.
2. INSTALL HOOD LOCK CONTROL CABLE

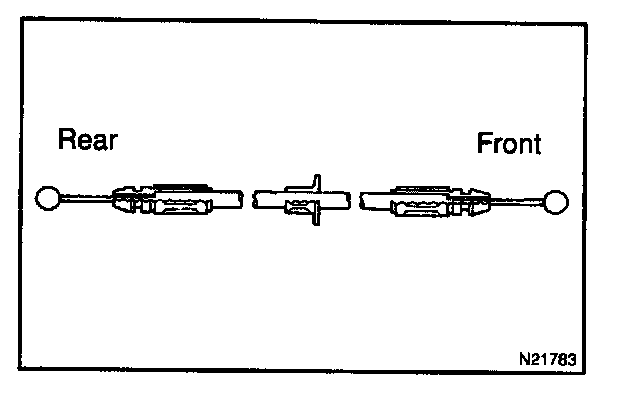

a. Push the rear side cable through the grommet.
b. Using a screwdriver, push the cable stopper into the grommet.
HINT:
- tape the screwdriver tip before use.
- Do not damage the grommet with the screwdriver.

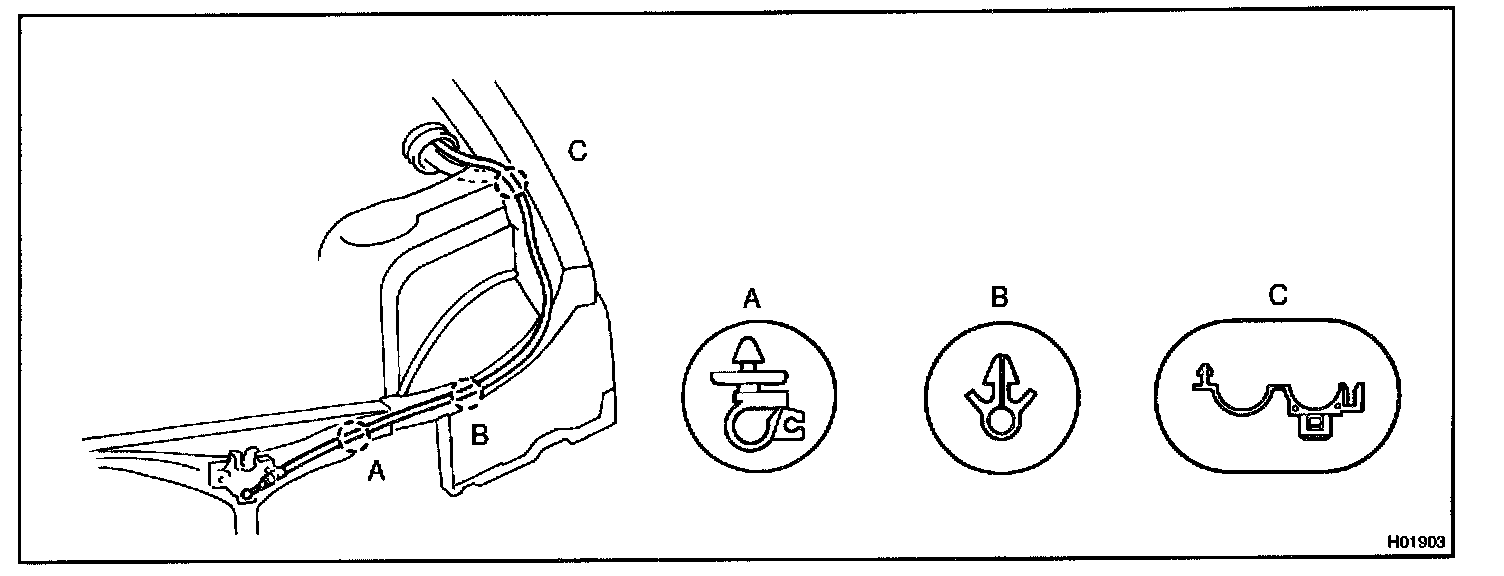

c. Pass the front side cable through the upper radiator support.
d. Install the cable with clamps.
3. INSTALL HOOD RELEASE LEVER
4. CHECK HOOD LOCK CONTROL FOR PROPER OPERATION
After checking for proper operation, tighten the 3 bolts to install the lock.
Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
5. INSTALL THESE PARTS:
a. Radiator support upper seal
b. LH fender liner
c. LH front fender side panel protector
