Rear Left Door Control System
Rear Left Door Control System

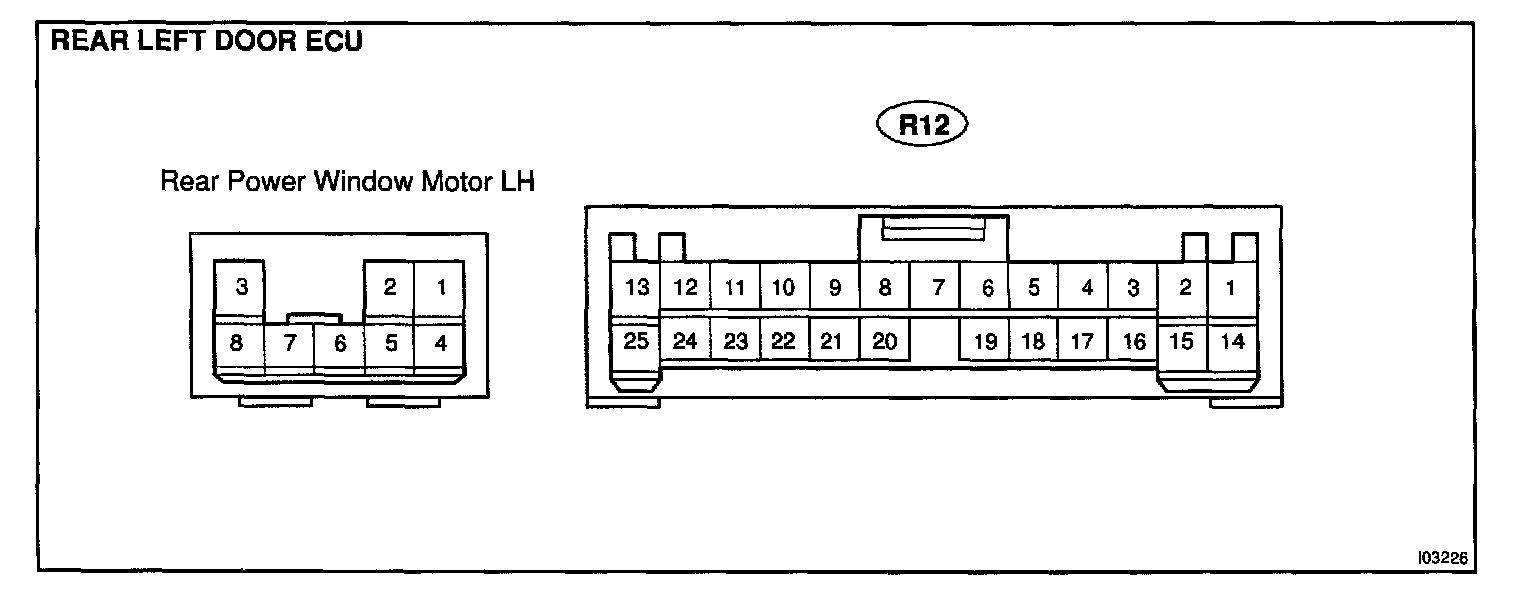

Terminals Of ECU ( R12 ) - View:

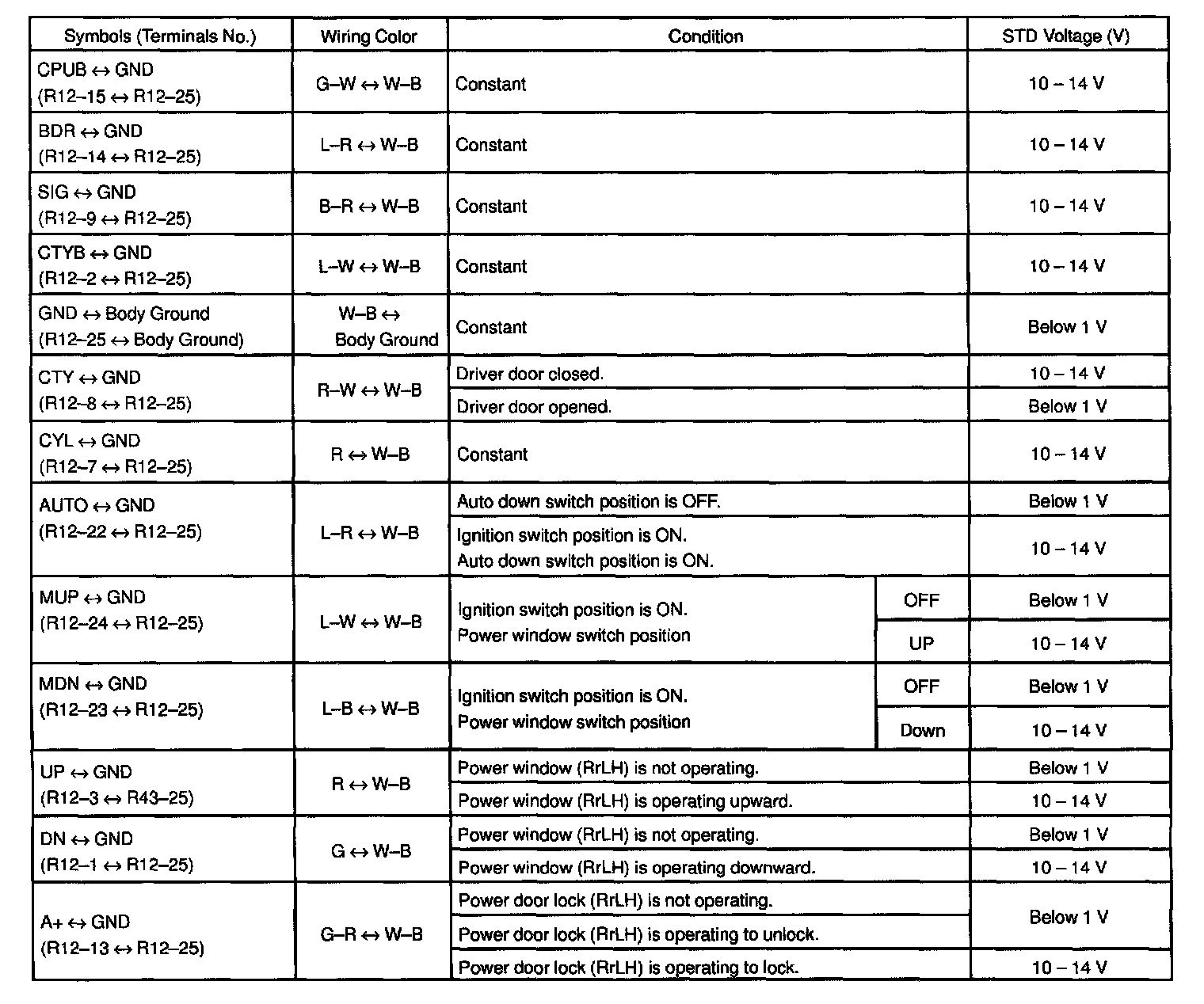

Terminals Of ECU ( R12 ) - Pinouts ( Part 1 Of 2 ):

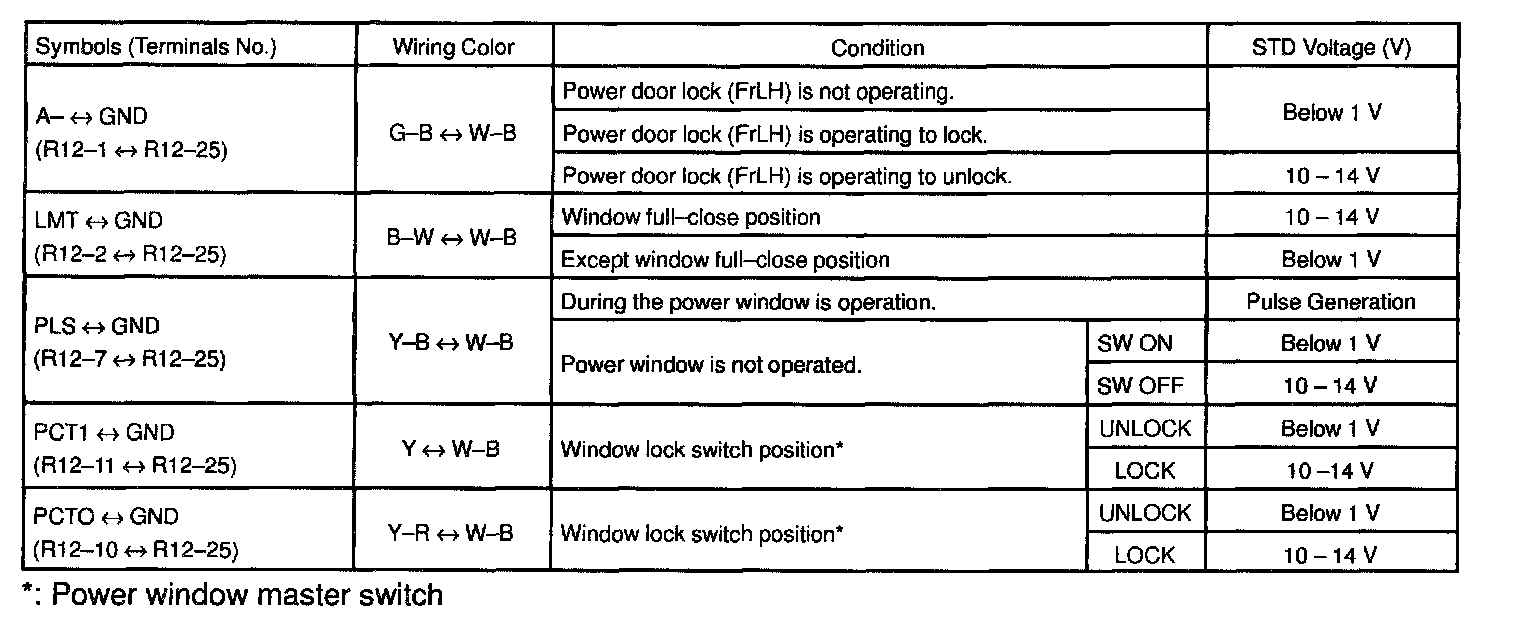

Terminals Of ECU ( R12 ) - Pinouts ( Part 2 Of 2 ):
