Passenger Door Control System

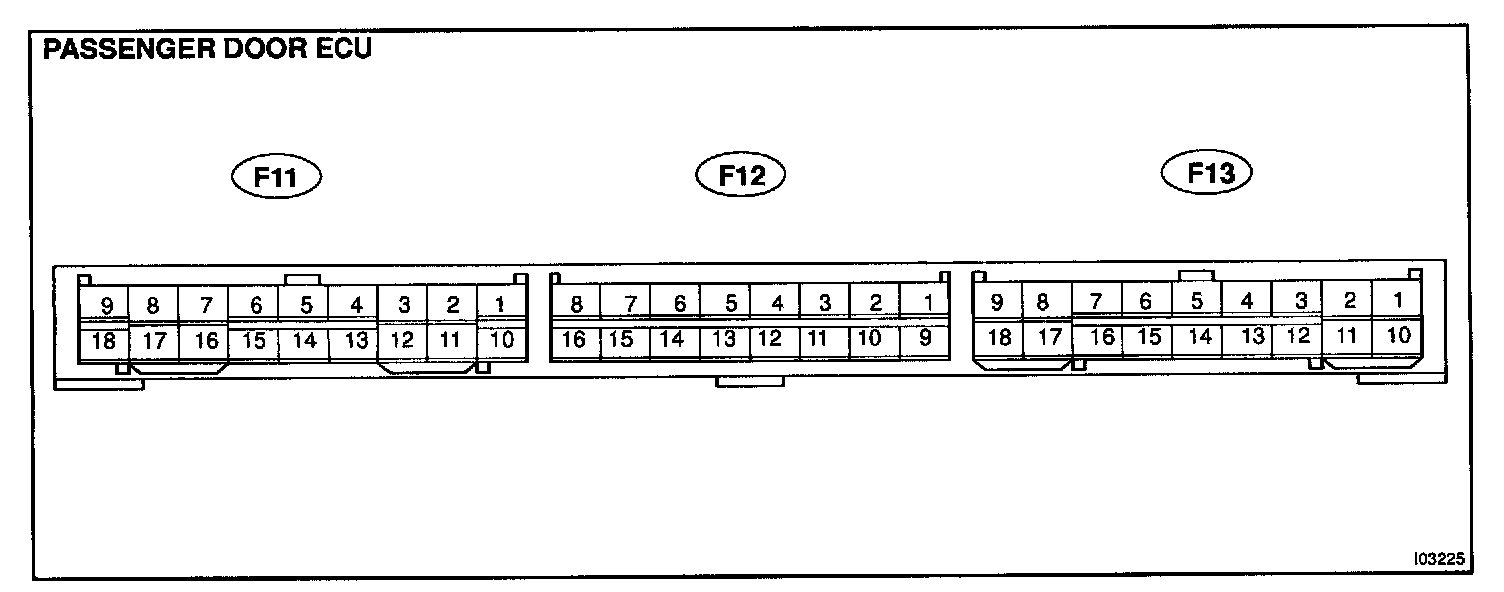

Terminals Of ECU ( F11 , F12 , F13 ) - View:

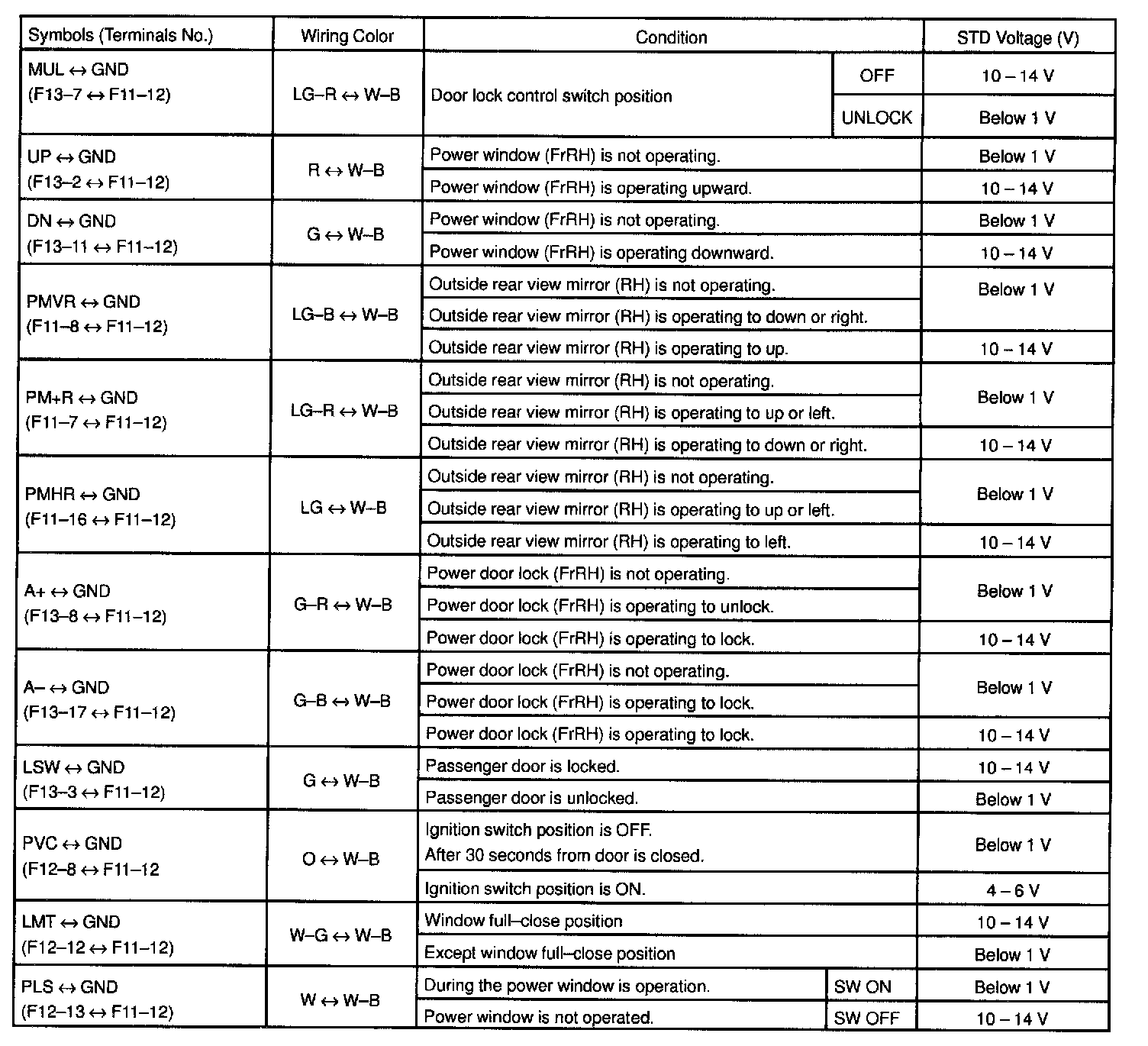

PASSENGER DOOR CONTROL SYSTEM - HOW TO PROCEED WITH Terminals Of ECU ( F11 , F12 , F13 ) - Pinouts ( Part 1 Of 2 ):

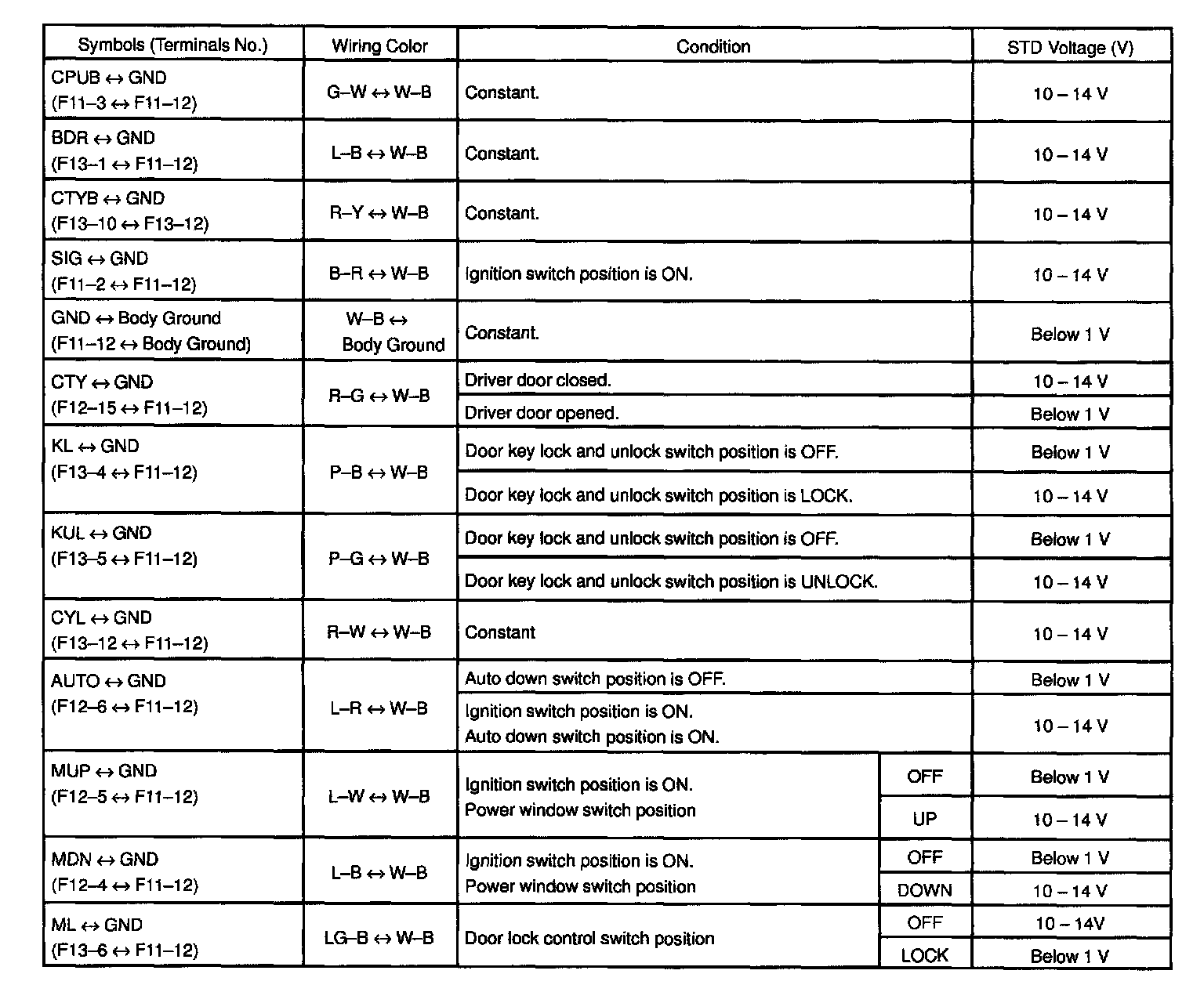

Terminals Of ECU ( F11 , F12 , F13 ) - Pinouts ( Part 2 Of 2 ):
