Driver Door Control System

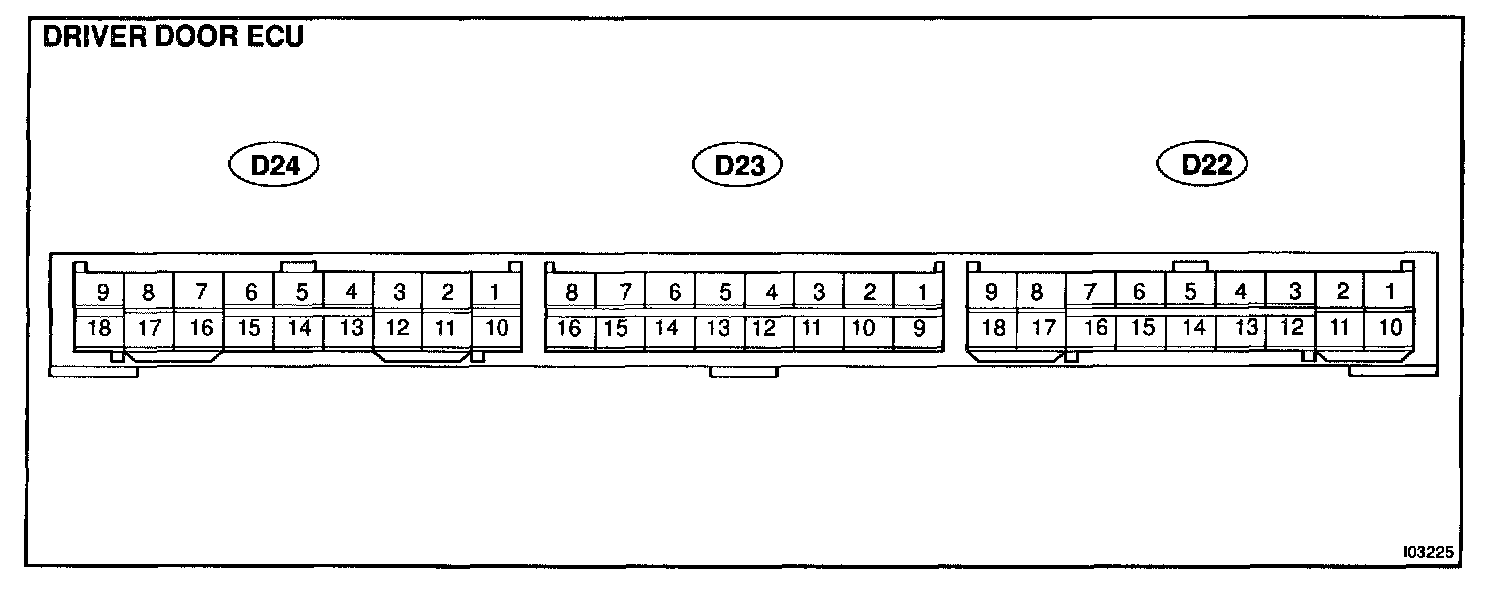

Terminal Of ECU ( D24 , D23 , D22 ) - View:

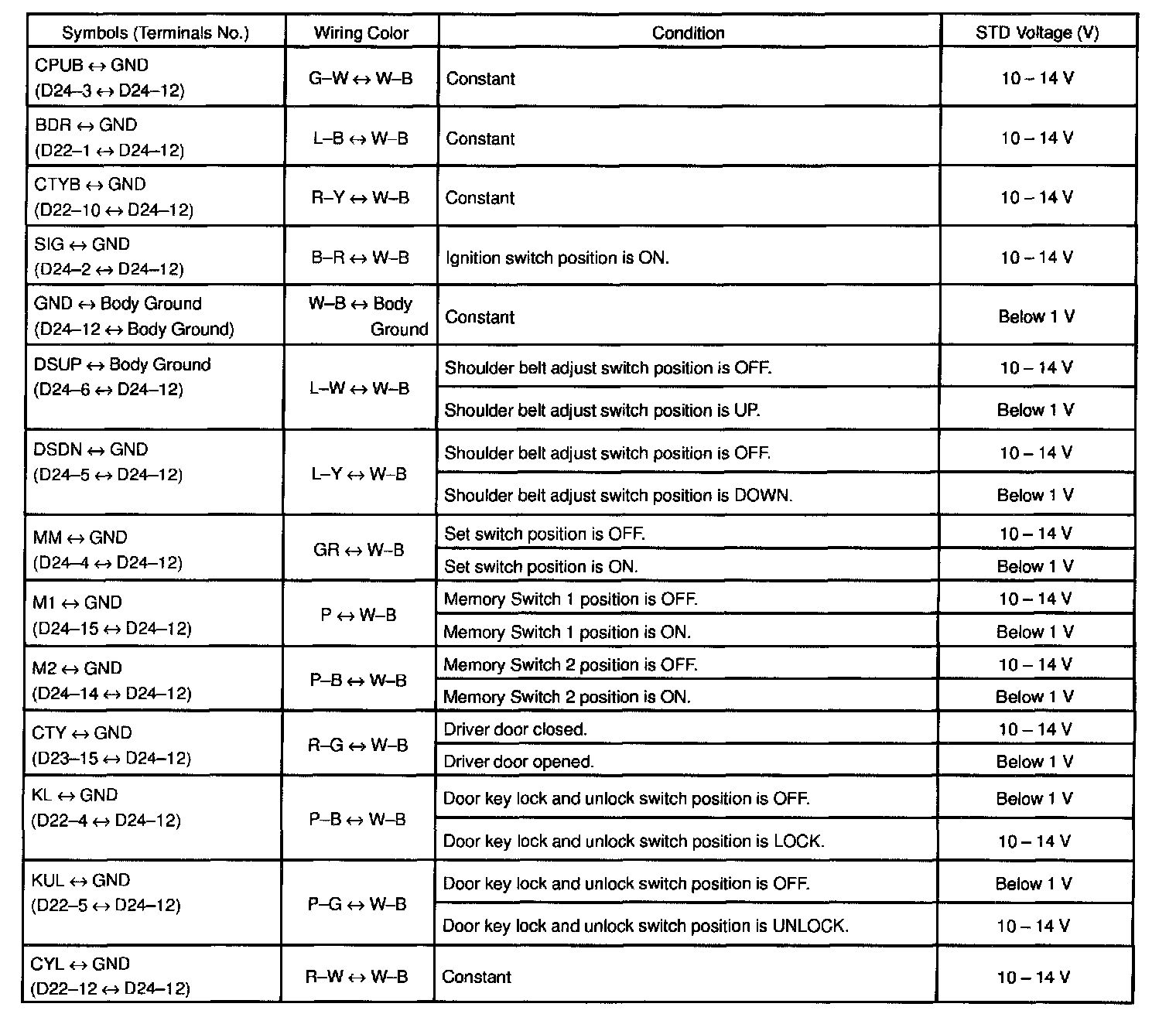

Terminals Of ECU ( D24 , D23 , D22 ) - Pinouts ( Part 1 Of 3 ):

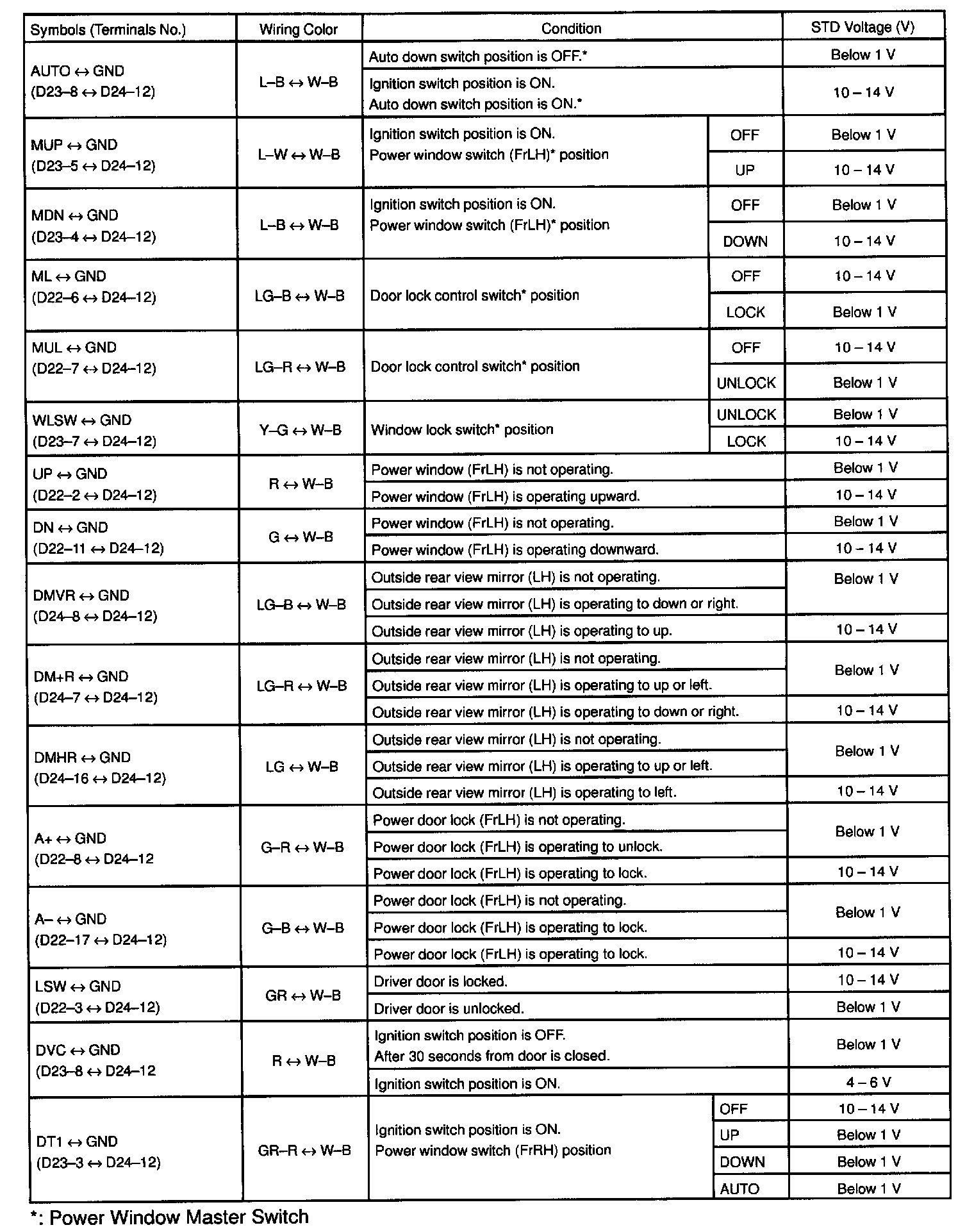

Terminals Of ECU ( D24 , D23 , D22 ) - Pinouts ( Part 2 Of 3 ):

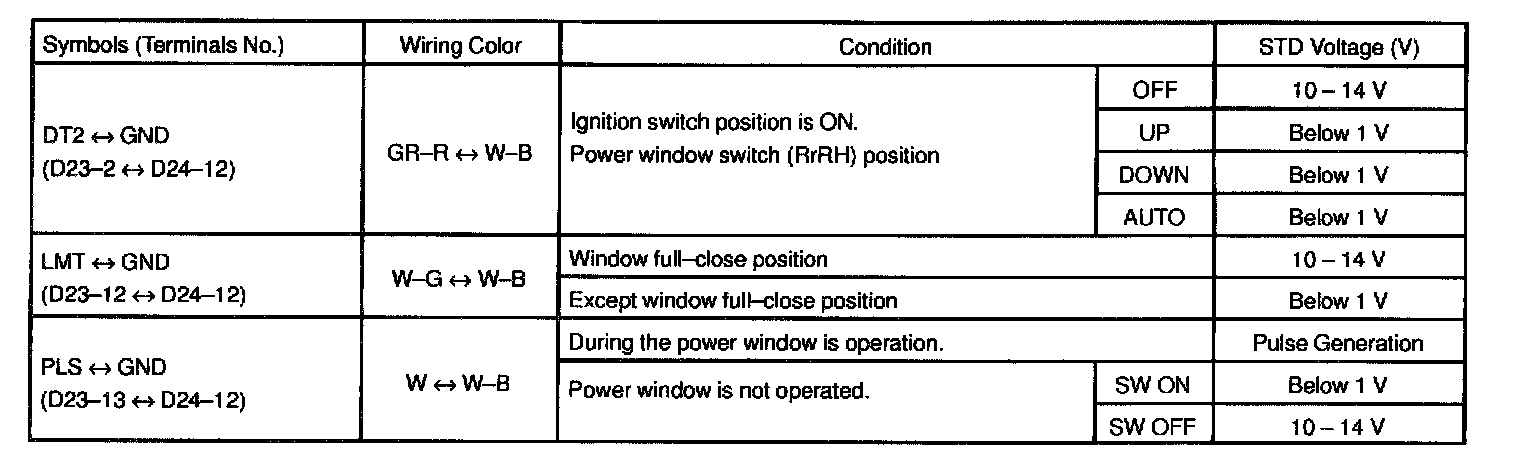

Terminals Of ECU ( D24 , D23 , D22 ) - Pinouts ( Part 3 Of 3 ):
