Power Window Master Switch Circuit

CIRCUIT DESCRIPTION
Power window master switch circuit can be checked using DTC check.

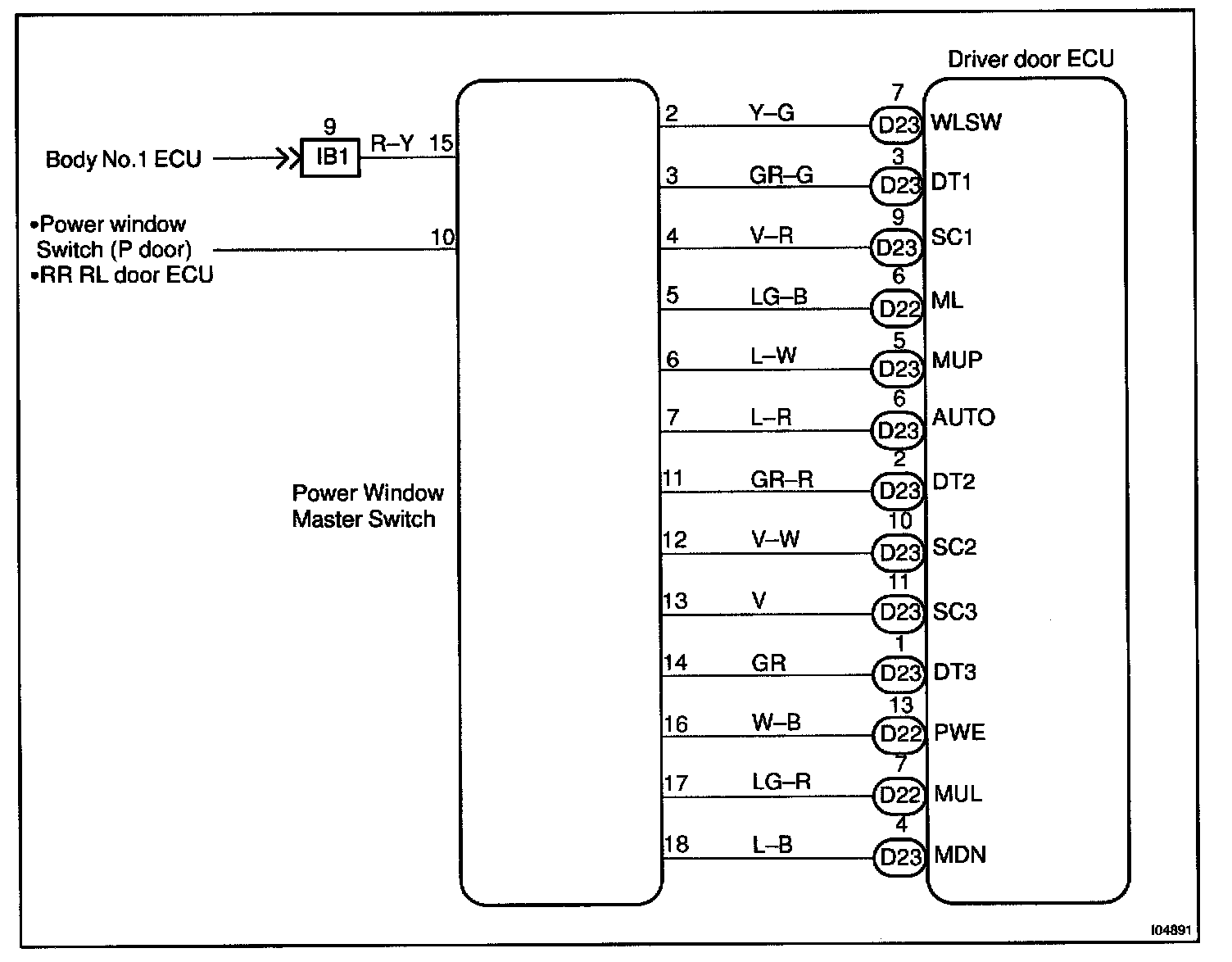

Wiring Diagram:

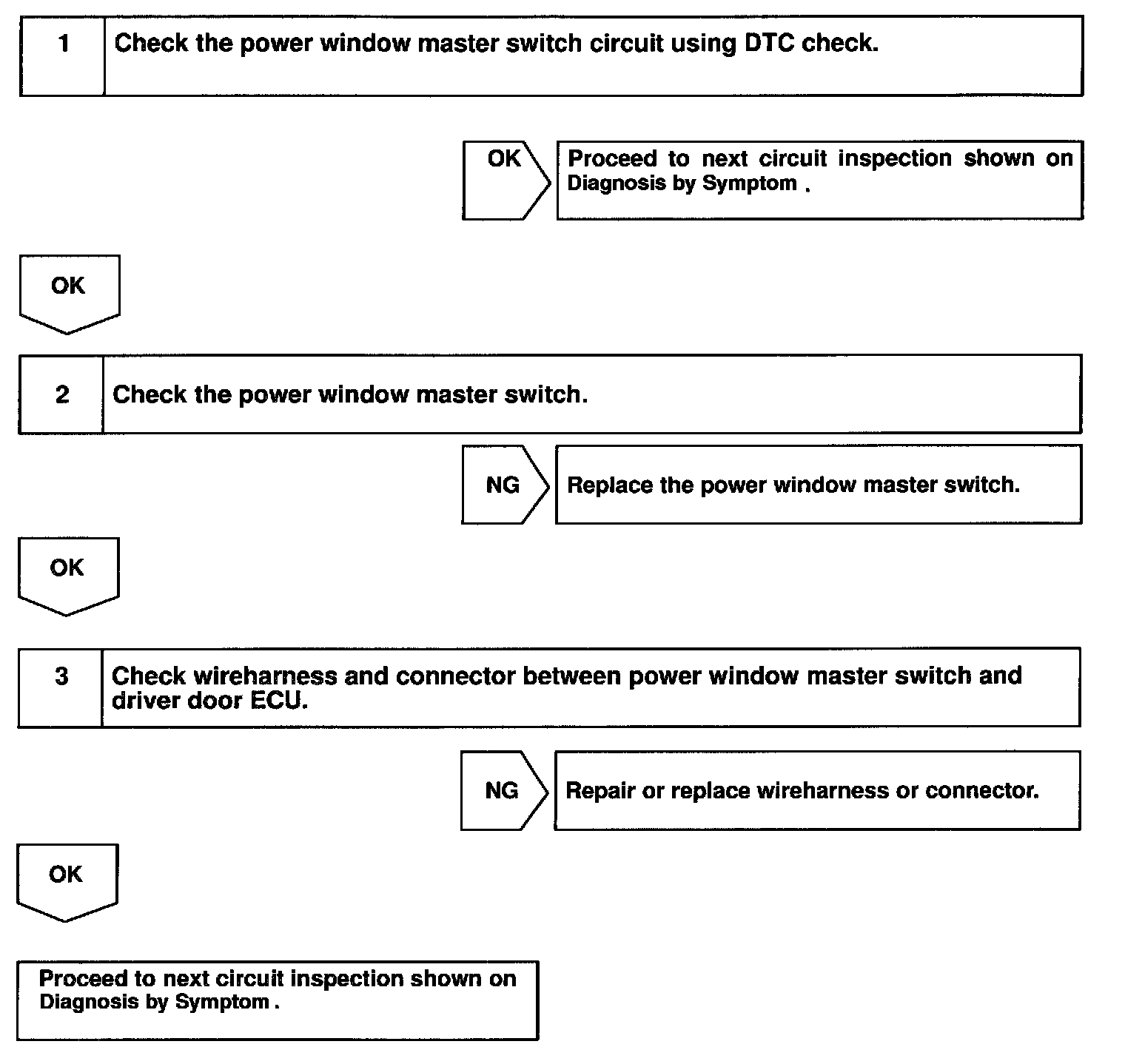

Steps 1 - 3:




INSPECTION PROCEDURE
