Home >> Lexus >> 2000 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Locations

Body Control Systems: Locations

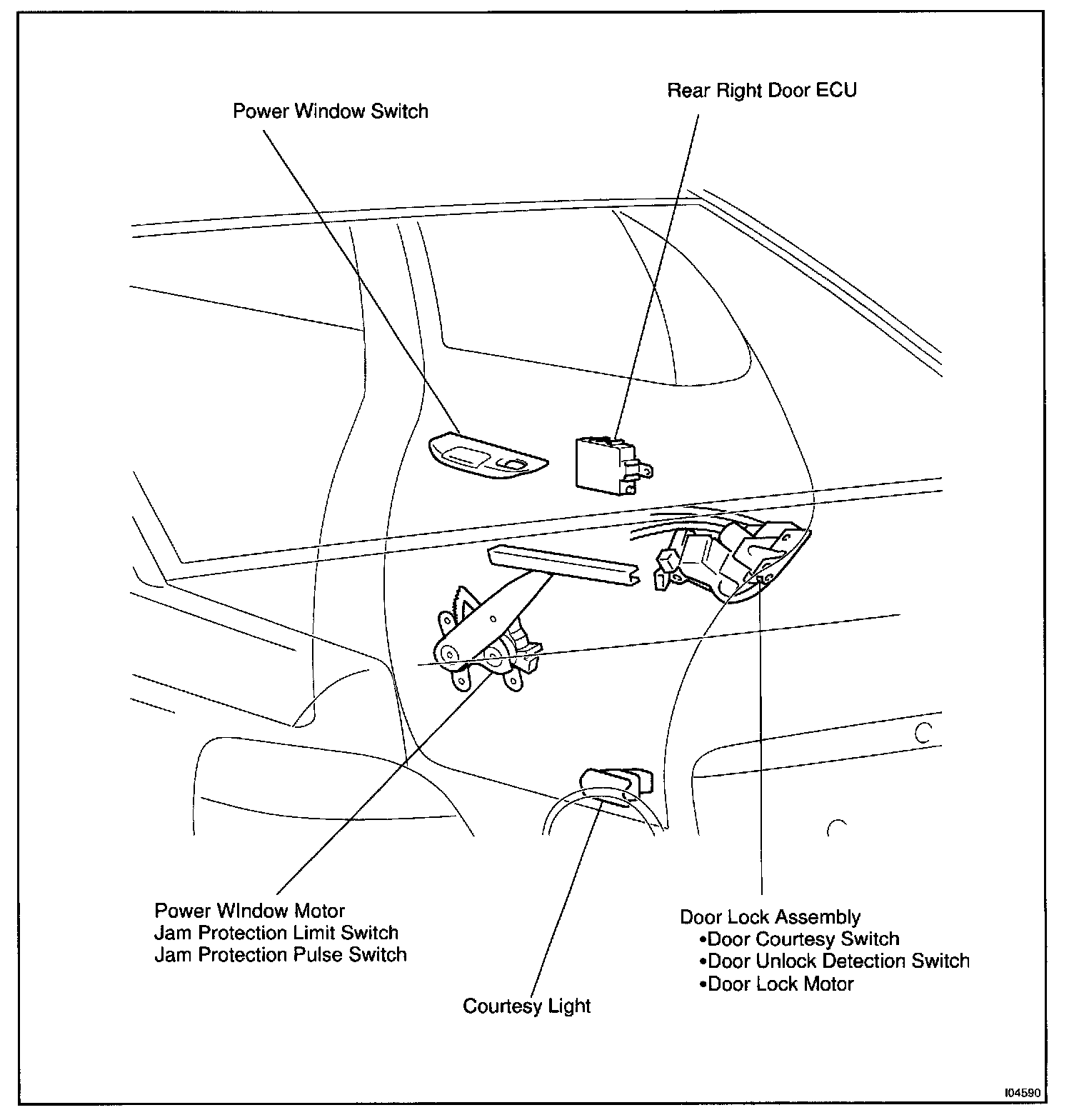

Rear Right Door Control System:

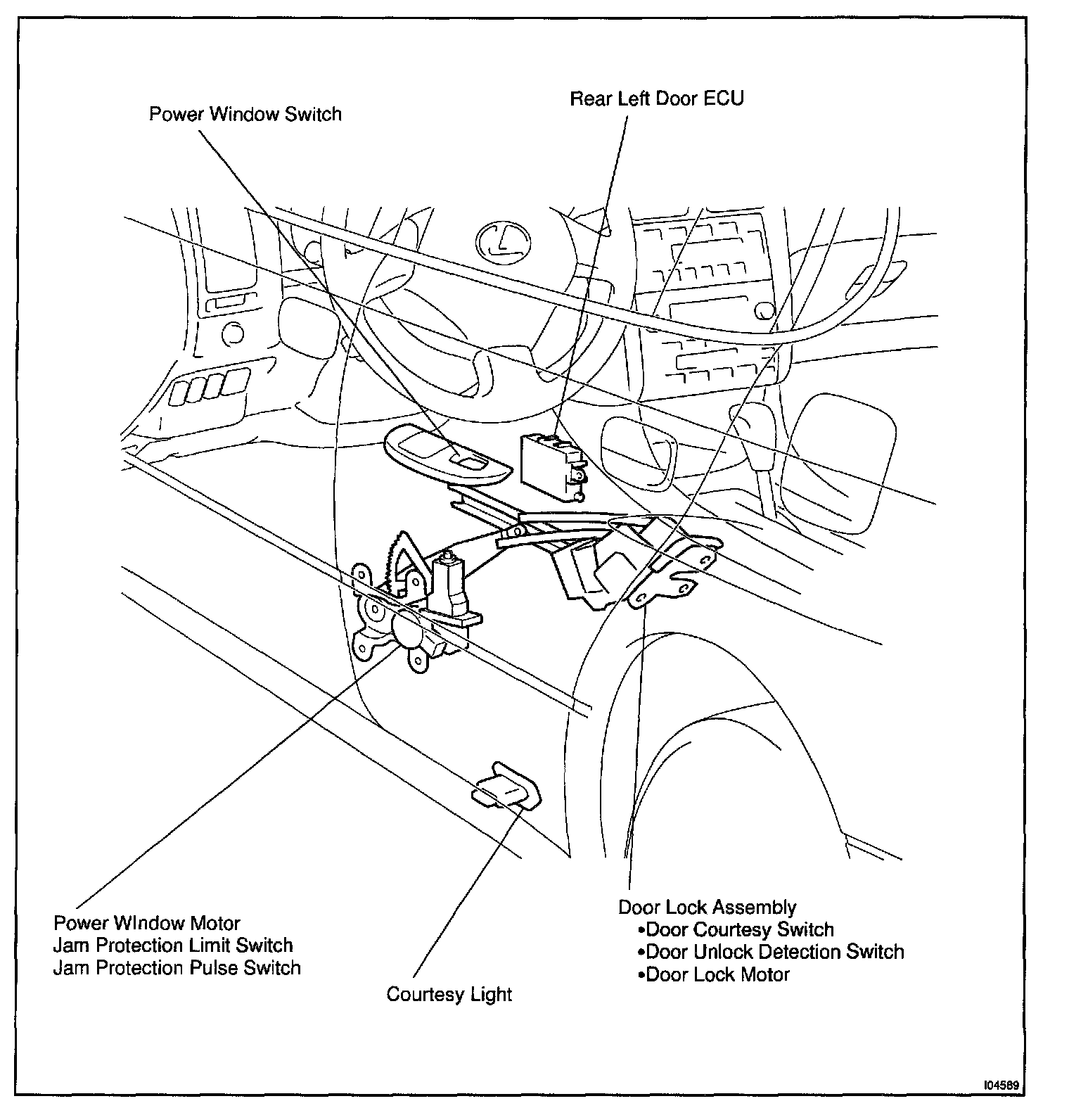

Rear Left Door Control System:

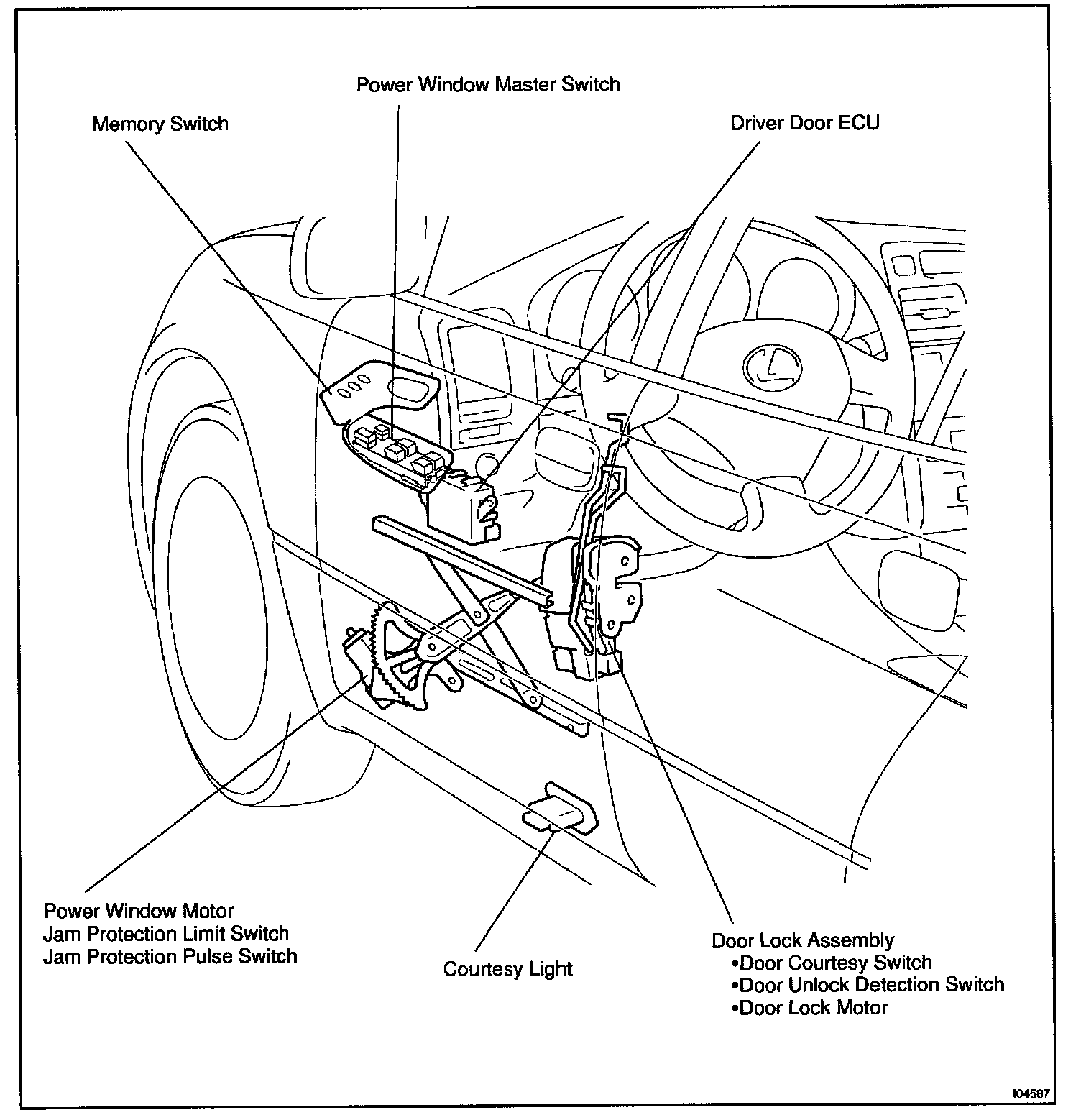

Driver Door Control System:



Passenger Door Control System:
