Home >> Lexus >> 2000 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Component Tests and General Diagnostics

Component Tests and General Diagnostics

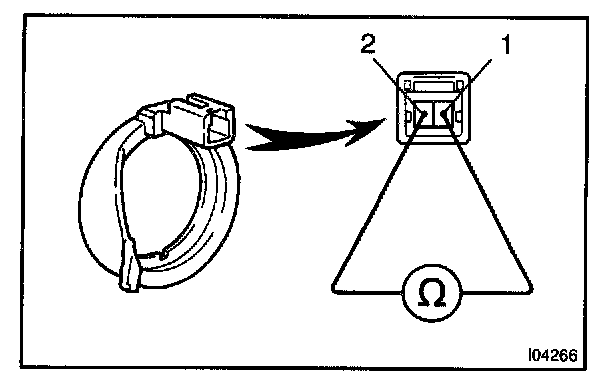

INSPECTION TRANSPONDER KEY COIL CONTINUITY
Check that continuity exists between terminals 1 and 2.
If continuity is not as specified, replace the coil.
