DTC 72

B1272 - 72 - Power Seat ECU Communication Stop (W/ Seat Memory)

CIRCUIT DESCRIPTION
This DTC is output when communication stops between power seat ECU and Body No.1 ECU.

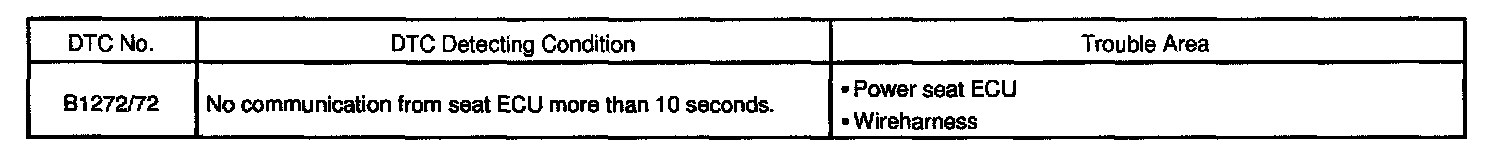

DTC Detecting Condition:

Wiring Diagram:

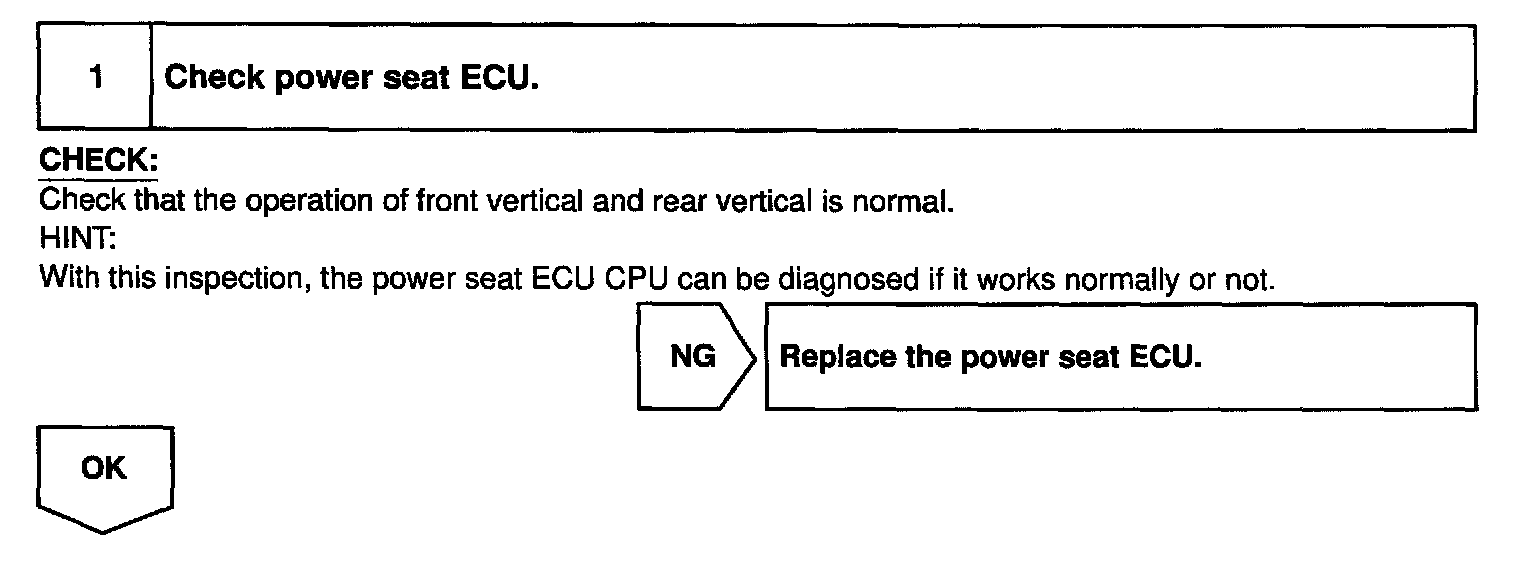

Step 1:

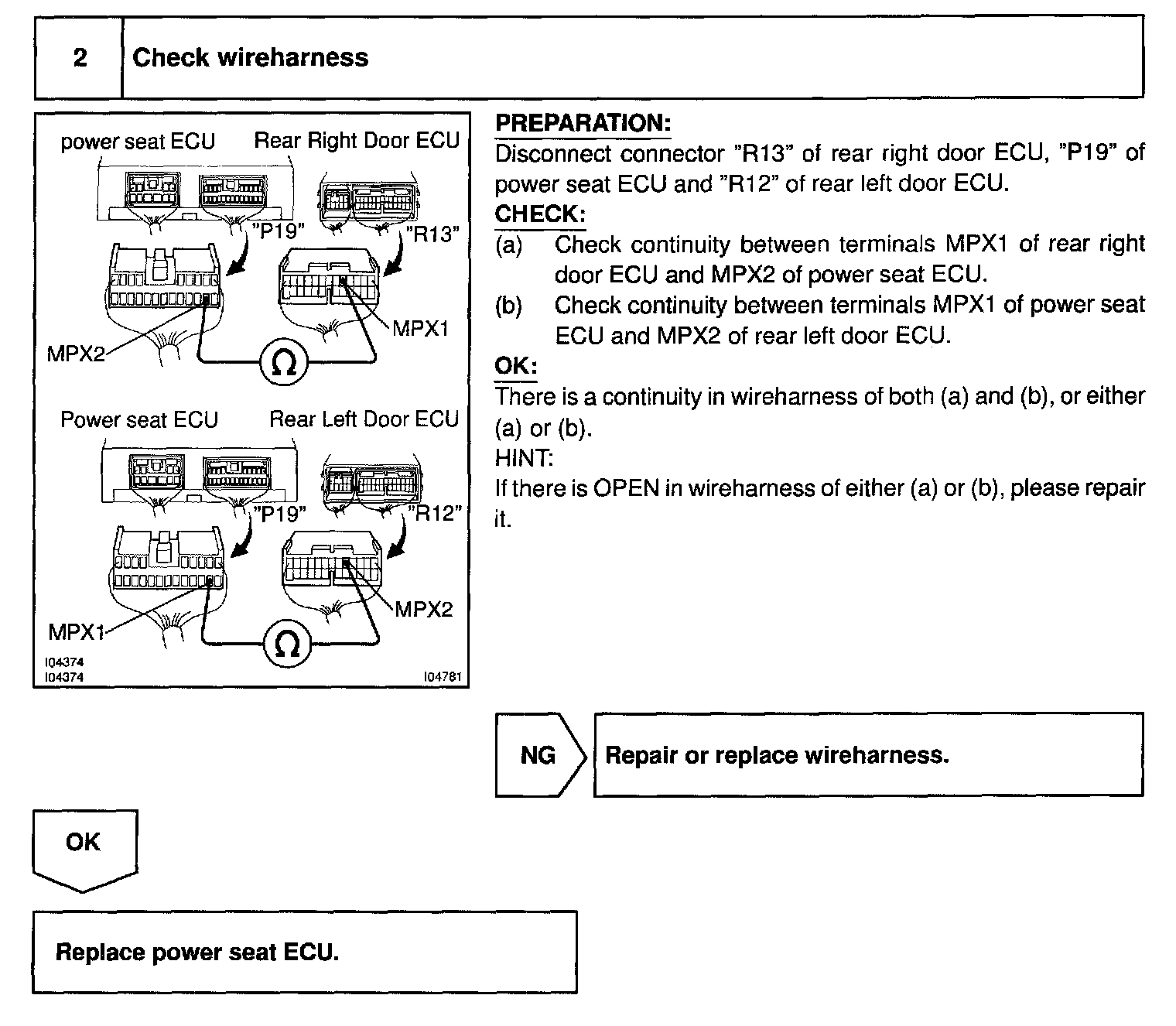

Step 2:

INSPECTION PROCEDURE
