DTC 55

CIRCUIT DESCRIPTION
This DTC is output when failure of P1 switch is detected

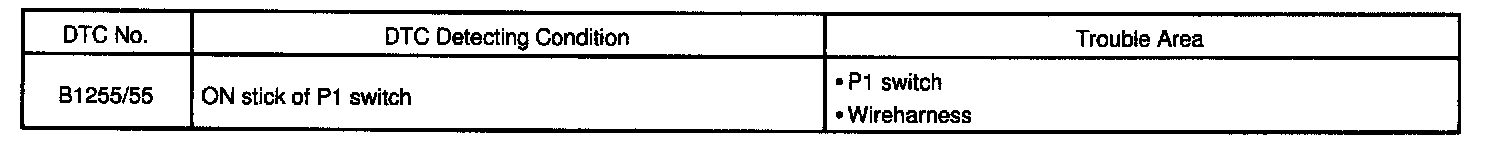

DTC Detecting Condition:

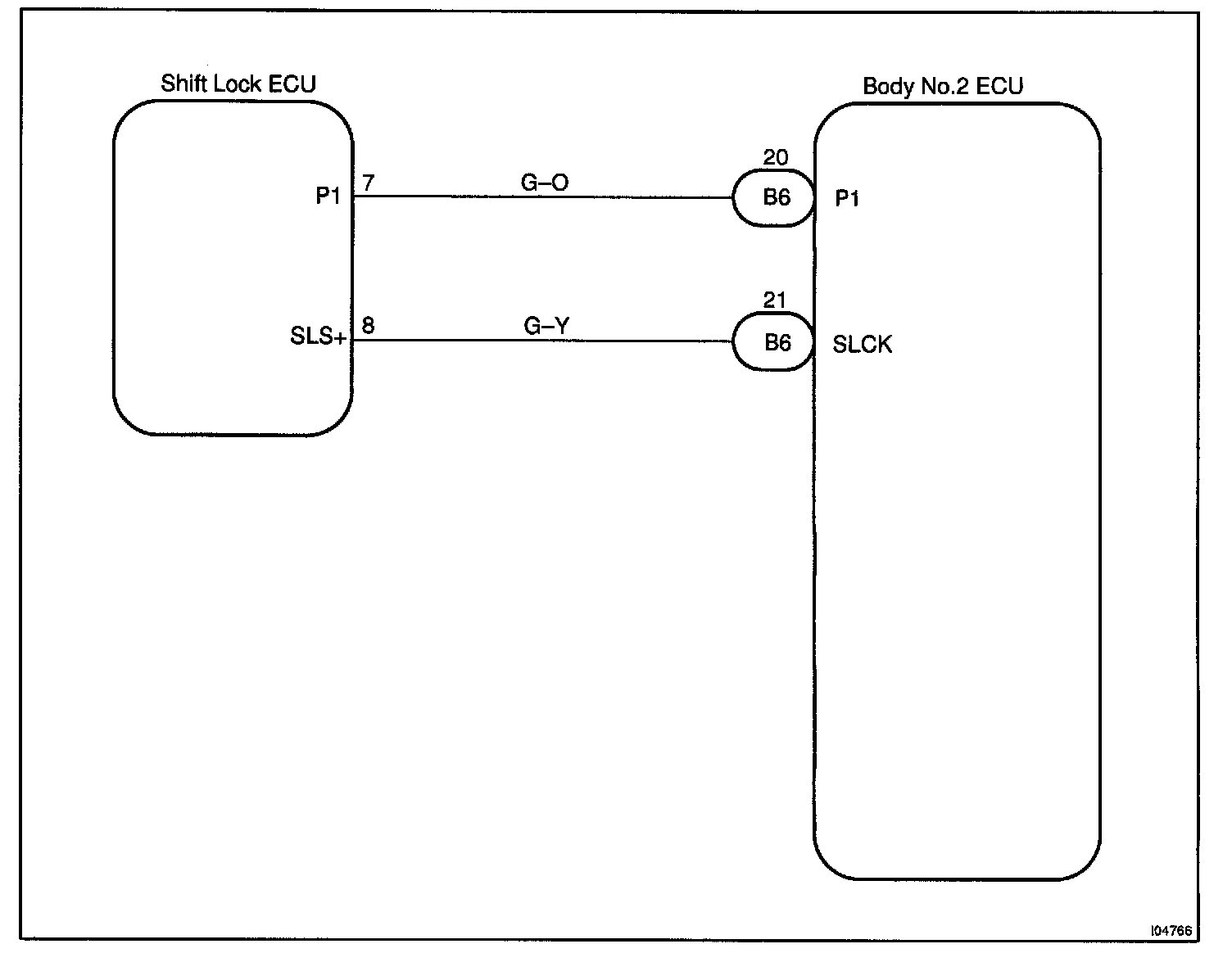

Wiring Diagram:

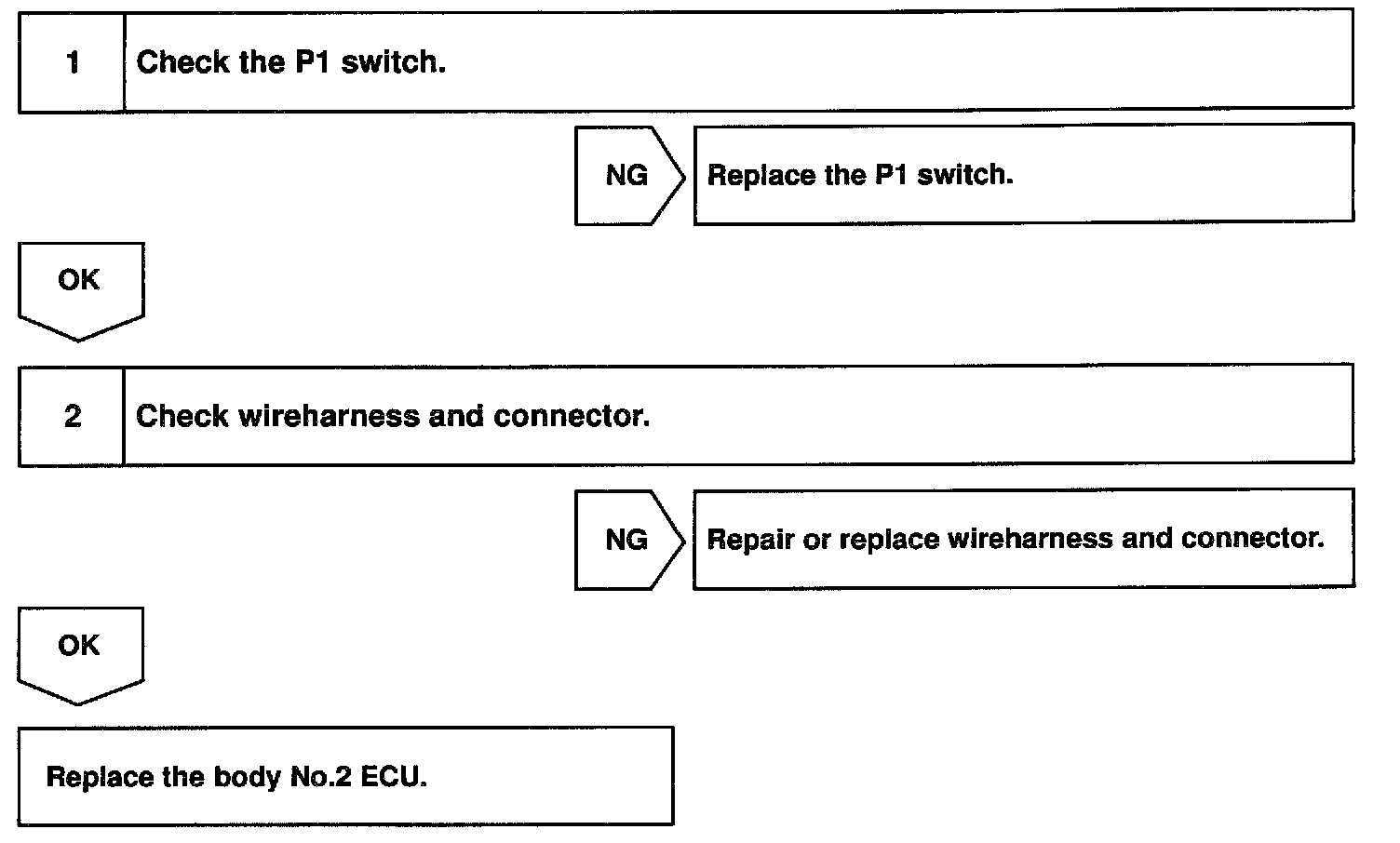

Steps 1 - 2:




INSPECTION PROCEDURE
