DTC 14

CIRCUIT DESCRIPTION
This DTC is output when +B or GND short occurs on door system communication bus. If +B or GND short is detected on door system communication bus, separate it by bus cut relay in body No.1 ECU and body No.2 ECU to Prevent while communication buses' failure.

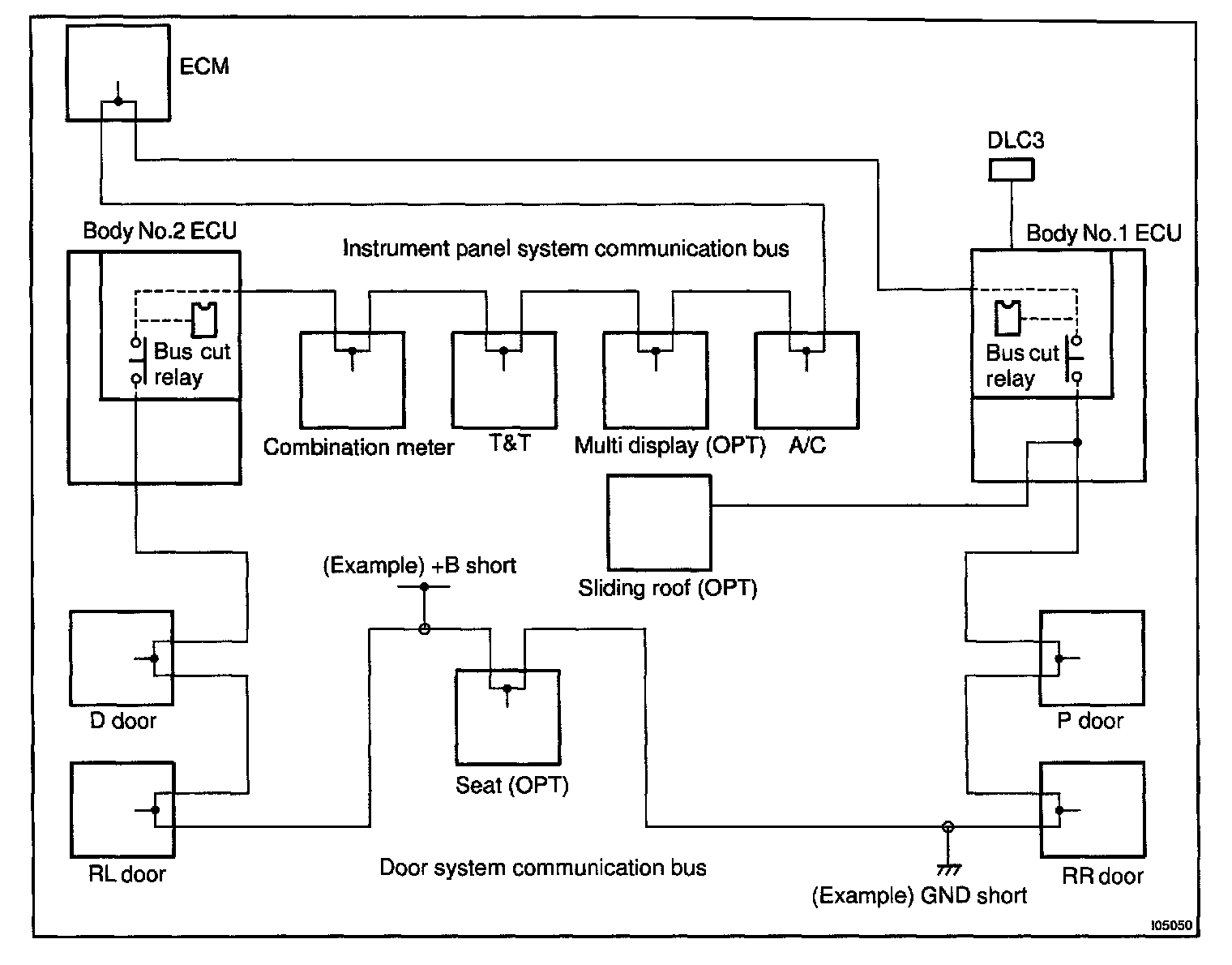

Wiring Diagram:

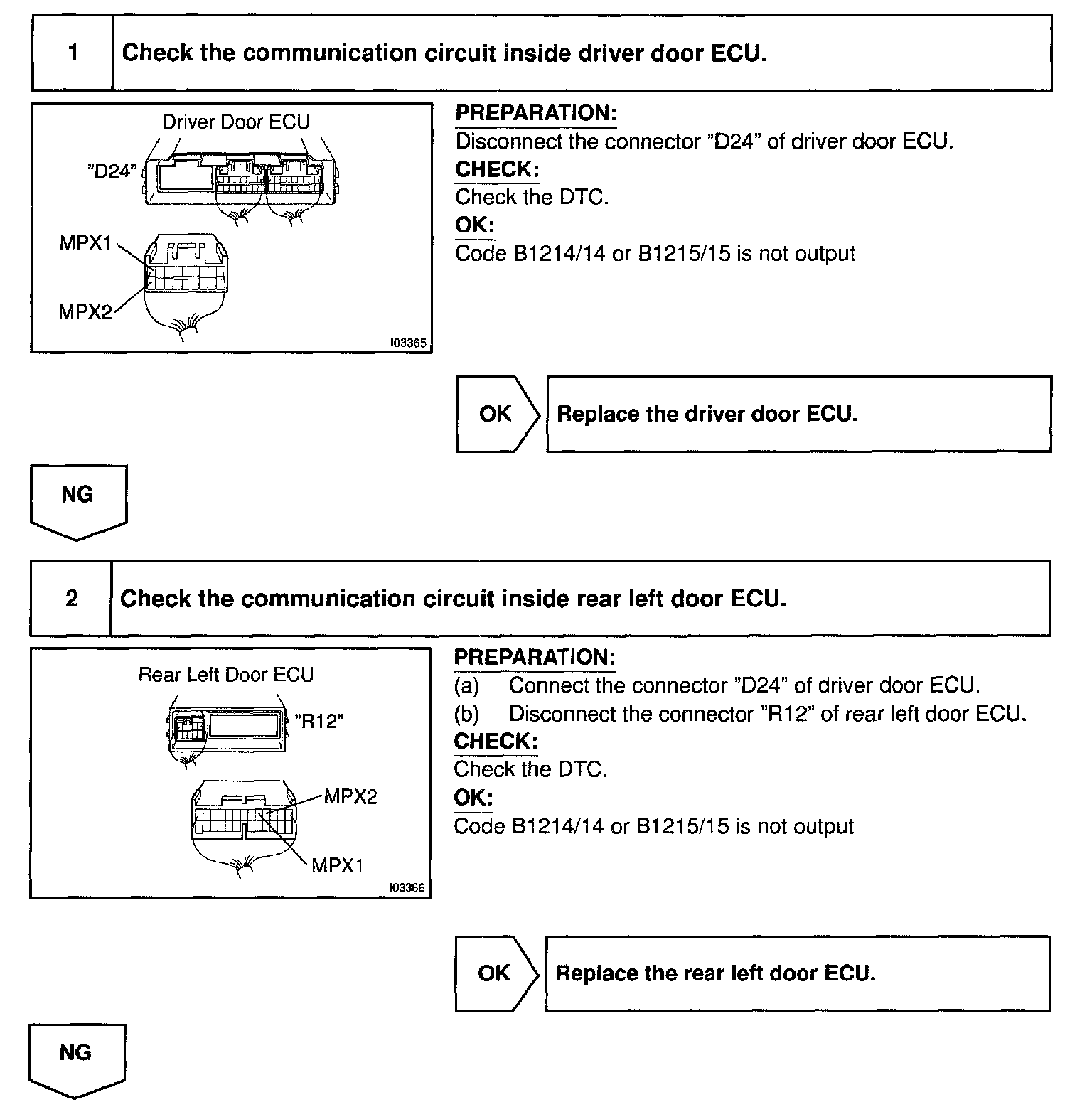

Steps 1 - 2:

Steps 3 - 4:

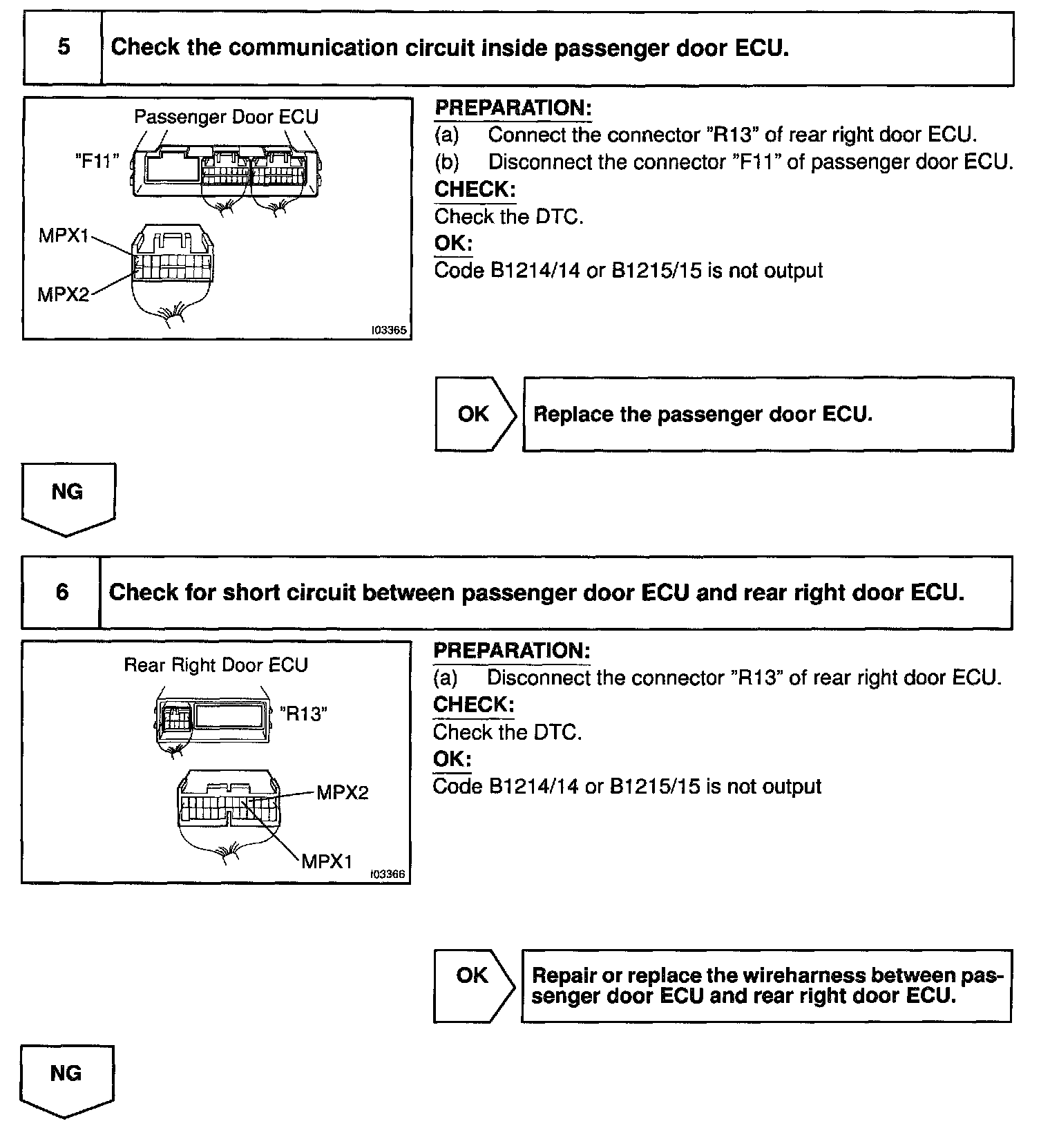

Steps 5 - 6:

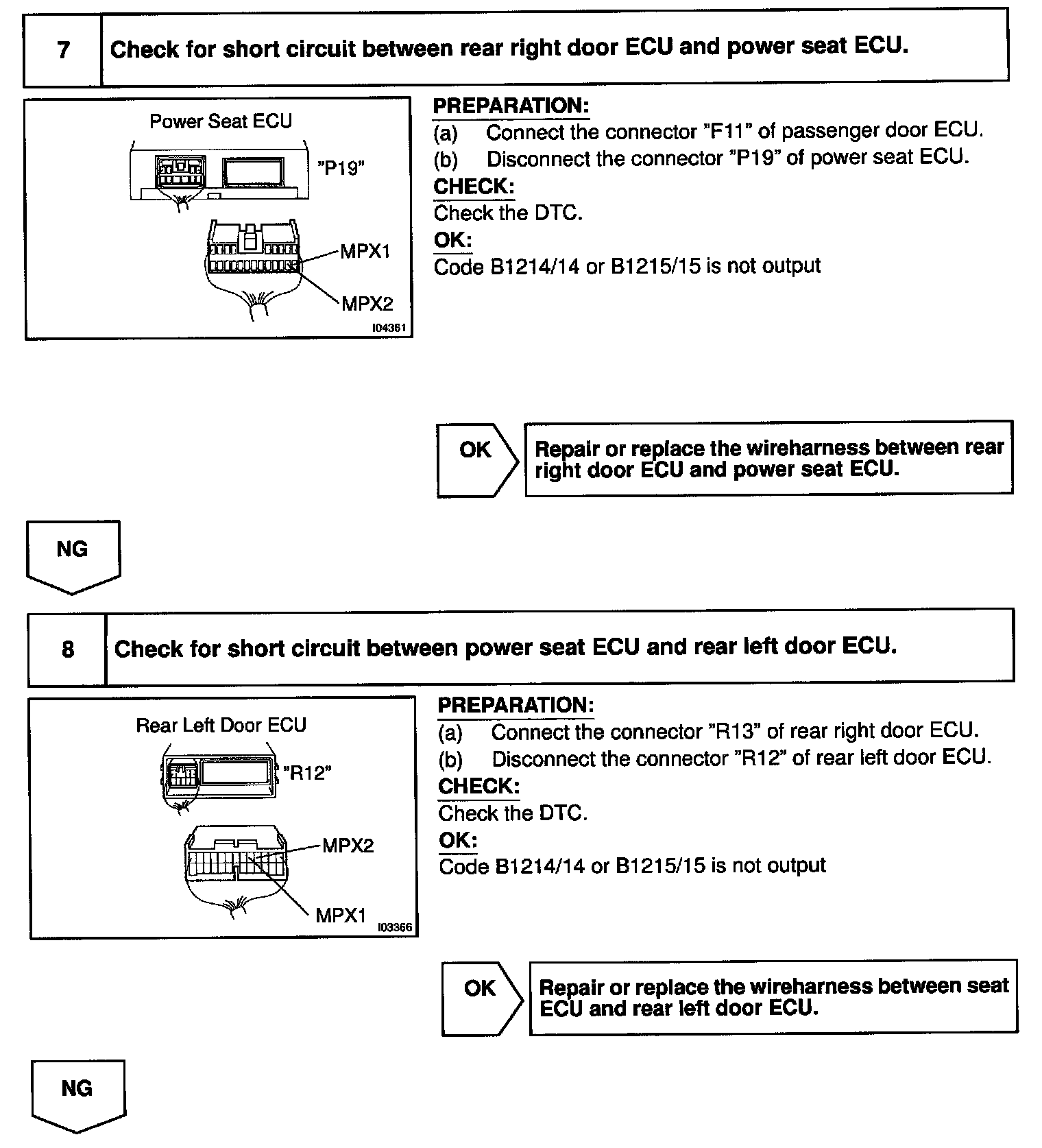

Steps 7 - 8:

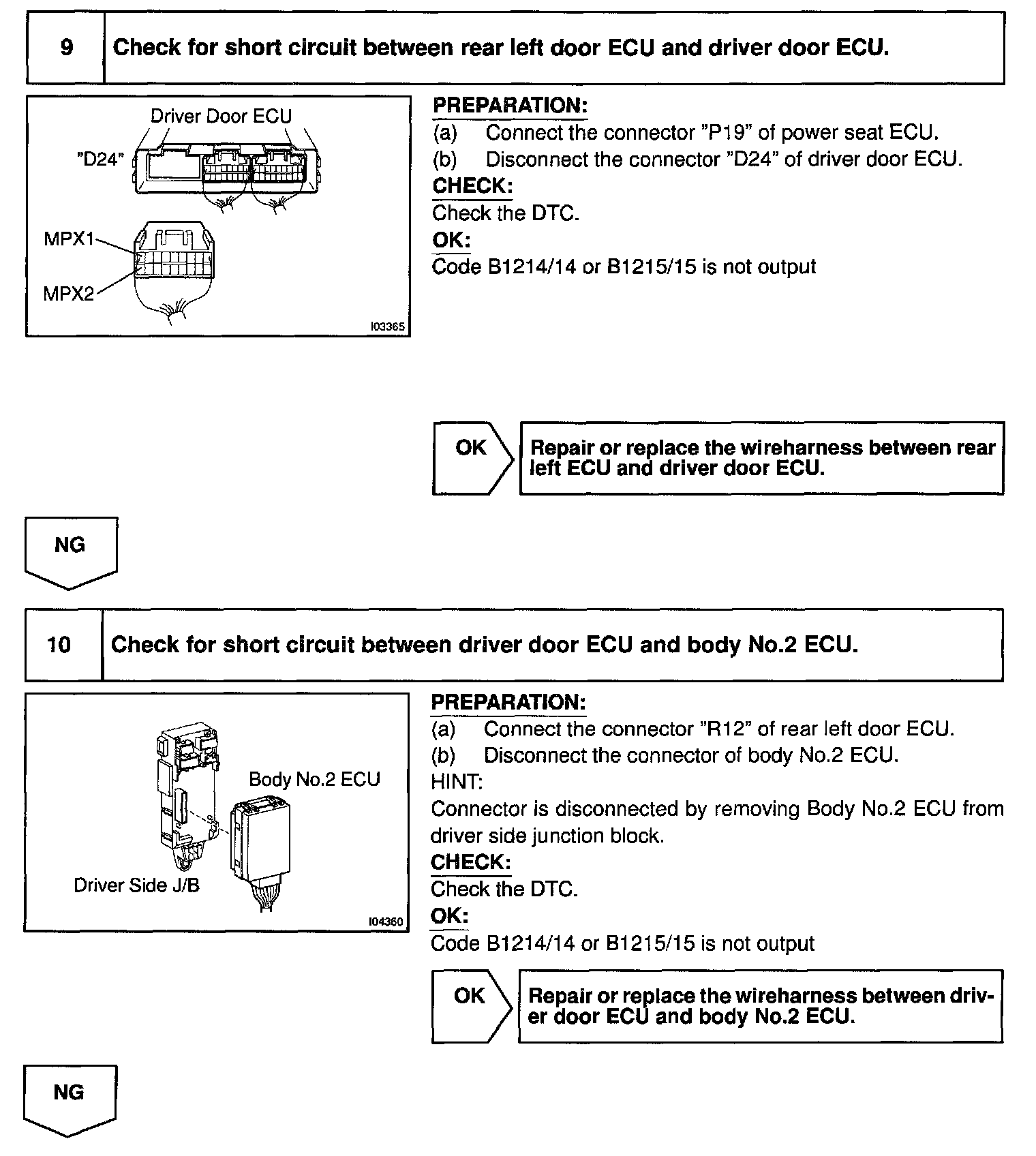

Steps 9 - 10:

Step 11:

INSPECTION PROCEDURE
