DTC 22

CIRCUIT DESCRIPTION
This sensor sends 4 pulses per engine revolution to the ECM.

If the number ratio of the compressor speed divided by the engine speed is smaller than a predetermined value, the ECM turns the compressor OFF. And, the indicator flashes at about 1 second intervals.

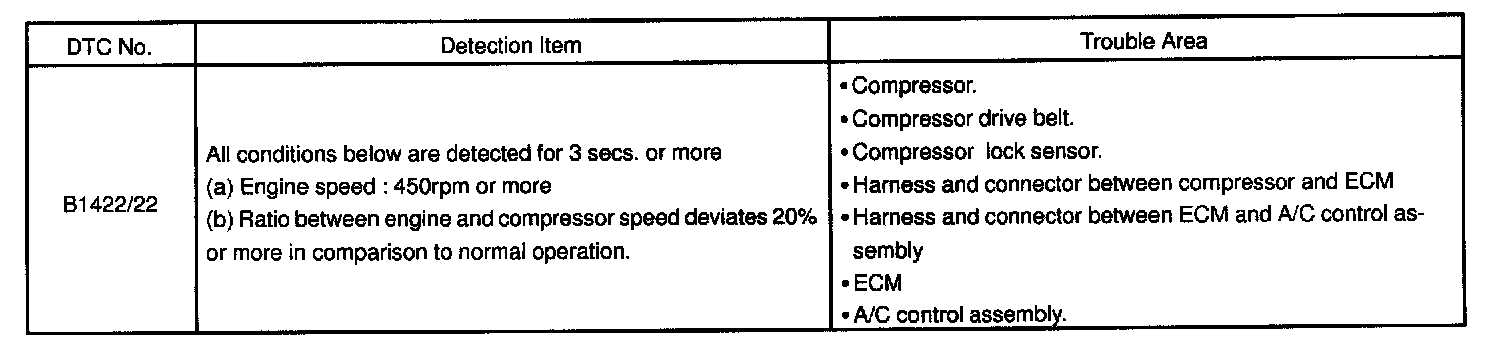

Detection Item:

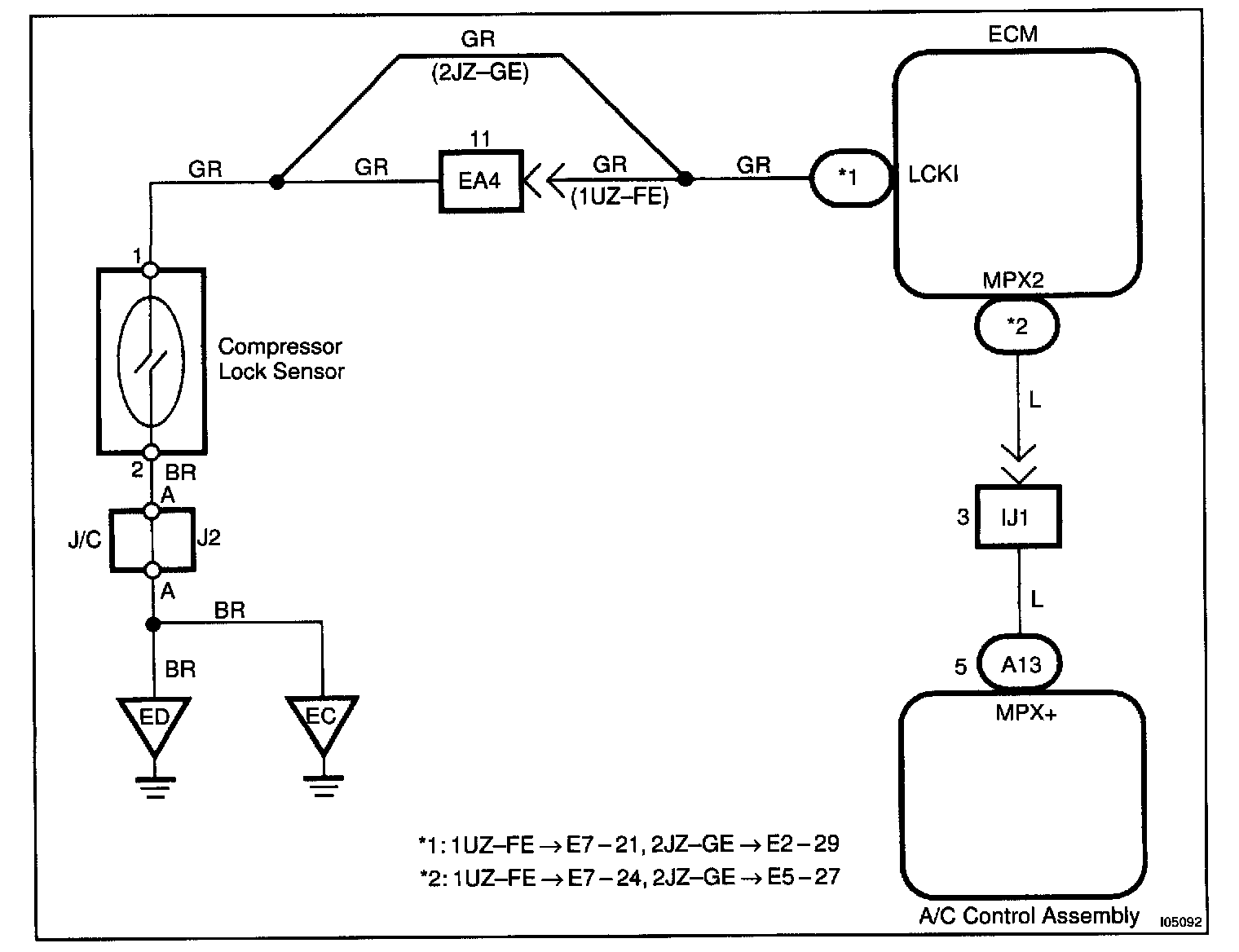

Wiring Diagram:

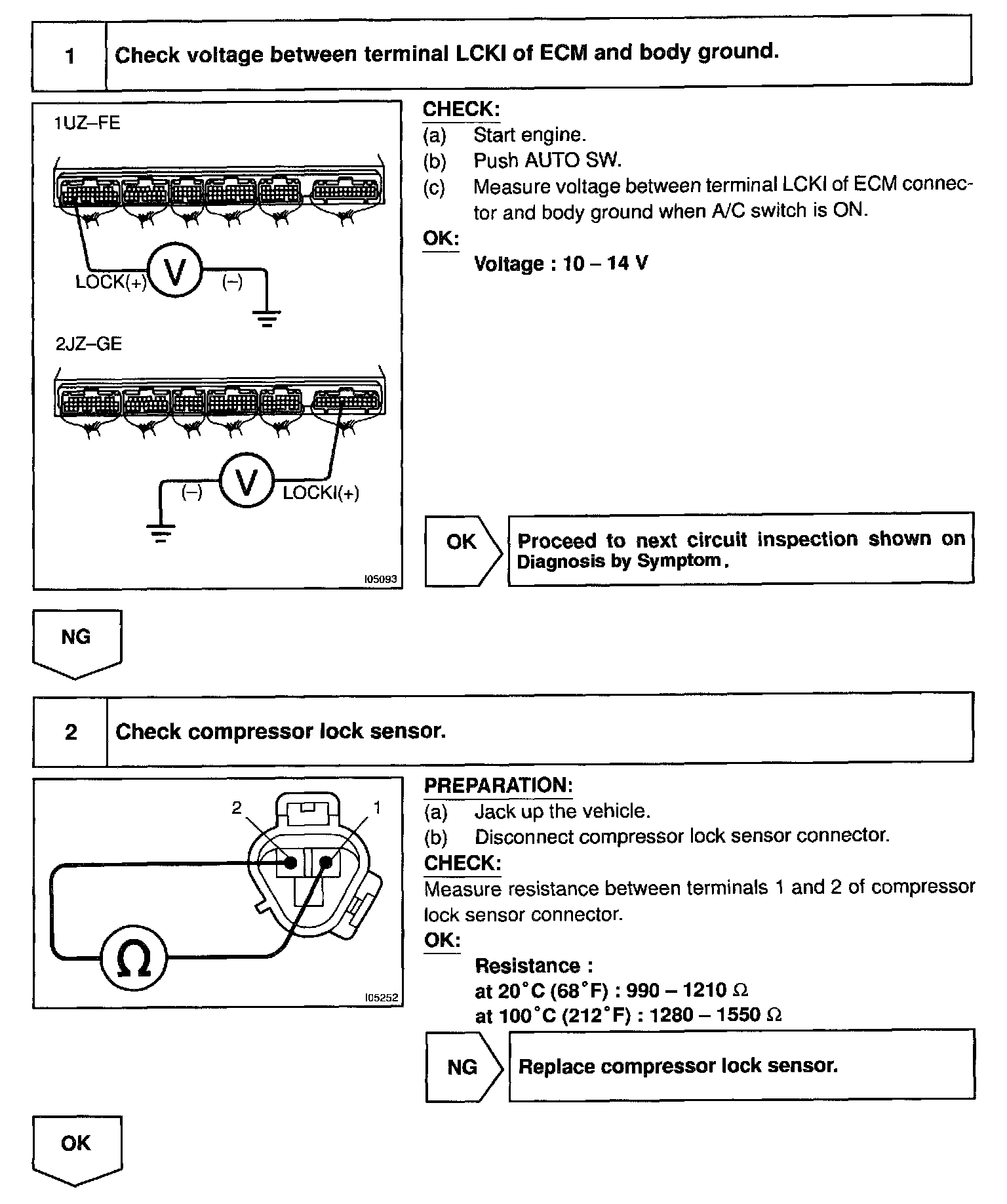

Steps 1 - 2:

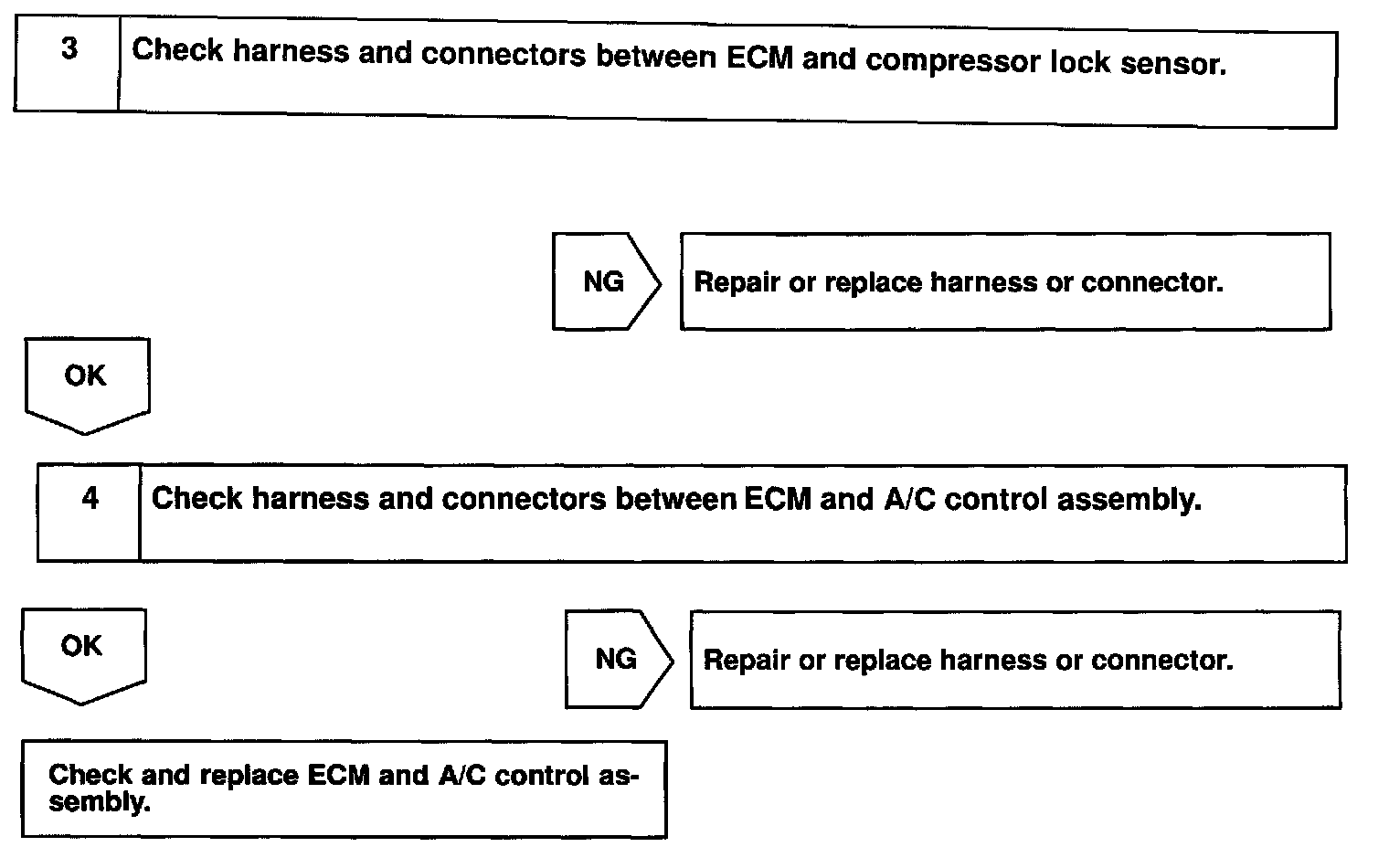

Steps 3 - 4:

INSPECTION PROCEDURE
