DTC 12

CIRCUIT DESCRIPTION
This sensor detects the ambient temperature and sends the appropriate signals to the A/C control assembly.

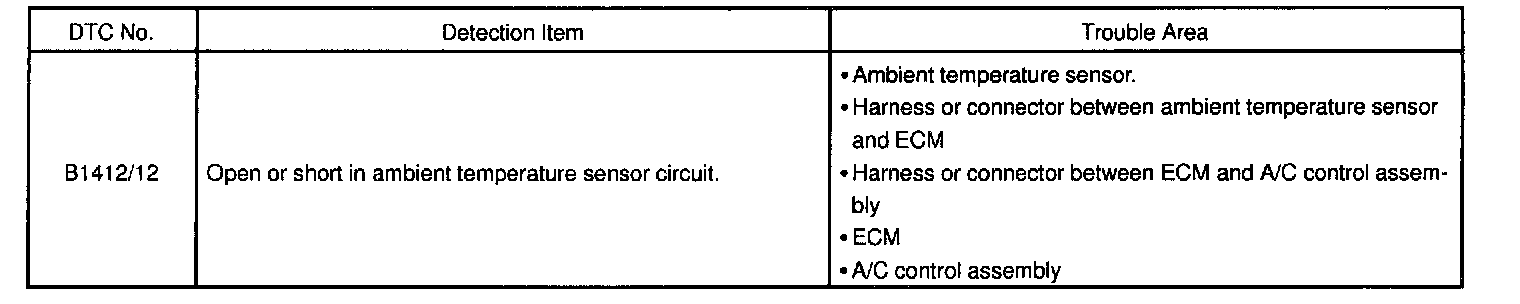

Detection Item:

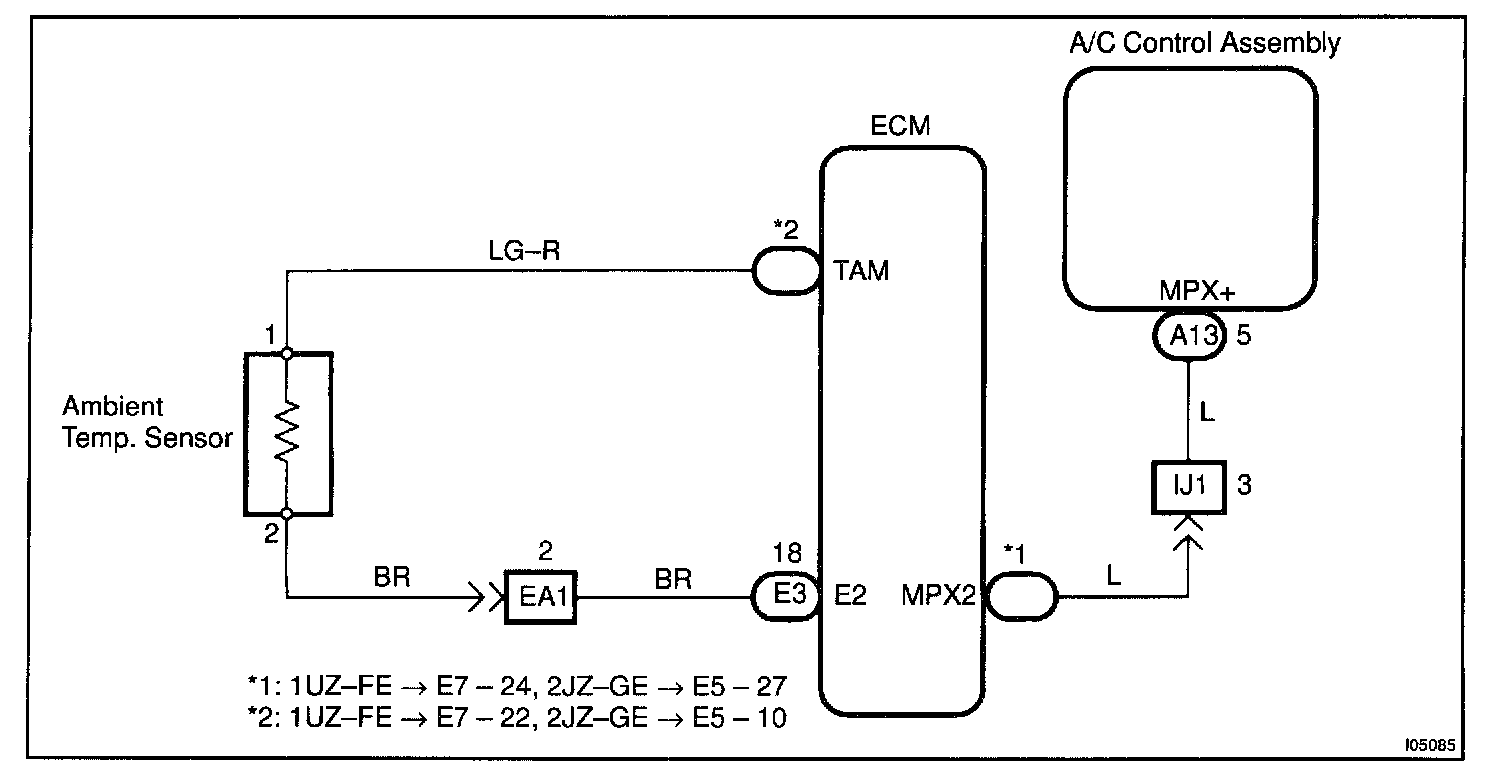

Wiring Diagram:

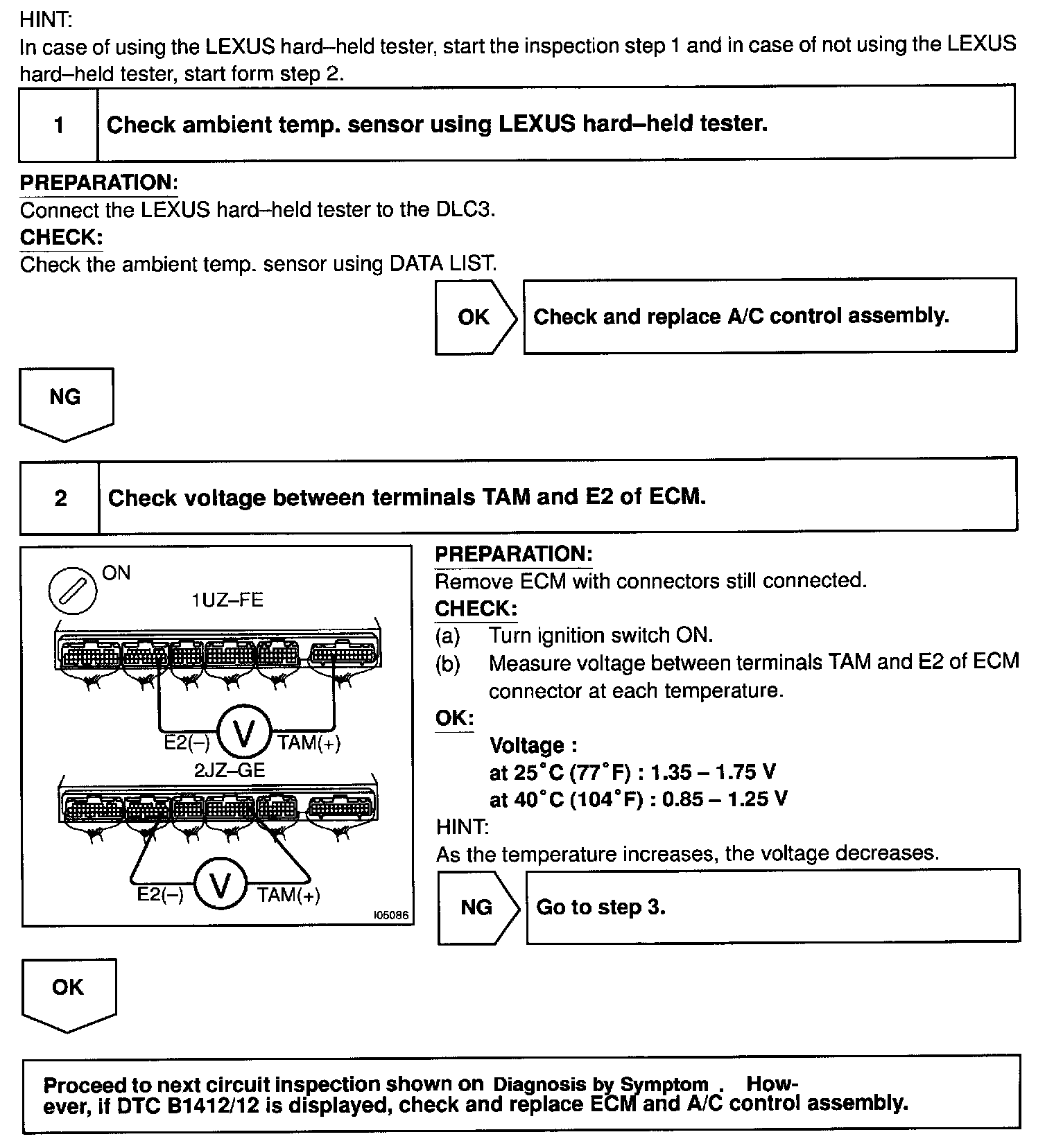

Steps 1 - 2:

Steps 3 - 4:

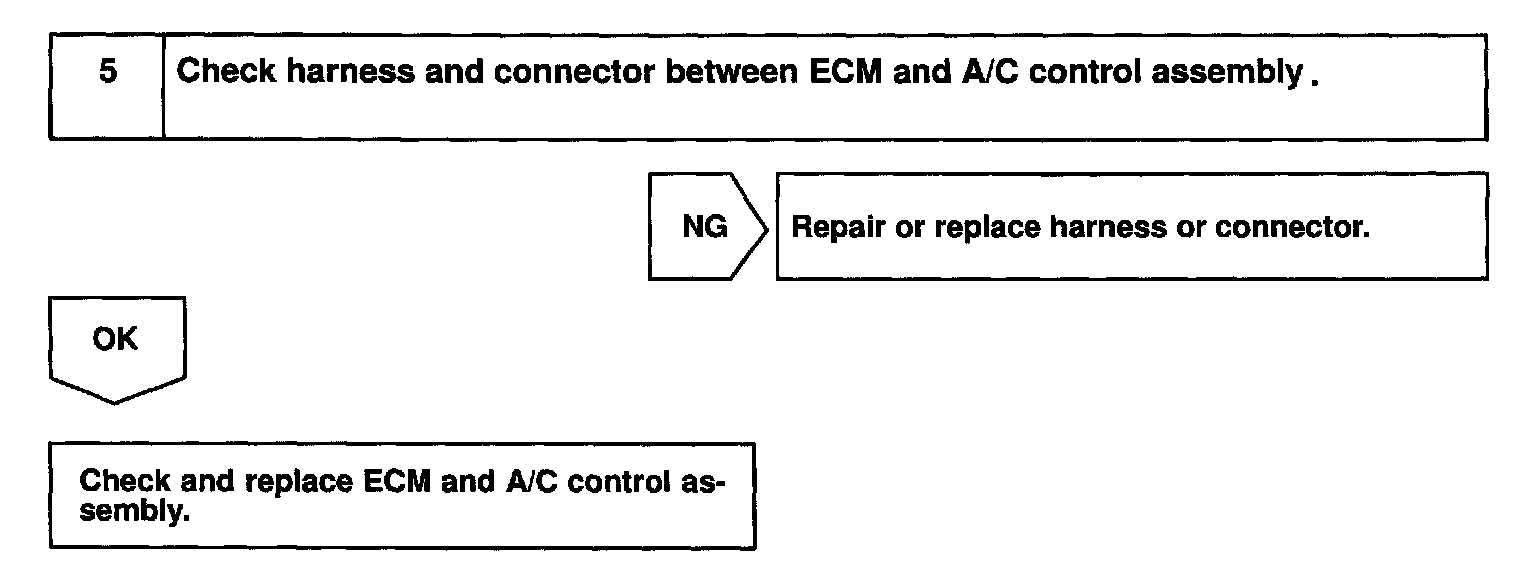

Step 5:

INSPECTION PROCEDURE
