No Communication in Immobilizer system

CIRCUIT DESCRIPTION
This code is stored in memory when inserting the key that does not have a transponder chip or if communication between the key and ECM is impossible.

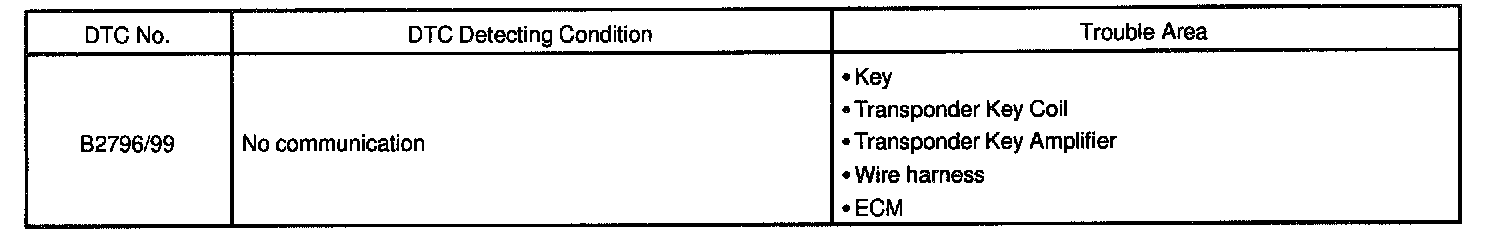

Detecting Condition:

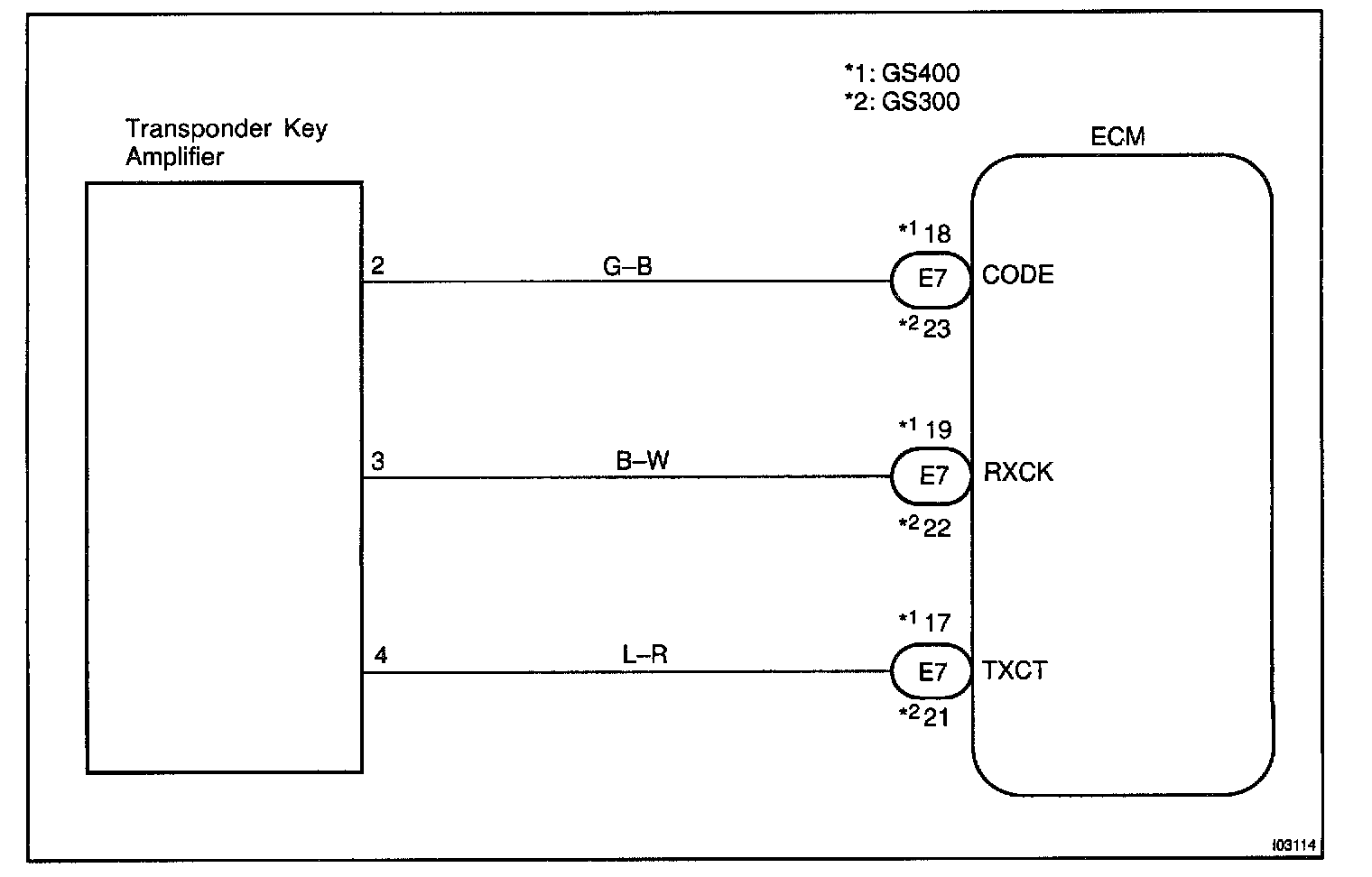

Wiring Diagram:

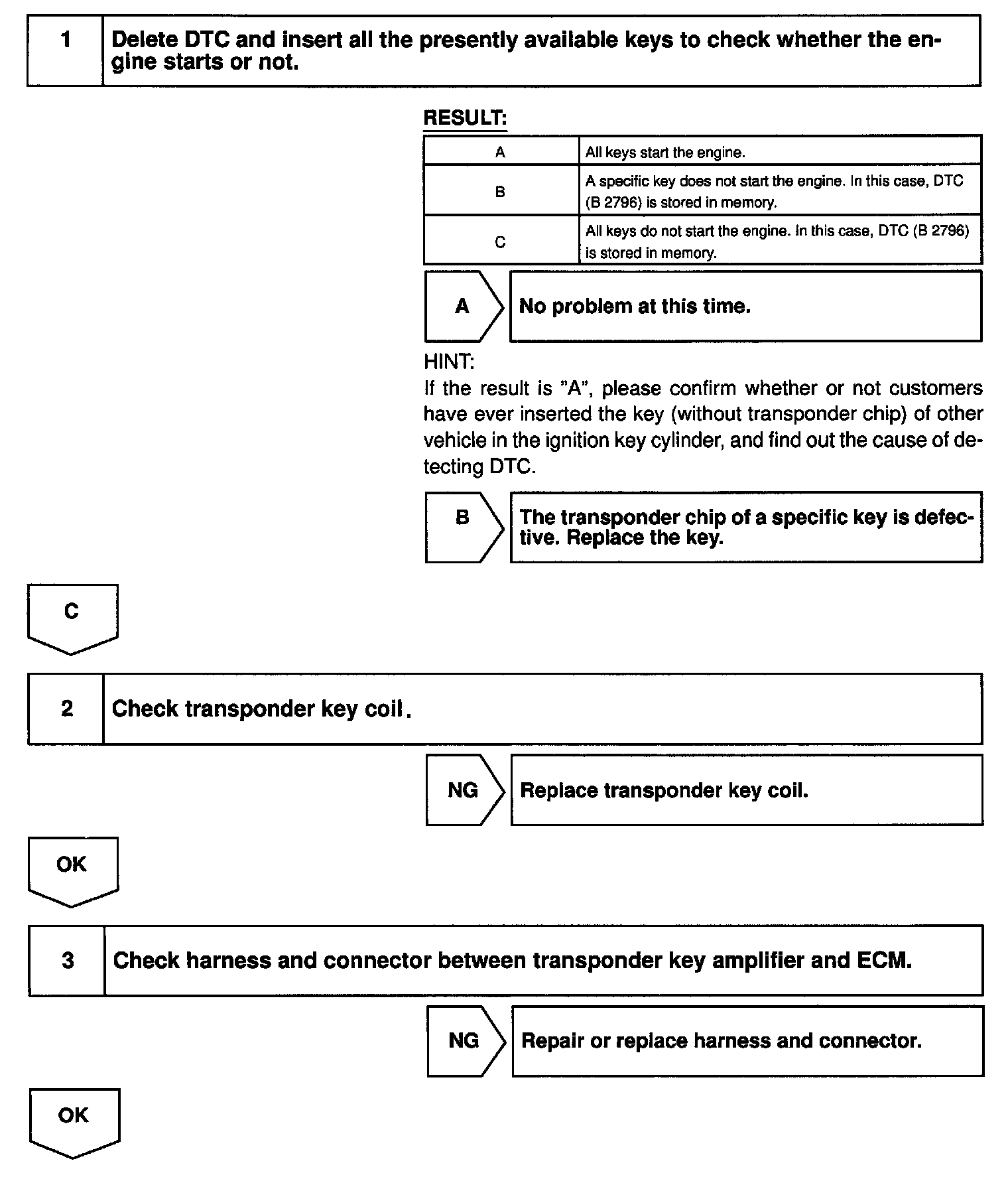

Steps 1 - 3:

Step 4:

INSPECTION PROCEDURE
