DTC 73

DTC 73 Short In P/T Squib (LH) Circuit




CIRCUIT DESCRIPTION
The P/T squib (LH) circuit consists of the airbag sensor assembly and seat belt pretensioner (LH).
It causes the pretensioner to activate when the pretensioner activation conditions are satisfied.
For details of the function of each component, Description and Operation

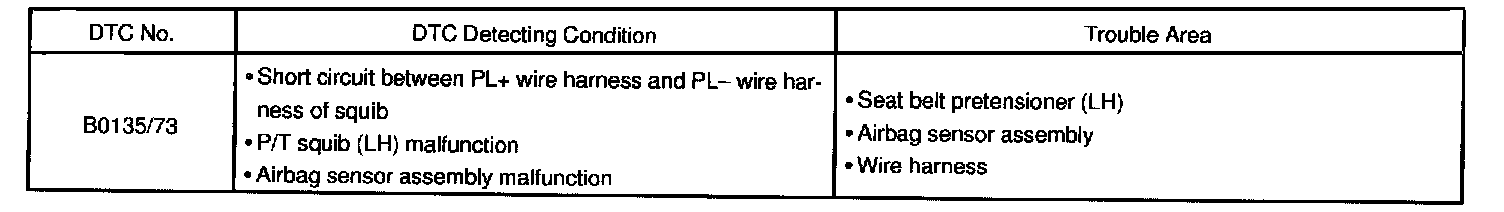

DTC B0135/73 is recorded when a short is detected in the P/T squib (LH) circuit.




WIRING DIAGRAM

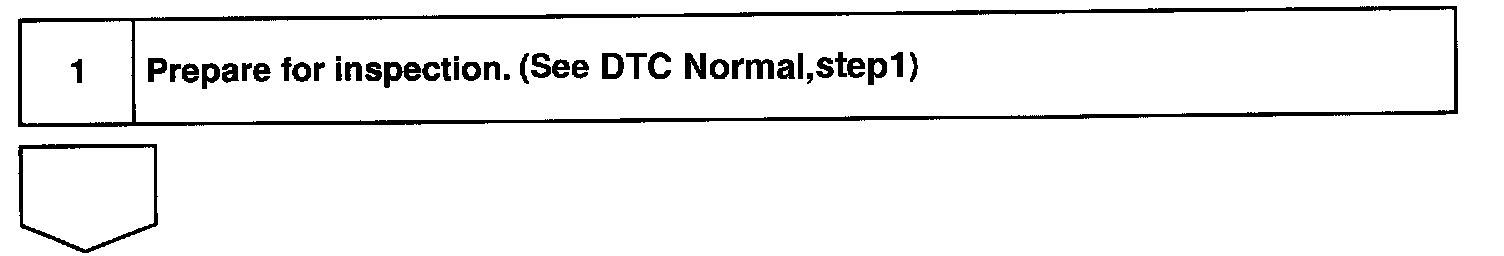

Step 1:

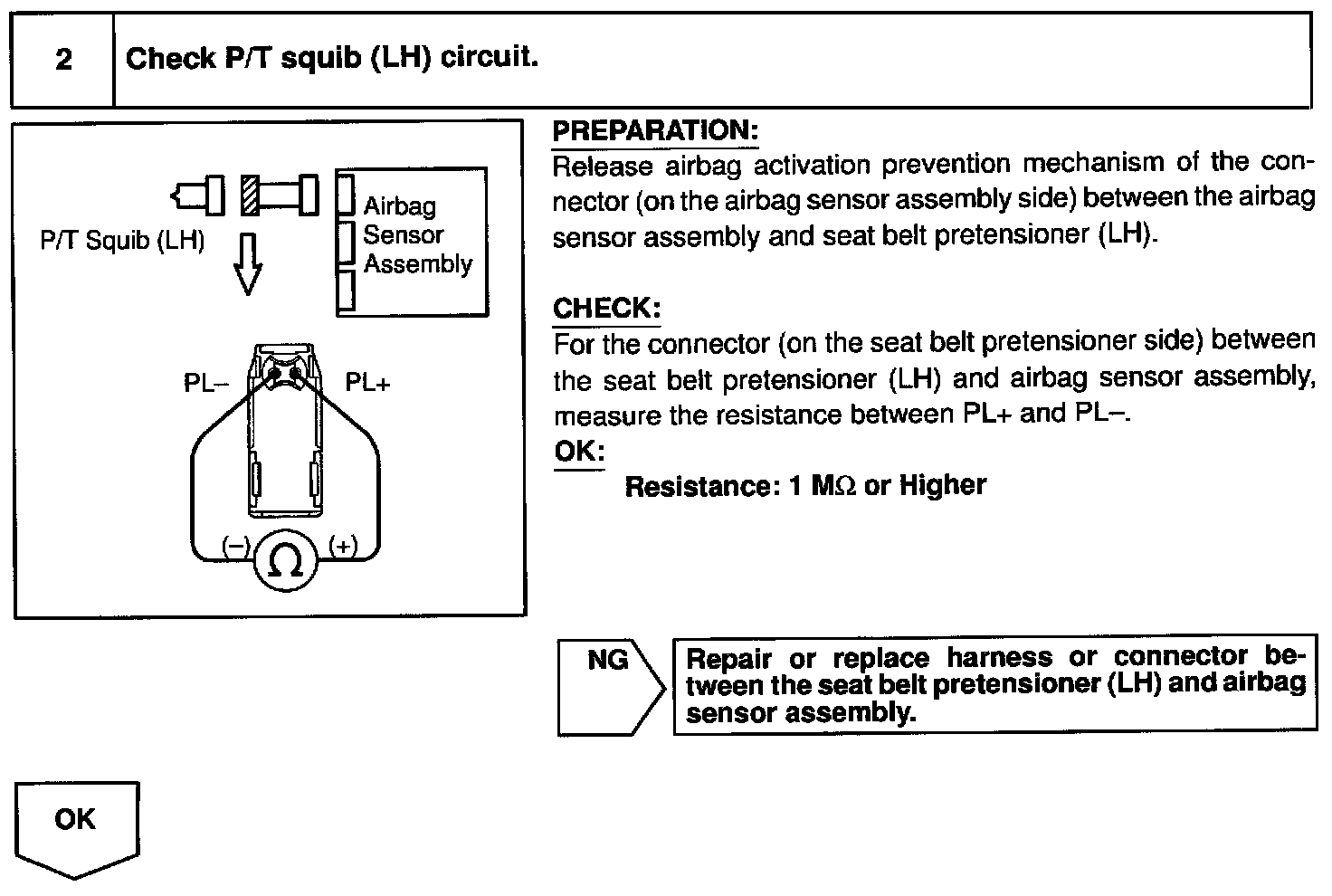

Step 2:

Step 3:

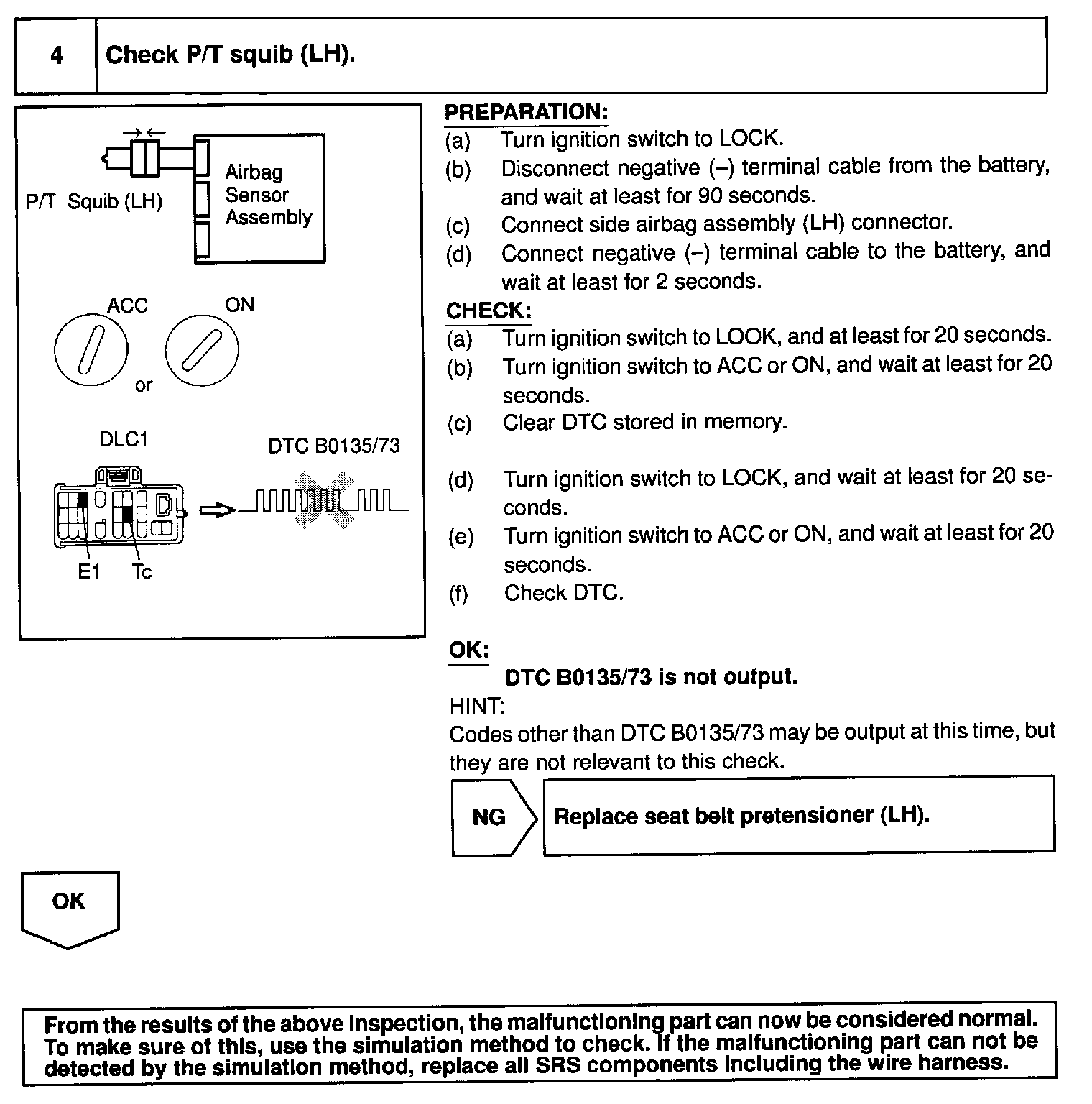

Step 4:

INSPECTION PROCEDURE
