DTC 32

DTC 32 Side Airbag Sensor Assembly (RH) Malfunction




CIRCUIT DESCRIPTION
The side airbag sensor assembly (RH) consists of the airbag sensor, diagnosis circuit and lateral deceleration sensor, etc.
It receives signals from the lateral deceleration sensor, judges whether or not the SRS must be activated, and diagnosis system malfunction.

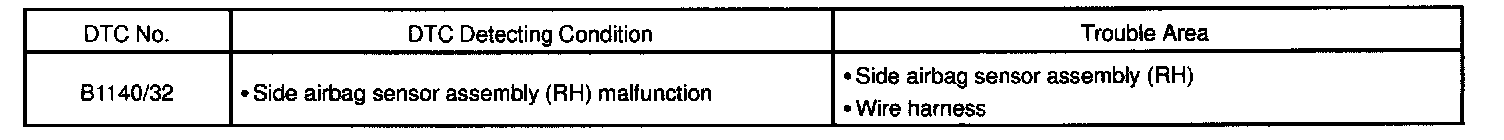

DTC B1140/32 is recorded when occurrence of malfunction in the side airbag sensor assembly (RH) is detected.

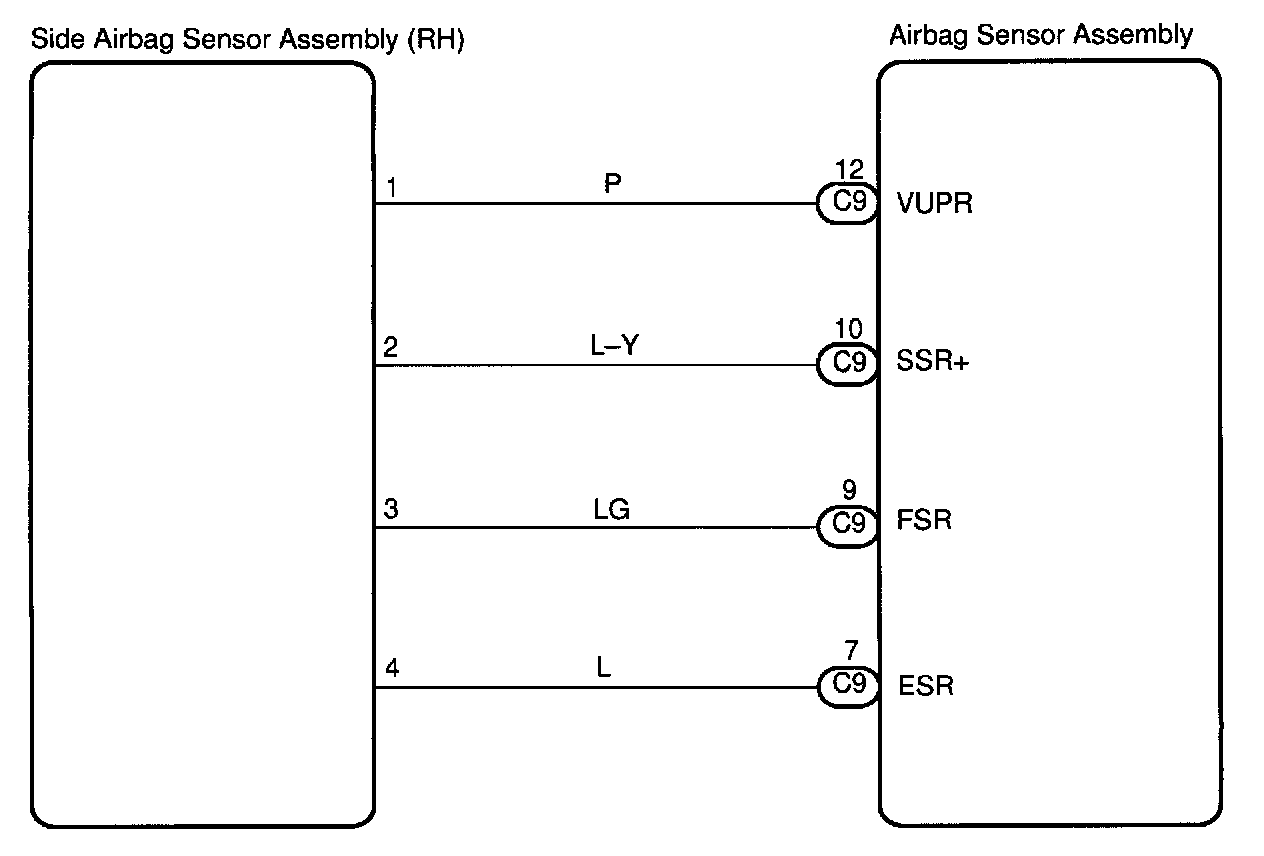

WIRING DIAGRAM

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

Step 6:

Step 7:

Step 8:

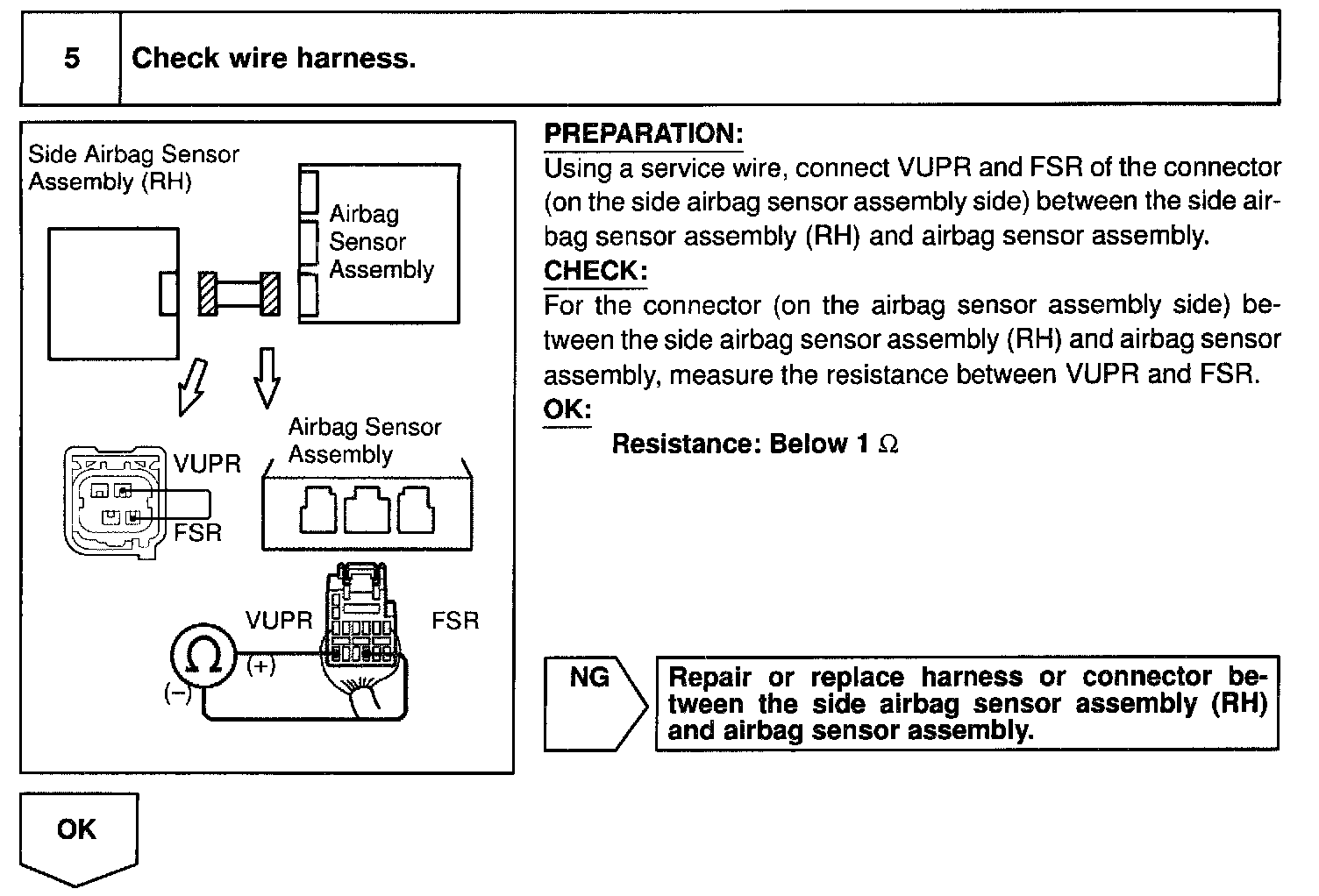

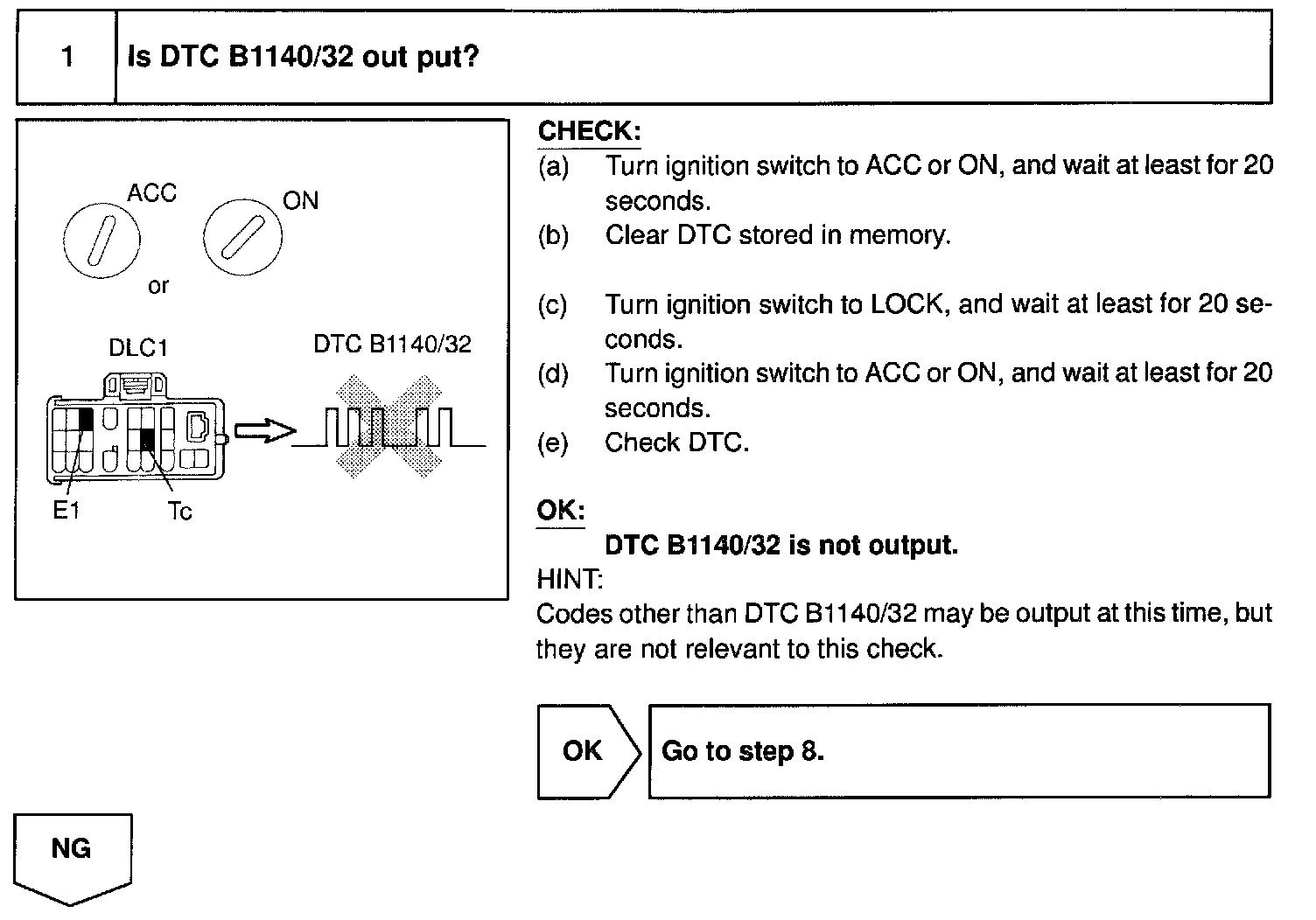

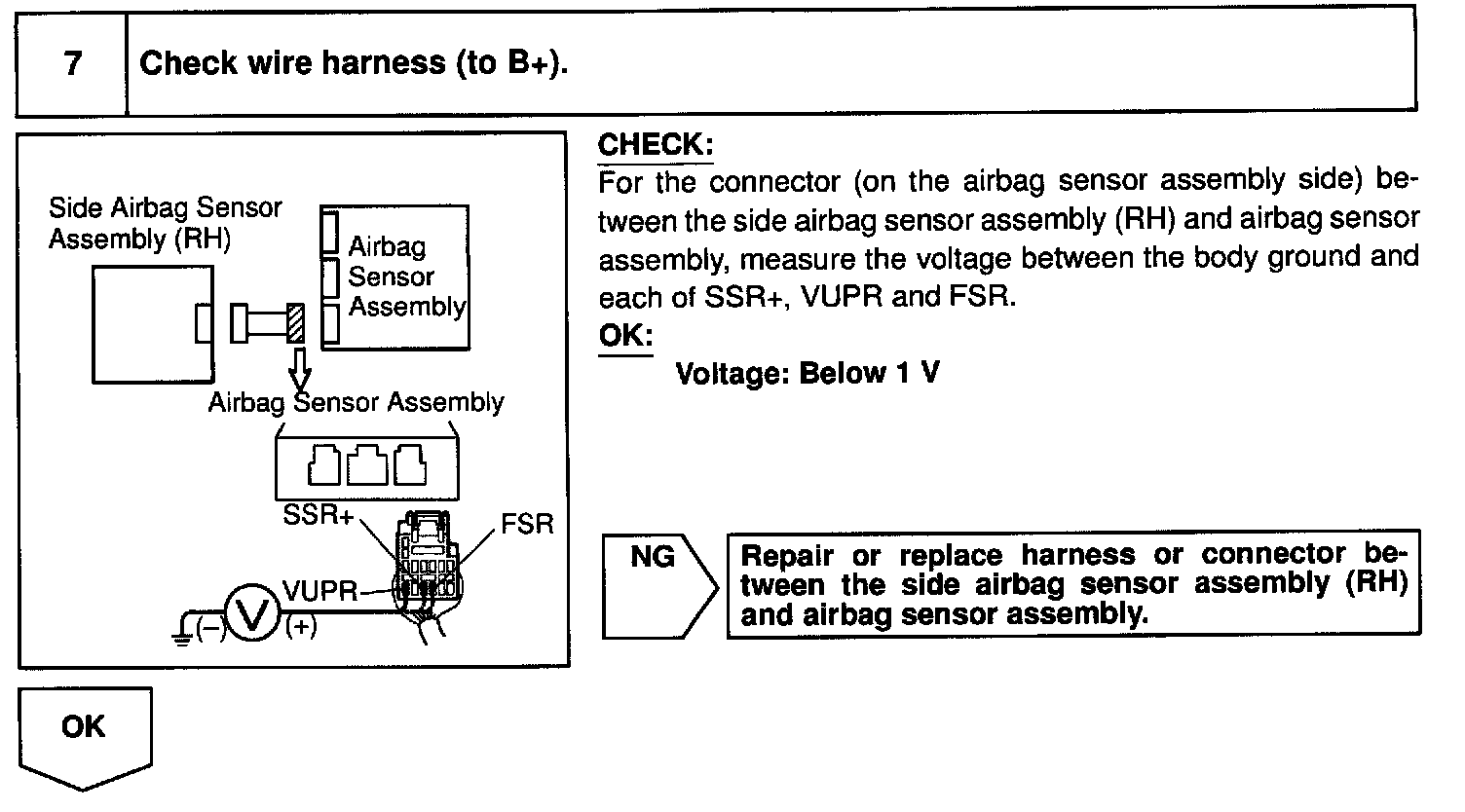

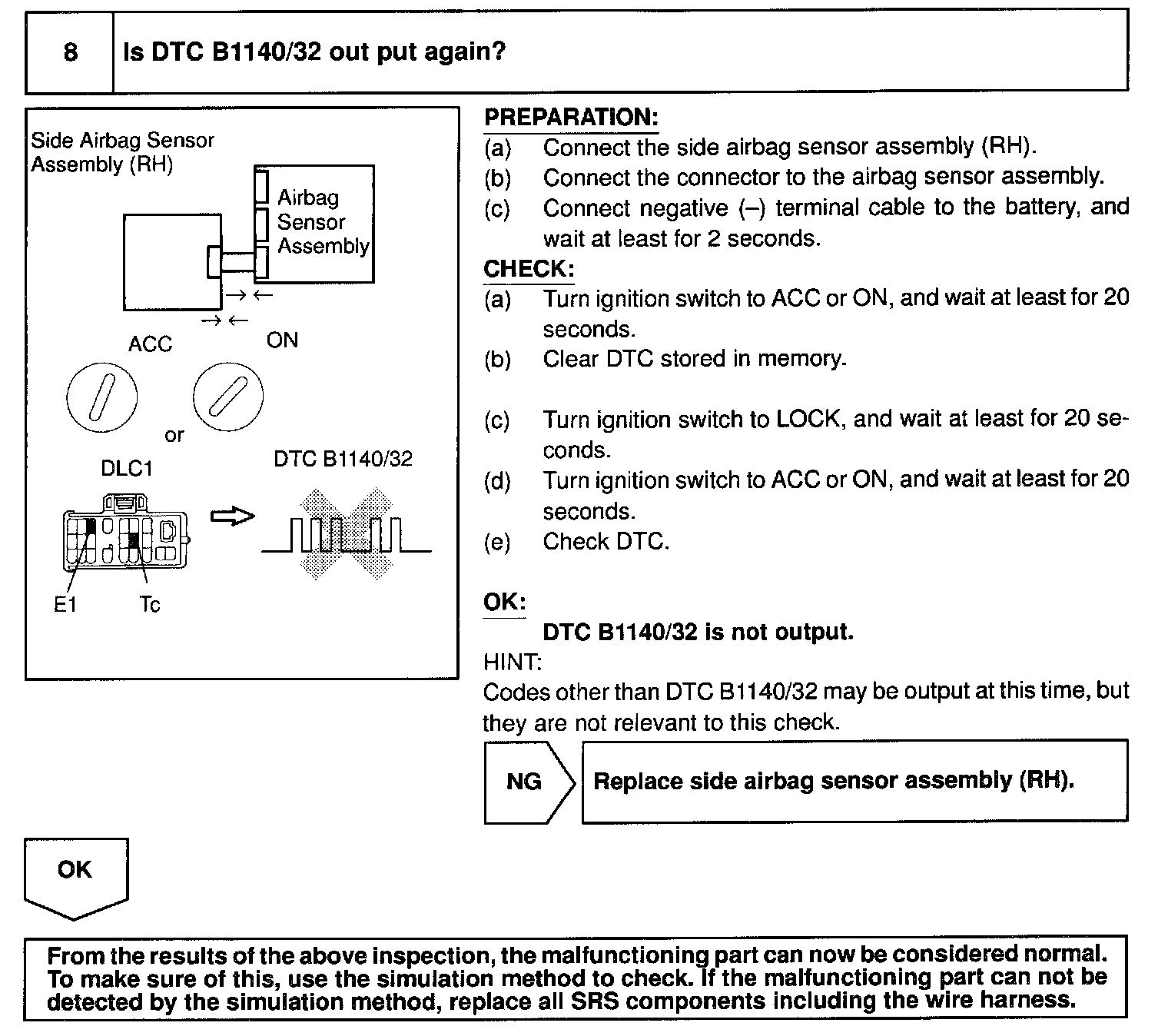

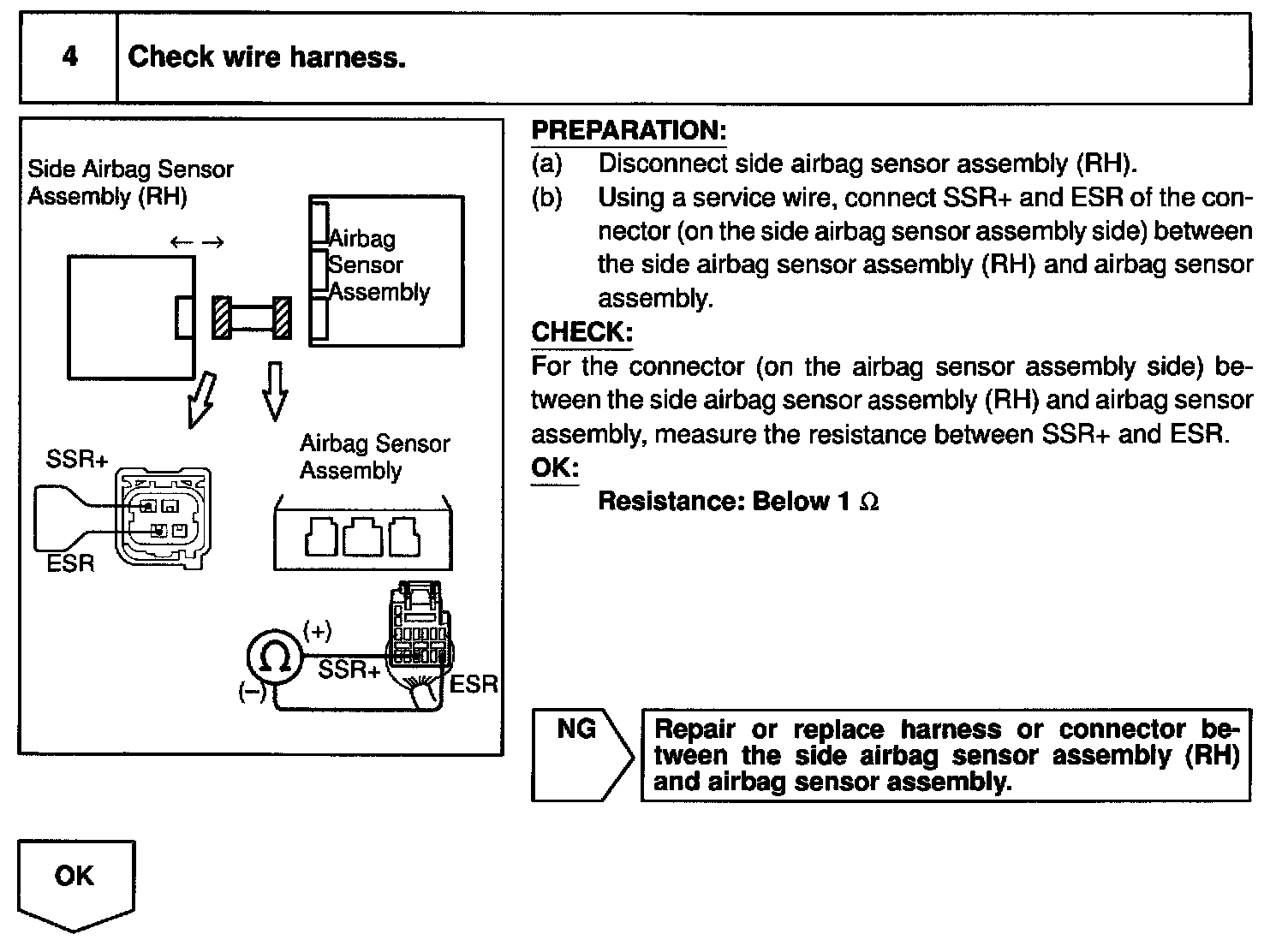

INSPECTION PROCEDURE
