Steering Column
Steering Column
B2602 - B2621:

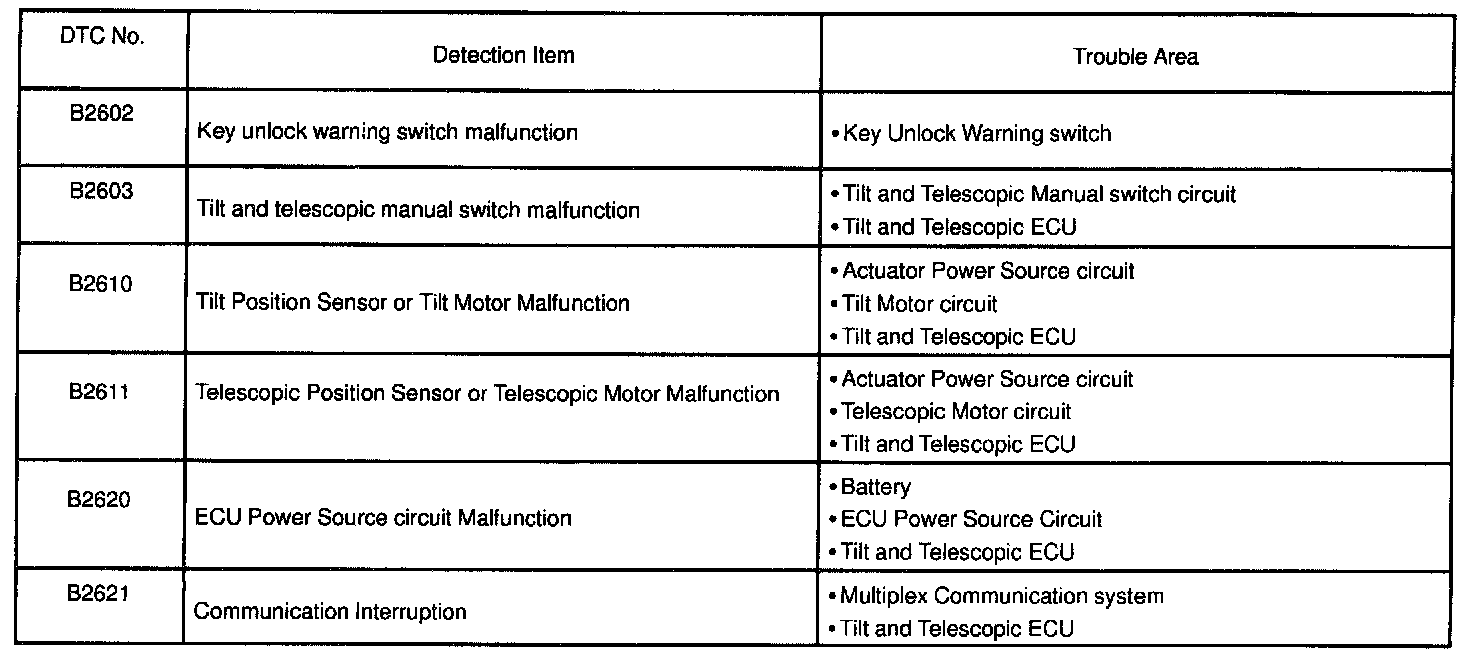

DIAGNOSTIC TROUBLE CODE CHARTS
If a DTC is displayed during the DTC check the circuit for that code is listed in the table. For the details of each code, refer for the respective "DTC No." in the DTC chart.
