Air Inlet Damper Control Servomotor Circuit

CIRCUIT DESCRIPTION
The air inlet damper control servomotor is controlled by the A/C control assembly and moves the air inlet damper to the desired position.

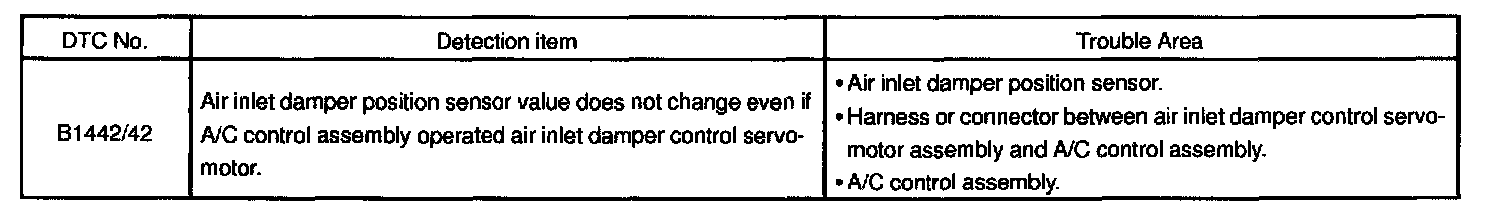

Detection Item:

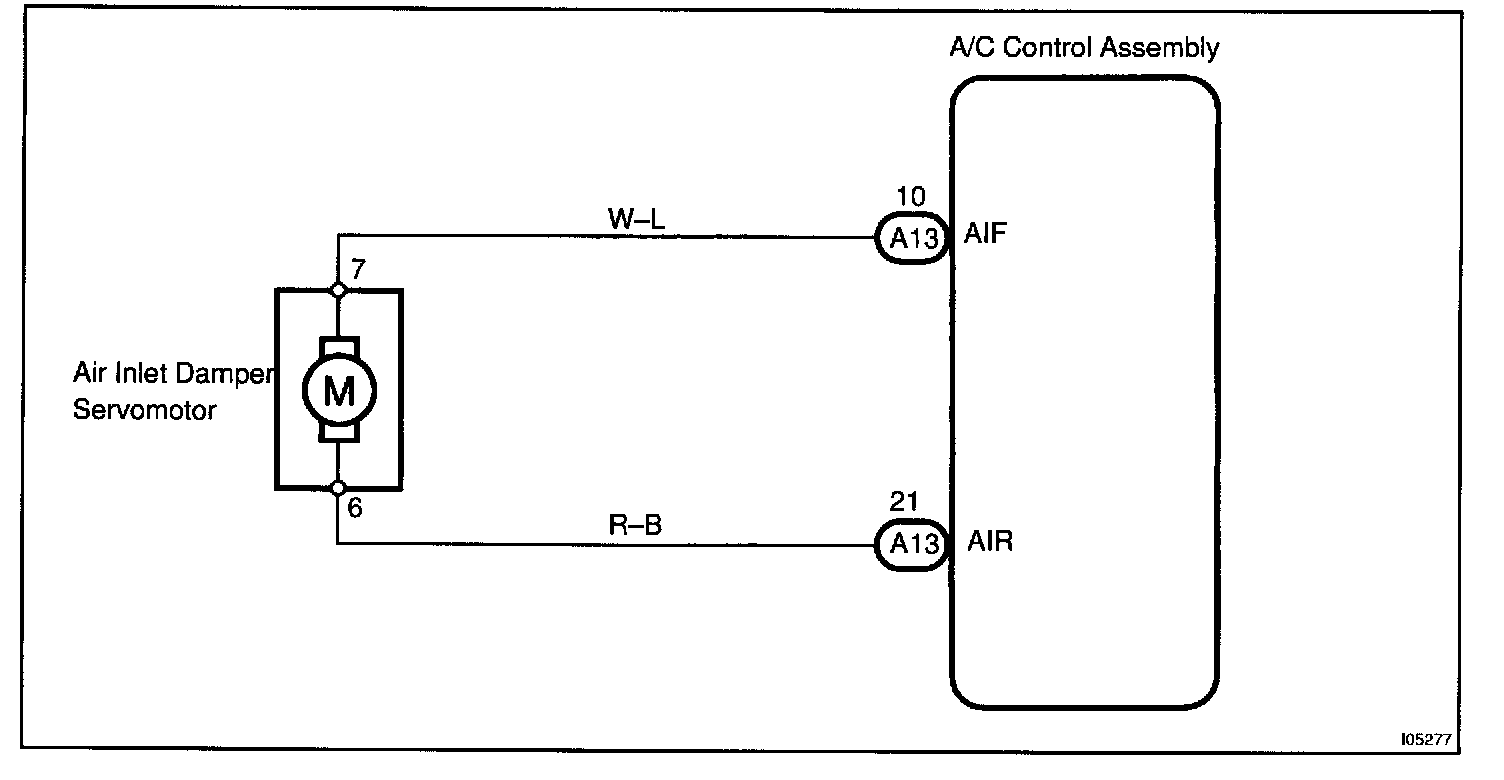

Wiring Diagram:

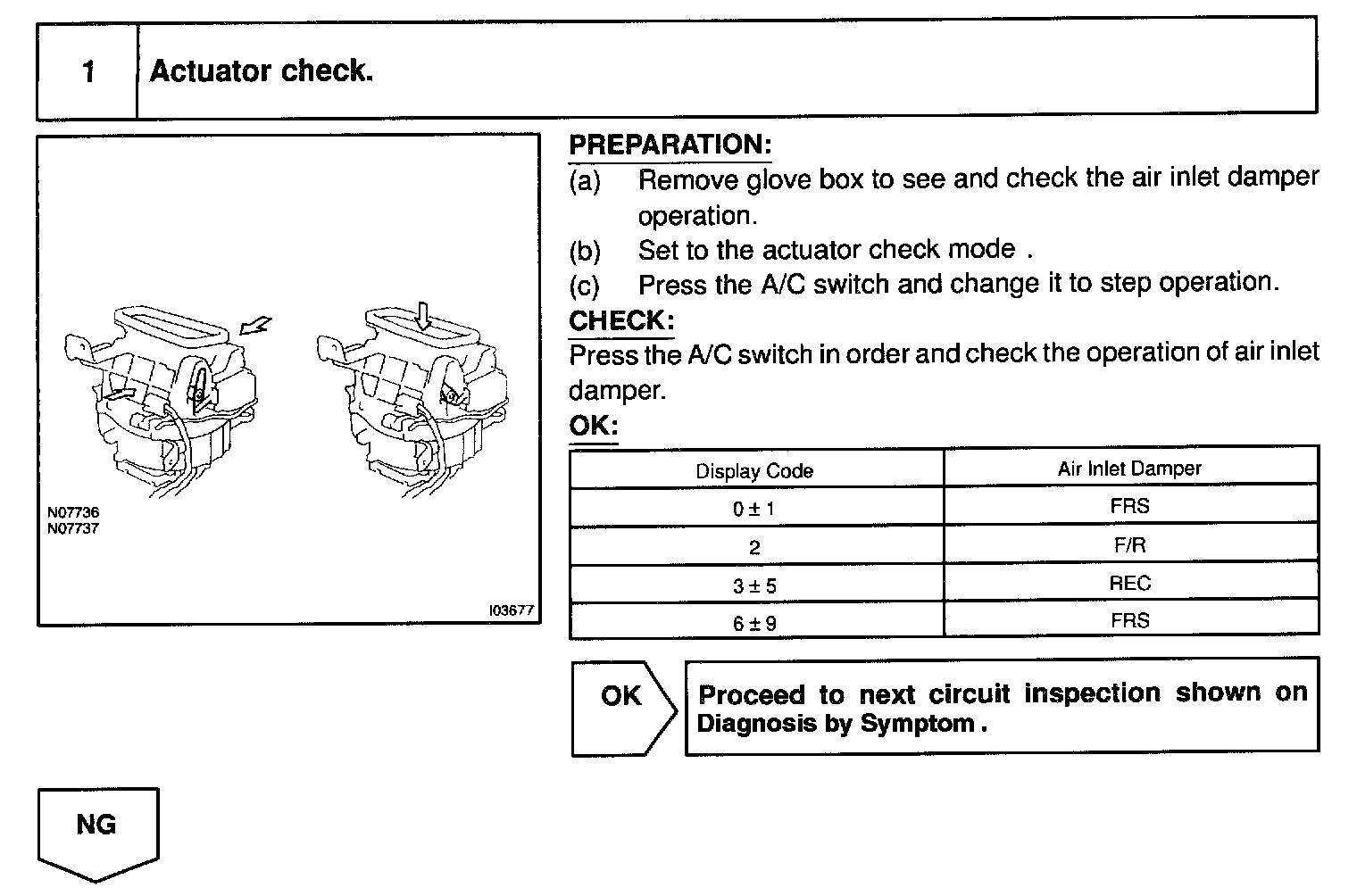

Step 1:

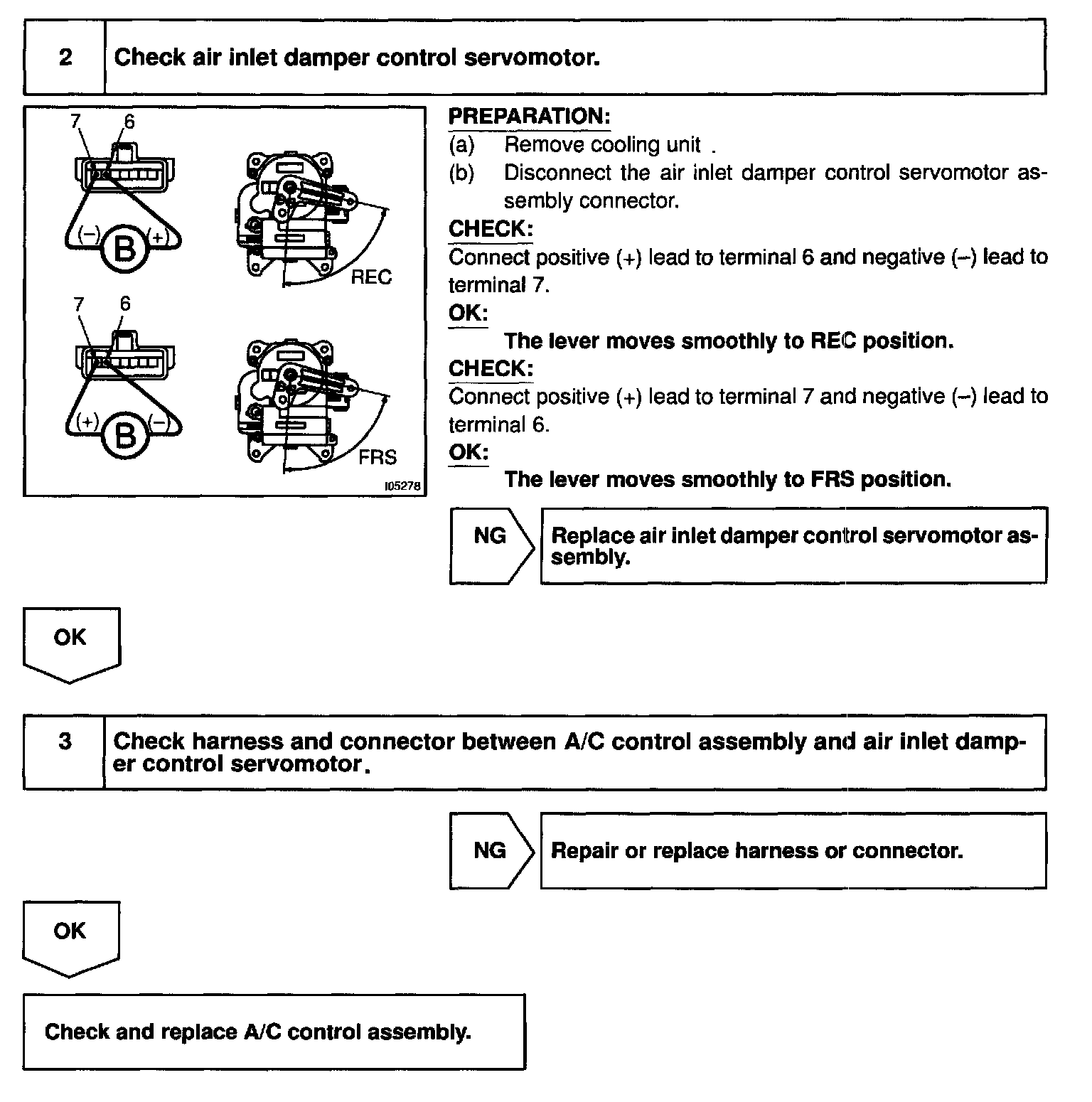

Step 2 - 3:

INSPECTION PROCEDURE
