Air Mix Damper Control Servomotor Circuit

B1441 - 41 Air Mix Damper Control Servomotor Circuit (Passenger Side)

CIRCUIT DESCRIPTION
The air mix damper control servomotor is controlled by the A/C control assembly and moves the air mix damper to the desired position.

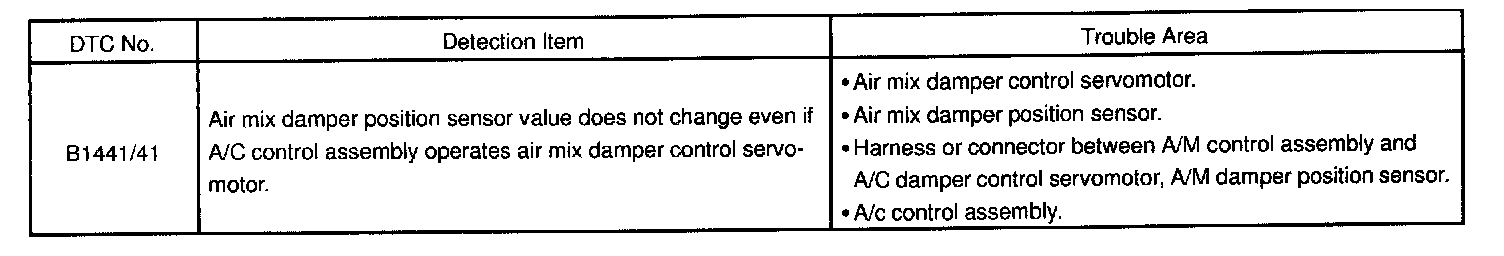

Detection Item:

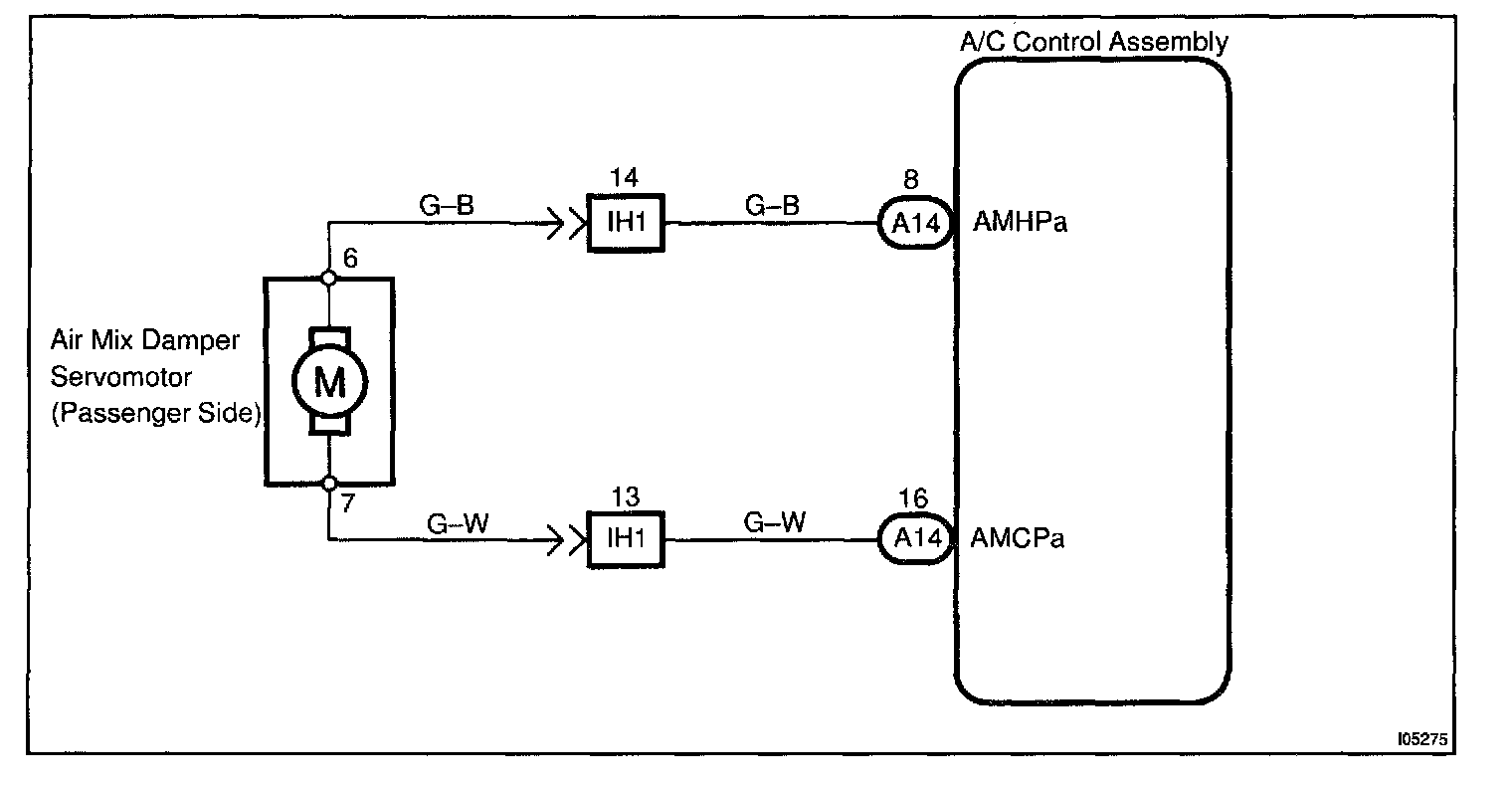

Wiring Diagram:

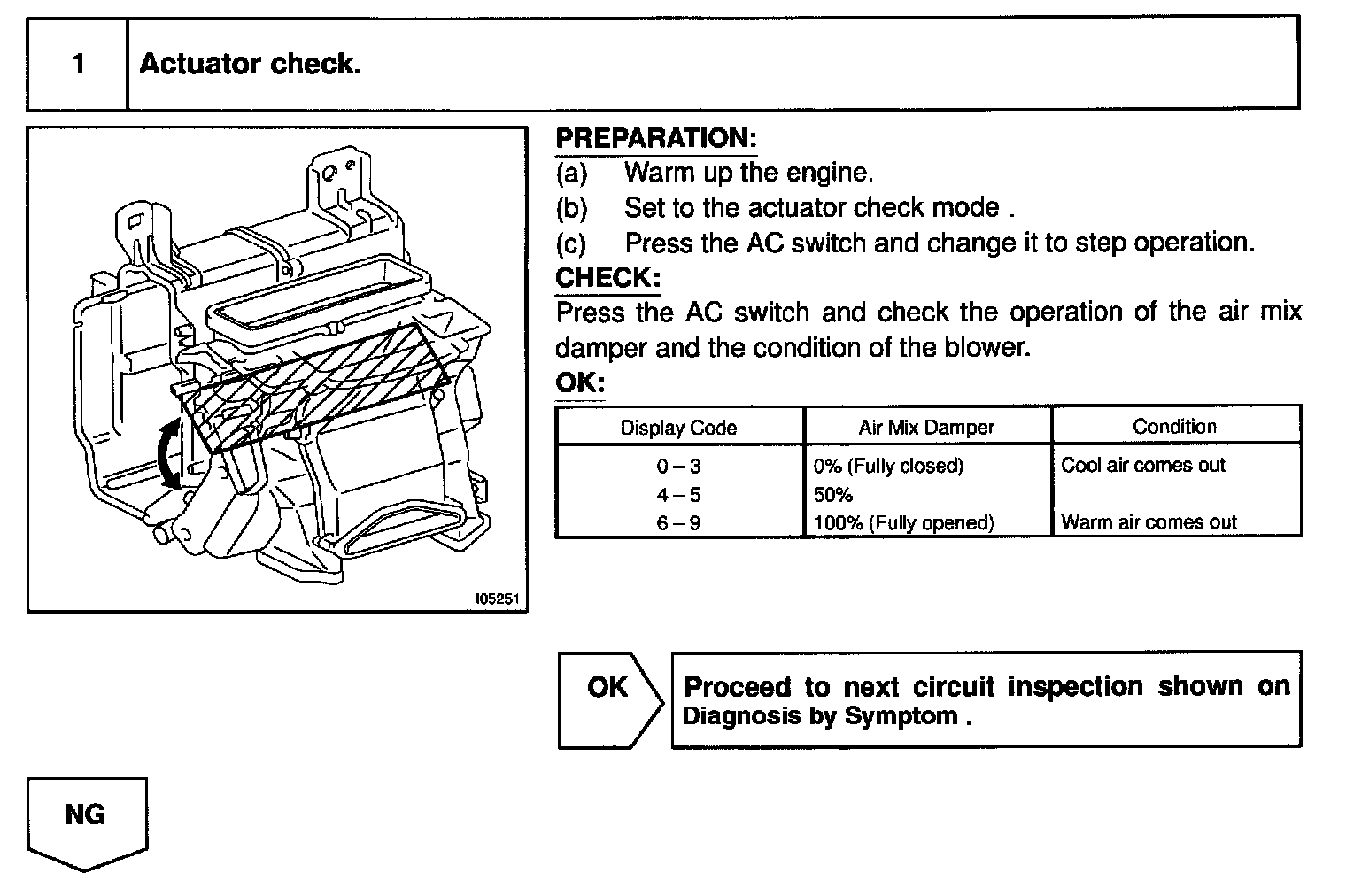

Step 1:

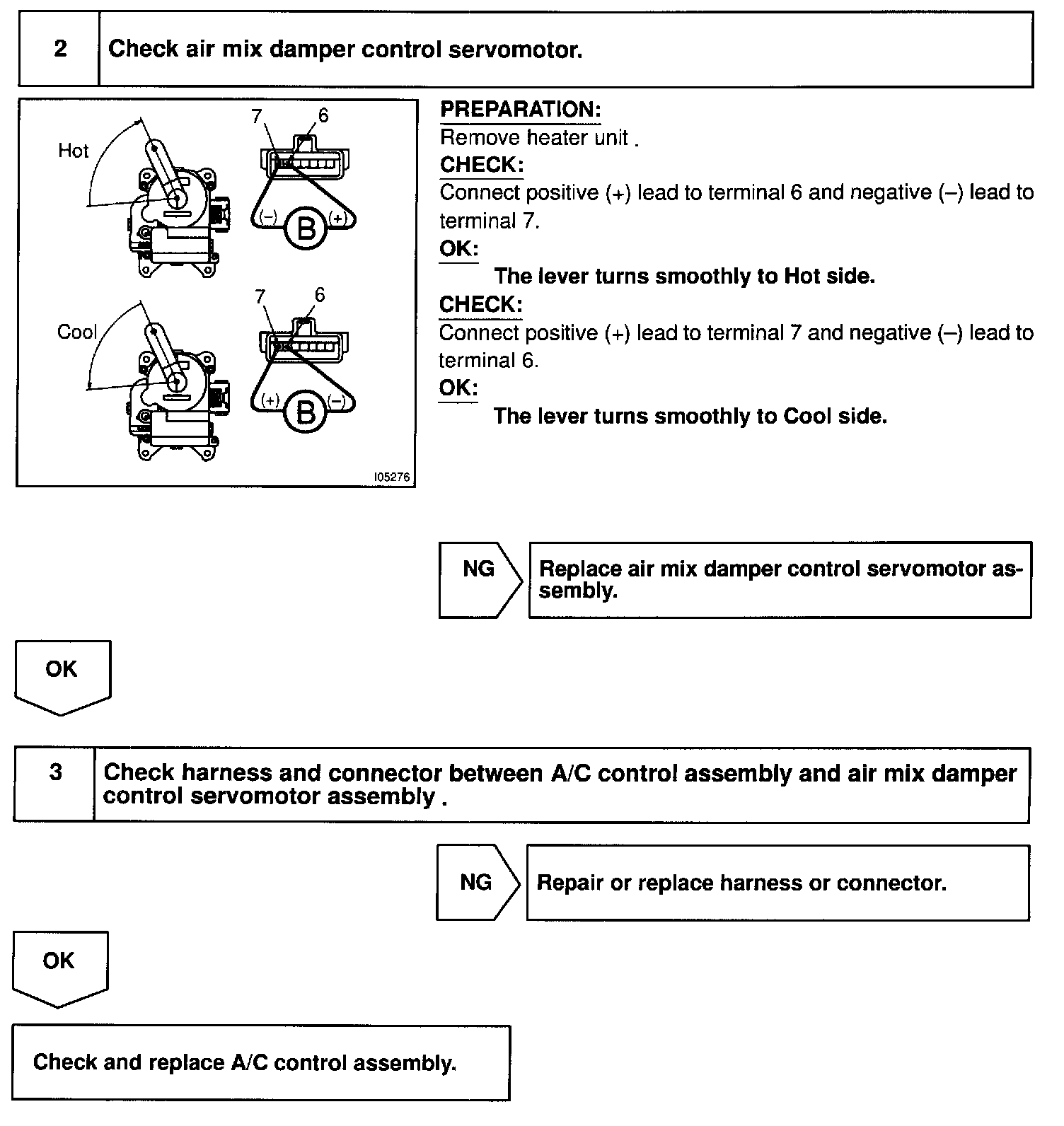

Steps 2 - 3:

INSPECTION PROCEDURE
