B1432

CIRCUIT DESCRIPTION
This sensor detects the position of the air inlet damper and sends the appropriate signals to the A/C control assembly. The position sensor is built into the air inlet damper control servomotor assembly.

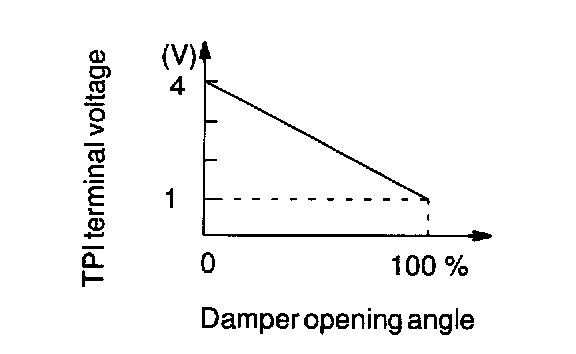

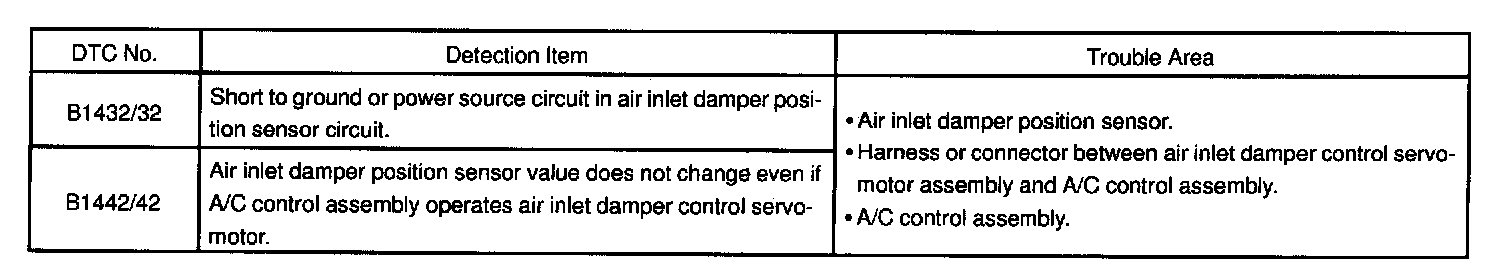

Detection Item:

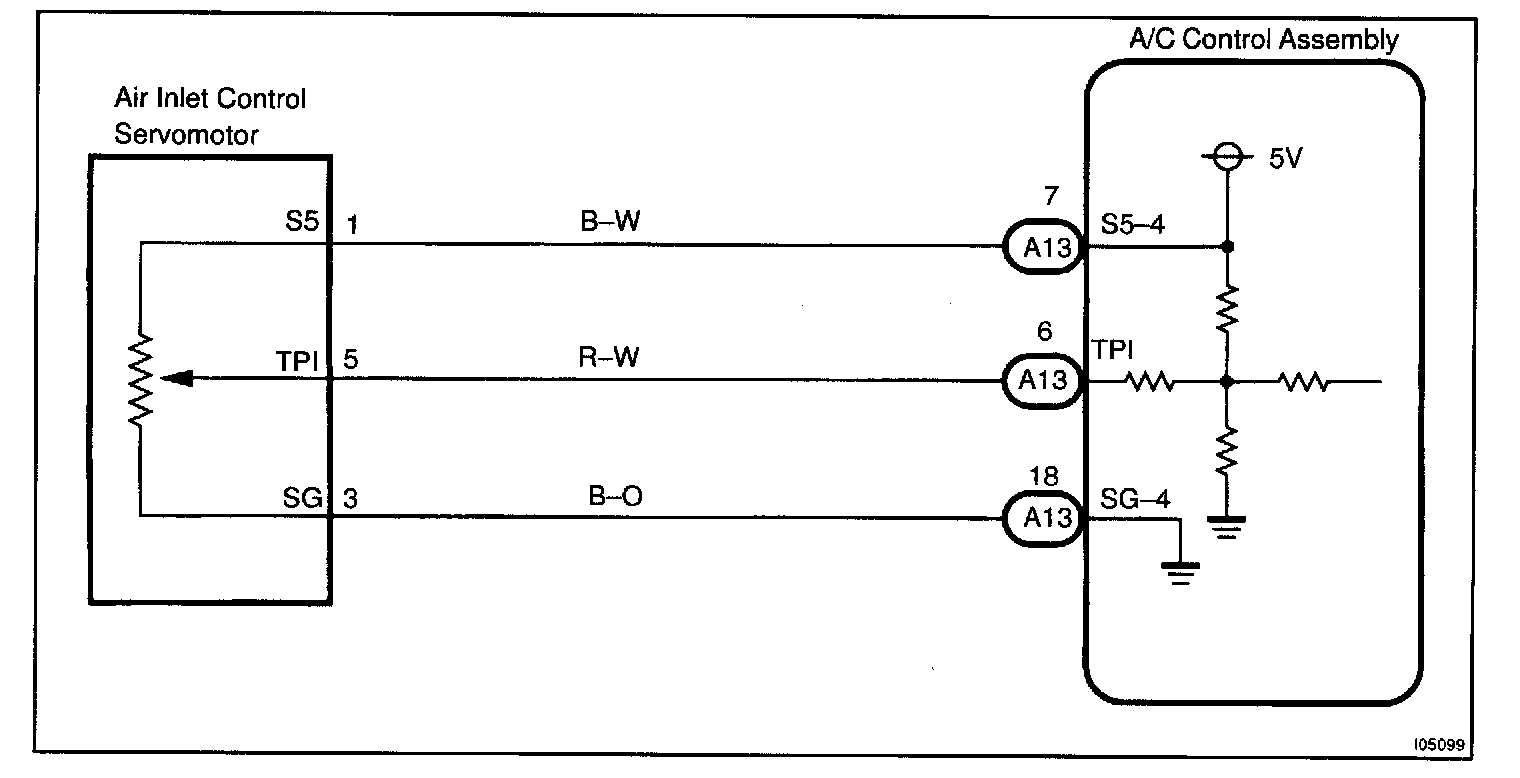

Wiring Diagram:

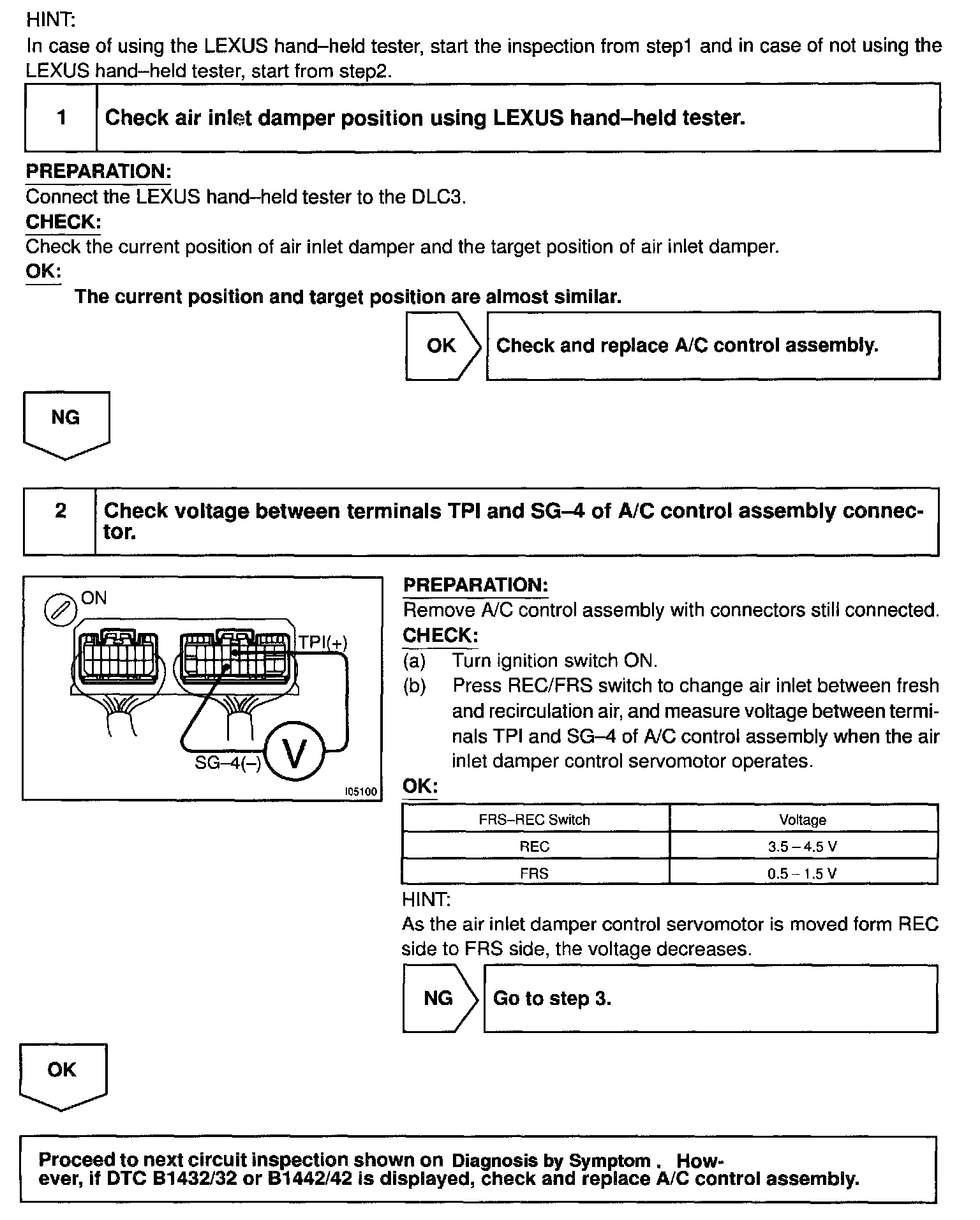

Steps 1 - 2:

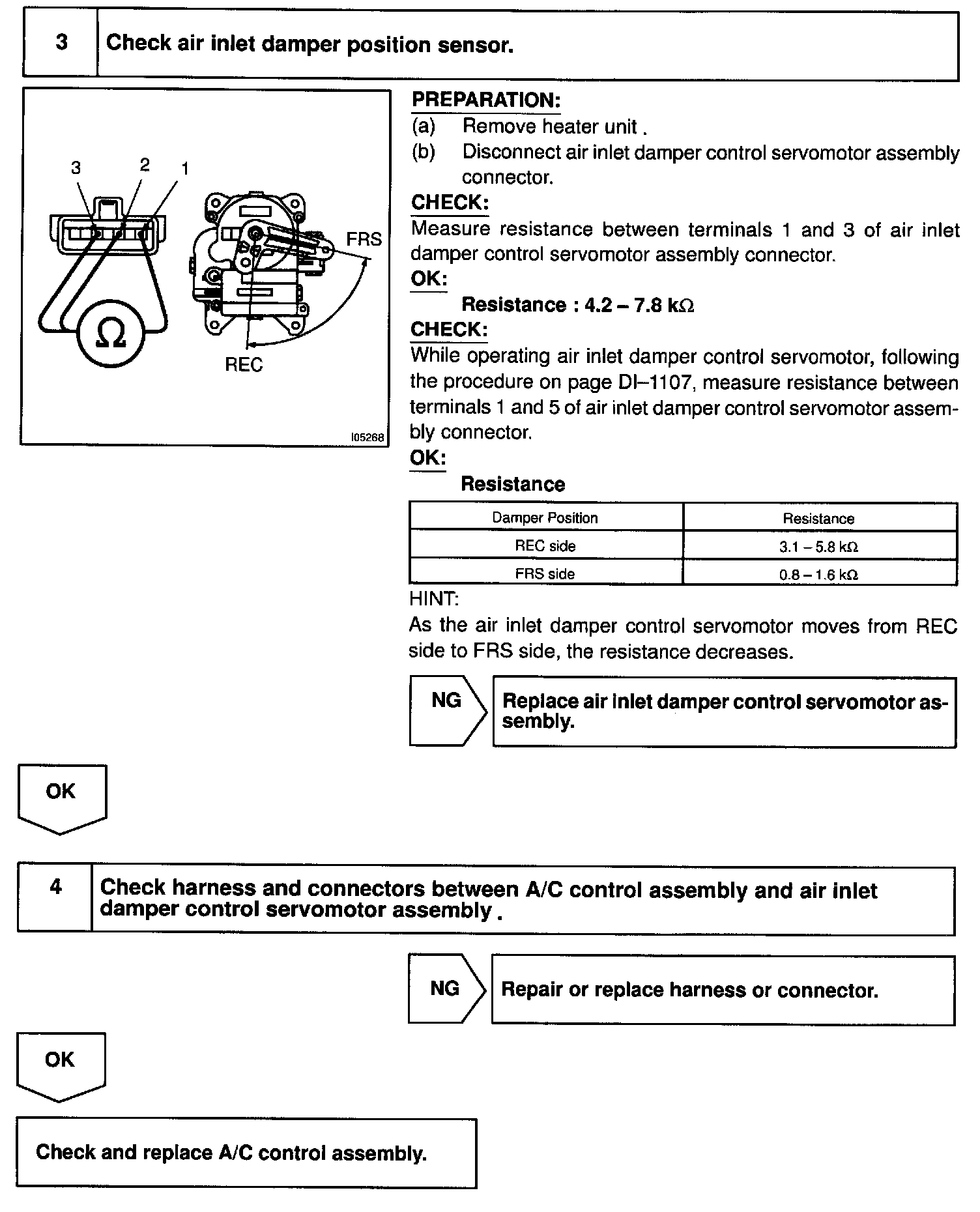

Steps 3 - 4:

INSPECTION PROCEDURE
