B1159

DTC B1159 Front Airbag Sensor Assembly (LH) Malfunction




CIRCUIT DESCRIPTION
The front airbag sensor assembly (LH) circuit consists of the airbag sensor assembly and front airbag sensor assembly (LH).
It causes the SRS to deploy when the SRS deployment conditions are satisfied.
For details of the function of each component, Description and Operation

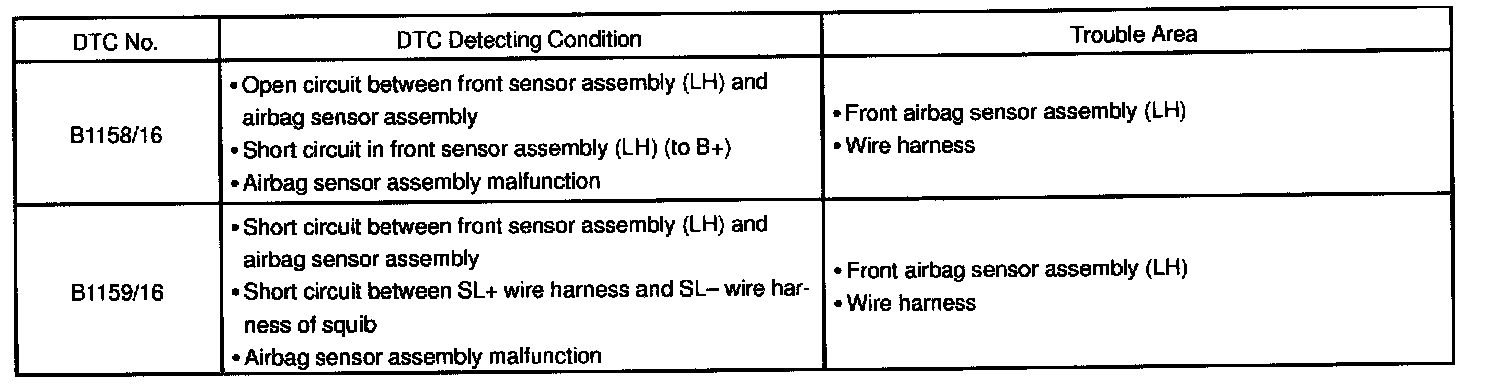

DTC B1159/16 is recorded when occurrence of a malfunction in the front airbag sensor assembly (LH) is detected.

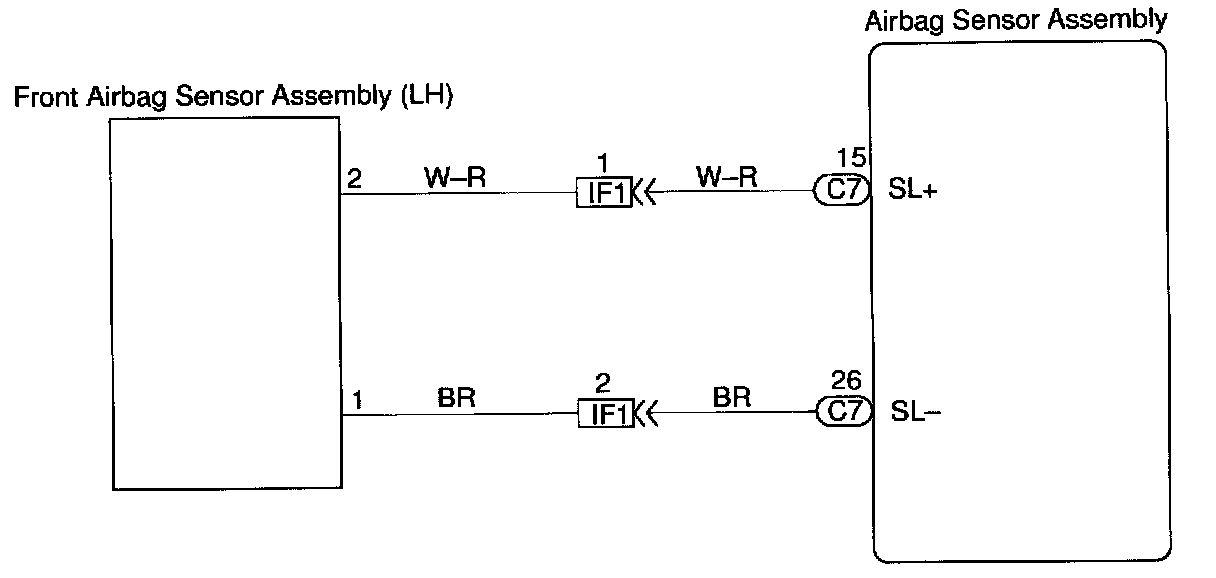

WIRING DIAGRAM

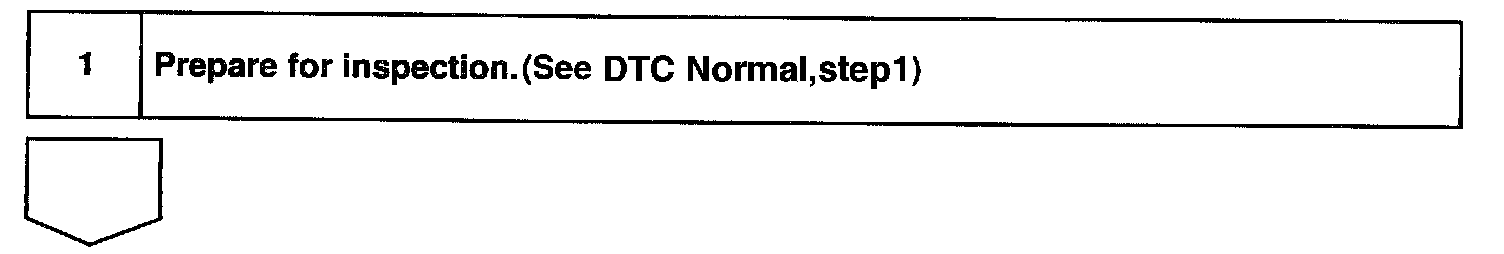

Step 1:

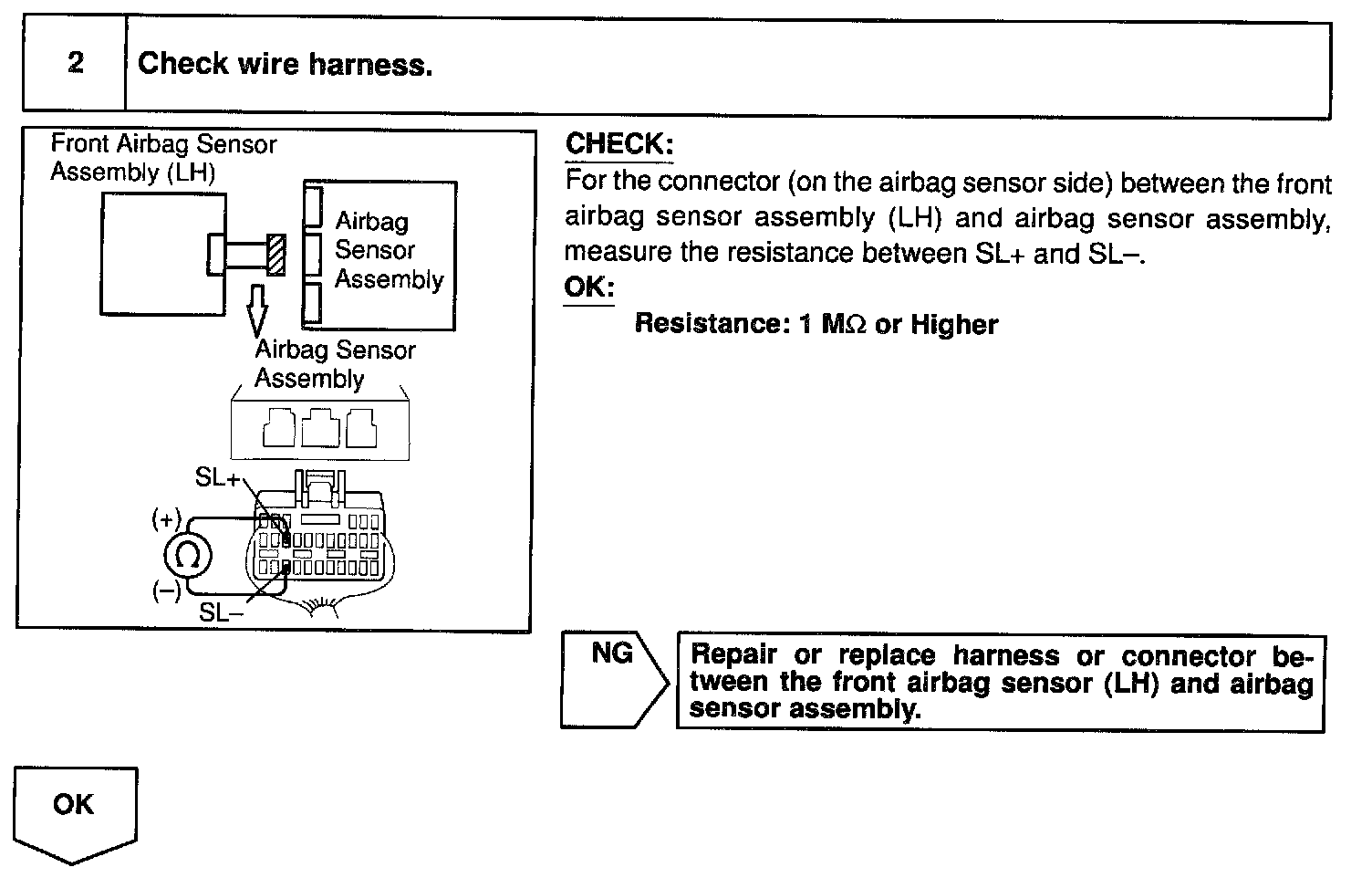

Step 2:

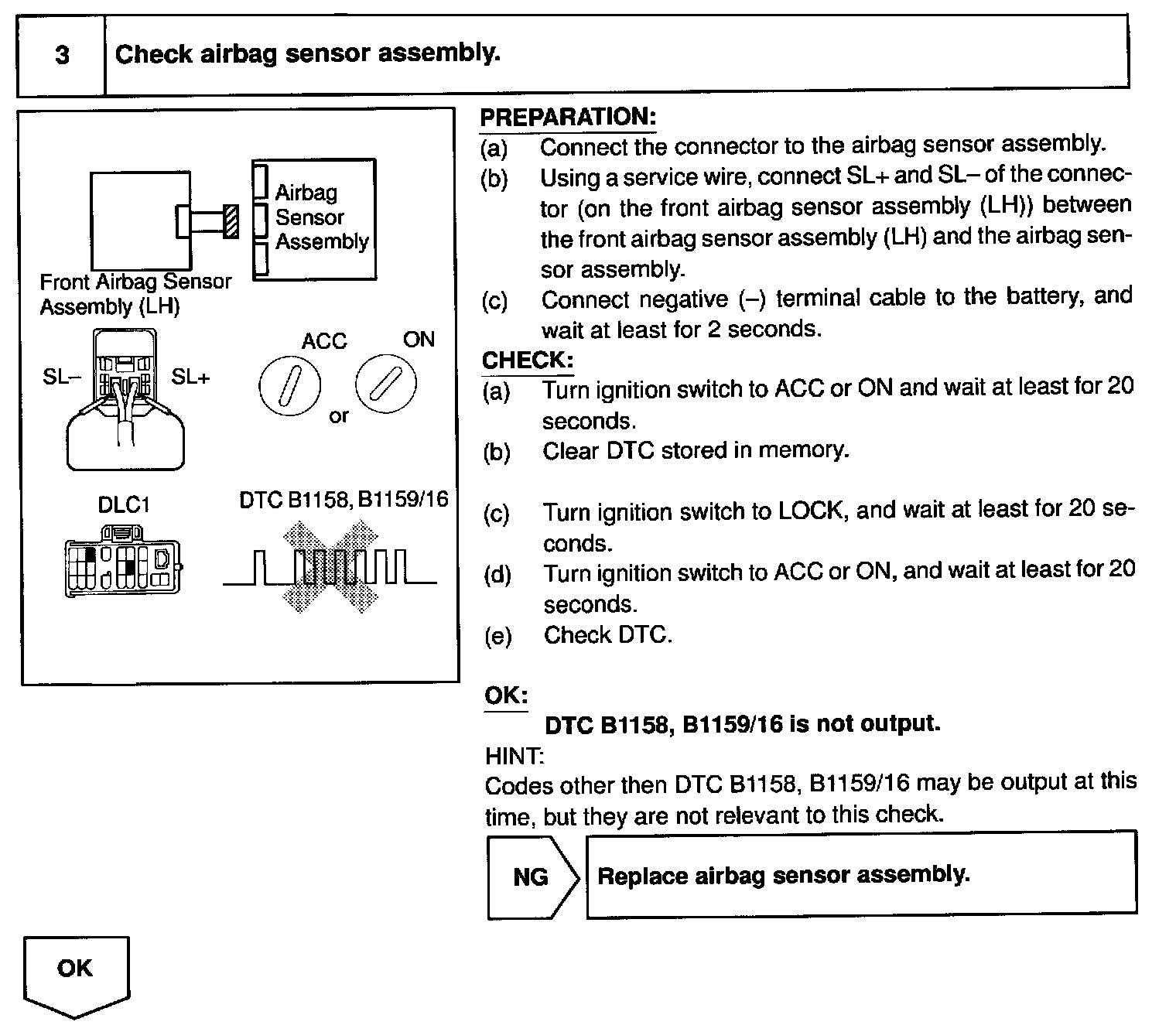

Step 3:

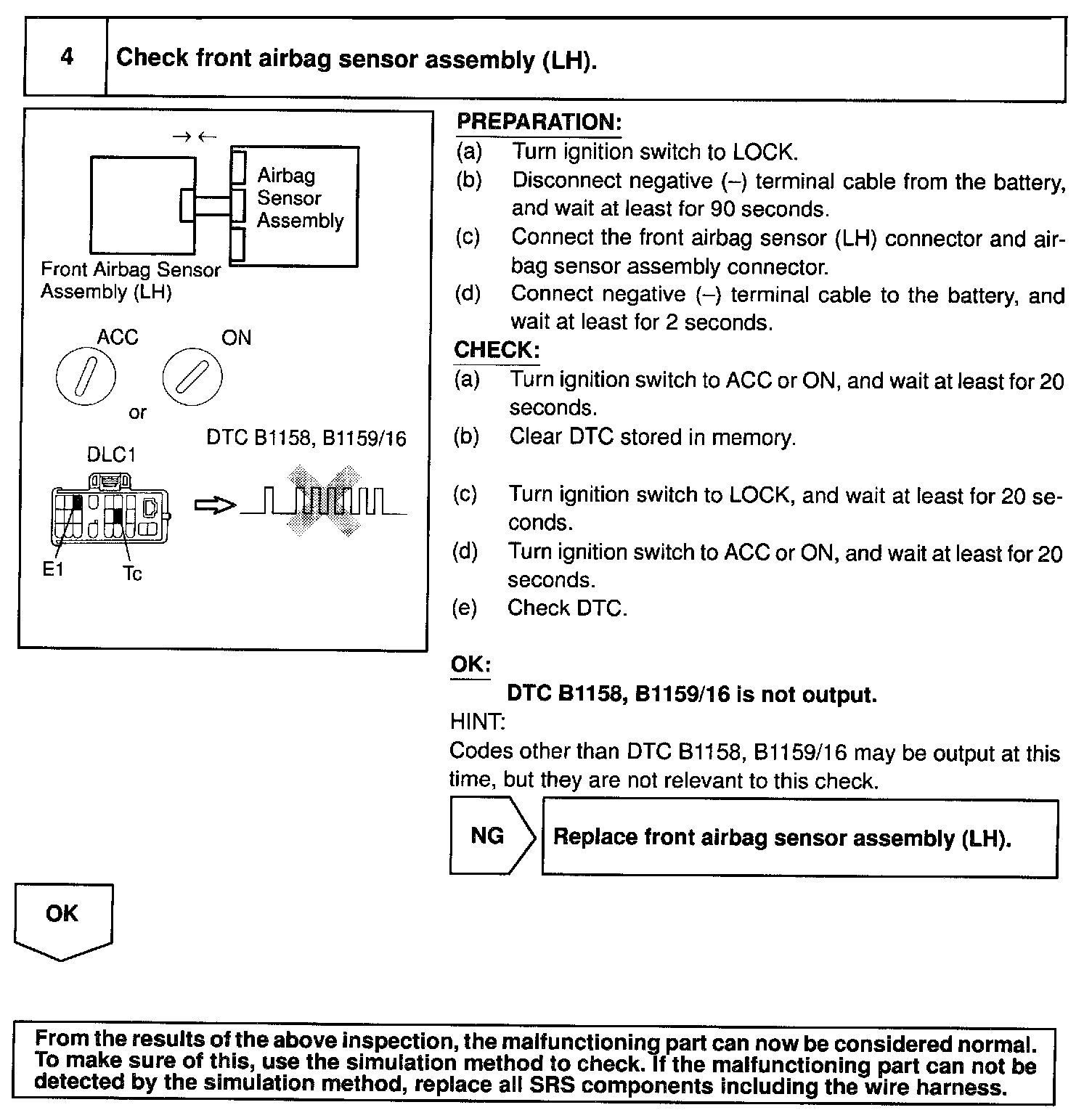

Step 4:

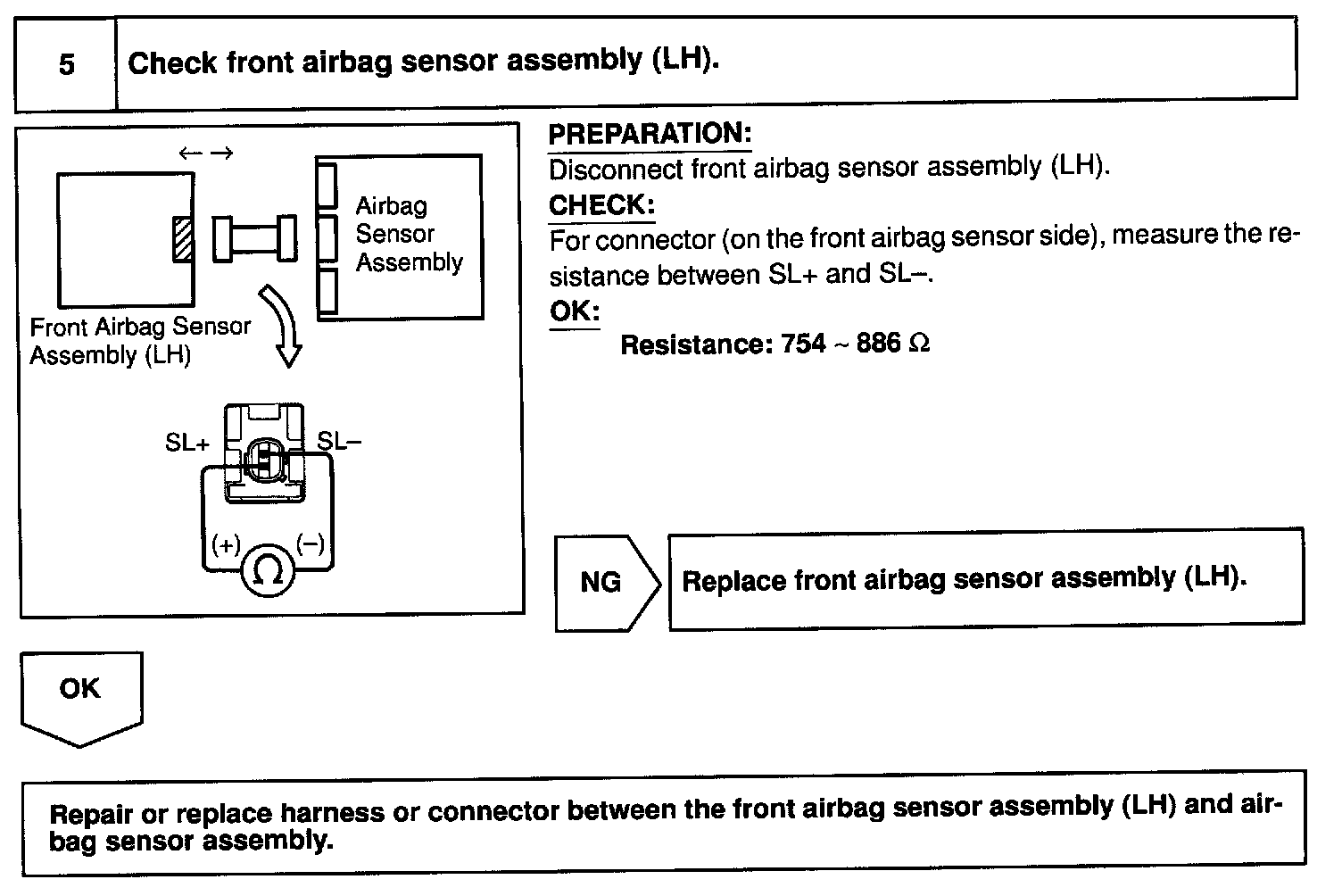

Step 5:

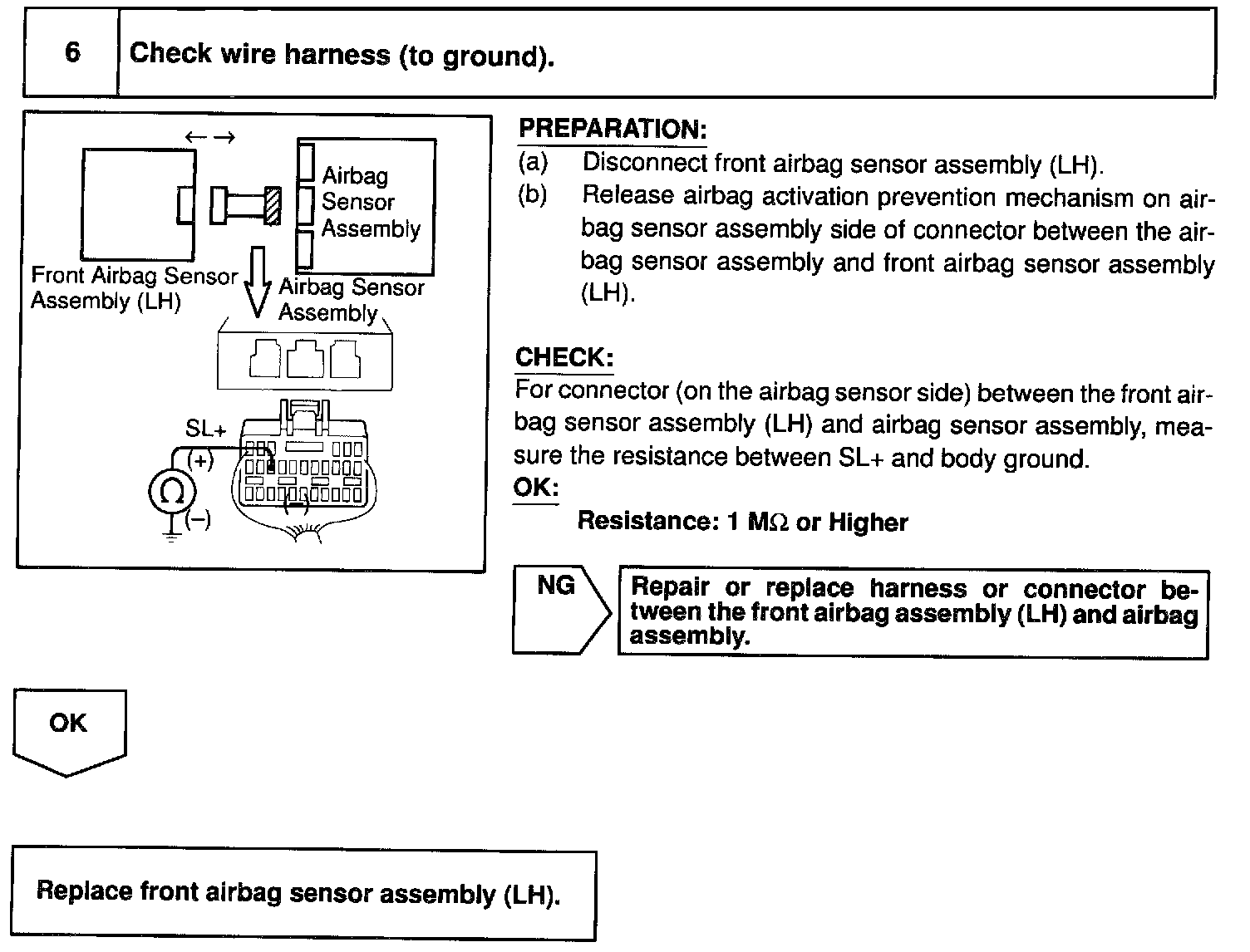

Step 6:

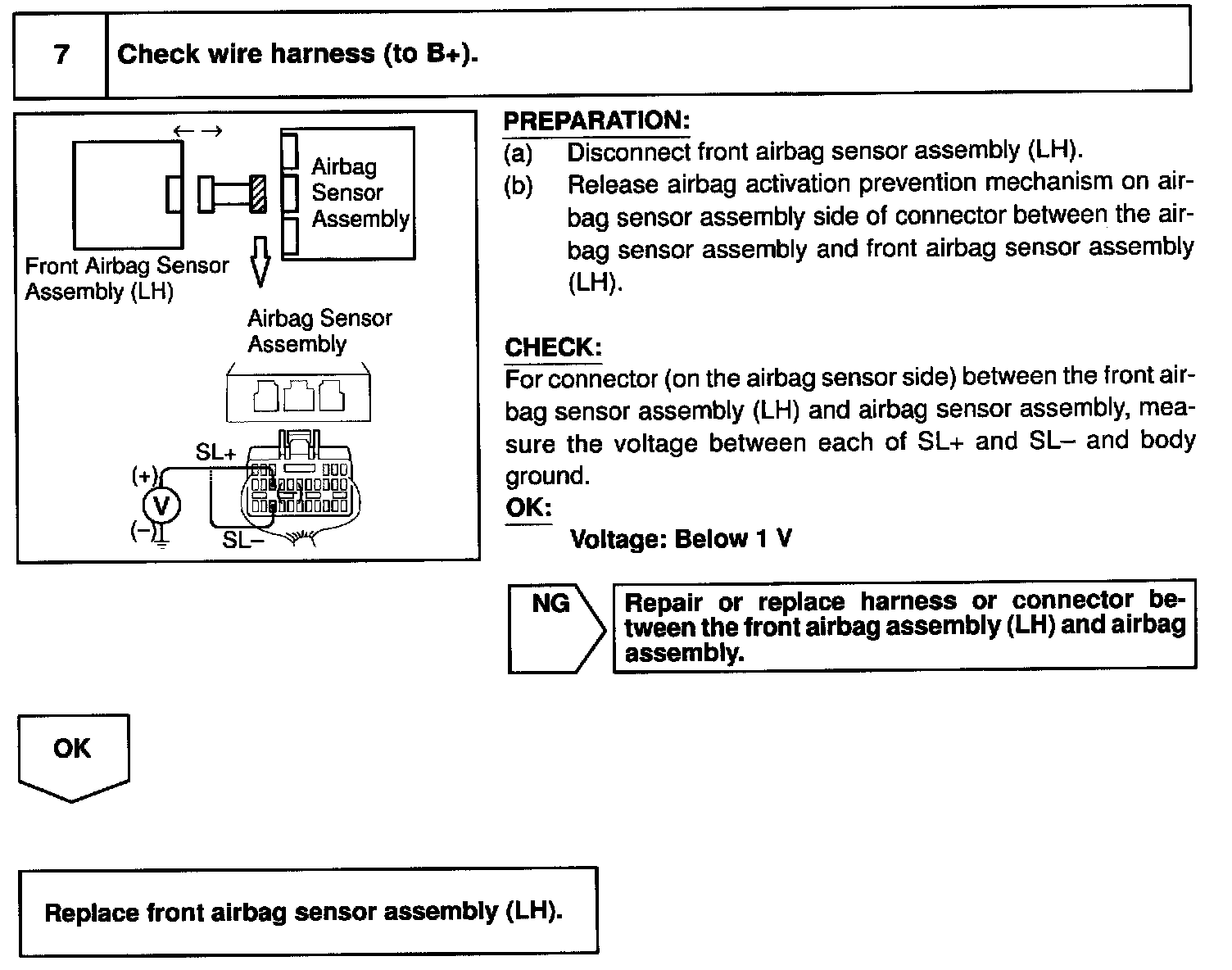

Step 7:

INSPECTION PROCEDURE
