B0112

DTC B0112 Short In Side Squib (RH) Circuit (to Ground)




CIRCUIT DESCRIPTION
The side squib circuit consists of the airbag sensor assembly and side airbag assembly (RH).
It causes the SRS to deploy when the SRS deployment conditions are satisfied.
For details of the function of each component, Description and Operation

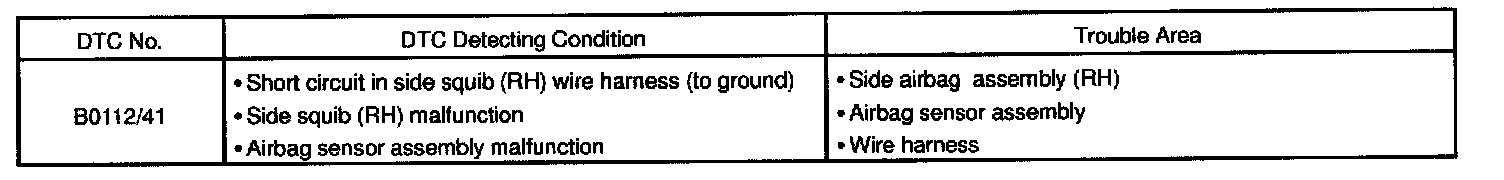

DTC B0112/41 is recorded when ground short is detected in the side squib (RH) circuit.

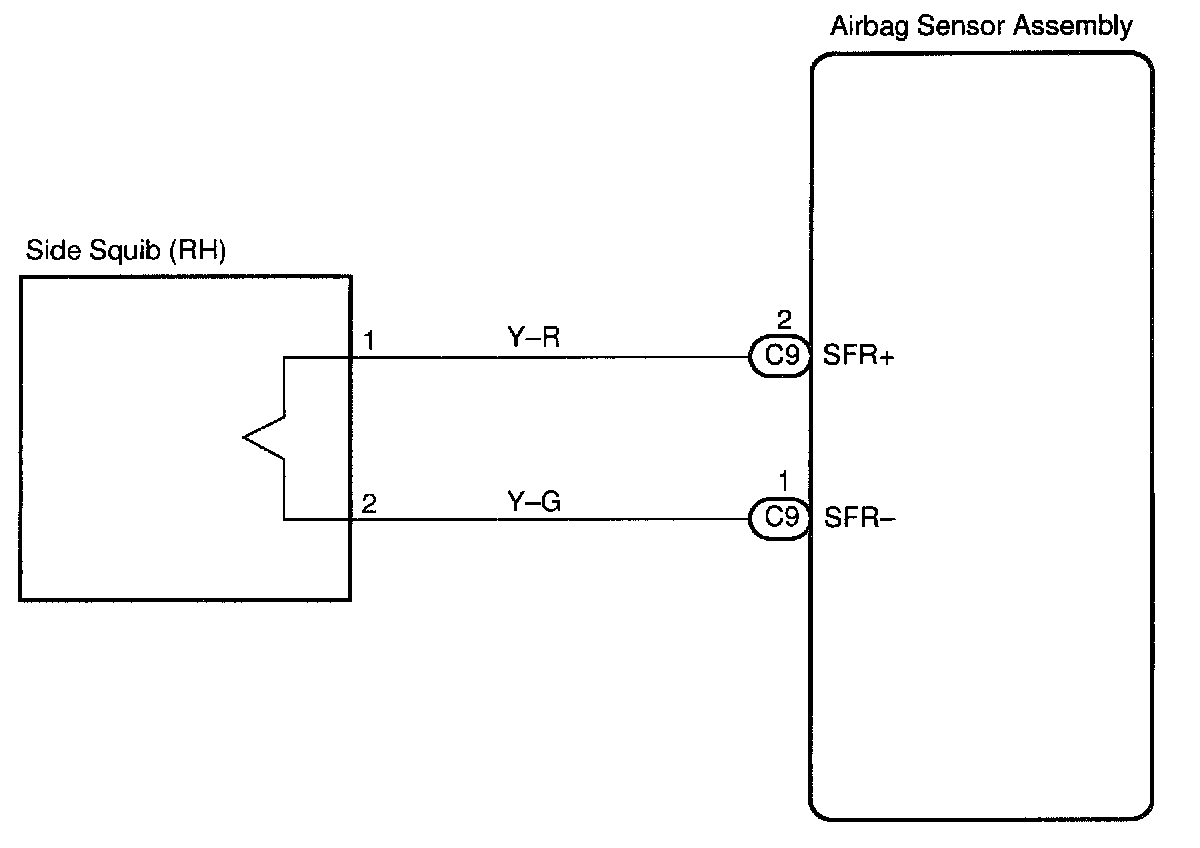

WIRING DIAGRAM

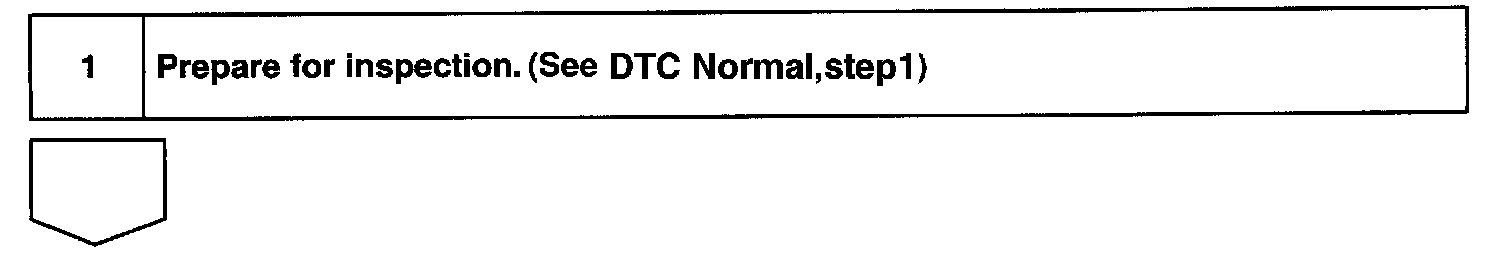

Step 1:

Step 2:

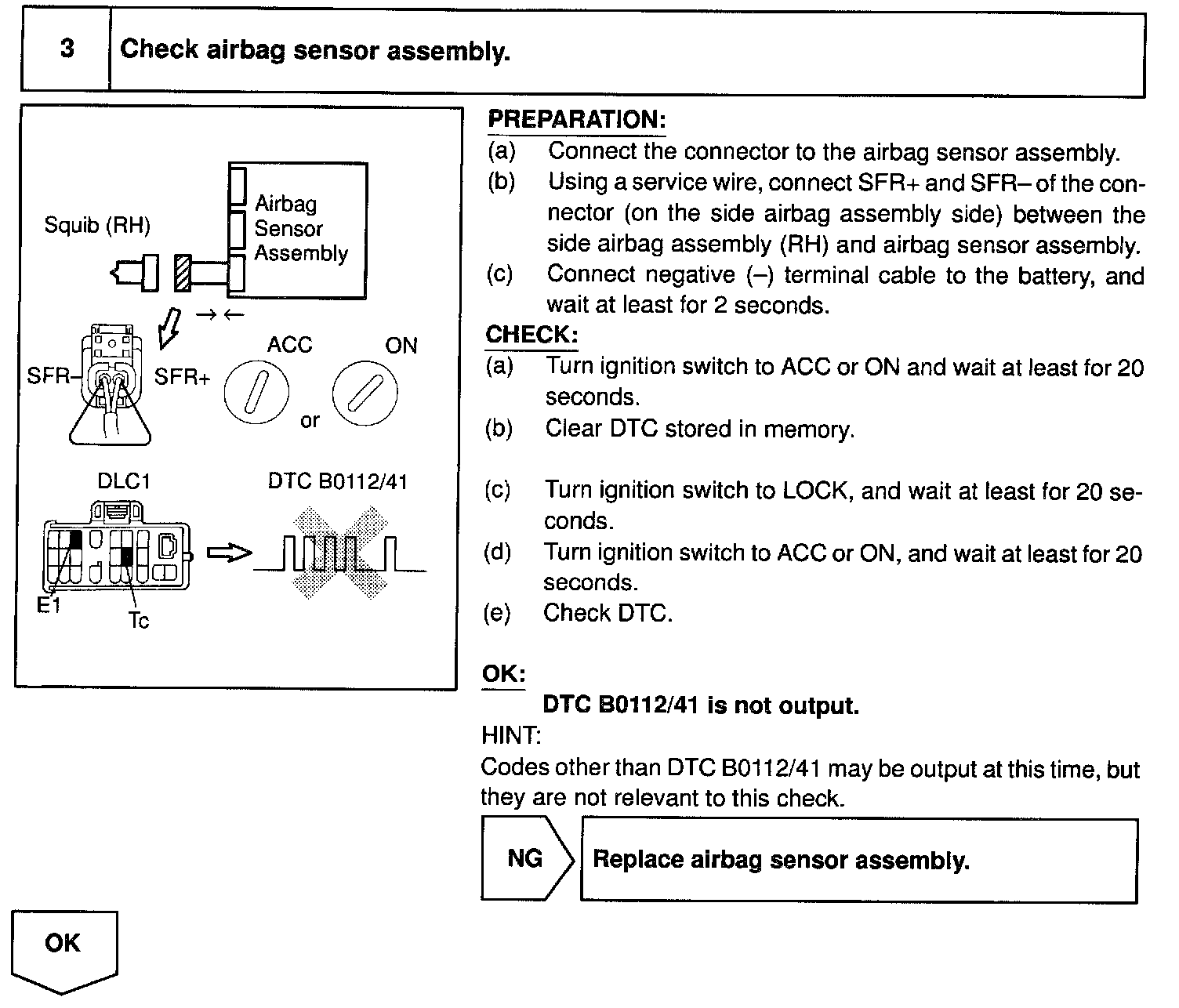

Step 3:

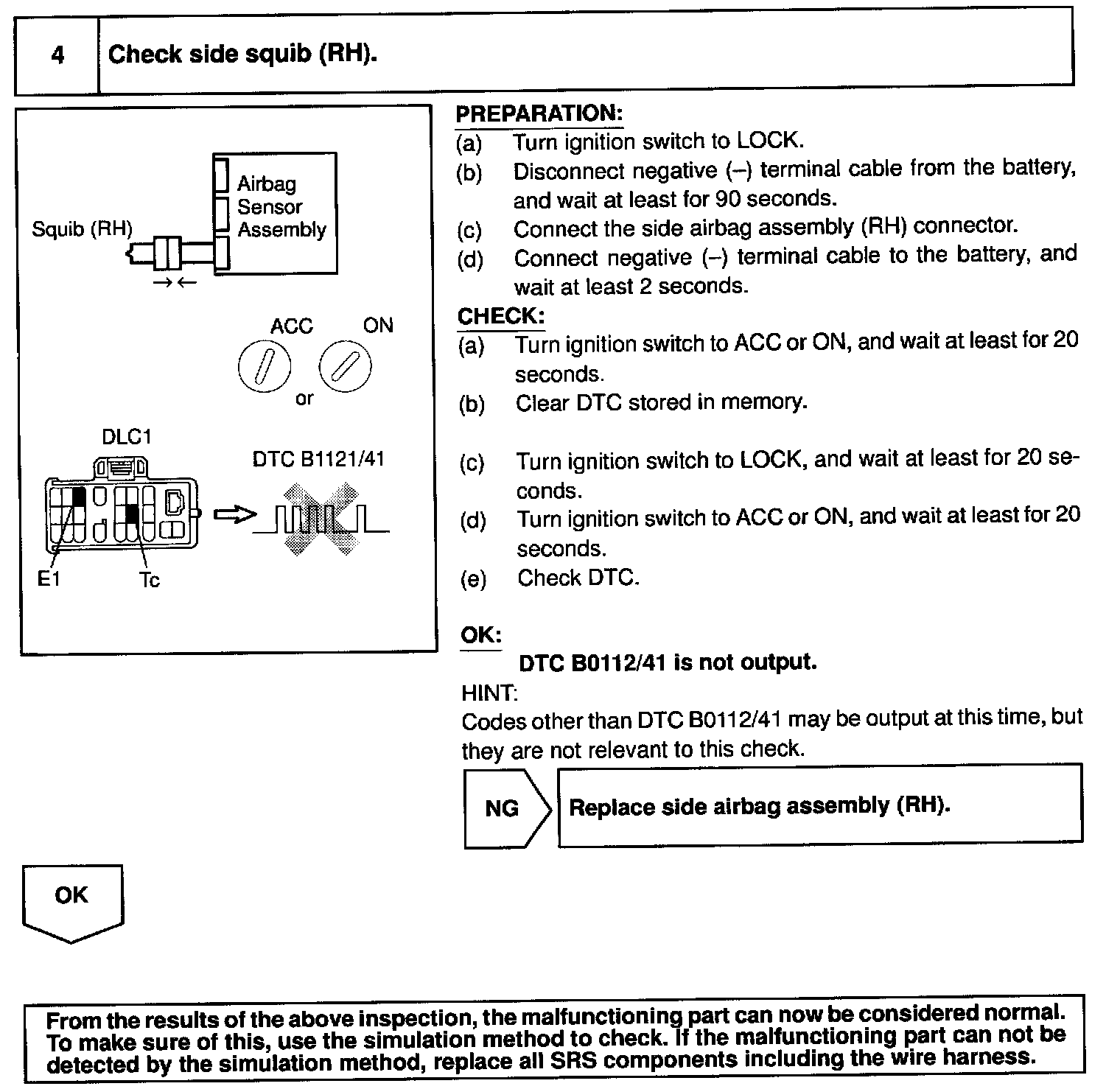

Step 4:

INSPECTION PROCEDURE
