Windshield Washer Spray Nozzle: Testing and Inspection
INSPECTIONINSPECT WASHER NOZZLE

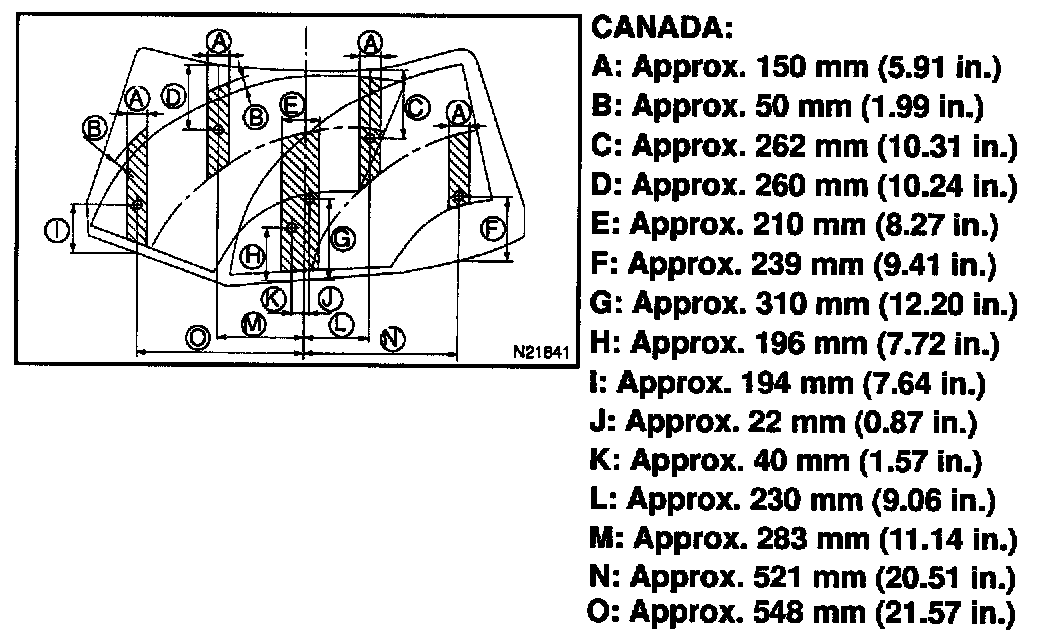

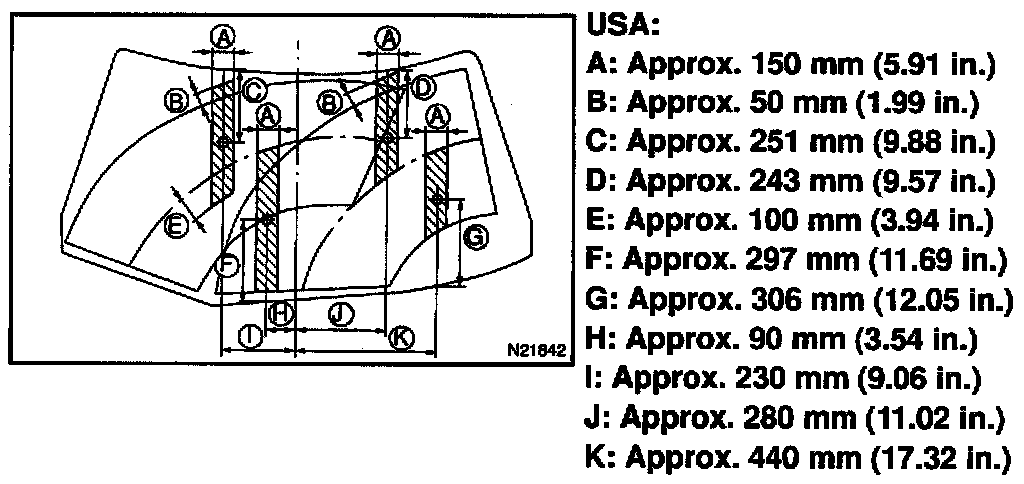

While operating the washer, check that the points where the washer fluid hits the windshield and the upsurge area are within the range indicated by the hatched line.
