Back Window Glass: Service and Repair

REMOVAL




1. REMOVE REAR SEAT CUSHION AND SEATBACK

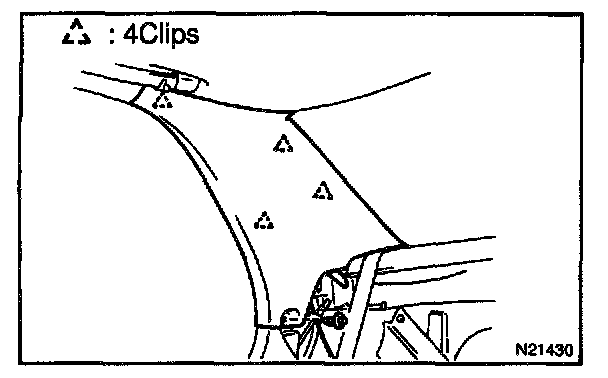

2. REMOVE ROOF SIDE INNER GARNISH
a. Remove the clip and garnish.
b. Employ the same manner described above to the other side.

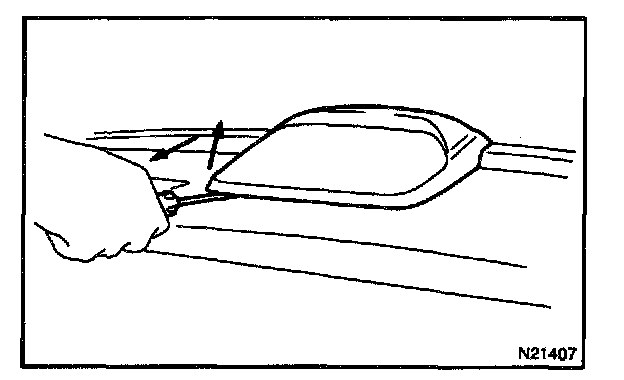

3. REMOVE REAR SPEAKER GRILLE
a. Using a screwdriver, remove the rear speaker grille as shown in the illustration.

HINT: Tape the screwdriver tip before use.

b. Disconnect the connector.

4. REMOVE TETHER ANCHOR
a. Using a screwdriver, remove the CRS tether anchor cover.

HINT: Tape the screwdriver tip before use.

b. Remove the tether anchor by loosening the bolt.
c. Employ the same manner described above to the other sides.




5. REMOVE BACK WINDOW MOULDING
a. Using a knife, cut oft the moulding as shown in the illustration.

NOTE: Do not damage the body with the knife.

b. Remove the remaining moulding.

6. REMOVE BACK WINDOW GLASS
Remove the glass in the same way as windshield.

INSTALLATION

HINT: Refer to the installation of windshield and install the back window glass by following operations.

1. CLEAN AND SHAPE CONTACT SURFACE OF BODY
2. REPLACE STOPPER
3. CLEAN REMOVED GLASS
4. POSITION GLASS
5. CLEAN CONTACT SURFACE OF GLASS
6. COAT CONTACT SURFACE OF BODY WITH PRIMER "M"
7. COAT CONTACT SURFACE OF GLASS WITH PRIMER "M"
8. APPLY ADHESIVE
9. INSTALL GLASS
10. INSPECT FOR LEAKS AND REPAIR
11. APPLY ADHESIVE AT MOULDING INSTALLATION AREA

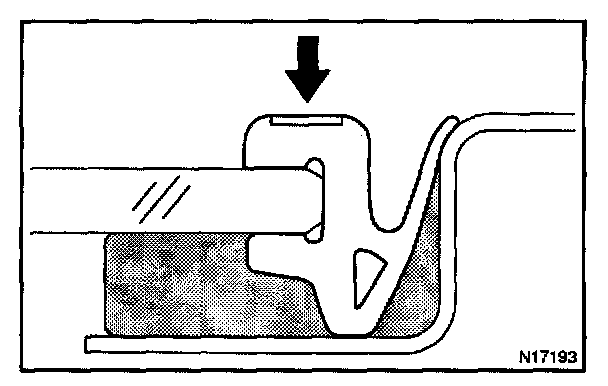

12. INSTALL BACK WINDOW MOULDING
Place a new moulding onto the body and tap it by hand.

13. INSTALL PACKAGE TRAY TRIM
14. INSTALL REAR SPEAKER GRILLE
15. INSTALL ROOF SIDE INNER GARNISHES
16. INSTALL TETHER ANCHOR
a. Install the tether anchor by tightening the bolt.

Torque: 20 N.m (204 kgf.cm, 15 ft.lbf).

b. Install the CRS tether anchor cover to the tether anchor.
c. Employ the same manner described above to the other sides.

17. INSTALL REAR SEAT CUSHION AND SEATBACK
